Dongfeng 10m3/10cbm/10000liters Skip Backhoe Loader Refuse Collection Machine Swing Arm Garbage Container Sanitation Vehicle Arm Roll Garbage Truck

Hubei Weiyu Special Vehicles Co., Ltd.
  • Type：Recycling
  • Certification：ISO9000, CCC, CE
  • Volume：6001-10000L
  • Emission Standard：Euro 3
  • Transmission Type：Manual
  • Payload：7ton, 8ton, 9ton,10ton

Base Info

  • Model NO.：CLW5086LJC
  • Fuel：Diesel
  • Drive Wheel：4×2
  • Brand：Dongfeng
  • Models：Medium
  • Usage：Swing Arm Type
  • Condition：New
  • Chassis Brand：Dongfeng, Foton, Isuzu, Sinotruk, etc.
  • Hopper Size：10cbm, Ground Type
  • Loading Capacity：6ton, 7ton, 8ton
  • Hopper Thickness：4mm, Carbon Steel Q235B
  • Protective Material：Q235A Carbon Steel
  • Hopper Quantity：as Per Customer′s Request
  • Dump Type：Hydraulic Cylinder Lifting and Self-Loading
  • Controlling Way：Three-Way Hydraulic Control Valve
  • Color：as Per Customer′s Request
  • Warranty：1 Year
  • Transport Package：Naked Pack with Wax
  • Specification：7350*2500*3350 (mm)
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

General Technical ParametersOverall Dimension7350*2500*3350 (mm)Gross Vehicle Weight16000(Kg)Curb Weight6660(Kg)Chassis SpecificationChassis BrandDongfeng D9Drive model4*2CabinSingle Row, LHD, with air condition.Number of Passengers3EngineModel160HP, 4-stroke direct injection , 6-cylinder in-line, turbocharged intercooled, withABS.Power118KW/160HPEmission standardEURO 3Displacement5900(ml)Fuel typeDieselGearbox6Forwards & 2Reverse, manual operation, with power steering.Brake SystemAir breakWheel Base3950mmFront/Rear Axle Loading3600/8000(Kg)Approach/Departure Angle30/21(°)OverhangMechanical Suspension, 9/11+8Tire9.00R20, 6pc with 1 spare tireMax Driving Speed90(km/h)Upperstructure SpecificationGarbage HopperDimension3700×1850×1400mmStandard ConfigurationWith one garbage bin, with hydraulic rear outriggerVolumeGround type, 8CBMLoading Capacity6TonThickness5mm, Carbon Steel Q235BDump typeHydraulic cylinder lifting and self-loadingDump angle≥45°Hydraulic system pressure≤16MpaProtective MaterialQ235A Carbon SteelControlling WayThree-way hydraulic control valveOther Configuration
  1. Electronically controlled valve, trash bin type, trash bin quantity, etc.

    Reference Photos

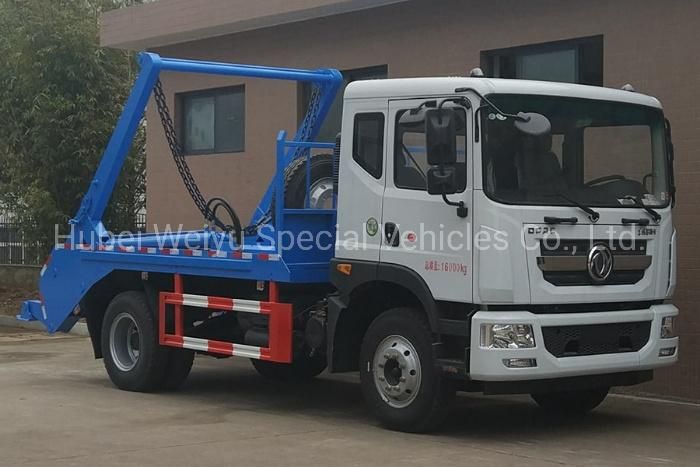

    Dongfeng 10m3/10cbm/10000liters Skip Backhoe Loader Refuse Collection Machine Swing Arm Garbage Container Sanitation Vehicle Arm Roll Garbage Truck

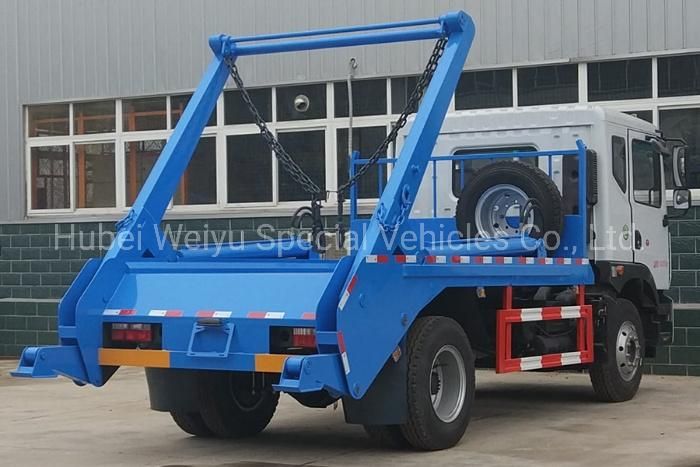

    Dongfeng 10m3/10cbm/10000liters Skip Backhoe Loader Refuse Collection Machine Swing Arm Garbage Container Sanitation Vehicle Arm Roll Garbage Truck

    Main Structure and details
    Dongfeng 10m3/10cbm/10000liters Skip Backhoe Loader Refuse Collection Machine Swing Arm Garbage Container Sanitation Vehicle Arm Roll Garbage Truck

    Company Introduction
    Dongfeng 10m3/10cbm/10000liters Skip Backhoe Loader Refuse Collection Machine Swing Arm Garbage Container Sanitation Vehicle Arm Roll Garbage Truck

    Certificates
    Dongfeng 10m3/10cbm/10000liters Skip Backhoe Loader Refuse Collection Machine Swing Arm Garbage Container Sanitation Vehicle Arm Roll Garbage Truck
    Dongfeng 10m3/10cbm/10000liters Skip Backhoe Loader Refuse Collection Machine Swing Arm Garbage Container Sanitation Vehicle Arm Roll Garbage Truck

    Our Overseas Exhibition
    Dongfeng 10m3/10cbm/10000liters Skip Backhoe Loader Refuse Collection Machine Swing Arm Garbage Container Sanitation Vehicle Arm Roll Garbage Truck

    Contact Flora for more details:  +86-13971508969 (Mobile)
