Forland Scroll Poster Advertising Truck Road Show Scrolling Light Box Advertising Vehicle
Hubei Weiyu Special Vehicles Co., Ltd.- Type:Scrolling Light Box Truck
- Application:Outdoor Activity
- Displacement:1.3L
- Intergrant:Operating System
- Passenger Number:3
- Fuel Type:Gasoline
Base Info
- Model NO.:CLW5620XV
- LED Tube Core Type:Light Box
- Self-powered:Self-powered
- LED Screen Type:Light Box
- Power Supply Mode:Own Generator-powered
- Truck Chassis Brand:Foton
- Hand Driving:LHD or Rhd
- Frame Body:Composite Steel
- Floor:Aluminum Patterned Floor
- Control System:Computer, Electrical Distribution Box
- Power Supply:Silent Diesel Generator or Indoor Power Supply
- Sound System:Loudspeaker 4PCS, Amplifier 1PC
- Logo:as Customer′s Request
- Size:Customer′s Request
- Warranty:One Year
- User Manual:Yes
- Transport Package:Bulk Ship, RO-RO
- Specification:mini size
- Trademark:CLW
- Origin:Suizhou, China
- HS Code:8705909090
- Production Capacity:500 Unit,Month
Description
New condition/Left hand drive/4x2Chassis Brand FOTON AUTO Model FORLAND Curb weight(kg) 2480 kg Front/Rear Axle loading(kg) 2000/3000 kg Wheelbase(mm) 2600 mm/2800 mm Dimensions(mm) 5800*1910*2850 mm Front/Rear overhang(mm) 1130/1510 mm Wheel track (front/rear) (mm) 1495/1435 mm Approach/Departure angle(°) 20/16° Max. driving speed(km/h) 90 km/h Clutch Reinforced diaphragm clutch Brakes Hydraulic oil brakes Steering Gear Power steering, hydraulic steering with power assistance Tire Quantity 6pcs with one spare tire Specifications 6.50-15 nylon tire Transmission Manual type, 5 Forwards and 1 reverse Cabin It can accommodate two people. With Air conditioner and AM/FM radio Engine Model N485 Fuel type Diesel Displacement(ml) 2156 ml Horsepower(HP) 48 HP Cylinder number(pcs) 4 pcs Emission standard Euro 1 Upper & Equipment LED Advertising Screen System 1. Left and right side scrolling light box
2. Rear side scrolling light box
3. Internal and external electrical distribution box
4. Circulating ventilation and cooling systems
5. Sound system
6. Aluminum patterned floor

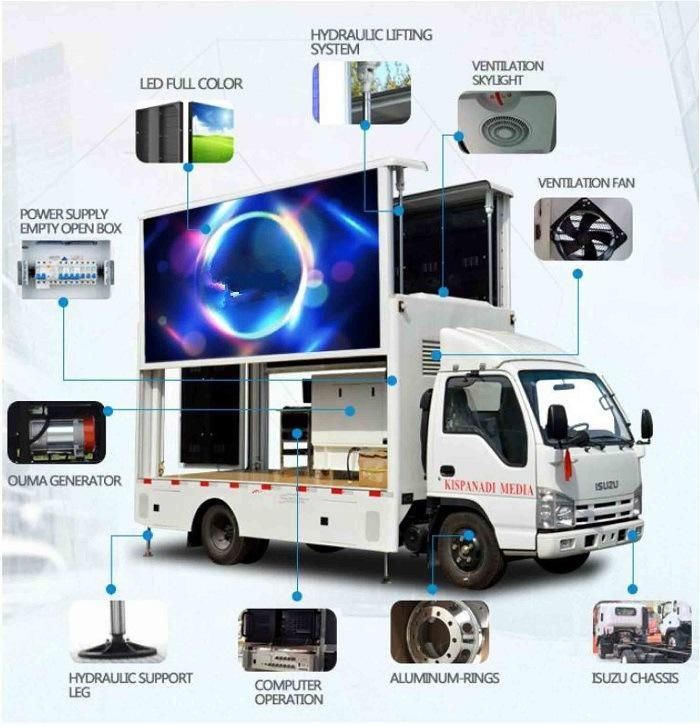

Product Diagram
Optional Parts

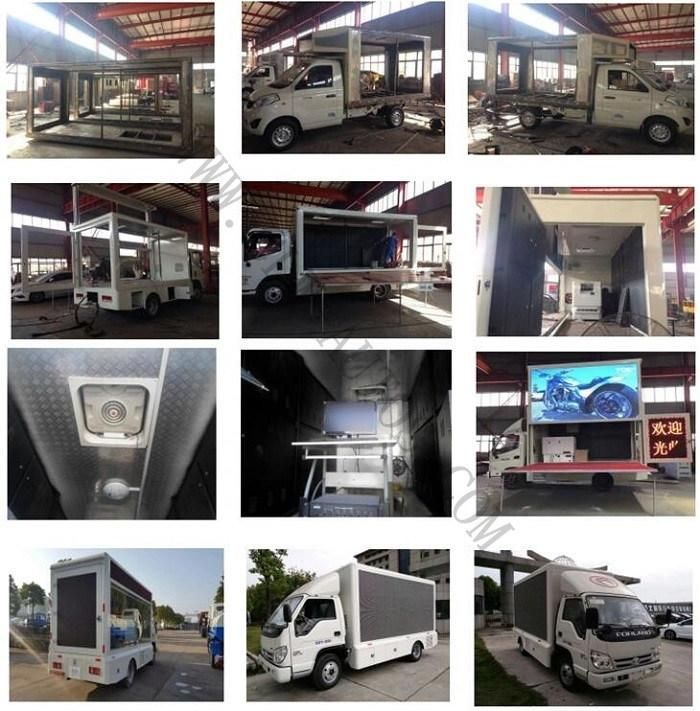

Production Process

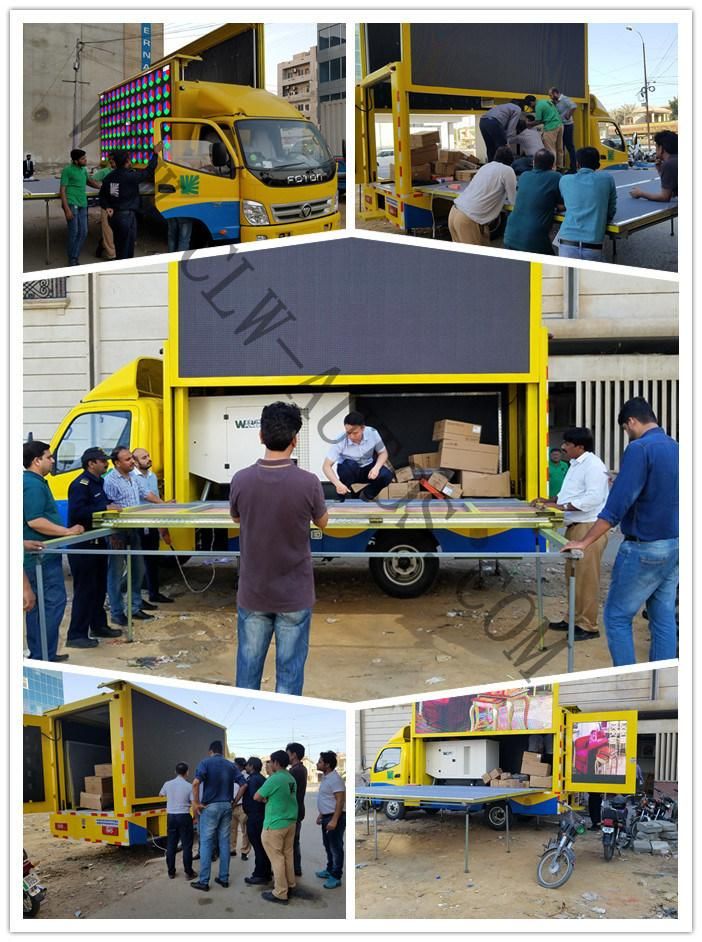

Overseas Training
Company Introduction
Overseas Exhibition and Local Support
Cusomter Visiting and Inspection
