18meter 20meters 22meters Overhead Working Bucket Boom Truck Hydraulic Lift Isuzu Aerial Work Platform Truck

Hubei Weiyu Special Vehicles Co., Ltd.

Type：Z
Certification：ISO9000, CCC, EEC, CE
Emission Standard：Euro 2
Hoesrpower：90HP - 190HP
Payload：5-15ton
Fuel：Diesel

Base Info

Model NO.：CLW5071JGKZ3
Transmission Type：Manual
Drive Wheel：4x2
Condition：New
Produce Name：High Altitude Operation Truck
Lifting Height：14m, 16m, 18m, 20m, 22m
Bucket Loading Weight：200kg
Bucket Size：1000X650X1200mm
Turning Angle：360 Degree
Arm Type：Folded or Telescopic
Max Working Height：18meters
Max Working Radius：8.0meters
Working Radius in Max Height：3meters
Working Height in Max Working Radius：10.1meters
Front Legs：H Shape
Rear Legs：H Shape
Hook Weight：800kg
Max Hook Height：8.1meters
Optional Brand：Dongfeng, Isuzu, Forland, Sinotruk FAW
Transport Package：Naked Package
Specification：20meters
Trademark：CLW WEIYU
Origin：China
HS Code：870590990
Production Capacity：500unit,Month

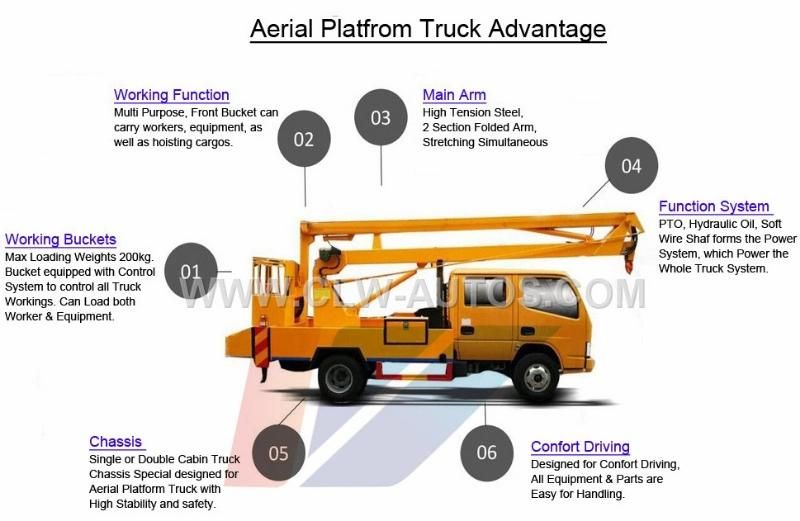

Description

18Meter Aerail Platform TruckOverall dimensions8450×2050×3050 mmMaximum Height18 metersMaximum operation radius7.9 metersGross vehicle weight 6705 kgMass in working order6380 kgWheel base4200 mmF/R track base1015/2280mmApproach/departure angle24/10°CabinDongfeng, Right/Left Hand Driving, with A/C.Engine Cummins Diesel Engine B140 33, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter coolingDisplacement/ HP3900 Liter / 140HPMax speed90 km/hTire specification900R20Traction system4x2Number of axles2Equipment1. Max operation height:18m
(including 1.7meter person height, net height is 16.3meter),
2. Max operation radius≤7.9m,
3. Max working platform height≤16.3m,
4. Working platform rating loading≤200kg,
5. Working platform rating allowable passengers=2,
6. Working platform dimension:1100*570*1000mm,
7. 360°turning(left or right), 4 H-shape legs.
8.The cage be operated both in the air and on the earth

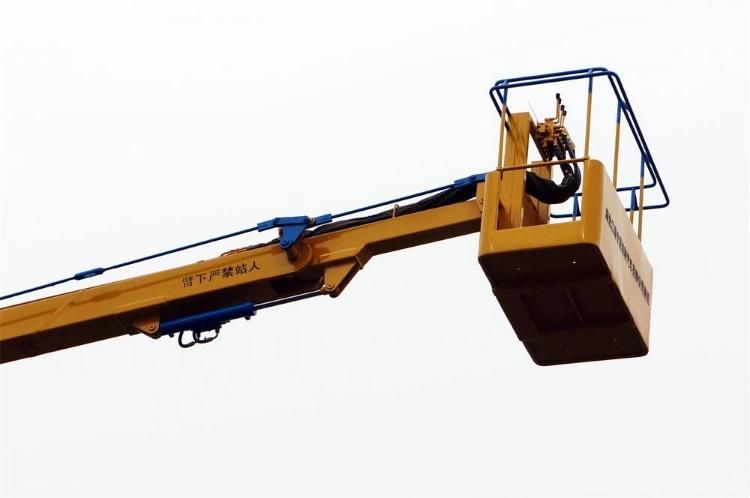

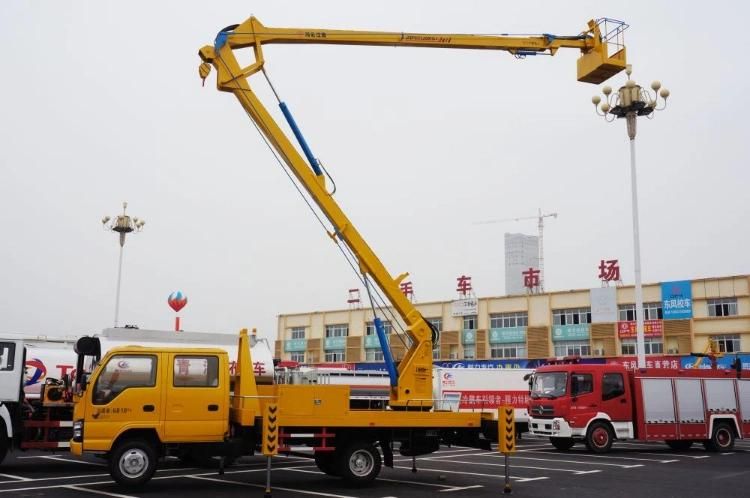

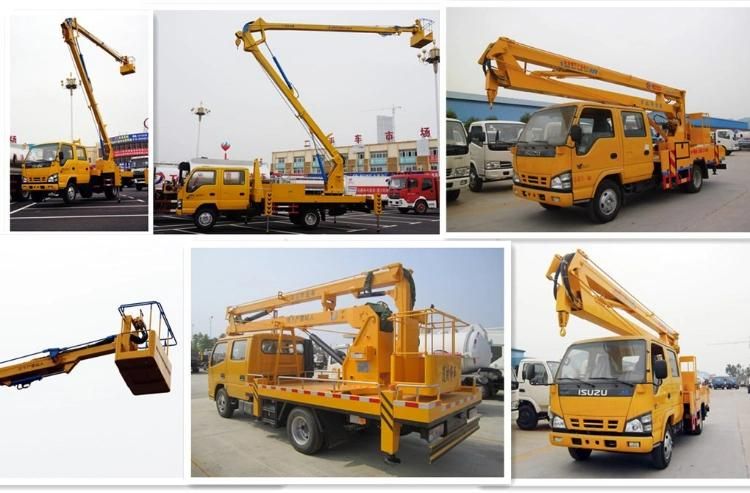

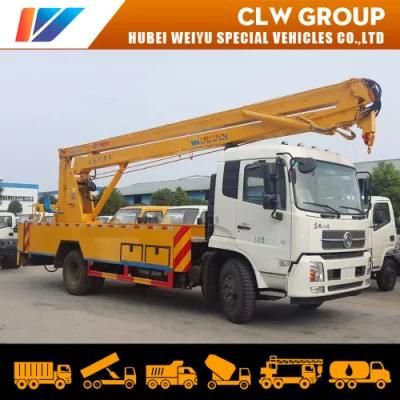

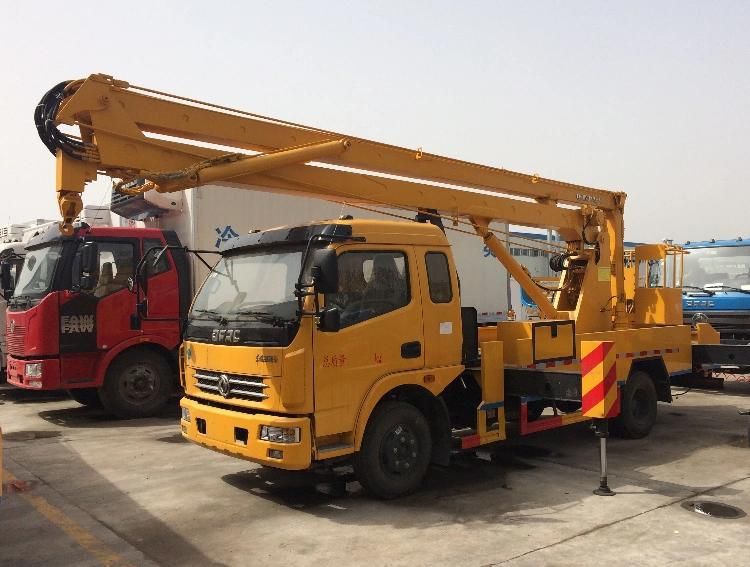

Product Show

Company Introduction

Certificates
18meter 20meters 22meters Overhead Working Bucket Boom Truck Hydraulic Lift Isuzu Aerial Work Platform Truck

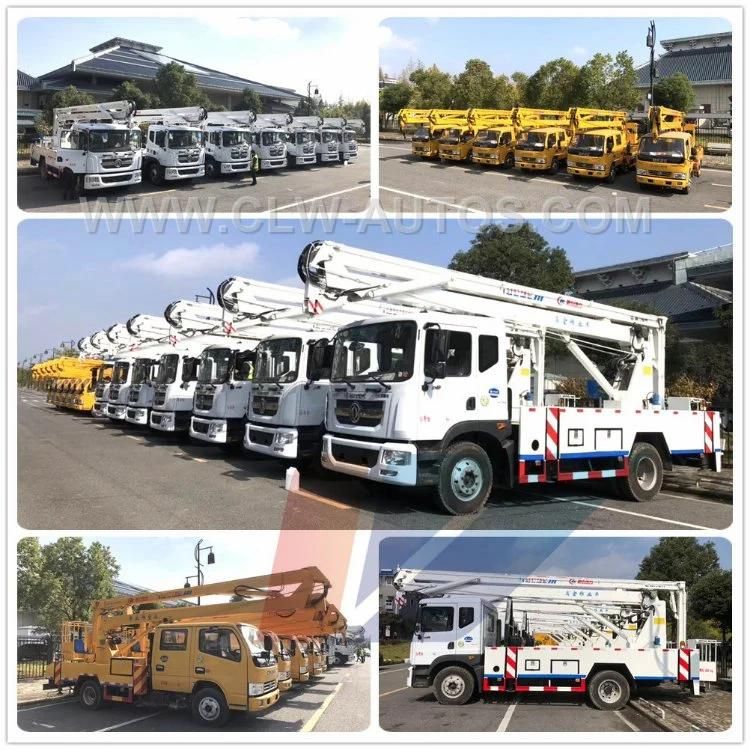

Bulk Delivery

Regular Overseas Exhibition and After Sales Service

Please Contact Eric in Below Ways:
