High Lifting Platform Truck Working Platform Isuzu 18m 20m 22m Hydraulic Aerial Lift Platform Bucket Truck
Hubei Weiyu Special Vehicles Co., Ltd.- Type：Z
- Certification：ISO9000, CCC, EEC, CE
- Emission Standard：Euro 2
- Hoesrpower：150-250hp
- Payload：5-15ton
- Fuel：Diesel
Base Info
- Model NO.：CLW5040JGKZ3
- Transmission Type：Manual
- Drive Wheel：4x2
- Condition：New
- Produce Name：High Altitude Operation Truck
- Lifting Height：14m, 16m, 18m, 20m, 22m
- Bucket Loading Weight：200kg
- Bucket Size：1000X650X1200mm
- Turning Angle：360 Degree
- Arm Type：Folded or Telescopic
- Max Working Height：18meters
- Max Working Radius：8.0meters
- Working Radius in Max Height：3meters
- Working Height in Max Working Radius：10.1meters
- Front Legs：H Shape
- Rear Legs：H Shape
- Hook Weight：800kg
- Max Hook Height：8.1meters
- Optional Brand：Dongfeng, Isuzu, Forland, Sinotruk FAW
- Transport Package：Naked Package
- Specification：18meters
- Trademark：CLW WEIYU
- Origin：China
- HS Code：870590990
- Production Capacity：500unit,Month
Description

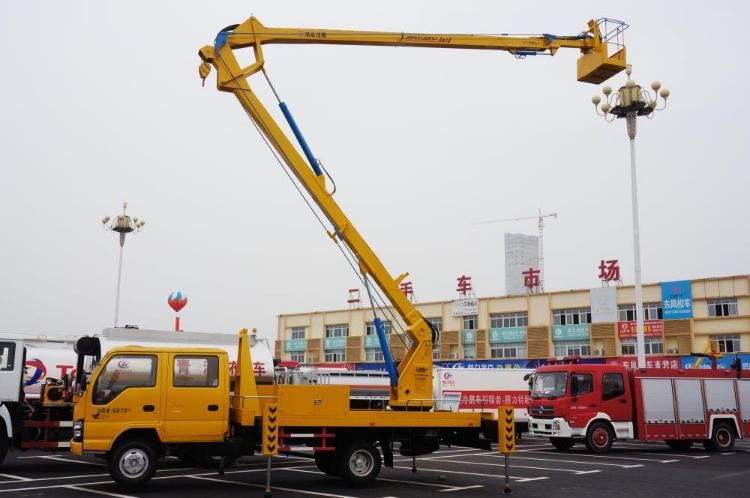

ISUZU Aerial Platform TruckOverall dimensions 8450×2050×3100 mm Wheel base 3800 mm F/R track base 1015/2280mm Approach/departure angle 24/10° Front / Rear Axle 2Ton / 4.8Ton Cabin ISUZU 600P cabin, Double Row, Left Hand Driving, with A/C, Radio Engine 4KHF-TCG40, Diesel type, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter cooling, Euro IV Displacement/ HP 2999ml / 120hp Gearbox ISUZU 5 foward &1 reverse Steering Gear Hydraulic Power Steering Max speed 90 km/h Tire specification 7.00-16, 6 Pieces Traction system 4x2 Equipment 1. Max operation height:16m
(including 1.7meter person height, net height is 14.3meter),
2. Max operation radius≤ 9.2m,
3. Max working platform height≤12.5m,
4. Working platform rating loading≤200kg,
5. Working platform rating allowable passengers=2,
6. Working platform dimension:1100*570*1000mm,
7. 360°turning(left or right), 4 H-shape legs.
8.The cage be operated both in the air and on the earth
9. Control System: Manually
10. Hook Lifting Height: 6meters, Hook Lifting Weight: 800kg
(including 1.7meter person height, net height is 14.3meter),
2. Max operation radius≤ 9.2m,
3. Max working platform height≤12.5m,
4. Working platform rating loading≤200kg,
5. Working platform rating allowable passengers=2,
6. Working platform dimension:1100*570*1000mm,
7. 360°turning(left or right), 4 H-shape legs.
8.The cage be operated both in the air and on the earth
9. Control System: Manually
10. Hook Lifting Height: 6meters, Hook Lifting Weight: 800kg

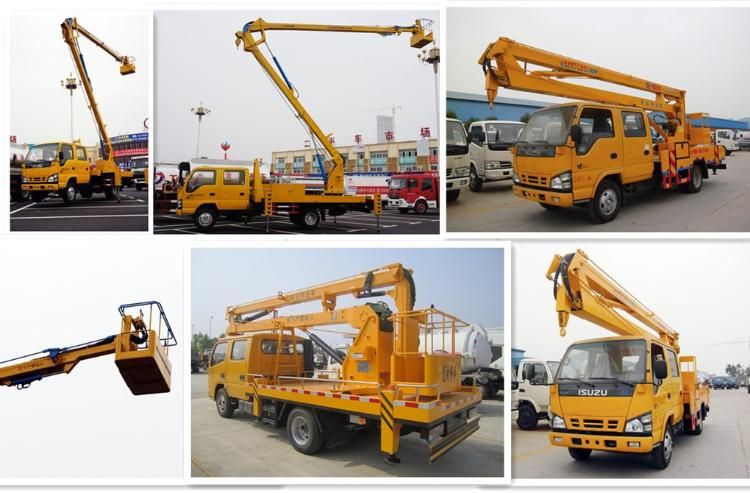

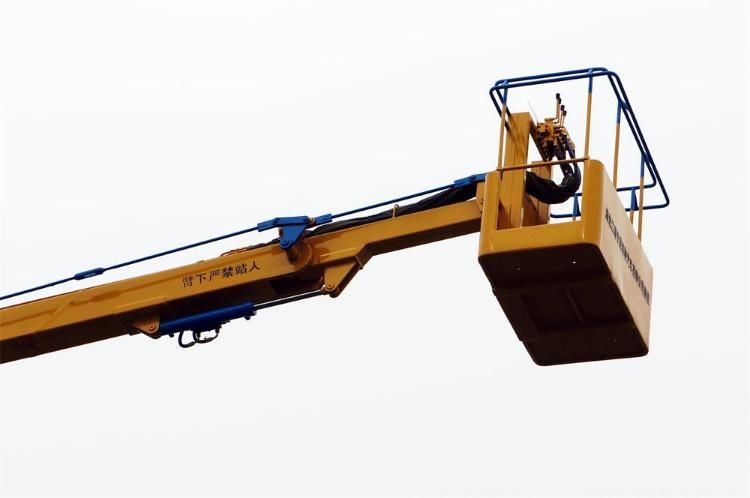

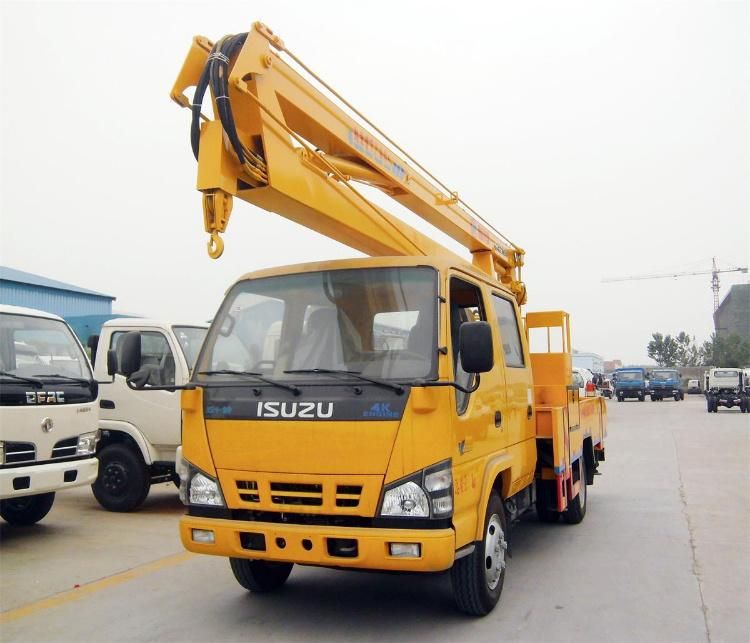

Product Show
Company Introduction
Certificates

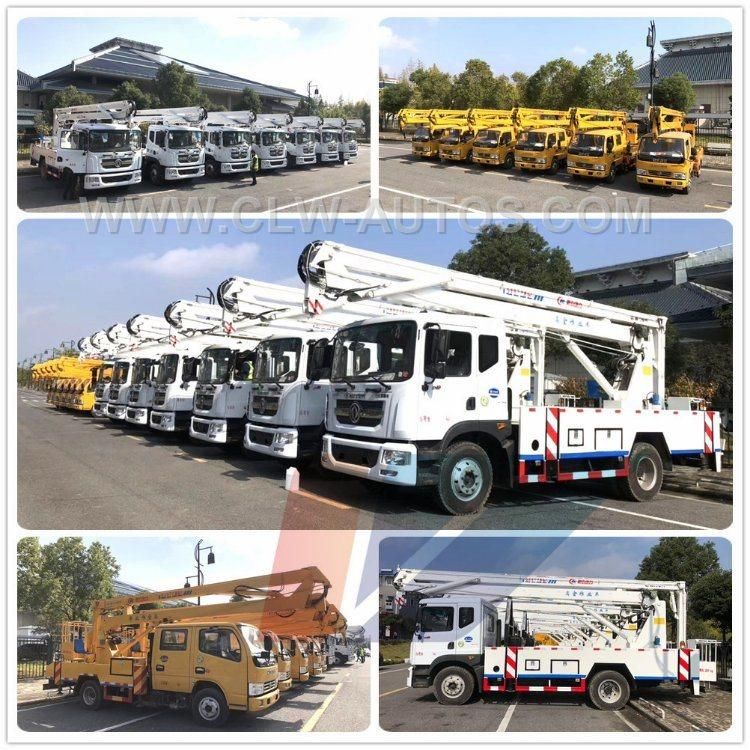

Bulk Delivery
