8m3~20m3 Garbage Compactor Plant, Mobile Compactor Garbage Compression Station
Hubei Weiyu Special Vehicles Co., Ltd.- After-sales Service：with After Sales Service
- Warranty：One Year
- Type：Compactor
- Certification：ISO9000, CCC, TS16949, EEC, CE
- Volume：10001-15000L
- Emission Standard：Euro 2
Base Info
- Transmission Type：Manual
- Payload：3ton ~ 5ton
- Fuel：Diesel
- Drive Wheel：4×2
- Brand：Dongfeng
- Models：Small
- Usage：Arm Type
- Condition：New
- Purpose：Garbage Collection & Transport
- Container：Steel Material
- Capacity Options：8cbm, 10cbm, 12cbm, 14cbm
- Discharging：Self Discharging
- Lifting Device：Hydraulic Lifting
- Control：Electrical Key Control
- Upper Door：2PCS, 4cps or 6PCS
- Rear Door：1PC for Discharging
- Container Material：Q235B, 4mm Carbon Steel
- Container Legs：2 Wheels in Rear End
- Hydraulic Cylinder：Chinese Brand Good Quality
- Truck Engine：Yuchai & Cum Mins
- Engine：170HP ~190HP
- Tire：10.00r20, 10.00-20
- Cabin：LHD , Rhd
- Transport Package：Naked Pack
- Specification：14CBM
- Trademark：CLW ,WEIYU
- Origin：Suizhou
- HS Code：8705909090
- Production Capacity：500 Unit,Month
Description
Mobile Garbage Compression StationVehicle name Mobile Garbage Compression Station Hopper type one-piece Box volume(m³) 20 System normal pressure(Mpa) 16 Power of motor 5.5(380V) Maximum compression force of compressor(KN) 360 Compression head single stroke compression(m³) 1.4 A compression cycle time(s) 23~33 Compacted density (t/m³) 0.75 Effective volume of compression chamber(m³) 3 Over Dimension (mm) 6385*2550*2584 Effective width of hopper(mm) 1870 Hopper lifting mechanism lifting force(t) 2.5 Effective volume of hopper(m³) 2.6 Maximum operating noise(dB) ≤65 Oil temperature in the tank(ºC) <60 Insulation resistivity of equipment (MΩ) 350 No-load running pressure of compressor(Mpa) 3 Back door working cycle time(s/1500r/min) 5~8 Hopper garbage delivery cycle time(s/1500r/min) 5~8 Push plate compresses a working cycle time(s/1500r/min) 18~25 Back door open angle(°) 85 Remote control distance(m) 30 Unhook center from the ground height(mm) 1570 The bottom 2 stringers with outer space(mm) 1060

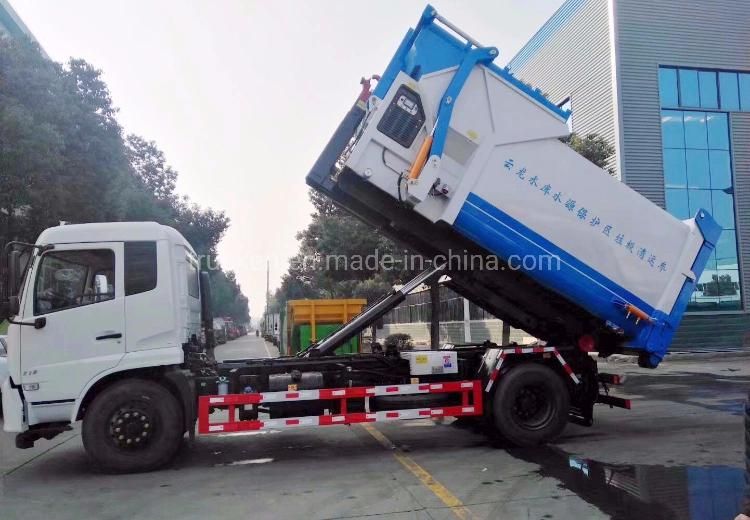

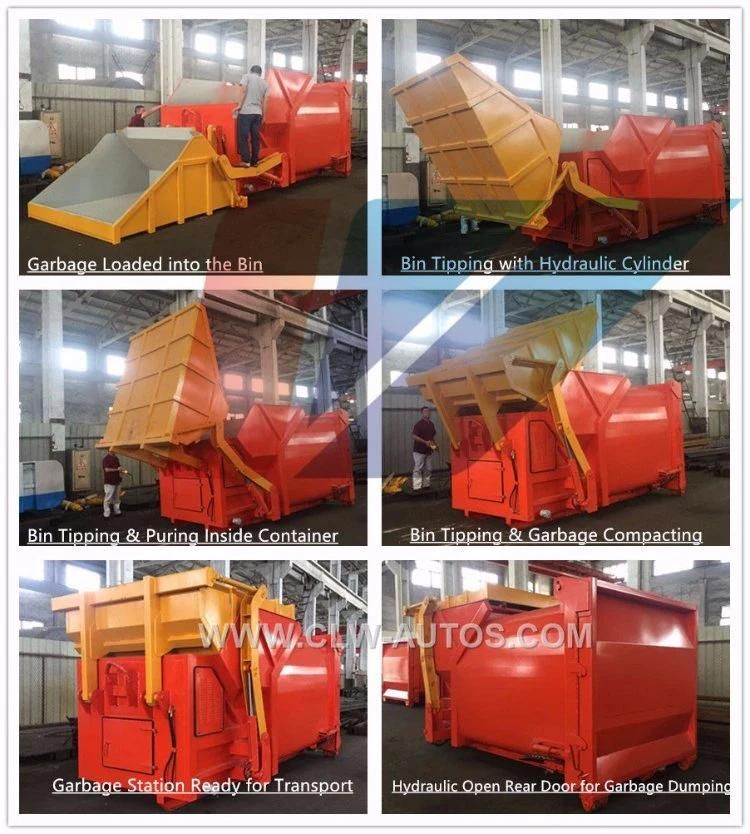

Product Photos:
Bulk Delivery
Regular Overseas Exhibition and After Sales Service
Product Photos:
Bulk Delivery
Regular Overseas Exhibition and After Sales Service
