• Model NO.：V350F V350T
• Transport Package：Box
• Trademark：CORUNCLIMA
• Origin：China
• HS Code：84186090
• Production Capacity：500sets,Month

Basic Info.

Model NO. V350F V350T Transport Package Box Trademark CORUNCLIMA Origin China HS Code 84186090 Production Capacity 500sets/Month

Product Description

truck refrigeration units deep freezer for pickup, minitruck, small vans

deep freezer -25C to -27C degree for 5m3 6--8ft box. pickup, UTE, minitruck or samll vans.
nose mounted model V350F, rood top mounted model V350T.


Advantage:
1) Fast cooling. 1hour 20 minutes cool to -18C
2) More cooling air
3) deep frozen to -25 or -27C degree, special for ice-cream, frozen goods delivery.
4) nose mounted or roof top mounted are optional
5) Electric standby is optional.
6) Lower maintenance for most Key parts of Top brand.


Application:
Deep Frozen: -25ºC for 5M3 box (6-8 feet Box)
Frozen: -18ºC for 8-10M3 box (10feet Box)
Chiller:  -5ºC for 14M3 box (12-14 feet box)
Fresh:  +5ºC for 18M3 box (16-18 feet box)

Cooling Capacity:  1610W(-20ºC)  3500W(0ºC)
Voltage Available:  DC12V, DC24V,
Current:  40A/12V , 26A/24V
Cooling Air:  1800m3/h
Condenser Fan  2Pcs. Long life 5000hours.
Evaporator Fan  2Pcs. Long life 5000hours.
Compressor:  Original TK16 (exactly same model Thermoking TK16)
Danfoss Expansion and Solenoid valve.
Refrigerant Gas:  R404A.
Controller:  Digital, Automatic and Manual Defroster.
Electric Standby: Built-inside condenser, Optional

Equal to other brand and model.
TK c350e, Citimax 400, Vieto 350, Hwasung HT100, Thermal master T1600. etc.

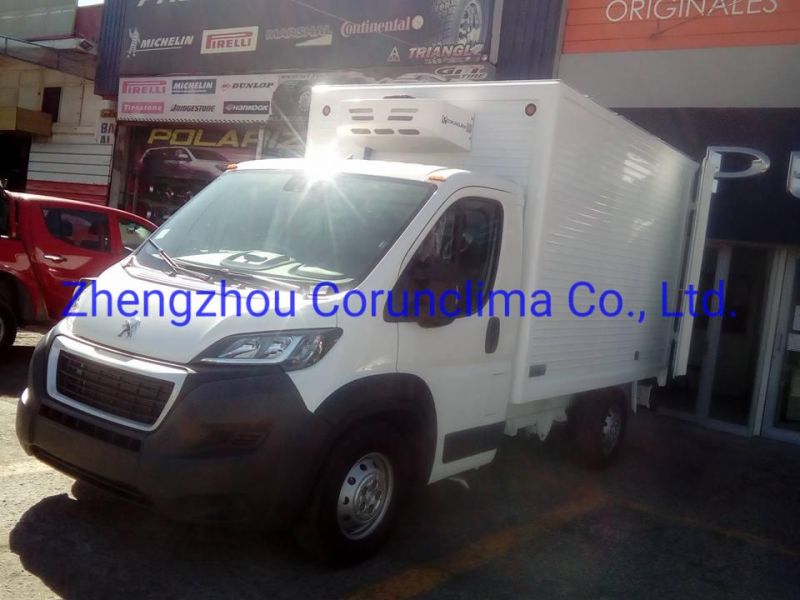

Model V350F for deep frozen delivery. front nose mounted.

Model V350F for deep frozen delivery. front nose mounted.

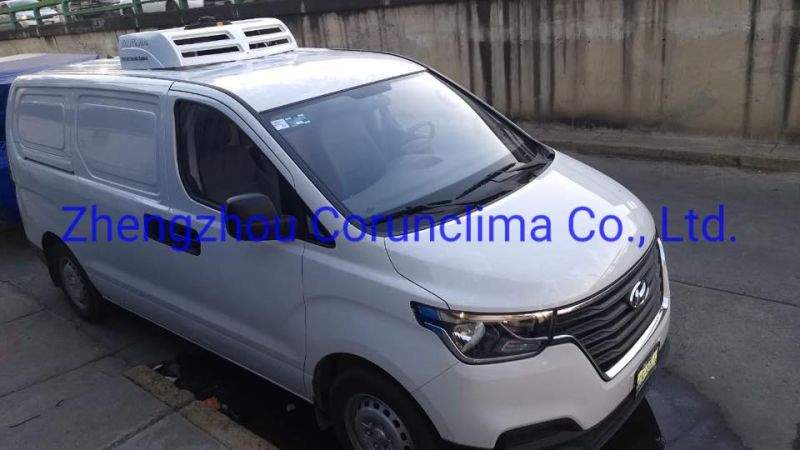

Model V350T for deep frozen delivery. Roof top mounted

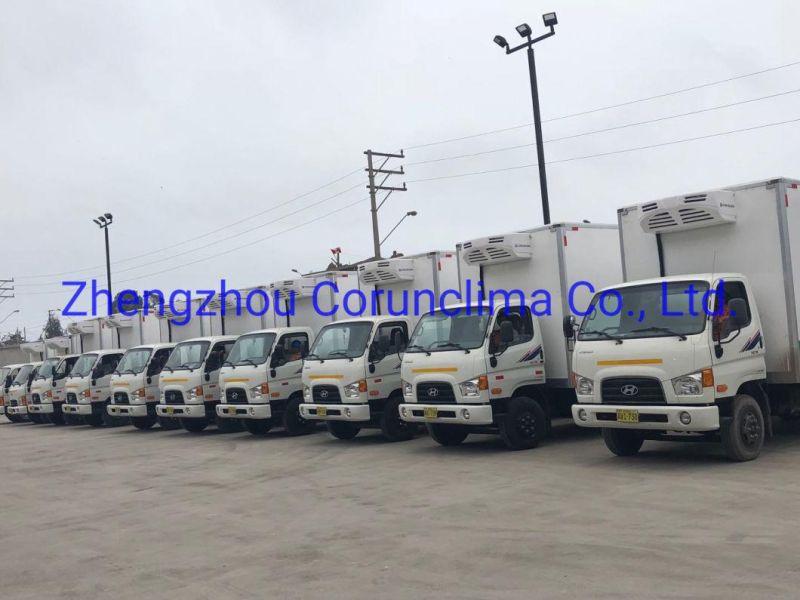

Model V650F for frozen delivery. nose front mounted

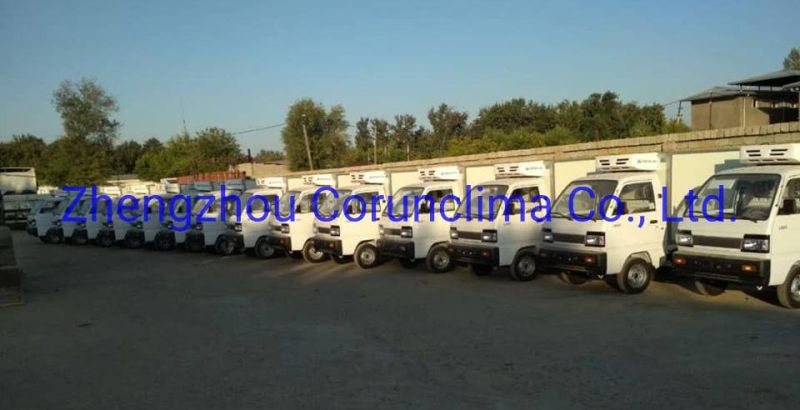

Model C150F for chiller fresh delivery. front Nose mounted, OEM project business with GM Labo minitruck.


From 2008 years, we already installed the Engine type truck refrigeration units in USA, Canada, Mexico, Australia etc countries. and have our own branch company and warehouse in South-Africa and Mexico.

All models details information, pls contact us freely.

OEM, ODM and Dealers are invited.
