• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Small
• Usage：Compression Type
• Condition：New
• Chassis Brand：Dongfeng,Foton,HOWO,Shacman,JAC,Jmc
• Hand Driving：LHD or Rhd
• Fuel Type：Diesel
• Material：Carbon Steel
• Tank Thickness：4 mm
• Engine：Diesel 170HP
• Campacting Ratio：0.6-0.8 Ton,Cbm
• Loading：Rear Loading
• Operating System：One in The Cabin,One on The Back of The Truck
• User Manual：Yes
• Operating Video：Yes
• Logo：as Per Customer′s Request
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：8000x2500x3250mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Dongfeng 12CBM Garbage Compactor TruckOverall Dimension8000×2500×3250 mmGross Vehicle Weight15955 kgCurb Weight9700 kgLoading Weight6100 kgWheel Base4500 mmFront / Rear Axle5000 kg / 10000kgCabinLeft Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,Engine Engine horsepower190HP, EURO IIMax Driving Speed90 km/hGear Box6 Forward Gear, 1 Reverse Gear,Tire10.00 (6 pieces with one spare)Garbage BinCapacity12CBMMaterial4mm Carbon Steel for Garbage Bin BodyDesignWhole unit with Leakage Proof DesignWays of LoadingRear Loading with optional Bucket Lifting SystemGarbage Compact Ratio1/3 - 1/4Control SystemOne control Panel on the back, One Control system in back of CabinDispensing System1. Equipped with air-tight dustbin, hydraulic system and operating system.2.Automatic loading, compressing and discharging, all handled by 1 person3. Sewage water collection tank to avoid any pollution during handling.4. Large Pressure, Good Leakage Proof, Convenient OperationDependable Security5. Electrical Control Panel for compacting system.6. Cycling time<14~18sRemarks1. Color is optional2. Customized LOGO painting as per customer request



Product Diagram

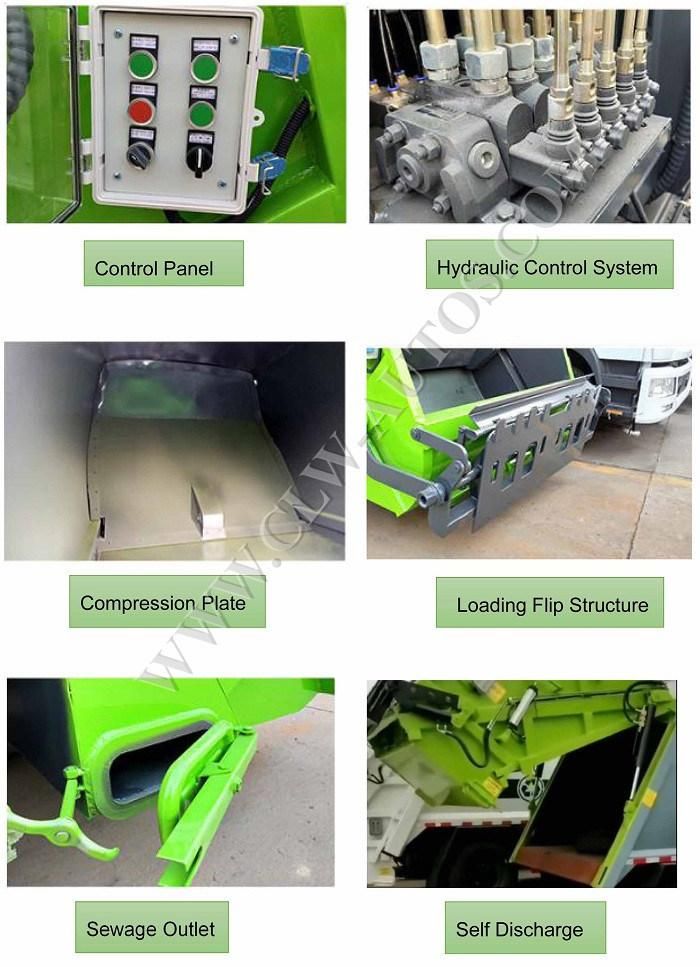

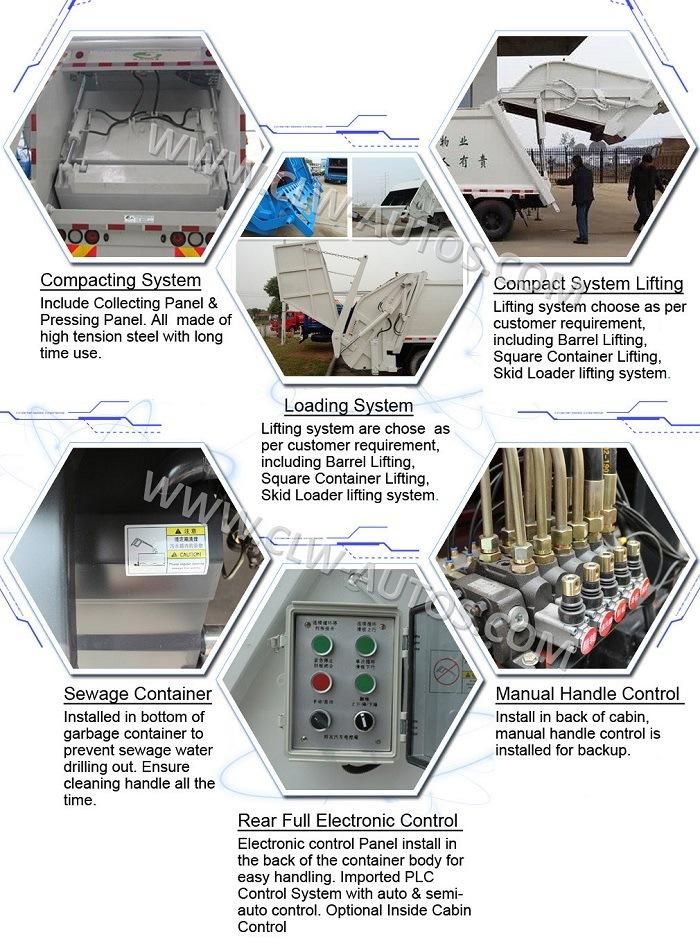

Product Details




Truck Details

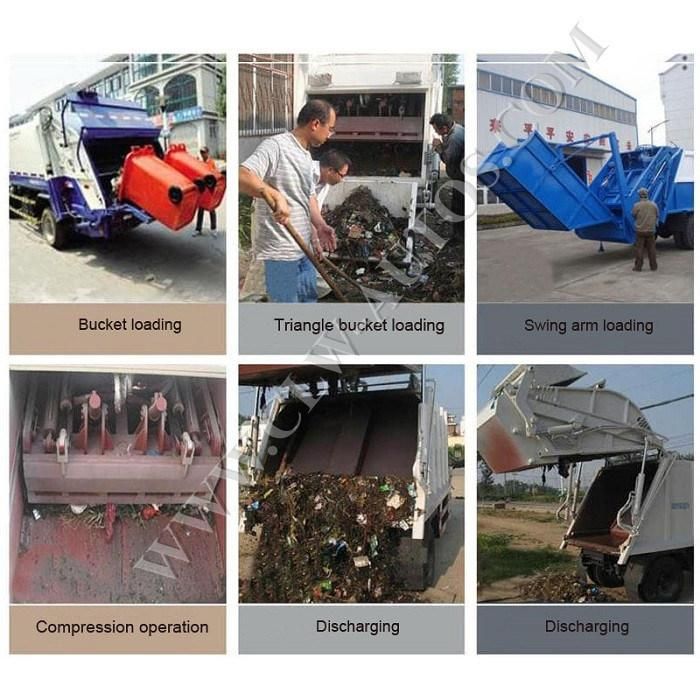

Working Show

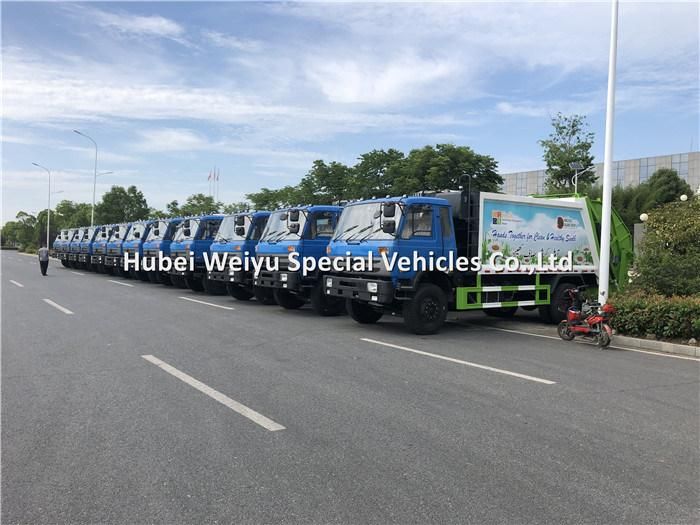

Factory Overview




Overseas Exhibition and Local Support



Customer  Visiting
