• Model NO.：CLW8199QZC
• Bearing Capacity：Light
• Brand：Foton
• Condition：New
• Chassis Brand：Foton, Dongfeng, Isuzu, HOWO, JAC, etc.
• Steering：LHD, Rhd, Left Hand Drive, Right Hand Drive
• Cabin：2~3 Personn with A,C
• Engine：106-160HP
• Wheel Base：3360mm
• Wrecker Type：One-Towing-One, One-Towing-Two
• Truck Overall Size：5995*2300*2350mm
• Max Lifting Weight：3tons; 4tons; 5tons
• Max Towing Weight：3tons; 4tons; 5tons
• Hydraulic System：Famous International Brand
• Winch Rope：25m, 25meters
• Logo and Color：as Per Customer′s Requests
• Delivery Time：30-35 Working Days
• Warranty Period：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：3T, 3ton, 3tons, 4t, 4tons, 4ton, 7tons
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical SpecificationOverall Dimension5995x2300x2350(mm)Gross Vehicle Weight4495 (Kg)Curb Weight4100(Kg)Chassis SpecificationChassis BrandFotonDrive model4*2CabinSingle, Left Hand DriveEngineModel4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower95KW/129HPEmission standardEURO2 or 3Displacement2780(ml)Fuel typeDieselGearbox5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistanceBrake SystemPneumatic(Air break/exhaust brake)Wheel Base3360(mm)Front/Rear Axle Loading2500/5000(Kg)Approach/Departure Angle24/12(°)Tire7.00R16, 6pcs + 1 spare tireMax Driving Speed98(km/h)Superstructure SpecificationPlatform OrganDimension4200*2320(mm)Rear manual flip board length1200(mm)MaterialQ235 carbon steelMax Loading capacity3000(kg)WinchQuantity1Winch rating towing capacity4000(kg)Length of steel rope25(m)Speed of winch3.23~8 (m/min)Other partsAuxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.OptionsCaution light, air condition,inlet valve.

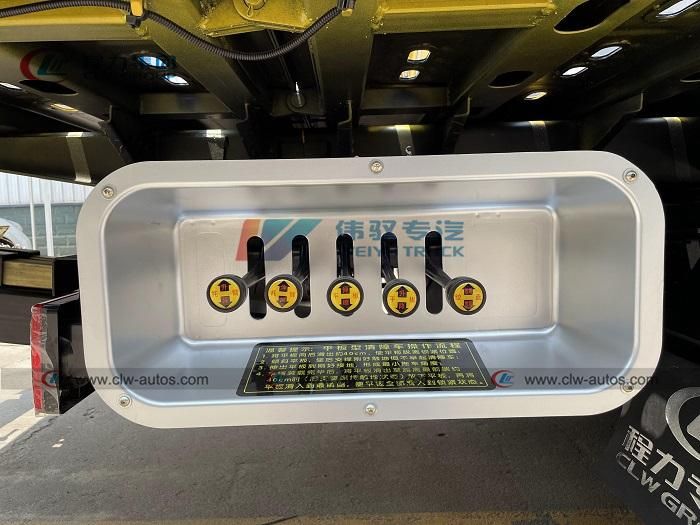

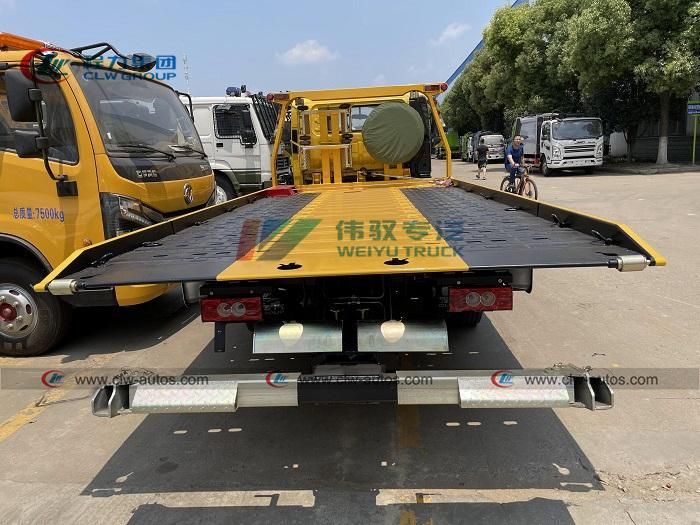

Reference Photos

Main Structure Diagram



Company Introduction

Certificates

Our Overseas Exhibition





After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.
