• Model NO.：CLW8166LJC
• Payload：4ton, 5ton, 6ton
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Small
• Usage：Dump, Compression Type
• Condition：New
• Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Isuzu, Jmc, etc.
• Drive Model：6 Wheels,4*2
• Container Volume：7cbm, 8cbm, 9cbm, 10cbm, etc.
• Tank Material：Carbon Steel
• Tank Thickness：Side 4mm, Bottom 5mm
• Side Loading Bucket：1 Unit
• Controlling Way：Three-Way Hydraulic Control Valve

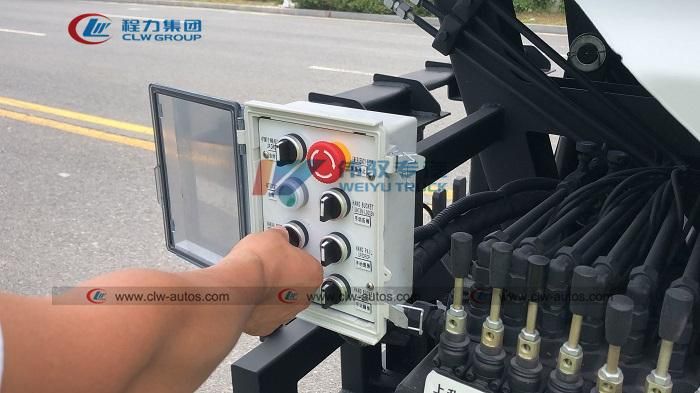

• Control Panel：Cabin, Rear of The Truck
• Loading Time：50-60s
• Unloading Time：40-50s
• Logo and Painting：as Per Customer′s Request
• Delivery Time：30-35 Working Days
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：4cbm, 5cbm, 6cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParameterProduct NameGarbage TruckGross Weight(Kg)6010Rated Payload(Kg)5865Axle No.2Curb Weight(Kg)3500Overall Dimension(mm)5650x2000x2250Cab Allowed Persons )ab Allowed PersonsTrucky Truck2Box Inner Dimension(mm)3600x2380x3500F/R Suspension(mm)1032/1168Wheelbase(mm)3300Axle Load(Kg)2280/3730Top Speed(Km/h)90Chassis Technical ParameterChassis NameTruck chassisManufacturerDongfeng Automobile Co.,LtdOverall Dimension(mm)5820×1940×2080Tyre No.6App./ Dep. Angle(º)19/15Tyre Specification7.00-16Spring leaf No.8/9+5Front /Rear Track(mm)1506 /1466Engine Technical ParametersEngine ModelYC4120-C3FManufacturerDongfeng Chaochai Power Co., LtdDisplacement(ml)3856Power( HP/ Kw)120HP/95KWFuel TypeDieselEmission StandardEuro IIBox Technical ParametersBox inner dimension(mm)3600x1750x1100Box MaterialHigh quality carbon steel

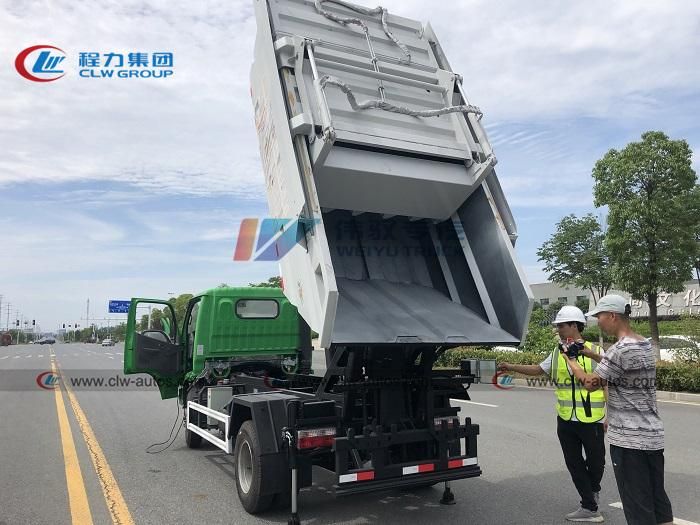

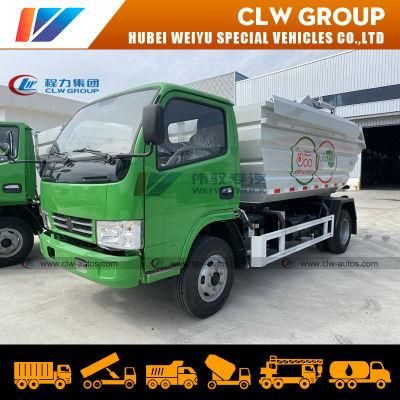

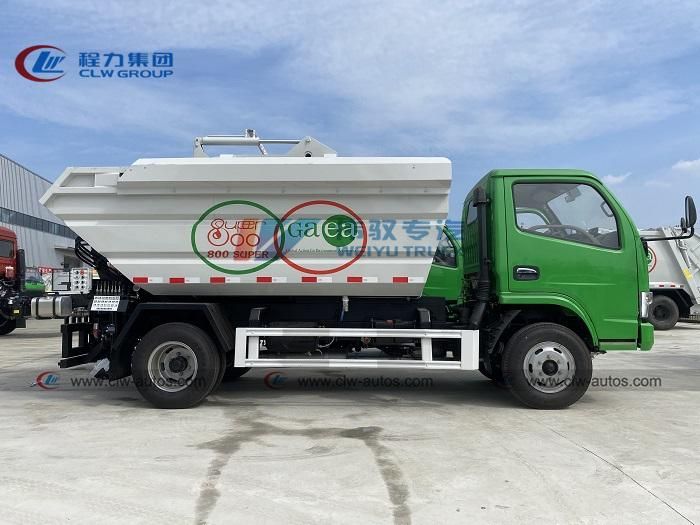

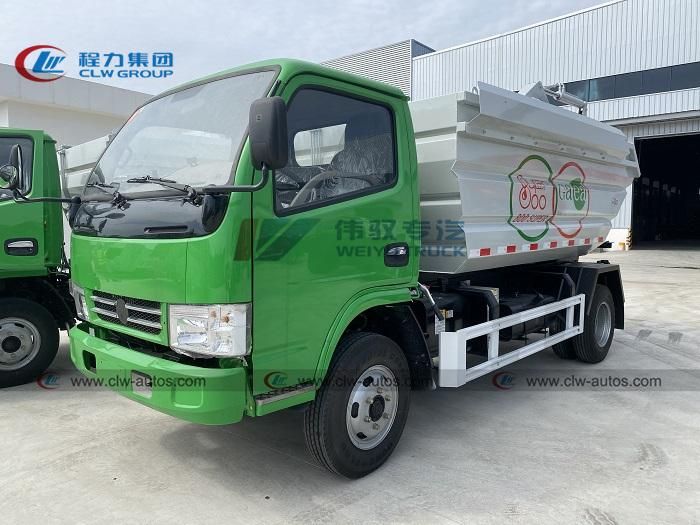

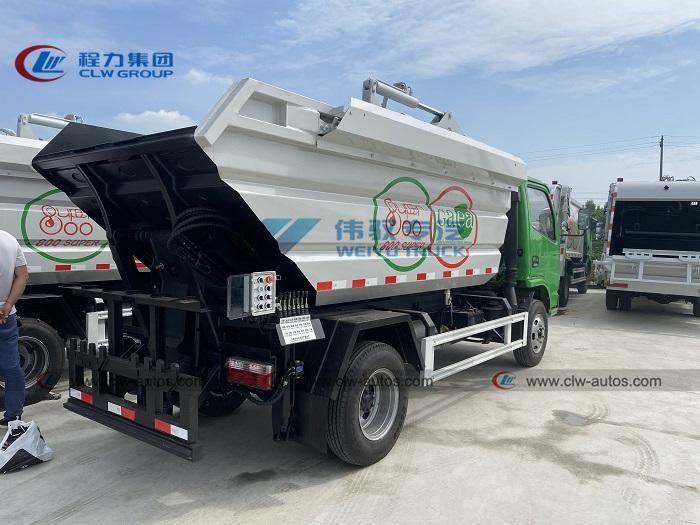

Reference Photos

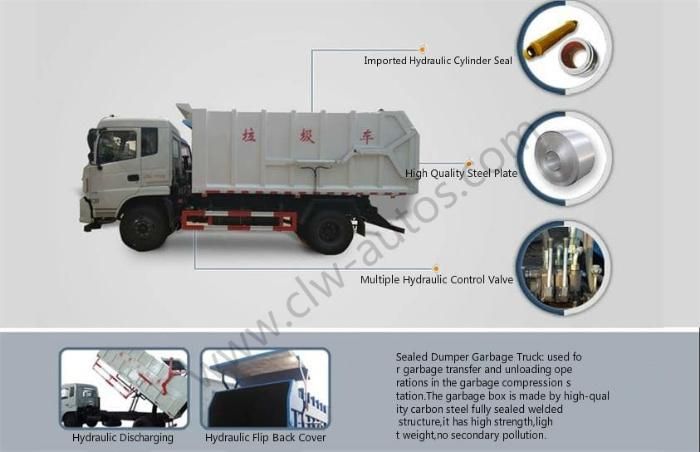

Main Structure and Diagram

Various Kinds of Garbage Trucks
