• Model NO.：CLW8166YSC
• Payload：5ton, 6ton
• Fuel：Diesel
• Drive Wheel：4×2
• Engine Capacity：＜4L
• Condition：New
• Chassis Brand：Dongfeng, Sinotruk, Foton, Isuzu, FAW, etc
• Drive Mode：4*4
• Curb Weight：3785kg
• Engine：113HP
• Tank Material：Q235B and Stainless Steel for Optional
• Tank Size：5cbm; 6cbm; 7cbm; 8cbm
• Tank Capacity：5ton; 6ton; 7ton; 8ton
• Tank Thickness：4mm; 5mm; 6mm
• Water Pump Flow：20 Cbm,H
• Water Diversion Time：Less Than 15min
• Water Suction Depth：7m
• Water Sprinkle Width：15m
• Water Cannon Range：30m
• Transport Package：Naked Packing, RO-RO, Bulk Ship
• Specification：5cbm, 5.5cbm, 6cbm, 5tons, 5.5tons, 6tons, 5000L
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension7000×2300×2500(mm)Gross Vehicle Weight8280(Kg)Curb Weight3785(Kg)Chassis SpecificationChassis BrandFotonDrive model4*4CabinSingle, Left Hand DrivingNumber of Passengers3 (2 in cabin, 1 in working platform)EngineModel4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower83KW/113HPEmission standardEURO 2or 3Displacement3856(ml)Fuel typeDieselGearbox5Forwards & 1ReverseBrake SystemAir breakWheel Base3800(mm)Front/Rear Axle Loading2700/5000(Kg)Tire8.25R20, 6pcs + 1 spare tireMax Driving Speed90(km/h)Superstructure SpecificationWater TankerDimension4200*1900*1300(mm)MaterialQ235B carbon steelTanker volume5500LitersThickness of Tanker4mmWater Pump Materialcarbon steelVertical suction7mSprinkling width15mRange of Water Gun30mPump Flow20m³/hRange of Water Pump90mOther ConfigurationHigh quality vacuum pump, power take off, ball valves, filter screen, water hoses, sprinkler device, manhole, fense&ladder, vice-beams, anti-wave clapboard, metering tube, etc.OptionsCaution light, inlet valve, medicine tray, pneumatic valve, cylinder, sprayer, etc.

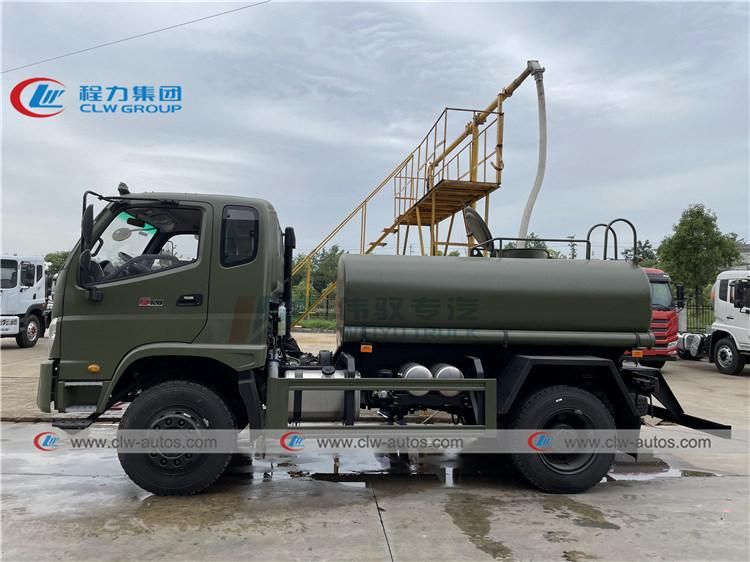

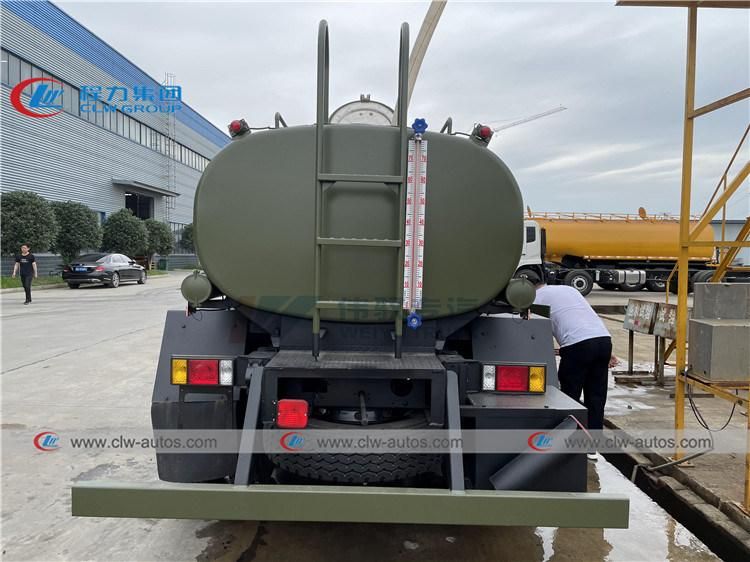

Reference Photos

Main Structure and Diagram

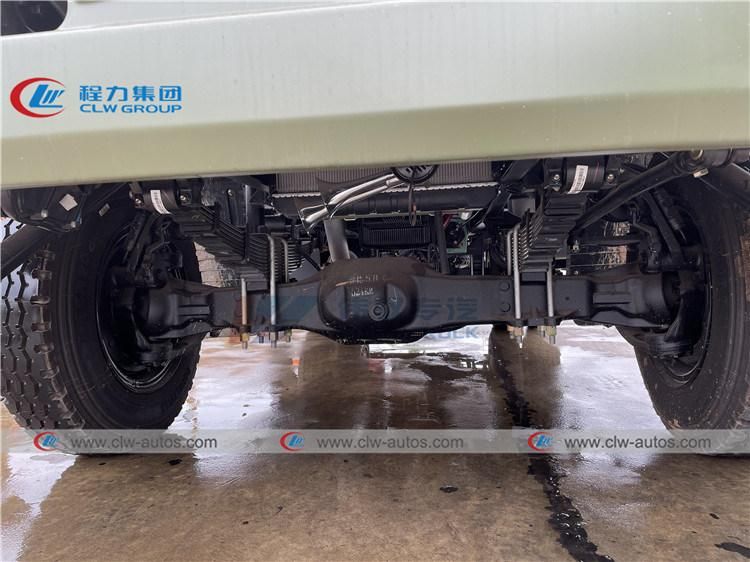

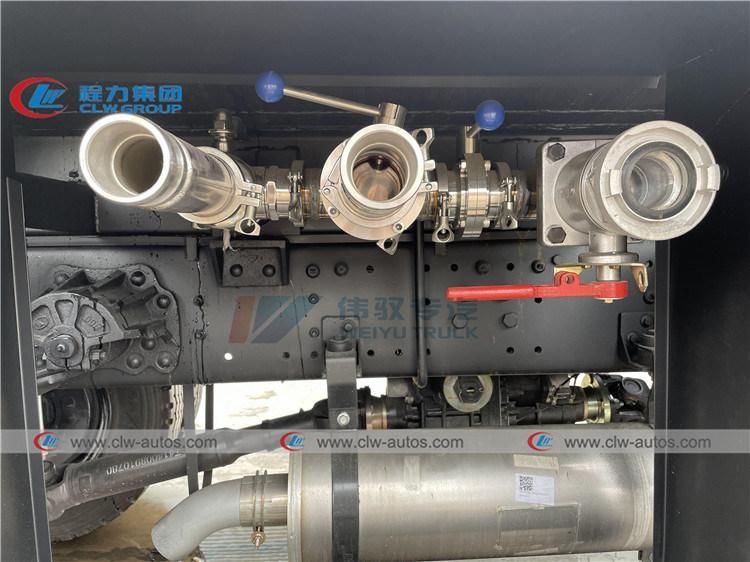

Main Parts

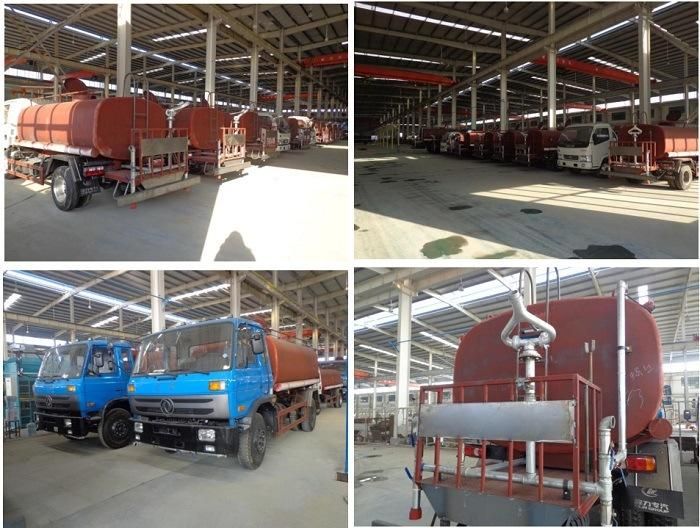

Factory Show

Company Introduction


Certificates



Our Overseas Exhibition

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.
