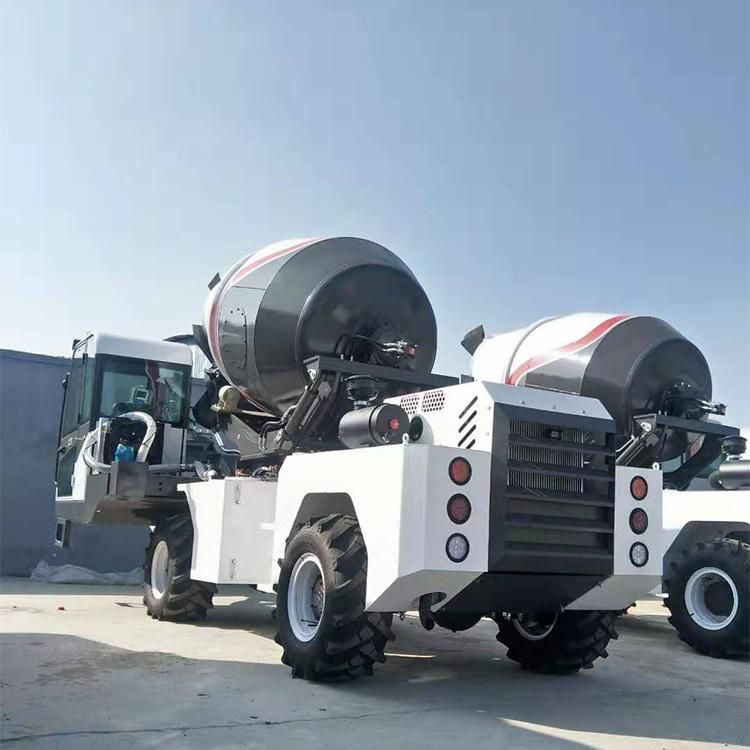

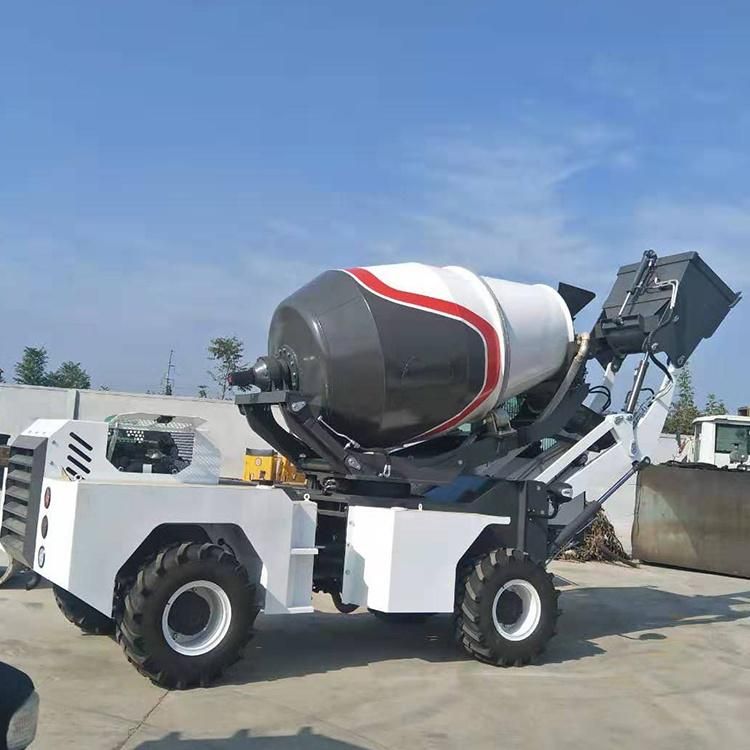

1.2m3 Concrete Mixer Truck Hydraulic Pump Automatic Feeding Mixer Truck
Shandong Lehman Construction Machinery Co., Ltd.- Certification:ISO9000, CE
- Transmission Type:Automatic
- Emission Standard:Euro 4
- Displacement:1.3
- Payload:4.5t
- Fuel:Diesel
Base Info
- Model NO.:LM2200
- Drive Mode:4*4
- Maximum Horsepower:<200hp
- Condition:New
- Transport Package:40′ Container
- Specification:6000*2440*2460mm
- Trademark:Shanyi
- Origin:Shandong
- HS Code:8474310000
- Production Capacity:5000sets,Year
Description
Basic Info.
Model NO. LM2200 Drive Mode 4*4 Maximum Horsepower <200hp Condition New Transport Package 40′ Container Specification 6000*2440*2460mm Trademark Shanyi Origin Shandong HS Code 8474310000 Production Capacity 5000sets/YearProduct Description

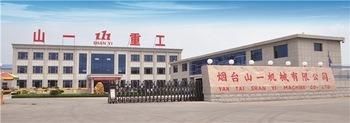

YANTAI SHANYI MACHINERY CO.,LTDProduct Description Diesel Engine
Type: YN27GBZ
Total displacement, cylinders: 2700cc, four-in-line
Injection: direct injection and mechanical control.
Cooling system: water-cooling, dry air filter
Maximum power: 55Kw
Maximum torque: 237Nm, 2000r/min
4*4 Four-Wheel Drive
Hydraulic torque converter gearbox, open hydraulic gear oil pump, and reverse gear control
control working speed and travelling speed.
Water system
24V Self-priming volumetric water pump with quick-suction
Max flow 90L/min, one water tank.
Total capacity:175L
Visual flowmeter, the water intake of the roller by hand-control.
