• Model NO.：CLW5324xw
• Brand：SHACMAN
• Condition：New
• Wheel Base：6000 mm
• Gearbox：9 Forward & 1 Reverse
• Max. Loading Weight：12000kg
• Winch Rating Pulling Capacity：12000 Kg
• Hydraulic Tailgate：1200 mm
• Wire Rope：35 Meters
• Warranty：One Year
• Logo：as Per Customer′s Request
• Towing Fork：4 Sets
• Too Box：1 Set
• Auxiliary Lamp：1 Set
• Yellow Warning Lamp：1 Set
• Working Video：Yes
• User Manual：Yes
• Transport Package：Bulk Ship, RO-RO
• Specification：9345x2500x3200 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension9345x2500x3200(mm)Gross Vehicle Weight19000 kgCurb Weight15025 kgChassis SpecificationChassis ParametersChassis BrandShacmanCabinSingle, Left Hand DrivingEngineModel6 CylindersPower228 KW/310HPEmission StandardEURO IIIDisplacement9726 mlFuel TypeDieselGearbox9 Forward & 1 Reverse GearFront and Rear Axle Load5.5T/ 13TWheel Base6000(mm)Overhang( Front/Rear)2036/1860(mm)Angle(Approach/departure)18/20(°)Brake Systemoil brakeSteering GearPower AssistantTire12.00R20, 6 Pieces with 1 Spare TireMaximum Speed90 (km/h)SuperstructureWinchQuantity2pcWinch Rating Pulling Capacity8000 (kg)Length of Steel Cable35 (m)Hoisting OrganRating Under-Pulling Capacity12000 (kg)Rating Under-Hoisting Capacity12000 (kg)Fully Extended Max Under-Hoisting Capacity6000 (kg)Max Under-Hoist Useful Length1200 (mm)Remarks1. Equiped with locking tire device
2. Bundle chain 2pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 1 Car

Truck Diagram

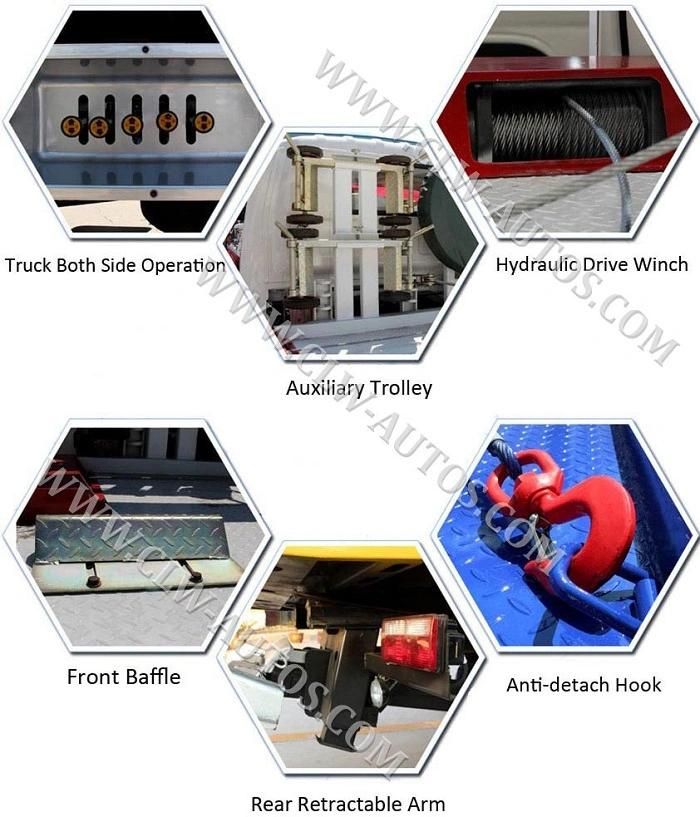

 Truck Details

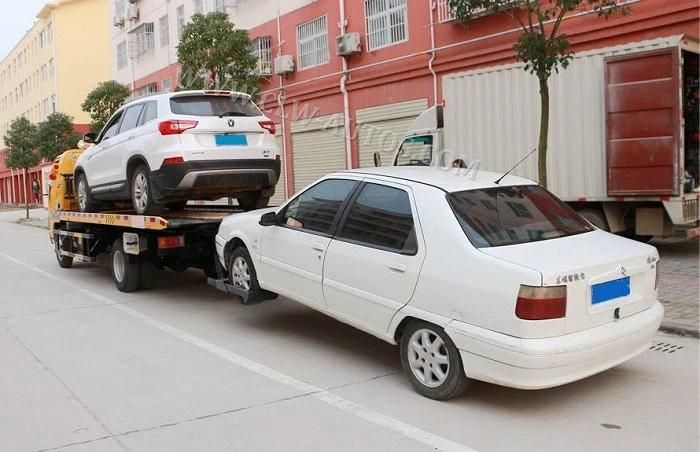

Working Show

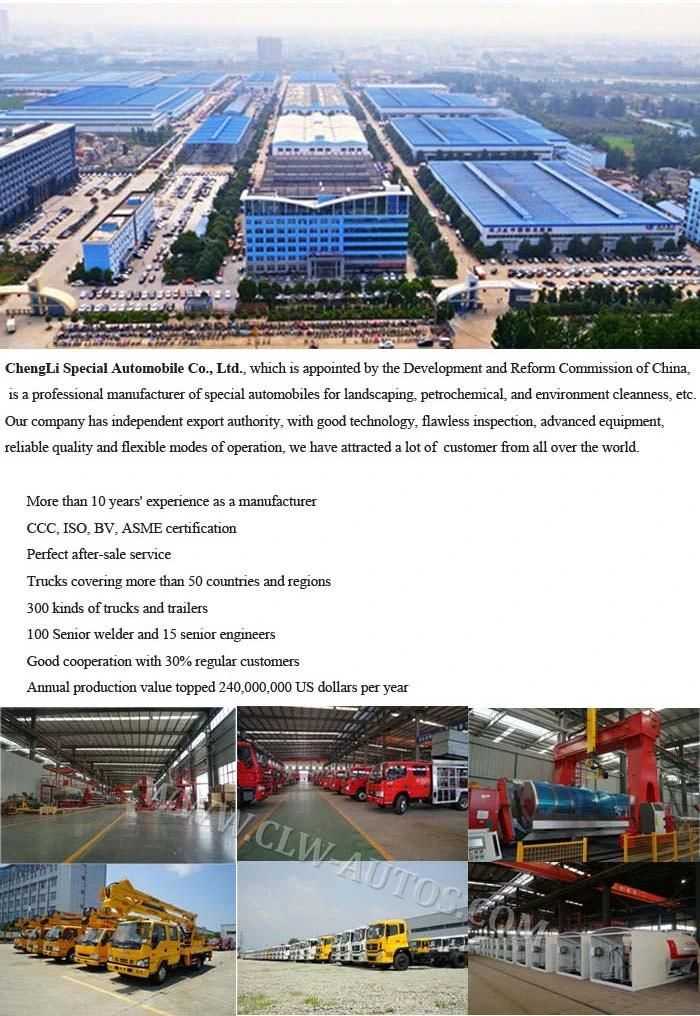

Factory Overview




Overseas Exhibition and Local Support



Customer  Visiting
