• Model NO.：CLW5071JGKZ3
• Transmission Type：Manual
• Drive Wheel：4x2
• Condition：New

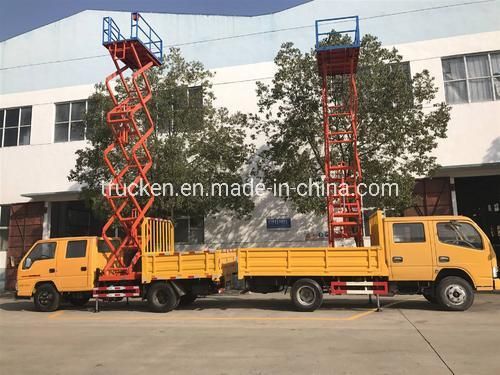

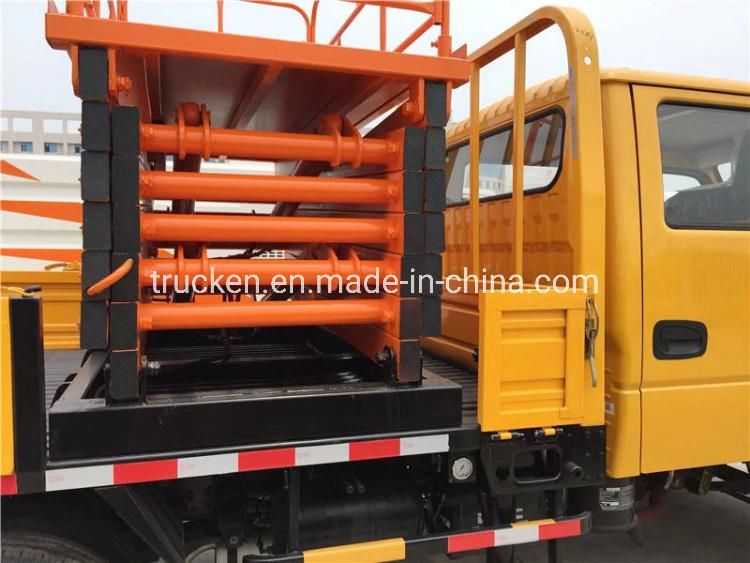

• Produce Name：Scissor Type Platform Truck
• Lifting Height：14m, 16m, 18m, 20m, 22m
• Bucket Loading Weight：200kg
• Bucket Size：1000X650X1200mm
• Turning Angle：360 Degree
• Cabin：Double Row
• Max Working Height：18meters
• Max Working Radius：8.0meters
• Working Radius in Max Height：3meters
• Working Height in Max Working Radius：10.1meters
• Front Legs：H Shape
• Rear Legs：H Shape
• Hook Weight：800kg
• Max Hook Height：8.1meters
• Optional Brand：Dongfeng, Isuzu, Forland, Sinotruk FAW
• Transport Package：Naked Package
• Specification：18meters
• Trademark：CLW WEIYU
• Origin：China
• HS Code：870590990
• Production Capacity：500unit,Month

Product Name: 10m manlift platformTotal mass (Kg)4080Dimensions (mm): 5995×1960×2690Cab seat (person): 2+2Number of axes: 2Wheelbase (mm): 3360Maximum speed (Km/h): 90Chassis model: DLQ5041JGKJ5Chasiss Name:JMC tires:6+1Fuel type: dieselTire specifications: 7.5R16Displacement (ml): 2771Power (Kw): 85Top partBoom form:ScissorMaterial thickness: 5mmMaximum working radius: 9.5m;Working height at maximum working radius12.2mMaximum working height: 22m;wing: ±360° continuousMaximum lifting quality: 1000KgTelescopic boom: elongation 2mHook: 1 tonThe maximum lifting range  10.2mLeg type: H-legbox body size (mm)2000×1900×550Rear leg strobe light: twoRated load ≤200KgMode of operation: twist switchLeveling form: external drawbar mechanical levelingOutriggers: The legs can be controlled separately, interlocking with each otherBoom action:two-position operation of turntable and gondola

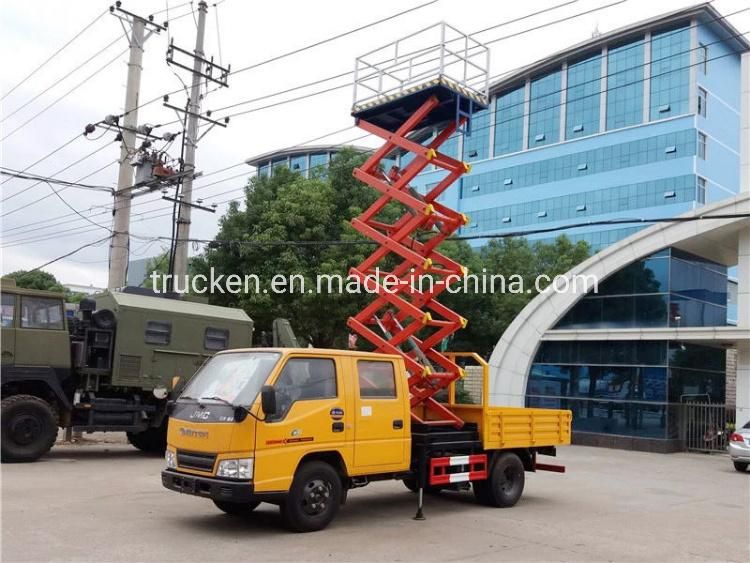

Product Show
















Company Introduction


Certificates


Bulk Delivery



Regular Overseas Exhibition and After Sales Service




Please Contact Eric in Below Ways:
