• Model NO.：CLW5347TC
• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Truck Chassis Brand：Dongfeng
• Dust Bin Capacity：4cbm, 6cbm, 7m3, 8m3, 12m3
• Water Tank：1m3, 1.5m3, 2m3, 4cbm
• Material：Stainless Steel
• Auxiliary Engine：Isuzu 140HP
• Monitor Inside Cabin：Yes
• Operation：Hydraulic Control Unit
• Rear Warning Light：Yes
• Water Cleaning System：Front Flush, Side,Rear Spray
• Warranty：1 Year
• Logo：as Per Customer′s Request
• Operating Manual：Yes
• Transport Package：Naked Packing
• Specification：5cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：300 Units Per Month

Dongfeng Truck ChassisConditionNew condition/Right hand drive/4x2ChassisBrandDongfengCurb weight(kg)4460 kgWheelbase(mm)3815 mmDimensions(mm)7180  x 2260 x 2680 mmWheel track (front/rear) (mm)1504/1425Approach/Departure angle(°)24/13Axle Load(kg)5280/4720Max. driving speed(km/h)90 km/hTireSpecifications6pcs with one spare tireNumber8.25-16ClutchReinforced diaphragm clutchGear boxManual type, 6 Forwards & 1 ReverseCabinLeft Hand Driving, 3 Passenger AllowedEngineModelISUZU Diesel Engine, 4 CylindersPower(kw)/Horsepower(HP)103 kw/140 HPEmission standardEuro IVBrakesService brake: dual circuit compressed air brake                                                                     Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brakeSteering GearPower steering, hydraulic steering with power assistanceSweeping SystemTankGarbage tankTank materialStainless steel 304Tank volume(cbm)5 CBMWater tankTank materialStainless steel 304Tank volume(cbm)4 CBMAuxiliary engineModelISUZUPower(kw) 102 kw/140HPBrushQuantity(pc)2 pcsWorking area(m)2.7-3.2 mCleaningHigh pressure reel18 metersRemarks1, With water sprayer-bar
2, Rear vacuum cleaner
3, Blower
4, Rear LED pilot lamp
5, Self unloading box body
6, The color will be designed on basis of your requirements.

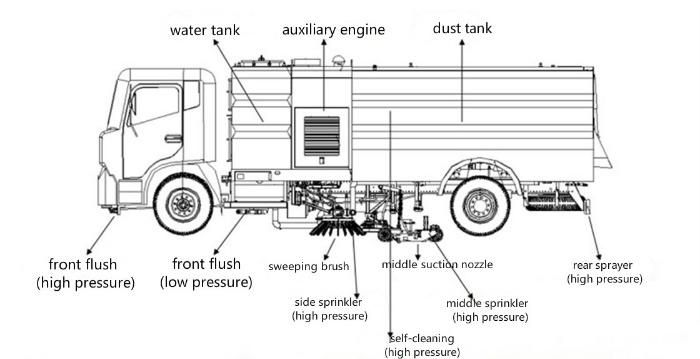

Product Diagram

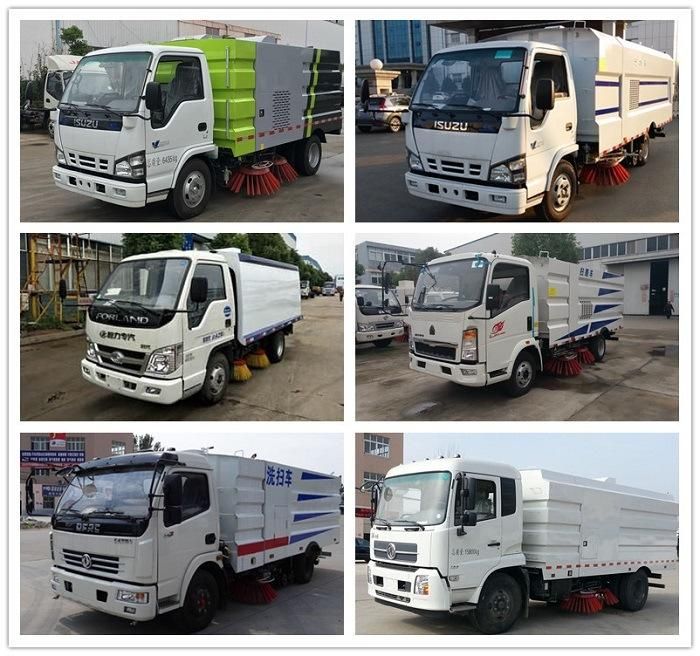

Related Product
