• Model NO.：CLW5328tx
• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Truck Chassis Brand：Dongfeng
• Dust Bin Capacity：4cbm, 5cbm, 7m3, 8m3, 12m3
• Water Tank：1m3, 1.5m3, 2m3, 4cbm
• Material：Stainless Steel
• Auxiliary Engine：Isuzu 77HP
• Monitor Inside Cabin：Yes
• Fan：Maintenance Free
• Rear Warning Light：Yes
• Vacuum Suction：Behind The Tire
• Brushes：4 Units
• Operating Manual：Yes
• Operating Video：Yes
• Usage：City Sanitation
• Logo：as Per Customer′s Request
• Warranty：1 Year
• Transport Package：Roll-Roll, Bulk Shipment
• Specification：3ton, 4ton, 5ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：300 Units Per Month

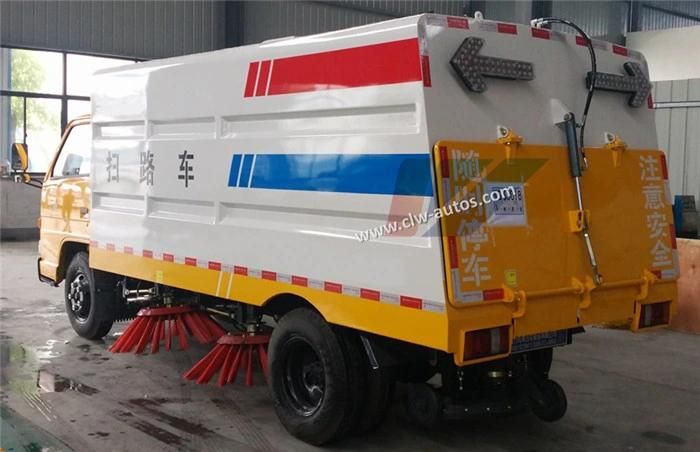

Dongfeng 4CBM Road Sweeper TruckConditionNew condition/Right hand drive/4x2ChassisBrandJMCCurb weight(kg)2300kgWheelbase(mm)3308 mmDimensions(mm)6300 x 2050 x 2540 mmOverhang (front/rear) (mm)1032 / 1868Wheel track (front/rear) (mm)1506 / 1404Approach/Departure angle(°)19/12Axle Load(kg)2000/4000Max. driving speed(km/h)90 km/hTireSpecifications6pcs with one spare tireNumber7.00R16ClutchReinforced diaphragm clutchGear boxManual type, 6 Forwards & 1 ReverseCabinLeft Hand Driving, 2 Passenger Allowed, with A/CEngineModelChaochai Diesel Engine, 4 CylindersDisplacement(ml)3856 ml / ccPower(kw)/Horsepower(HP)84 kw/115 HPEmission standardEuro 3Brakes

Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Steering GearPower steering, hydraulic steering with power assistanceSweeping SystemTankGarbage tankTank materialStainless steel 304Tank volume(cbm)4 CBMWater tankTank materialStainless steel 304Tank volume(cbm)1.5 CBMAuxiliary engineModelISUZU Engine 77HPPower(kw)57 kwBrushQuantity(pc)4 pcsWorking area(m)2.7-2.8 mRemarks

1, With water sprayer-bar

2, Rear vacuum cleaner

3, Blower

4, Rear LED pilot lamp

5, Self unloading box body

6, The color will be designed on basis of your requirements.

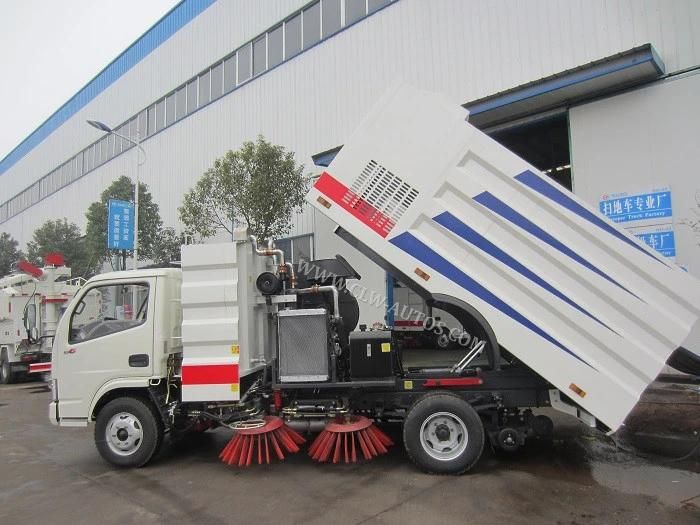

Working Photos

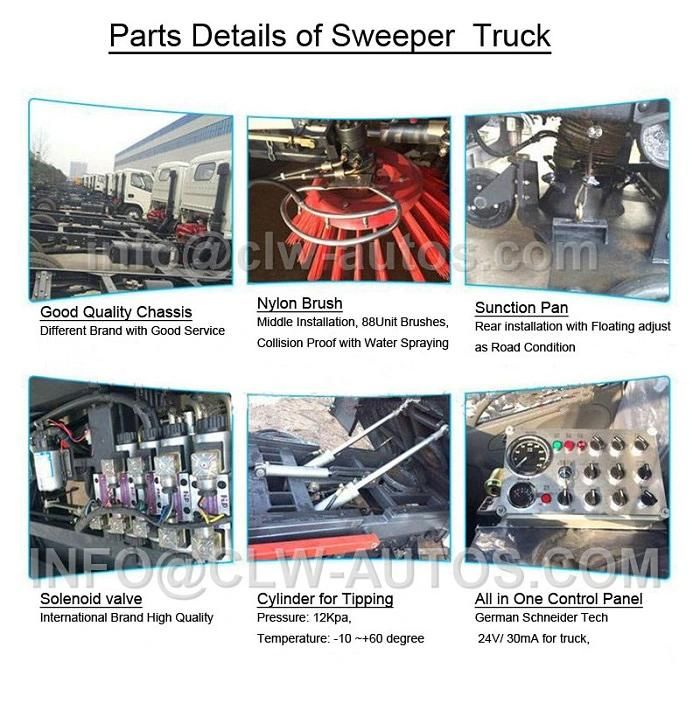

Truck Details

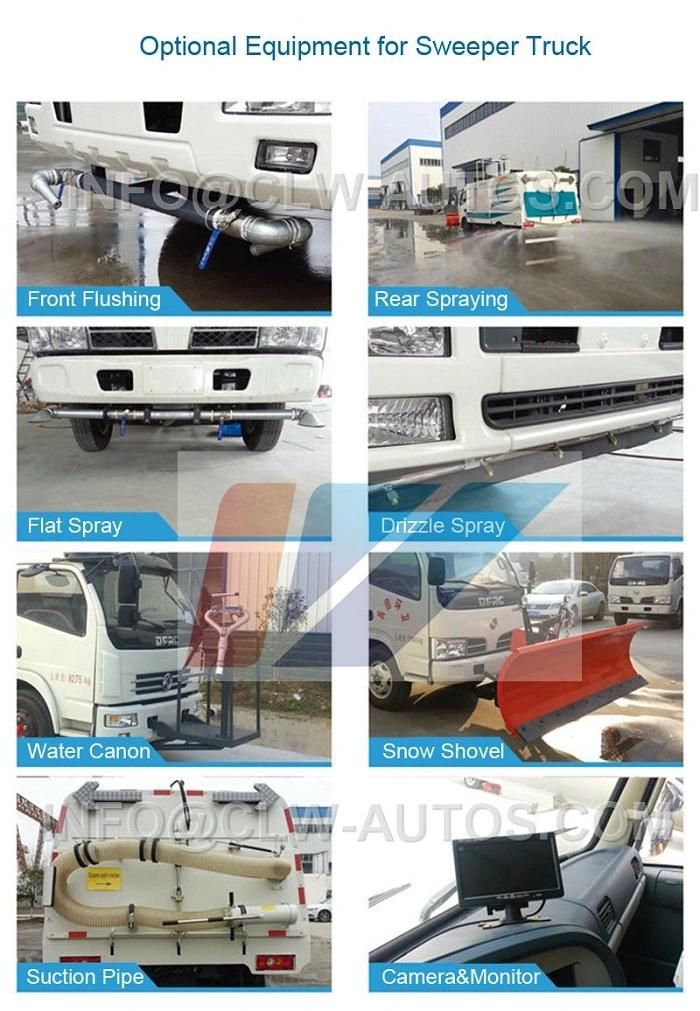

Optional Part for Choice
