• Model NO.：CLW5613XW
• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Dust Bin Capacity：4cbm, 5cbm, 6m3, 7m3, 8m3
• Water Tank：1m3, 1.5m3, 2m3, 4cbm
• Material：Stainless Steel
• Auxiliary Engine：Isuzu 75HP
• Monitor Inside Cabin：Yes
• Operation：Hydraulic Control Unit
• Vacuum Cleaner：1 Main, 2 by Side
• Water Pump：Chinese Famous Brand
• Blower：1 Unit
• Usage：Road Sweeping, Road Cleaning
• Garbage Discharging：Tipping System,Dumping System
• Operating Manual：Yes, English Version
• Logo：as Per Customer′s Request
• Warranty：1 Year
• User Manual：Yes
• Transport Package：Naked Packing
• Specification：5ton, 6ton, 7ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：300 Units Per Month

ChassisDrive Model4X2, Left hand driveVehicle Main DimensionsDimensions(L x W x H)(mm)7160*2120*2570Wheel base (mm)3800Overhang (front/rear) (mm)1015/1815Wheel track (front/rear) (mm)1504/1425Approach/Departure angle(°)24/13Weight in KGSCurb Weight (kg)3880Front/Rear axle loading(kg)2500/5000Max. driving speed(km/h)90EngineModelChina famous brandType4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)130Displacement (ml)2999Emission standardEuro IIIGearbox5 forwards & 1 reverseSteering GearPower steering, hydraulic steering with power assistanceBrakesHydraulic oil brakeTire7.50R16 tire , 6 + 1(spare tire)Upper & EquipmentTankGarbage tankTank materialStainless steel 304Tank volume(cbm)5 cbmWater tankTank materialStainless steel 304Tank volume(cbm)2 cbmAuxiliary engineModelISUZU BrandQuantity(No.)1Power(kw/HP)68/92BlowerQuantity(No.)1BrandChina famous brandPower(kw)18Speed(r/min)2900Filter barrelQuantity(No.)8Size(mm)350*240*900Vacuum cleanerMain Vacuum cleanerQuantity(No.)1Width(mm)1800Side Vacuum cleanerQuantity(No.)2Width(mm)600Max. Working width(mm)2400Sucking Nozzle wheelQuantity(No.)4HeightAdjustableRemarks

1. Rear LED pilot lamp
2. Self unloading box body
3. The color will be designed on basis of your requirements.

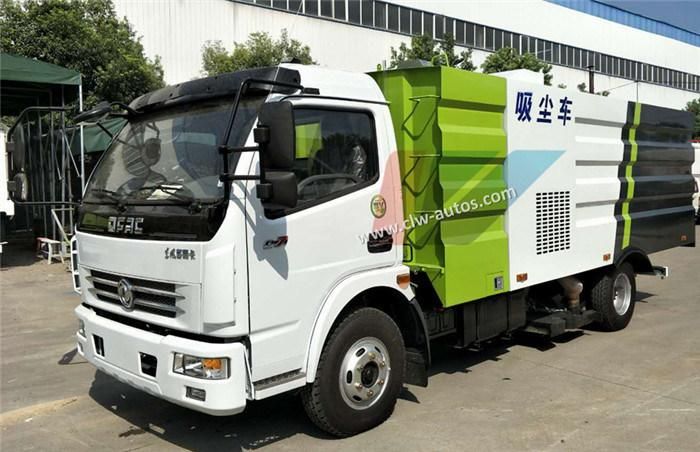

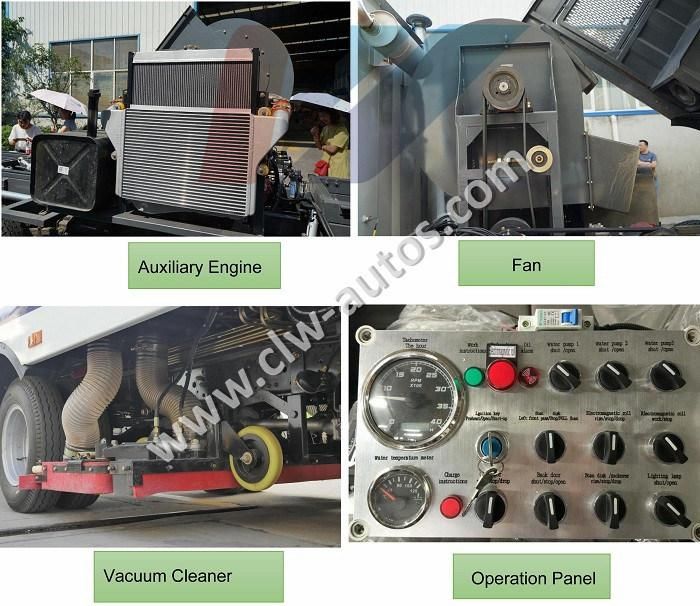

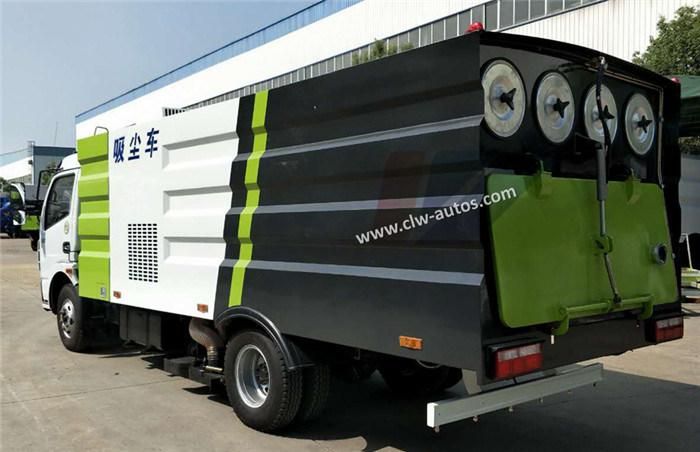

Truck details

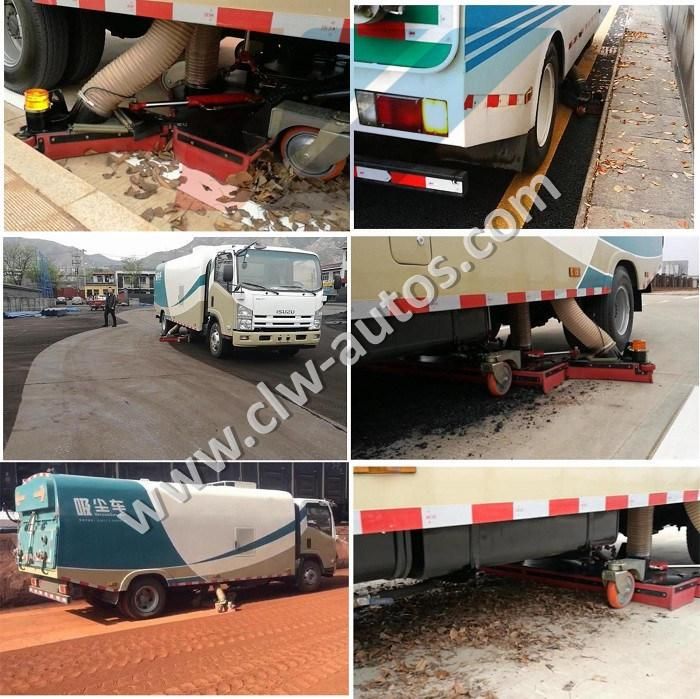

Working Show






Company Introduction




Overseas Exhibition and Local Support



Customer  Visiting and Inspection



Cargo Shipping Methods




Contact Alice for more details (+ 86 180 7154 2196)
