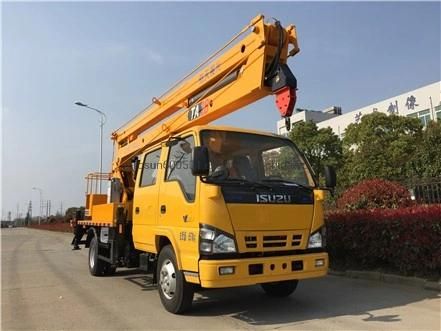

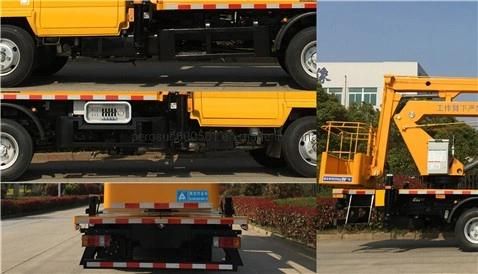

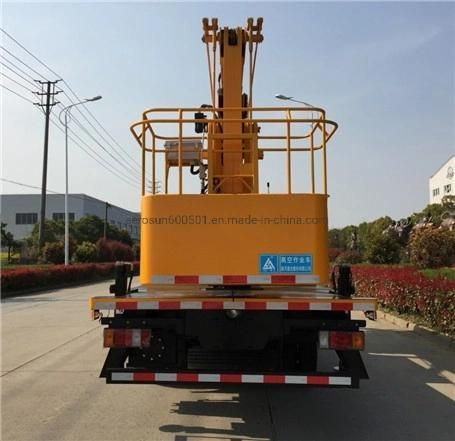

Aerosun Cgj5070jgke5 Aerial Lift Trucks with Max. Work Height 18.3m
Aerosun Corporation- Certification：ISO9000, CCC
- Emission Standard：Euro 5
- Fuel：Diesel
- Transmission Type：Automatic
- Condition：New
- Trademark：Aerosun SanLi
Base Info
- Model NO.：CGJ5070JGKE5
- Origin：China
Description
Integrating the advanced technology from overseas, Aerosun has developed a series of new products such as the aerial lift trucks with the height range from l0m to 30m and the self-propelled aerial working platforms with the height range from 8m to 43m. It adopts the structure of telescope type, folding type and other types, which can be widely used in the fields of airport, municipal project, park, communication, power station, transportation, advertisement, photography, etc.
AERIAL UNIT DETAILS
- 18.3m Working Height
- 9.3m Side Reach
- Articulated Type
- Full Hydraulics Controls
- 360 degree platform rotator
- 1180mm(L)×680mm(W)×1100 mm(H) Platform
BODY DETAILS
- Baosteel excellent hot rolled steel plate for actuating arm
- 7970mm(L)×2080mm(W)×3345mm(H) overall dimension
- Master lock system for all doors
- Non Skid coating on walking surfaces
CHASSIS DETAILS
- ISUZU QL1070A5KWY
- Euro V
- 2.999 Liter/ 96 Kw Diesel Engine
- Automatic Transmission
- 4x2
- AM/FM/CD Radio
- ABS
