• Drive Mode：6x4
• Maximum Horsepower：300-400hp
• Condition：New
• Mixer Tank Volume：8-12 Cbm
• Engine：Isuzu 6uz1-Tcg40,350,380,400 HP
• Transport Package：Nude
• Specification：EMARK, GCC, VCA
• Trademark：ISUZU
• Origin：China
• HS Code：8705400000
• Production Capacity：20000 Unit Year

Basic Info.

Drive Mode 6x4 Maximum Horsepower 300-400hp Condition New Mixer Tank Volume 8-12 Cbm Engine Isuzu 6uz1-Tcg40,350,380,400 HP Transport Package Nude Specification EMARK, GCC, VCA Trademark ISUZU Origin China HS Code 8705400000 Production Capacity 20000 Unit Year

Product Description

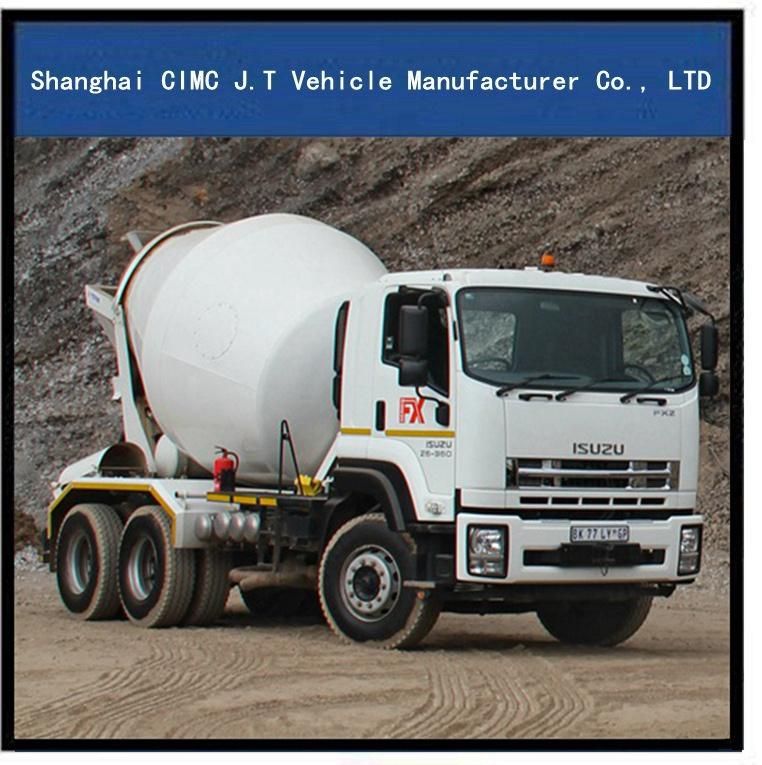

Model QL5250ULCZ
Driving type: 6*4 left hand driving

Engine Make: ISUZU
Diesel 4-stroke direct injection diesel engine, Electronic control
Engine model:6UZ1-TCG40 , Euro IV emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 350 hp (257 Kw) at 2000 rpm
Displacement: 9.8 L

Transmission Fuller 9JS150TB, 9 forwards and 1 reverse, 1500N.m, 2600rpm
Ratio: 12.65   8.38   6.22  4.57   3.40  2.46   1.83   1.34  1   13.22 (R)

Front Axle ISUZU F075, Steering with doubleT-cross section beam, 7.5 Tons Capacity
Rear Axle ISUZU RT210, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
18 Tons Capacity, Ratio Selective:3.9,  4.1,  4.3

Wheels & Tyres Tire:11.00-20 18PR, all Nylon tyre

Driver's Cab Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds



Parameter of the Mixer Tanker Agitating Volume m³ 8
Charge speed  m³/min ≥3
Discharge speed m³/min ≥2
Surplus % ≤0.5
Drum speed rpm 0~16
Drum inclination  º 15º
Drive system Decelerator ZF Germany P5300
Pump EATON USA 5423-159
Hydraulic motor EATON USA 5323-138
Water supply system Water tank volume L/Form of 400/Electric water pump
