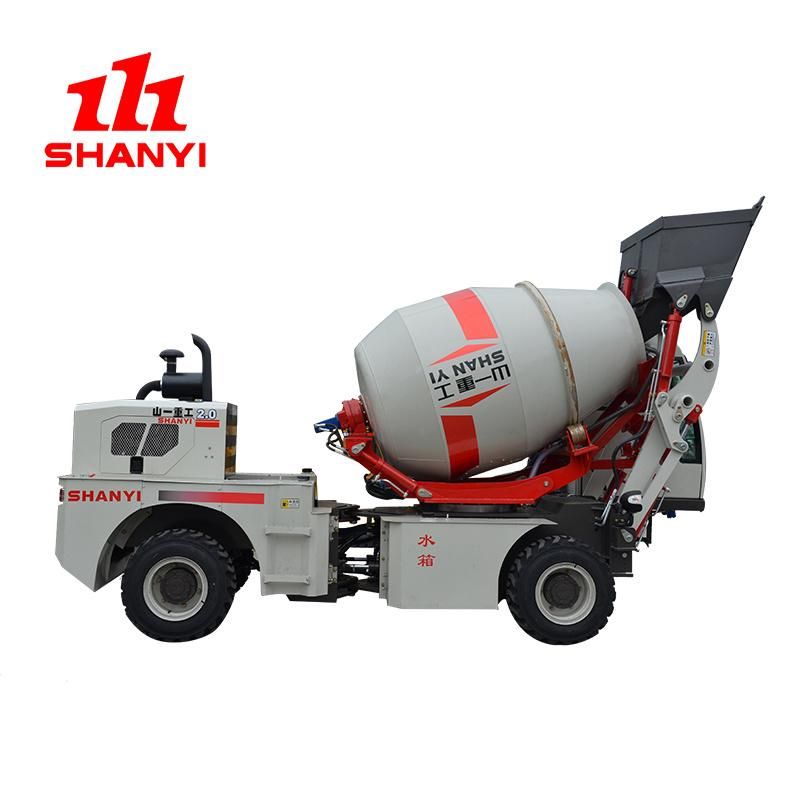

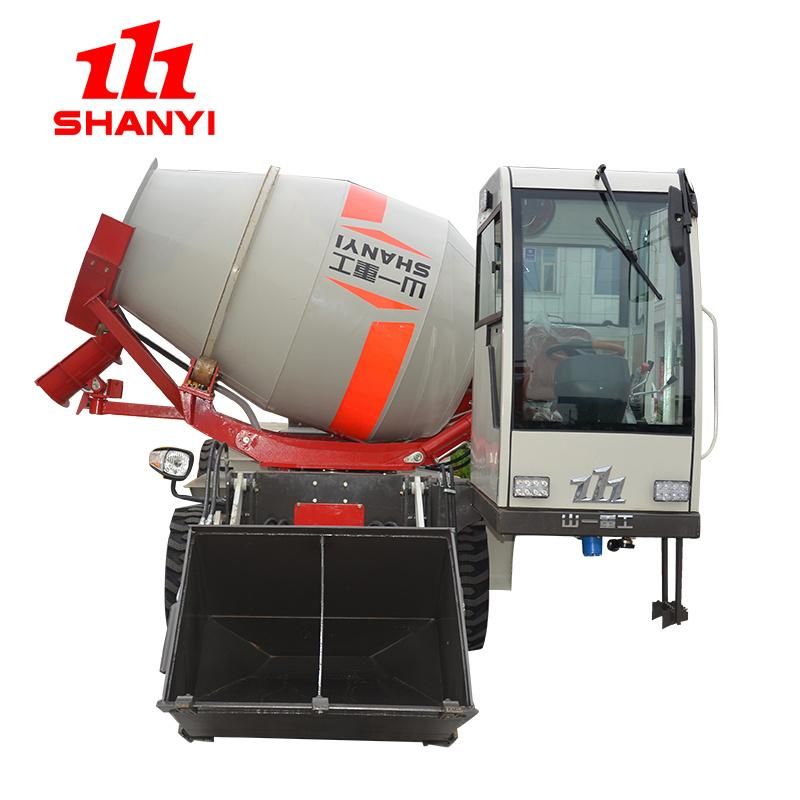

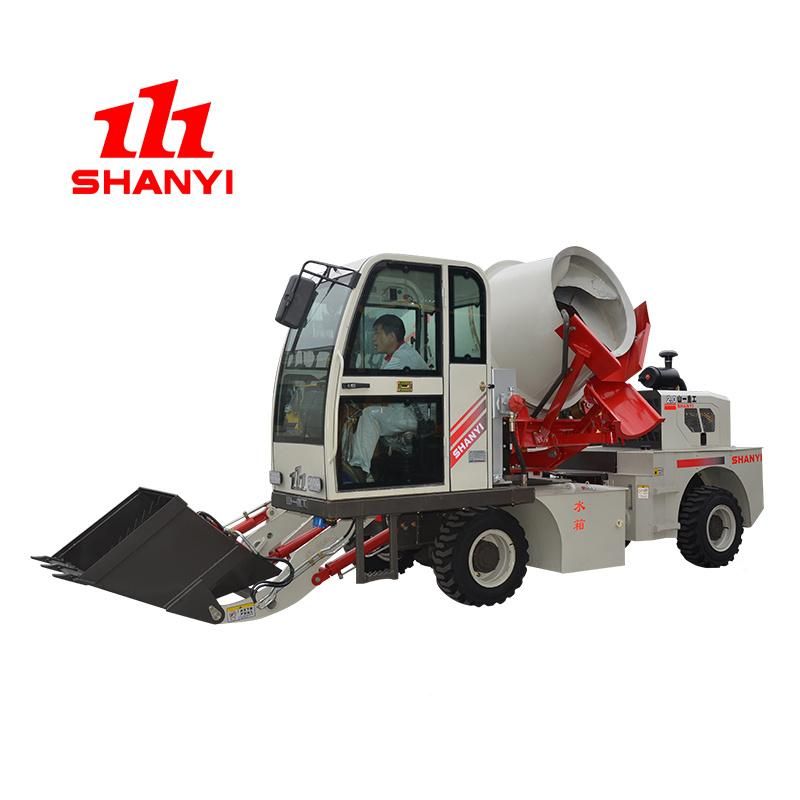

Self-Loading Concrete Mixer Truck
Shandong Lehman Construction Machinery Co., Ltd.- Certification：ISO9000, RoHS, CE
- Transmission Type：Automatic
- Emission Standard：National Emission Standards
- Displacement：1.5
- Payload：2.4t
- Fuel：Diesel
Base Info
- Drive Mode：4*4
- Maximum Horsepower：<200hp
- Condition：New
- Model：2cbm
- Axle：Wheel Deceleration
- Overall Weight：6200kg
- Engine Model：CF4c100t-Z
- Rated Power：78kw
- Specification：65500*2270*2970mm
- Trademark：Shanyi
- Origin：Shandong
- Production Capacity：2000 Sets,Year
Description
Diesel engine
Type:CF4C100T-Z Total displacement, cylinder: 3860cc, four-in-line
Injection: direct injection and mechanical control
Cooling system: water-cooling, dry air filter
Maximum: 357N'm, 1800r/min
Mixing and unloading
Double-cone drum with double-spiral mixing screws and convex bottom.
The geometrical volume of drum is 2810L. The rotation speed of drum is 15r/min.
The output of concrete is 2m³/tank
Product display

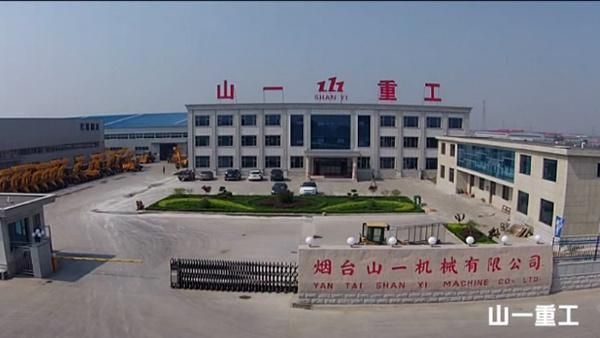

Our conpany
