• Model NO.：CLW5087SLC
• Use：Stainless Steel 304
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Sweeping Speed：3-20 Km,H
• Maximum Sweep Width：2.8m
• Maximum Cleaning Capacity：4000 Cbm,H
• Auxiliary Engine：Chaochai, 102HP
• Water Tank：1.5 Cbm, Stainless Steel 304
• Dust Tank：4.0 Cbm, Stainless Steel 304
• Motor：SANYO
• Pump：Electronic Water Pump, Chinese Famous Brand.
• Fan：Maintenance-Free Centrifugal Fan(Vacuum Tube, and
• Sweeping Brushes：4 , 2 Sweeping Brushes on Each Side
• Operation Manual：1 Set for Each Customer
• Color：as Per Customer Requirements
• Transport Package：Naked, Container, RO-RO, Bulk
• Specification：6200*2000*2590 (mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension6200*2000*2590 (mm)Gross Vehicle Weight8000(Kg)Curb Weight2300(Kg)Chassis SpecificationChassis BrandDongfengDrive model4*2Cabinsingle row, LHD, with air condition.Number of Passengers2EngineModelChaochai/102HP, 4-stroke direct injection , 4-cylinder in-line, turbocharged intercooled, with ABS.Power75KW/102HPEmission standardEURO 3Displacement3707(ml)Fuel typeDieselGearbox5Forwards & 1Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base3308mmFront/Rear Axle Loading2000/3500(Kg)OverhangMechanical Suspension, 11/9+7HTire7.00R16, steel wire tire, 6pc with 1 spare tireSweeping Speed3-20 km/hUpperstructure SpecificationTankWater TankMaterialStainless steel 304Volume1.5(cbm)Dust TankMaterialStainless steel 304Volume4(cbm)Auxiliary EngineModelISUZUPower57KW/77HPMaximum sweep width2.8mMaximum cleaning capacity40000m³/hStandard Configuration1. Equipped with 2 sweeping brushes on each side;2. Equipped with Sanyo Motor;3. Equipped with HIP-SD-7 electromagnetic valve set;4. Equipped with continuously variable speed automatic clutch;5. Equipped with German Schneider control switch;6. Equipped with maintenance-free centrifugal fan, vacuum tube, and rear suction device;7. Equipped with electronic water pump(water-spray nozzle to restrain dust), and manual pump emergency system;8. Equipped with hydraulic system(control box lift, rear door open);9. Equipped with rear LED arrow lights;10. User's operation manual 1 set.Optional ConfigurationFront flush, rear sprinkler, side sprayer, self-cleaning function of dust tank, hose reel with water gun, foggy gun, reversing image monitoring, snow shovel, foggy gun, aerial work platform color is optional, etc.


Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

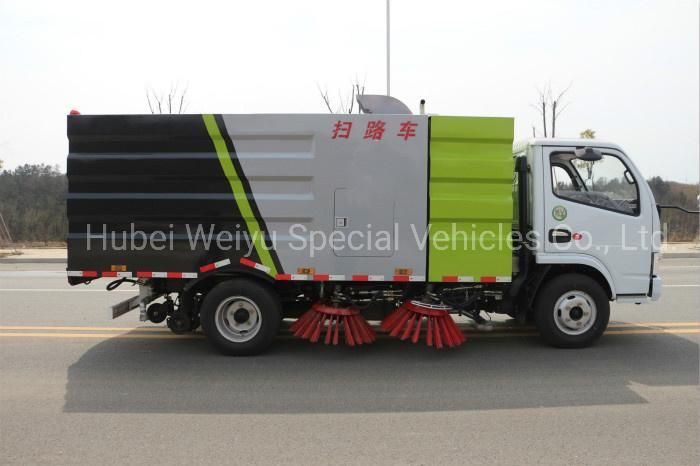

Reference Photos

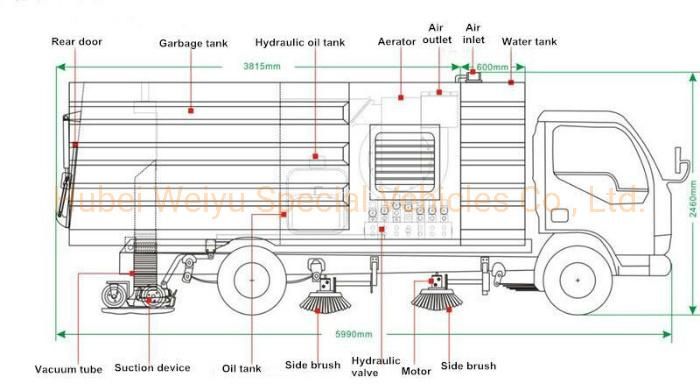

Main Structure

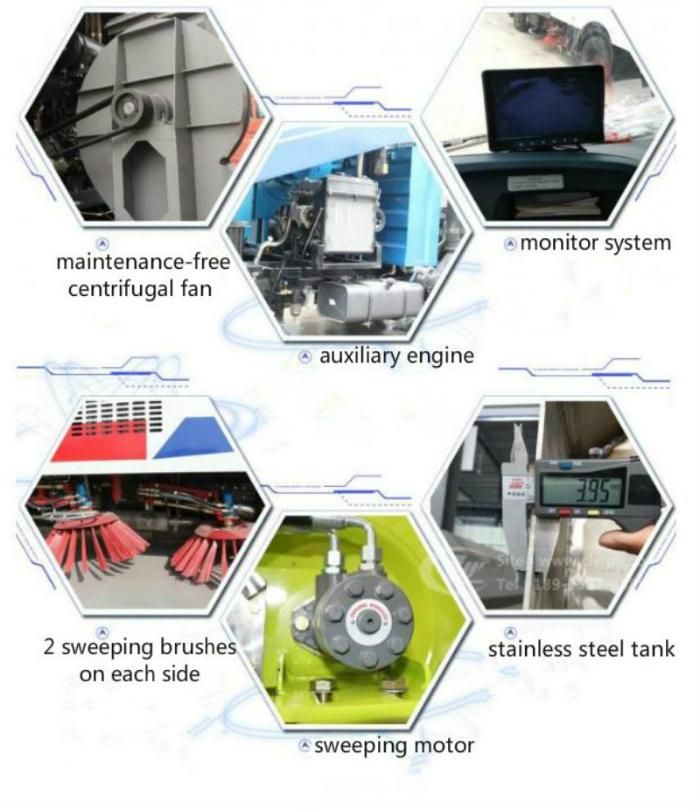

Main Parts

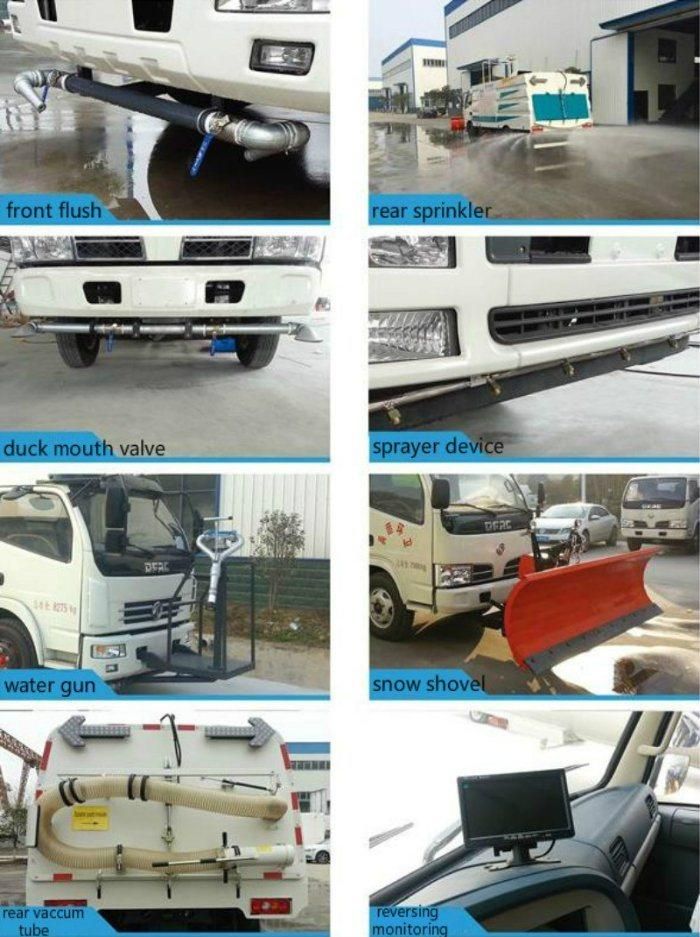

Main Optional Parts

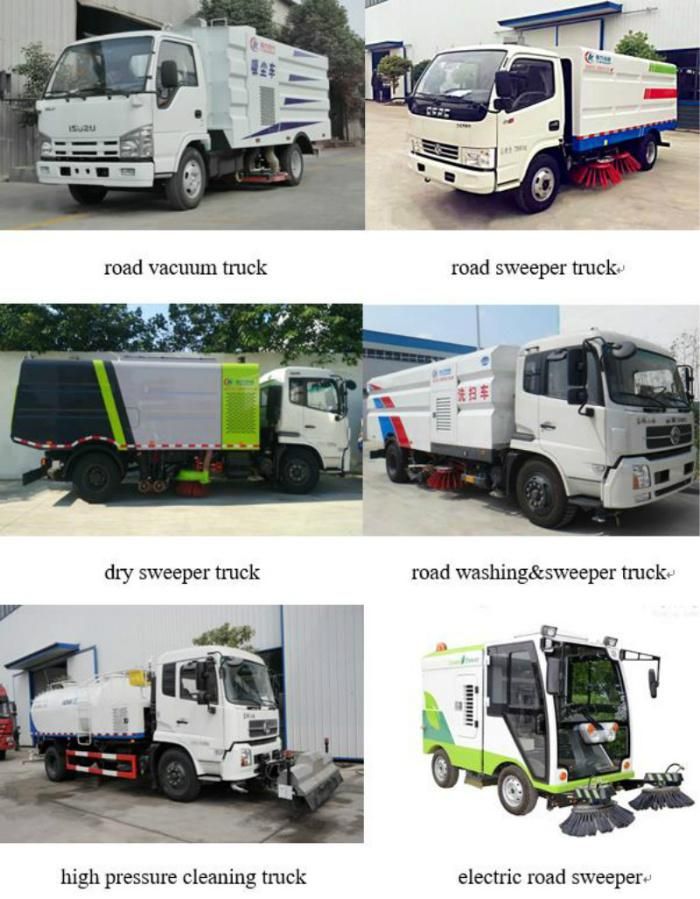

Other Related Road Cleaning Truck


Company Introduction


Certificates



Our Overseas Exhibition


Contact Flora for more details:  +86-13971508969 (Mobile)
