• Model NO.：CLW5087SLC
• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, Foton, Jmc, etc.
• Water Tank Volume：3.5cbm
• Garbage Tank Volume：8cbm
• Water Tank Material：Stainless Steel
• Garbage Tank Material：Stainless Steel
• Max. Working Area：70000m2,H
• Working Speed：3-20km,H
• Sweeping Width：3.5m
• Water Tank Thickness：4mm
• Garbage Tank Thickness：4mm
• Color and Logo：Customized
• Warranty：1 Year
• Transport Package：Naked, RO-RO, Bulk, Container
• Specification：7930*2500*3120 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8701909000
• Production Capacity：500units,Mouth

General Technical ParametersOverall Dimension7930*2500*3120 (mm)Gross Vehicle Weight12000(Kg)Curb Weight4800(Kg)Chassis SpecificationChassis BrandDongfeng TianjinDrive model4*2Cabinsingle row, LHD, with air condition.Number of Passengers2EngineModelCummins/180HP, 4-stroke direct injection , 4-cylinder in-line, turbocharged intercooled, with ABS.Power132KW/180HPEmission standardEURO 3Displacement4999(ml)Fuel typeDieselGearbox6Forwards & 1Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base5000mmFront/Rear Axle Loading2000/3500(Kg)OverhangMechanical Suspension, 11/9+7HTire9.00R20, steel wire tire, 6pc with 1 spare tireSweeping Speed3-20 km/hUpperstructure SpecificationTankWater TankMaterialStainless steel 304Volume3.5(cbm)Dust TankMaterialStainless steel 304Volume8(cbm)Auxiliary EngineModelJMCPower57KW/77HPMaximum sweep width3.5mMaximum cleaning capacity70000m³/hStandard Configuration1. Equipped with 2 sweeping brushes on each side;2. Equipped with Sanyo Motor;3. Equipped with HIP-SD-7 electromagnetic valve set;4. Equipped with continuously variable speed automatic clutch;5. Equipped with German Schneider control switch;6. Equipped with maintenance-free centrifugal fan, vacuum tube, and rear suction device;7. Equipped with electronic water pump(water-spray nozzle to restrain dust), and manual pump emergency system;8. Equipped with hydraulic system(control box lift, rear door open);9. Equipped with rear LED arrow lights;10. User's operation manual 1 set.Optional ConfigurationFront flush, rear sprinkler, side sprayer, self-cleaning function of dust tank, hose reel with water gun, foggy gun, reversing image monitoring, snow shovel, foggy gun, aerial work platform color is optional, etc.


Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

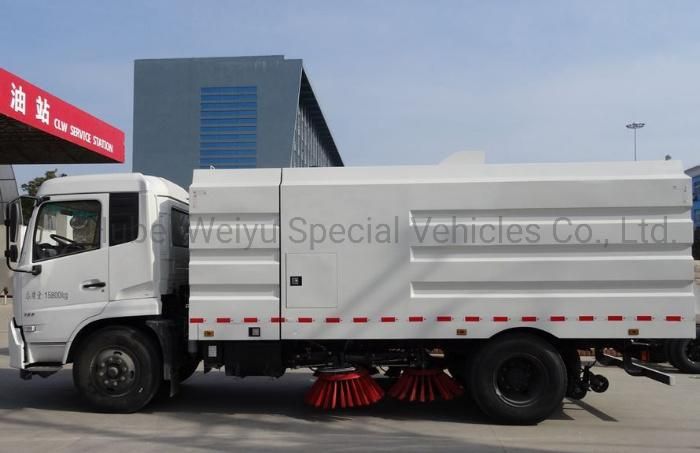

Reference Photos

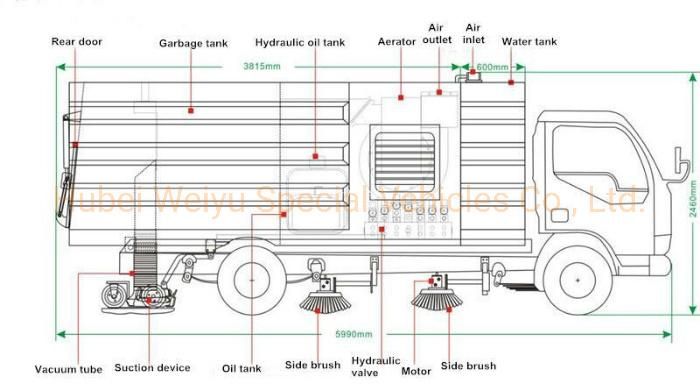

Main Structure

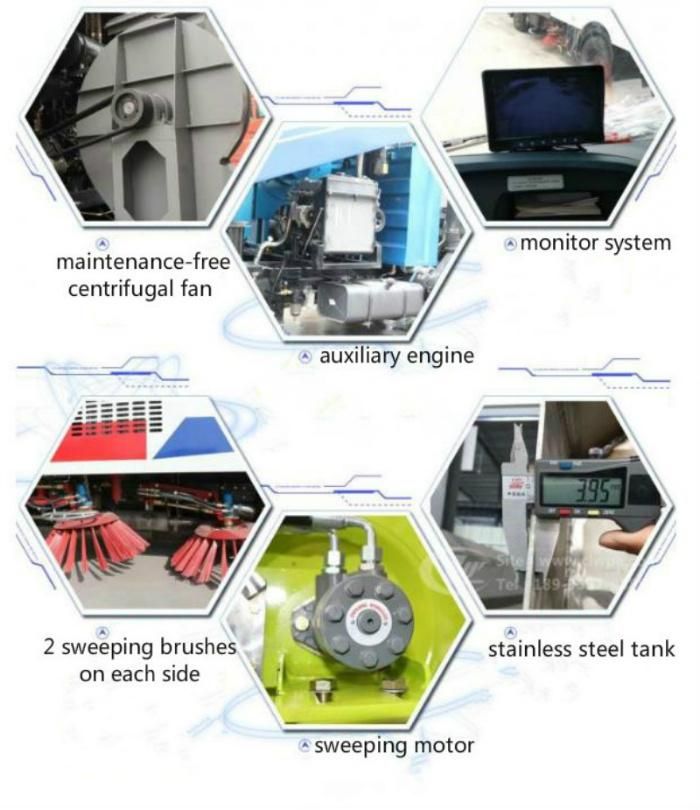

Main Parts

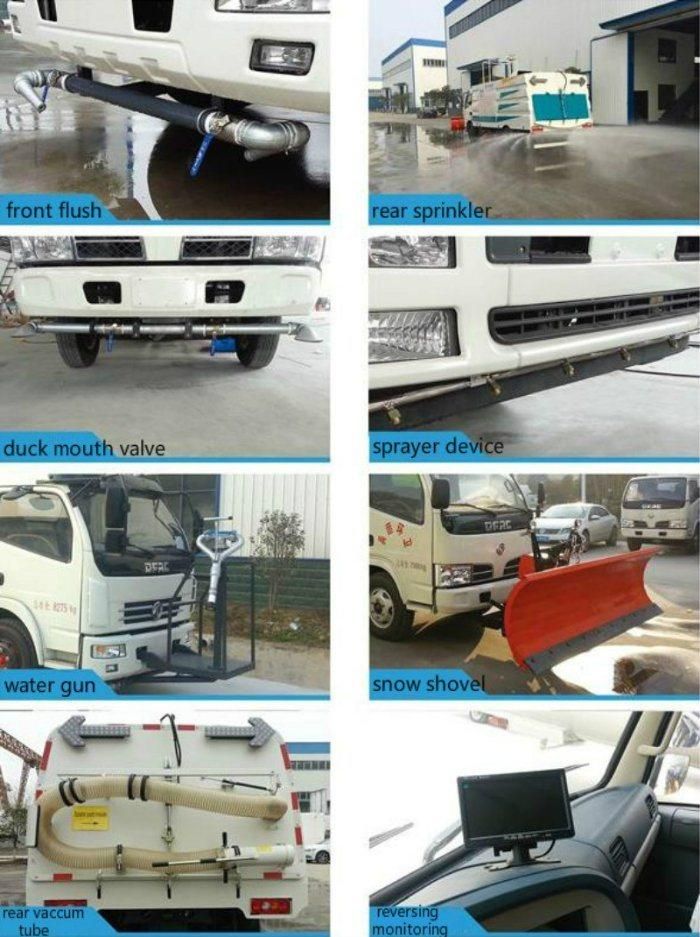

Main Optional Parts

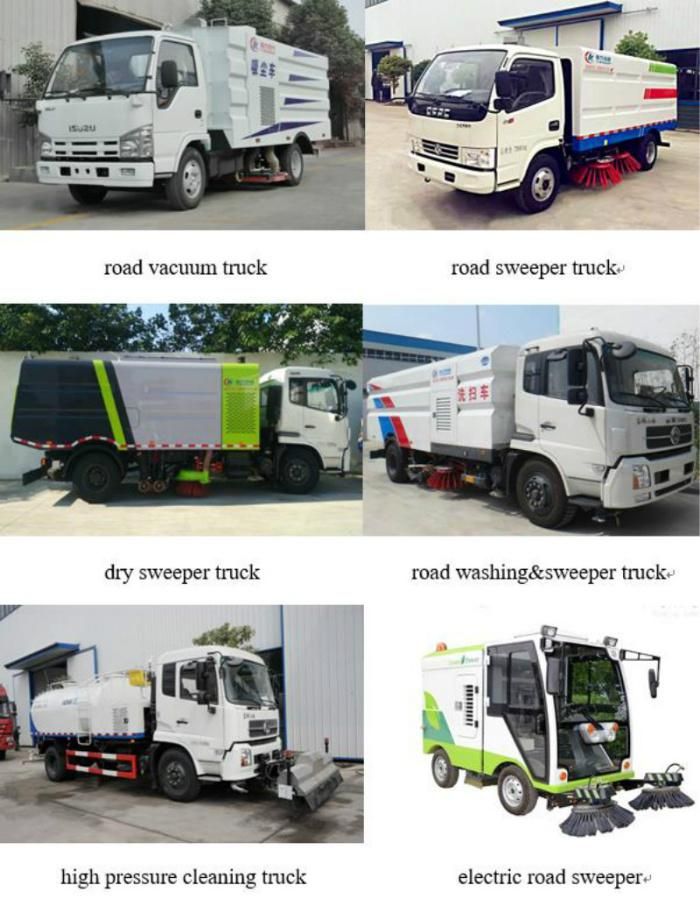

Other Related Road Cleaning Truck


Company Introduction


Certificates



Our Overseas Exhibition


Contact Flora for more details:  +86-13971508969 (Mobile)
