• Model NO.：CLW5087ZYS
• Use：Stainless Steel 304
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Sweeping Speed：3-20 Km,H
• Maximum Sweep Width：2.8m
• Maximum Cleaning Capacity：40000 Cbm,H
• Auxiliary Engine：Isuzu, 130HP
• Water Tank：1.5 Cbm, Stainless Steel 304
• Dust Tank：4.0 Cbm, Stainless Steel 304
• Motor：SANYO
• Pump：Electronic Water Pump, Chinese Famous Brand.
• Fan：Maintenance-Free Centrifugal Fan(Vacuum Tube, and
• Sweeping Brushes：4 , 2 Sweeping Brushes on Each Side
• Operation Manual：1 Set for Each Customer
• Color：as Per Customer Requirements
• Transport Package：Naked, Container, RO-RO, Bulk
• Specification：6190*1990*2590 (mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension6190*1990*2590 (mm)Gross Vehicle Weight8000(Kg)Curb Weight2300(Kg)Chassis SpecificationChassis BrandIsuzuDrive model4*2Cabinsingle row, LHD, with air condition.Number of Passengers2EngineModelIsuzu/130HP, 4-stroke direct injection , 4-cylinder in-line, turbocharged intercooled, with ABS.Power95KW/130HPEmission standardEURO 4Displacement3707(ml)Fuel typeDieselGearbox5Forwards & 1Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base3360mmFront/Rear Axle Loading2000/3500(Kg)OverhangMechanical Suspension, 11/9+7HTire7.00R16, steel wire tire, 6pc with 1 spare tireSweeping Speed3-20 km/hUpperstructure SpecificationTankWater TankMaterialStainless steel 304Volume1.5(cbm)Dust TankMaterialStainless steel 304Volume4(cbm)Auxiliary EngineModelJMCPower57KW/77HPMaximum sweep width2.8mMaximum cleaning capacity40000m³/hStandard Configuration1. Equipped with 2 sweeping brushes on each side;2. Equipped with Sanyo Motor;3. Equipped with HIP-SD-7 electromagnetic valve set;4. Equipped with continuously variable speed automatic clutch;5. Equipped with German Schneider control switch;6. Equipped with maintenance-free centrifugal fan, vacuum tube, and rear suction device;7. Equipped with electronic water pump(water-spray nozzle to restrain dust), and manual pump emergency system;8. Equipped with hydraulic system(control box lift, rear door open);9. Equipped with rear LED arrow lights;10. User's operation manual 1 set.Optional ConfigurationFront flush, rear sprinkler, side sprayer, self-cleaning function of dust tank, hose reel with water gun, foggy gun, reversing image monitoring, snow shovel, foggy gun, aerial work platform color is optional, etc.


Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

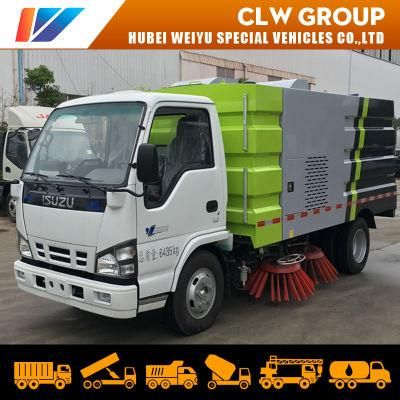

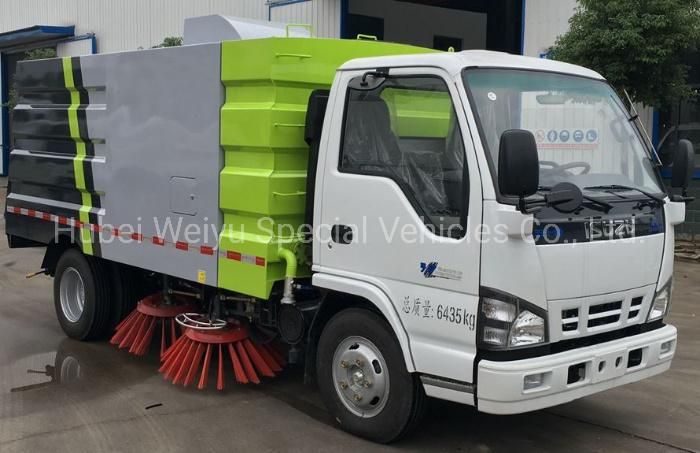

Reference Photos



Main Structure

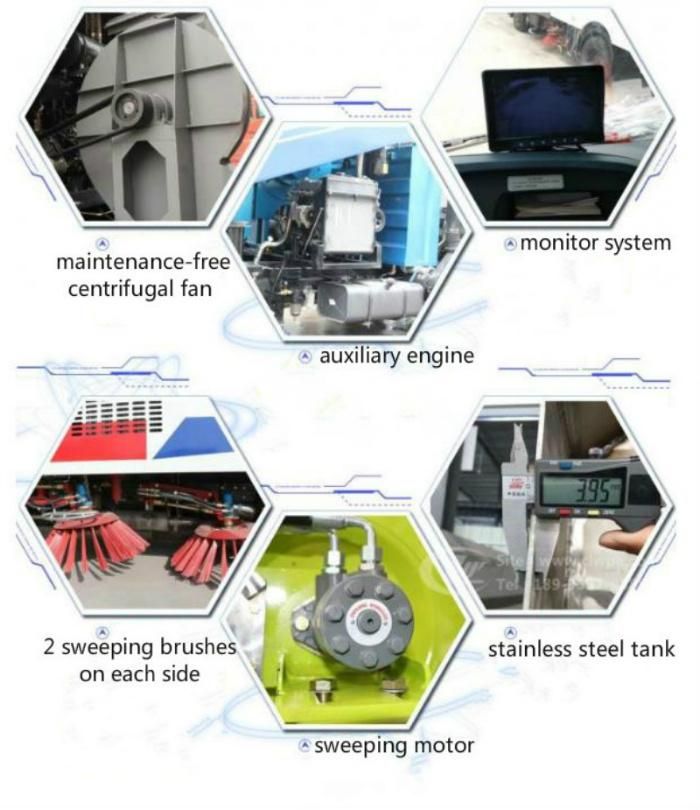

Main Parts

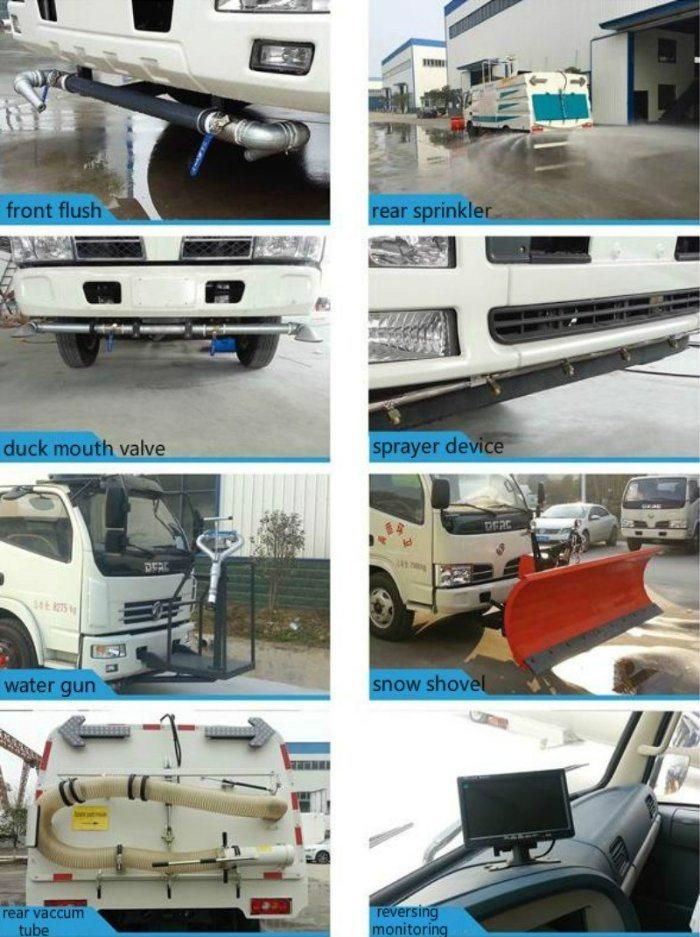

Main Optional Parts

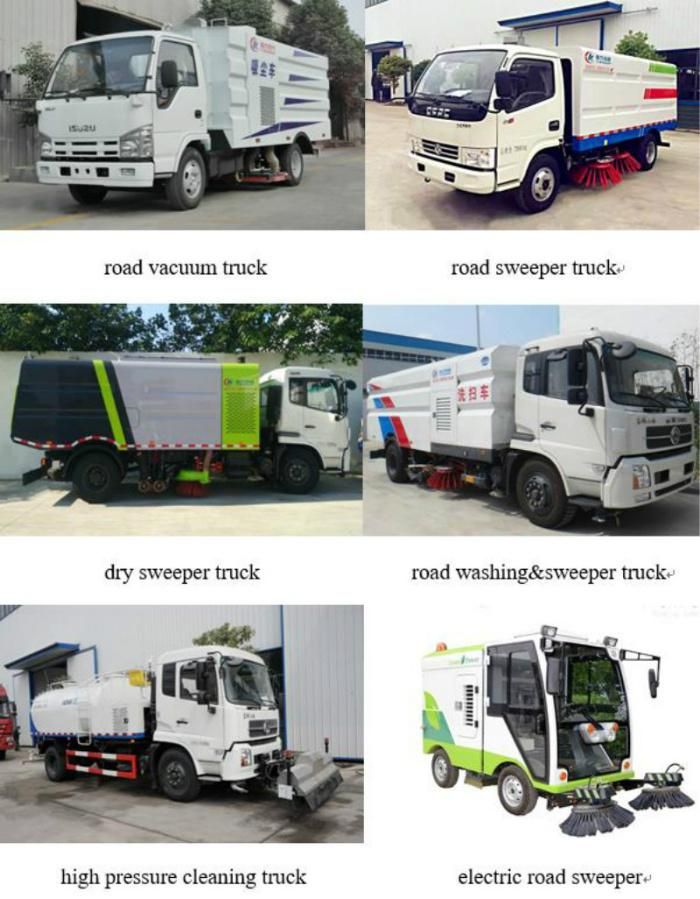

Other Related Road Cleaning Truck
