• Model NO.：ZLF5351GXFPM180
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：150-250hp
• Condition：New
• Engine Power(Kw)：368
• Max. Torque(Nm)：2550
• Cab Seats：2
• Max Speed(Km/H)：100
• Specification：10500*2500*3400
• Trademark：ZOOMLION
• Origin：Hunan
• HS Code：870530

Basic Info.

Model NO. ZLF5351GXFPM180 Fuel Diesel Drive Wheel 4×2 Horsepower 150-250hp Condition New Engine Power(Kw) 368 Max. Torque(Nm) 2550 Cab Seats 2 Max Speed(Km/H) 100 Specification 10500*2500*3400 Trademark ZOOMLION Origin Hunan HS Code 870530

Product Description

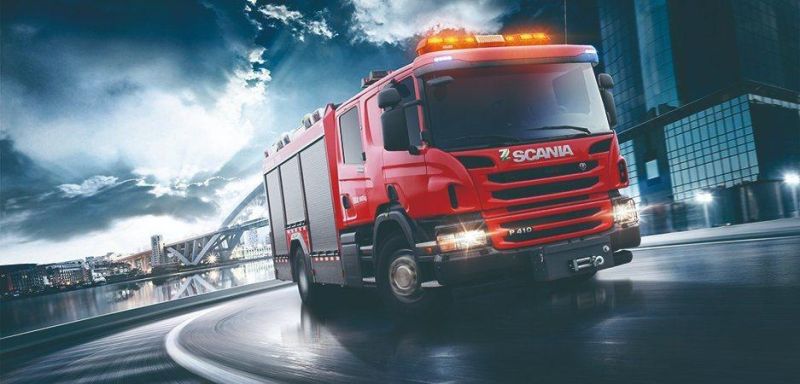

Special Fire Fighting Vehicle Foamwater Tank Fire Fighting Truck


PRODUCT DESCRIPTION

Foam/water tank fire fighting vehicle can be widely used in solid material fire-extinction such as industrial buildings and civil buildings; it can be used for oil fields, oil depots and terminals liquid fuel fire-extinction.

SPECIFICATIONS


Chassis	SCAINA 5G500
Engine power(kW)	368
Max.torque(Nm)	2550
Cab Seats	2
Max speed(km/h)	100
Fuel tank volume(L)	300
Wheel base(mm)	1990+3160+1350
Fuel	Diesel
Emission standard	National-V
Engine power/GVW(Kw/t)	10.5
Overall dimensions(mm)	10500×2500×3400
GVM(kg)	35200
Fire monitor model	AKRON3482+5177
Max. flowing of fire monitor(L/min)	4800
Max. spraying reach of fire monitor(m)	≥80
Water tank volume(L)	15000
Foam tank volume(L)	3000
Water pump model	RSD100
Max. flowing of water pump(L/min@MPa)	6000@1.0

ADVANTAGE

01.Powerful fire-extinction capacity; Operation is simple and convenient

Quick rescue, superior performance.Fast rescue and superior performance, with well know chassis brand, the engine power is strong, with multi person capability of the cap, quickly reach the fire site.
The strong fire extinguishing performance.The maximum load of extinguishing agent of vehicle is 25 tons and max flowing of water pump is 6000L/min, it can put out the fire effectively.
Operation is simple and convenient.Firefighting operations can be operated on centralized console on the right side in the rear of the vehicle. The console is far away from the water outlet in order to make operating safely and convenient.

02. Large storage apartment
The outlet arranged in the rear of truck in order to save space. Truck can carry more fire-extinction and rescue equipments.

03.Anti-corrosive and durable tank
Tank wall make of good anticorrosion materials, these materials can extend the service life of tank. Minimum service life of tank is up to 10 years.

04. According to users' demands there are various configurations to choose
Flexible optional configurations based on customer requirements.According to users' requirements, there are various optional equipments to choose, such as LED lamp for lighting, automatically inflates and charges device, imported water pump, water pump and etc.

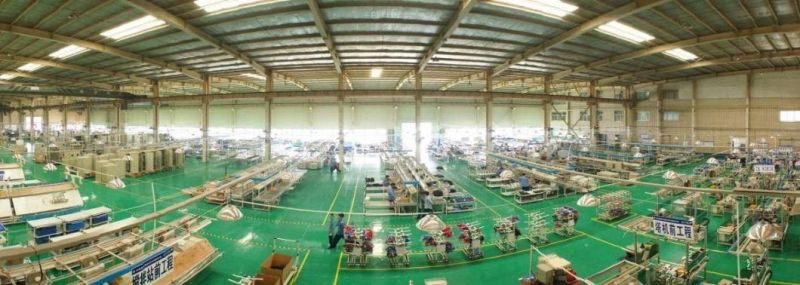

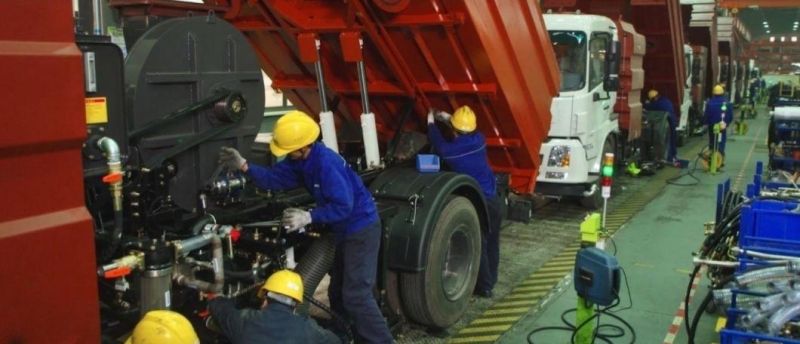

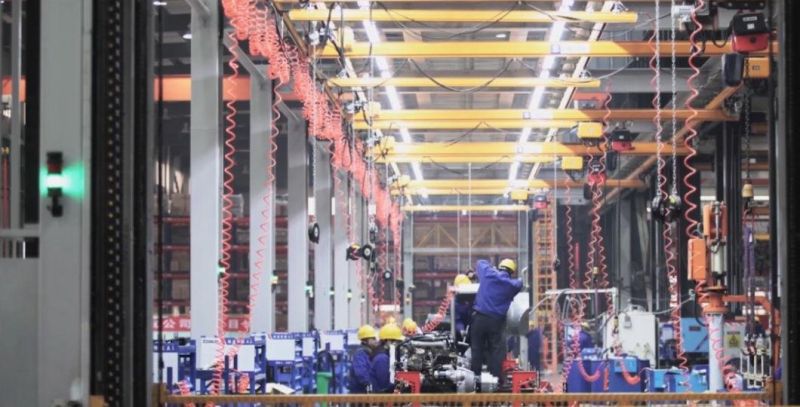

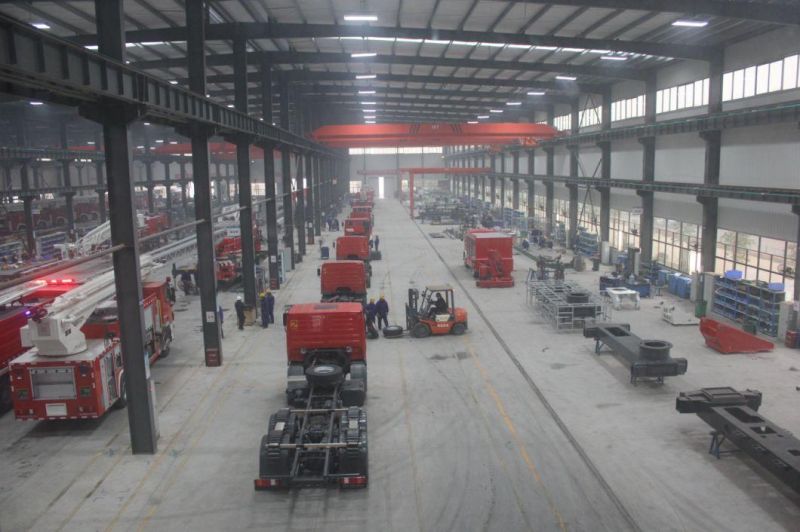

WORKSHOP

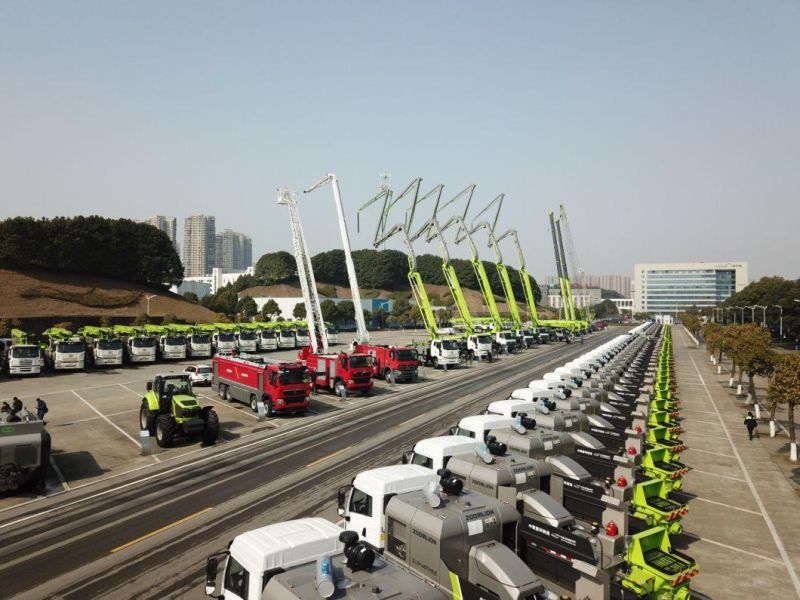

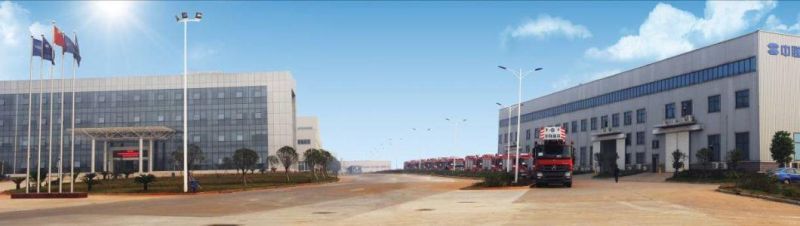

CAMPANY  PROFILE



Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in developing and manufacturing major high-tech equipment in the areas of engineering industry and agricultural industry. With more than 20 years of innovation and development, the company is now a global enterprise possessing 10 major categories and 56 product lines, as well as nearly 600 leading products. Zoomlion is the first Chinese construction machinery company to be listed on both Shenzhen and Hong Kong stock exchanges. At present, the company is actively promoting strategic transformation, aiming to build a high-end equipment manufacturing enterprise integrating engineering machinery, agricultural machinery and financial services.

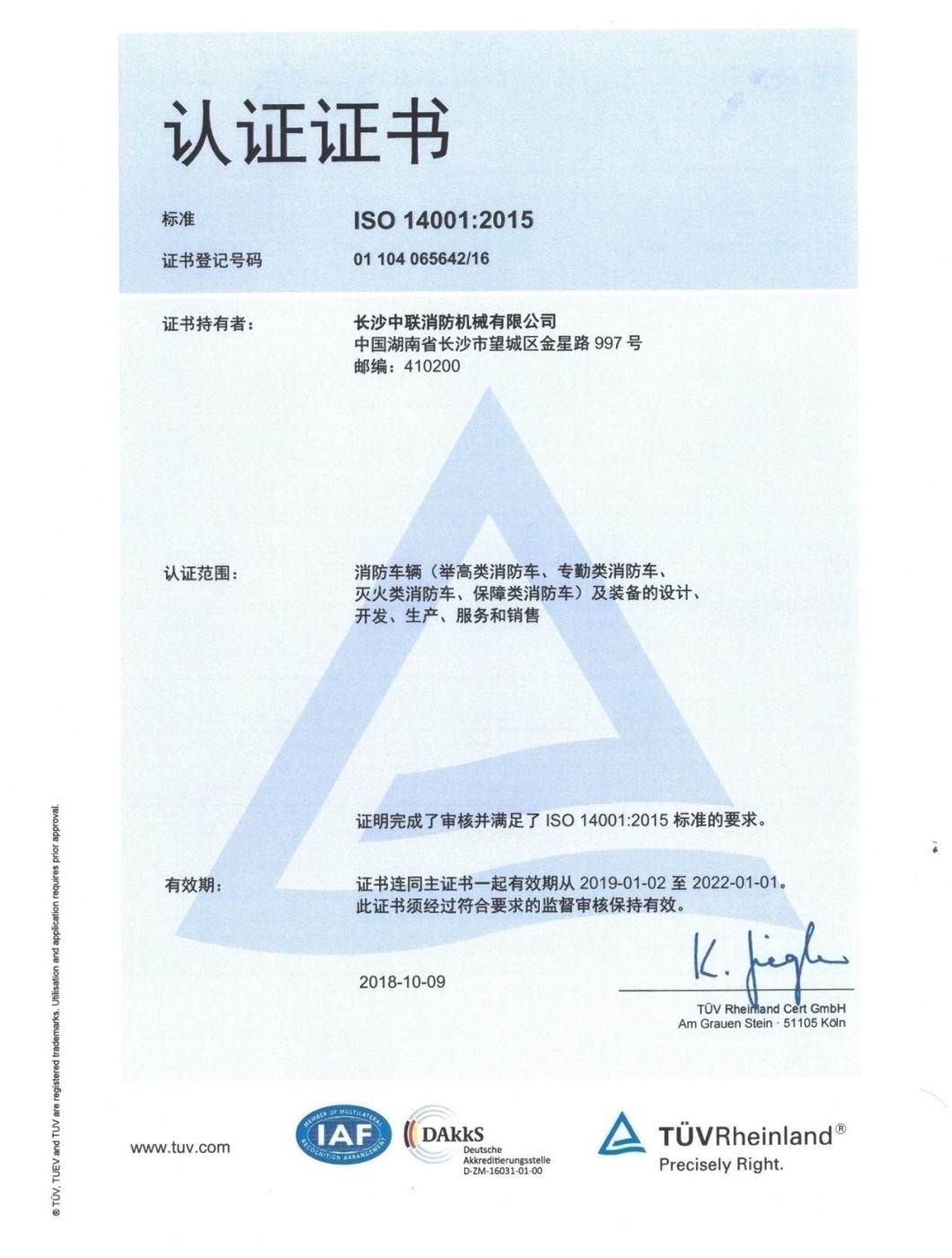

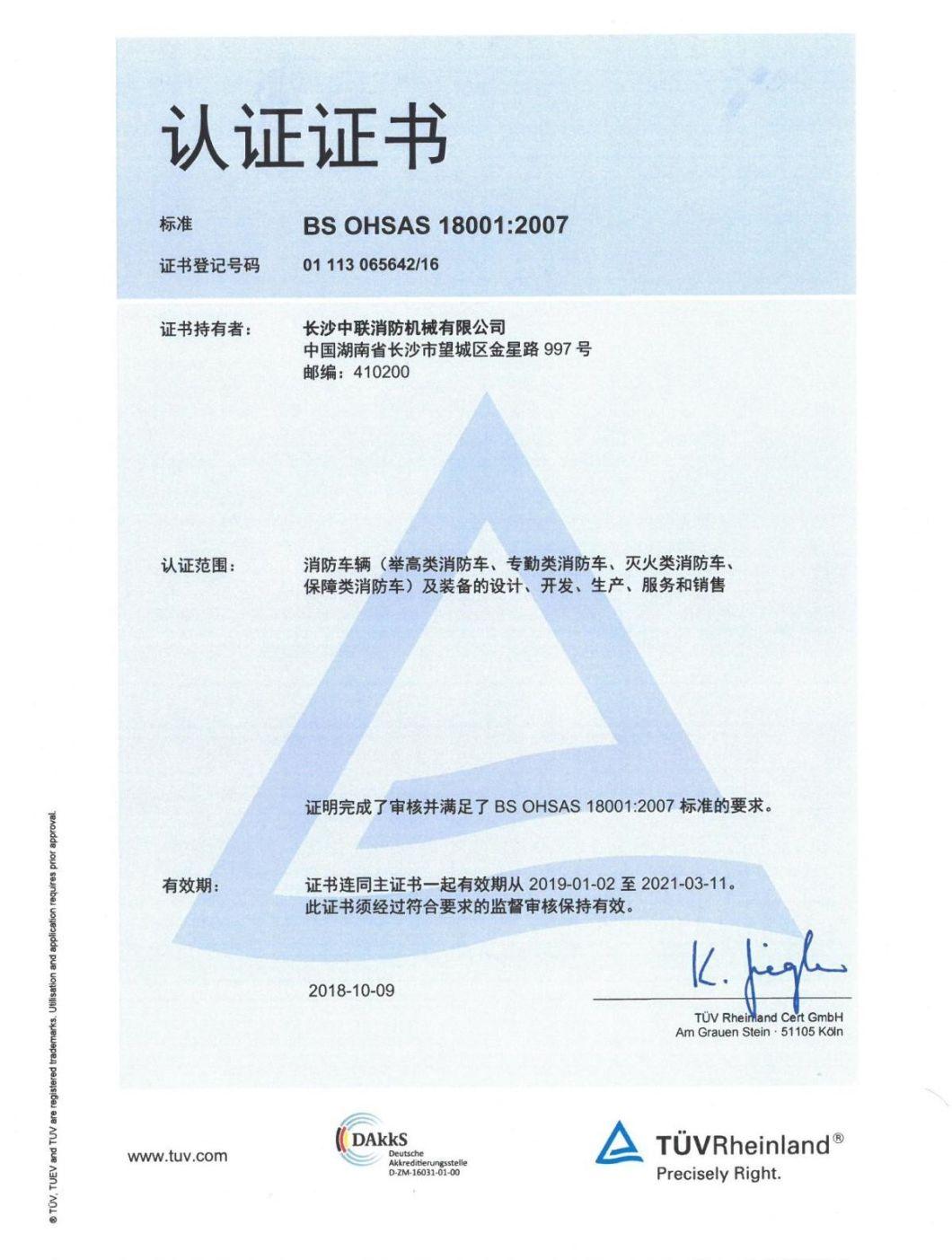

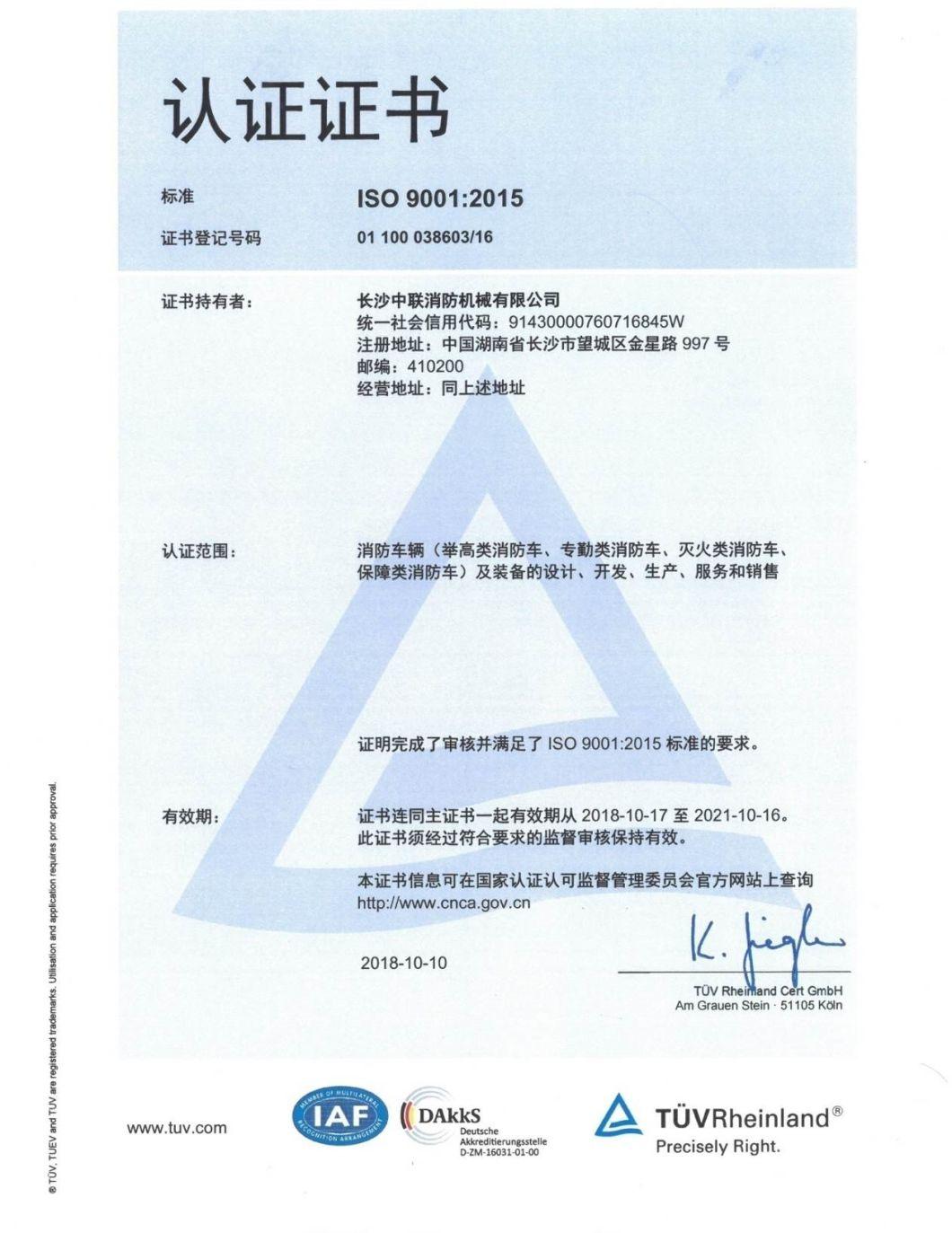

CERTIFICATES
