Made in China Multi Function Foamwater Tank Fire Fighting Vehicle
Zoomlion Heavy Industry Science & Technology Co., Ltd.- Type：Foamwater
- Certification：ISO9000, CCC
- Volume：3001-5000L
- Emission Standard：National-V
- Transmission Type：Manual
- Payload：28400kg
Base Info
- Model NO.：ZLF5280GXFPM120
- Fuel：Diesel
- Drive Wheel：4×2
- Horsepower：150-250hp
- Condition：New
- Engine Power(Kw)：327
- Max. Torque(Nm)：2150
- Cab Seats：6
- Max Speed(Km/H)：101
- Specification：10000*2500*3610
- Trademark：ZOOMLION
- Origin：Hunan
- HS Code：870530
Description
Basic Info.
Model NO. ZLF5280GXFPM120 Fuel Diesel Drive Wheel 4×2 Horsepower 150-250hp Condition New Engine Power(Kw) 327 Max. Torque(Nm) 2150 Cab Seats 6 Max Speed(Km/H) 101 Specification 10000*2500*3610 Trademark ZOOMLION Origin Hunan HS Code 870530Product Description
Made in China Multi Function Foamwater Tank Fire Fighting Vehicle
PRODUCT DESCRIPTION
Foam/water tank fire fighting vehicle can be widely used in solid material fire-extinction such as industrial buildings and civil buildings; it can be used for oil fields, oil depots and terminals liquid fuel fire-extinction.
SPECIFICATIONS
| Chassis | Sino-Trunk ZZ5357TXFV464ME5 |
| Engine power(kW) | 327 |
| Max.torque(Nm) | 2100 |
| Cab Seats | 6 |
| Max speed(km/h) | 101 |
| Fuel tank volume(L) | 300 |
| Wheel base(mm) | 4600+1400 |
| Fuel | Diesel |
| Emission standard | National-V |
| Engine power/GVW(Kw/t) | 11.5 |
| Overall dimensions(mm) | 10000×2500×3610 |
| GVM(kg) | 28400 |
| Fire monitor model | PL48/PS50 |
| Max. flowing of fire monitor(L/min) | 2880/3000 |
| Max. spraying reach of fire monitor(m) | ≥55/≥65 |
| Water tank volume(L) | 10000 |
| Foam tank volume(L) | 2300 |
| Water pump model | CB20.10/30.60 |
| Max. flowing of water pump(L/min@MPa) | 3600@1.0-1800@2.0 |
ADVANTAGE
01.Powerful fire-extinction capacity; Operation is simple and convenient
Quick rescue, superior performance.Fast rescue and superior performance, with well know chassis brand, the engine power is strong, with multi person capability of the cap, quickly reach the fire site.
The strong fire extinguishing performance.The maximum load of extinguishing agent of vehicle is 25 tons and max flowing of water pump is 6000L/min, it can put out the fire effectively.
Operation is simple and convenient.Firefighting operations can be operated on centralized console on the right side in the rear of the vehicle. The console is far away from the water outlet in order to make operating safely and convenient.
02. Large storage apartment
The outlet arranged in the rear of truck in order to save space. Truck can carry more fire-extinction and rescue equipments.
03.Anti-corrosive and durable tank
Tank wall make of good anticorrosion materials, these materials can extend the service life of tank. Minimum service life of tank is up to 10 years.
04. According to users' demands there are various configurations to choose
Flexible optional configurations based on customer requirements.According to users' requirements, there are various optional equipments to choose, such as LED lamp for lighting, automatically inflates and charges device, imported water pump, water pump and etc.

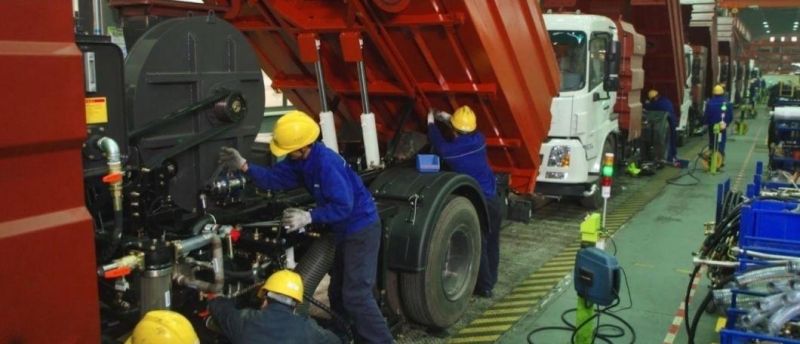

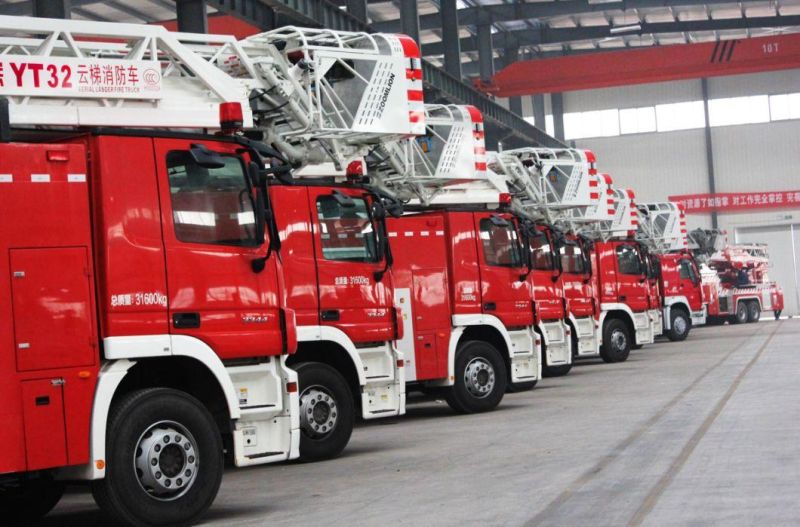

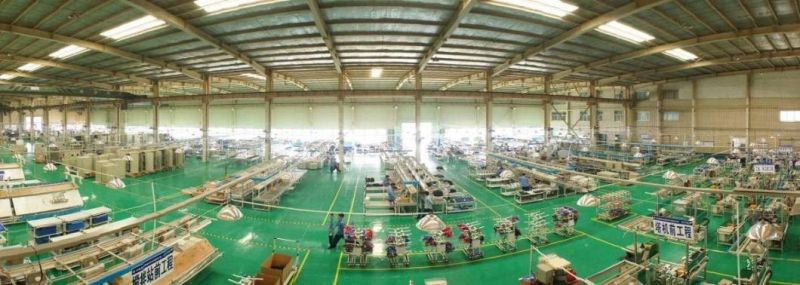

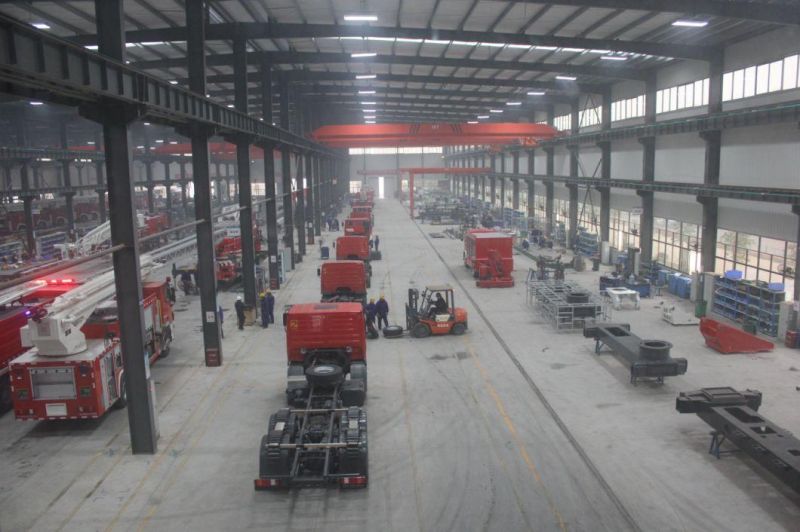

WORKSHOP

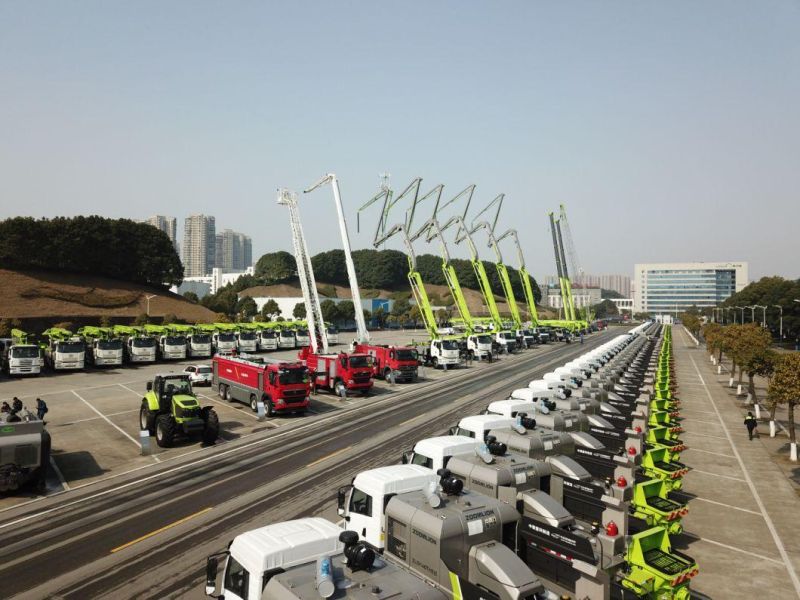

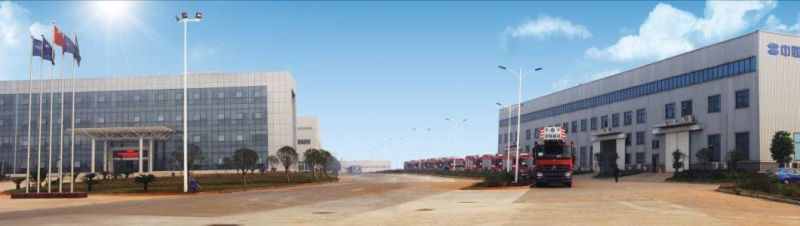

CAMPANY PROFILE
Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in developing and manufacturing major high-tech equipment in the areas of engineering industry and agricultural industry. With more than 20 years of innovation and development, the company is now a global enterprise possessing 10 major categories and 56 product lines, as well as nearly 600 leading products. Zoomlion is the first Chinese construction machinery company to be listed on both Shenzhen and Hong Kong stock exchanges. At present, the company is actively promoting strategic transformation, aiming to build a high-end equipment manufacturing enterprise integrating engineering machinery, agricultural machinery and financial services.
CERTIFICATES
