Zlf5170gxfap45 High Safety Multi Function Cafs Fire Fighting Vehicle
Zoomlion Heavy Industry Science & Technology Co., Ltd.- Type：Cafs
- Certification：ISO9000, CCC
- Volume：3001-5000L
- Emission Standard：National-V
- Transmission Type：Manual
- Payload：17000kg
Base Info
- Model NO.：ZLF5170GXFAP45
- Fuel：Diesel
- Drive Wheel：4×2
- Horsepower：150-250hp
- Condition：New
- Engine Power(Kw)：235
- Max. Torque(Nm)：1650
- Cab Seats：6
- Max Speed(Km/H)：100
- Specification：8890*2500*3420
- Trademark：ZOOMLION
- Origin：Hunan
- HS Code：870530
Description
Basic Info.
Model NO. ZLF5170GXFAP45 Fuel Diesel Drive Wheel 4×2 Horsepower 150-250hp Condition New Engine Power(Kw) 235 Max. Torque(Nm) 1650 Cab Seats 6 Max Speed(Km/H) 100 Specification 8890*2500*3420 Trademark ZOOMLION Origin Hunan HS Code 870530Product Description

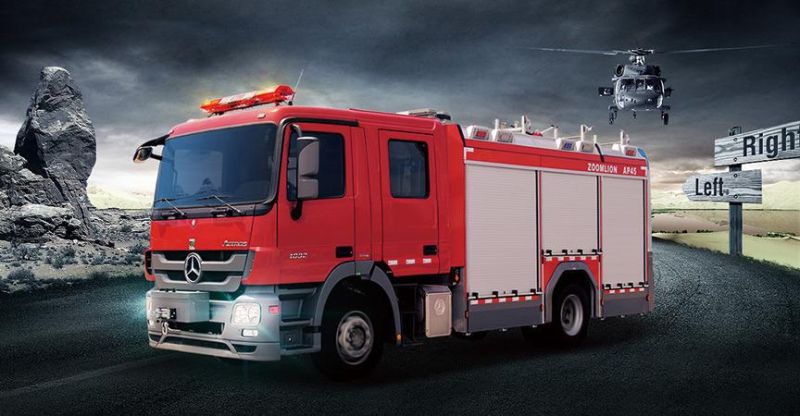

ZLF5170GXFAP45 High Safety Multi Function CAFS Fire Fighting Vehicle
PRODUCT DESCRIPTION
CAFS fire fighting vehicle is widely used in solid material fire-extinction such as industrial buildings and civil buildings; also can be used in liquid fuel fire-extinction such as oil fields, oil depots, terminals.
SPECIFICATIONS
| Chassis | Benz Actros1832 E5 |
| Engine power(kW) | 235 |
| Max.torque(Nm) | 1650 |
| Cab Seats | 6 |
| Max speed(km/h) | 100 |
| Fuel tank volume(L) | 300 |
| Wheel base(mm) | 4500 |
| Fuel | Diesel |
| Emission standard | National-V |
| Engine power/GVW(Kw/t) | 13.9 |
| Overall dimensions(mm) | 8890×2500×3420 |
| GVM(kg) | 17000 |
| Fire monitor model | AKRON3430+2499 |
| Max. flowing of fire monitor(L/min) | 2400 |
| Max. spraying reach of fire monitor(m) | ≥60 |
| Water tank volume(L) | 4000 |
| Foam tank volume(L) | 500 |
| CAFS model | KSPBC1000/220 |
| Foam proportioner | FP2001 |
| Max. flowing of water pump(L/min@MPa) | 3600@1.0 |
ADVANTAGE
01. Large approved passengers capacity;Great engine power with lighter gross weight.
Comfortable, spacious;Great engine power with lighter gross weight;Strong climbing ability;Good passing ability.
02.Operation integration
One person can complete all the operation on one console, it is very convenient.
In the pumping stations there are arranged water inlets, water outlets and foam outlets on both sides.
03. Powerful fire-fighting capacity
Great loading of fire extinguishing agent.Provided with a 65mm diameter form outlets, the vehicle can transport foam to the 200 meters far.
Fire prevention protection.Dry foam can be use for protection of surrounding objects, insulate them, preventing the fire from expanding.
Fire-extinction capable for different fire.The vehicle could switch A/B form fire-extinguish model according to the circumstances.
04. Equipment box of reasonable layout
Equipment layout is humanization, rationally arranged, with high utilization of space.
05 .Full aluminum alloy body
The full upper body is made of aluminum material, smaller size, little weight, good looking and anti rust.

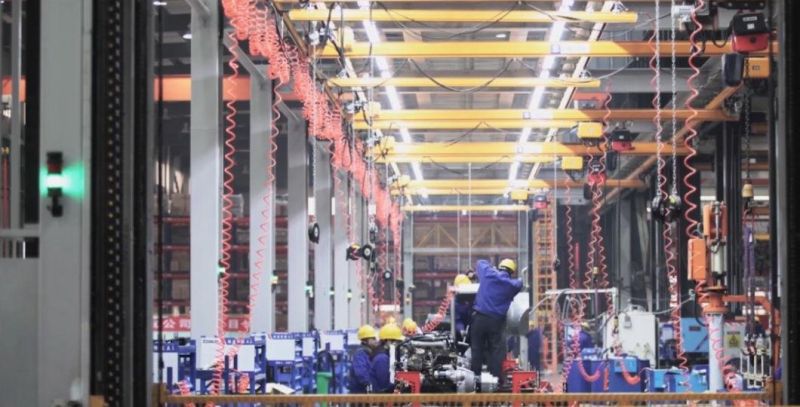

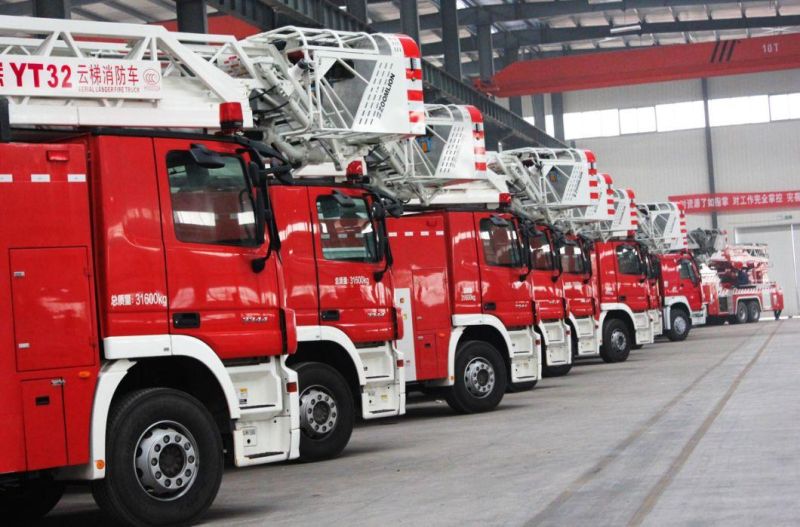

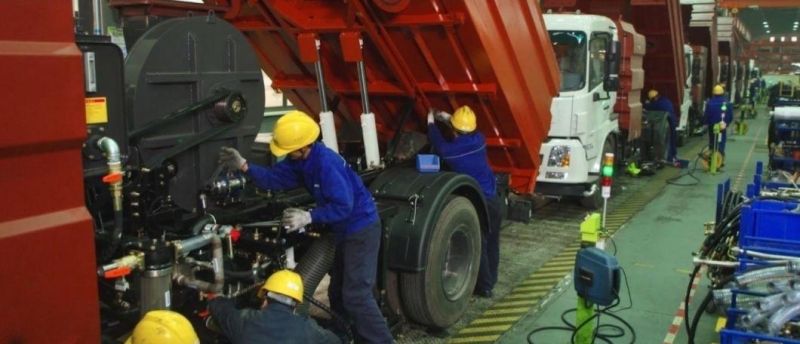

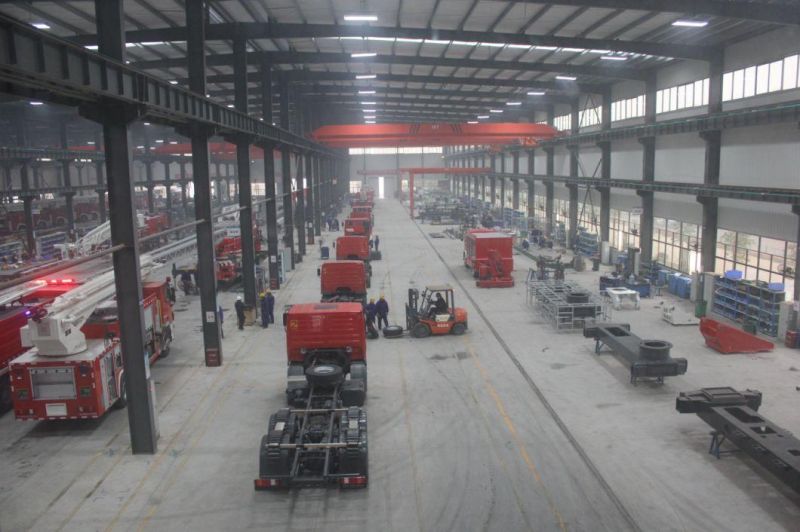

WORKSHOP

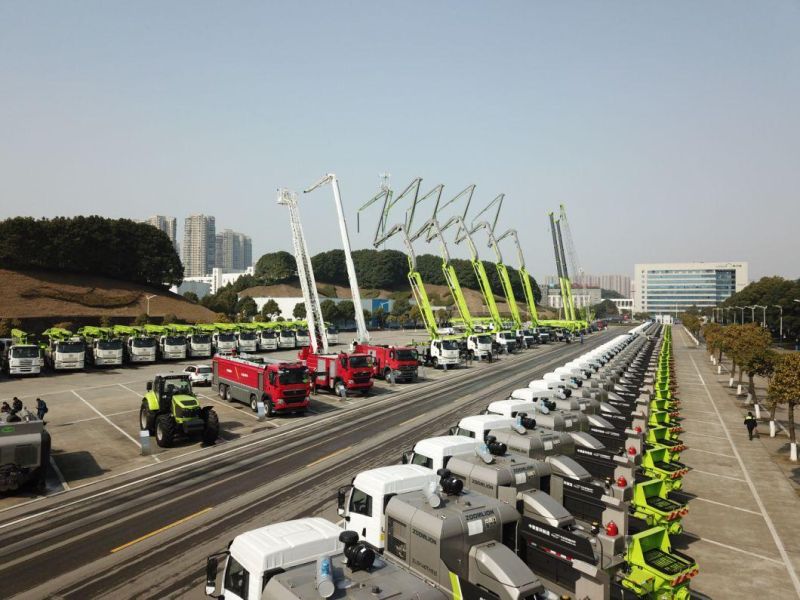

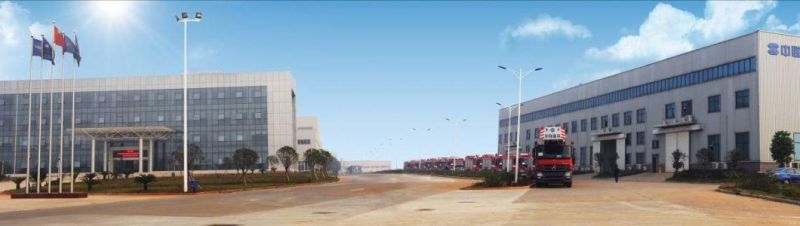

CAMPANY PROFILE
Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in developing and manufacturing major high-tech equipment in the areas of engineering industry and agricultural industry. With more than 20 years of innovation and development, the company is now a global enterprise possessing 10 major categories and 56 product lines, as well as nearly 600 leading products. Zoomlion is the first Chinese construction machinery company to be listed on both Shenzhen and Hong Kong stock exchanges. At present, the company is actively promoting strategic transformation, aiming to build a high-end equipment manufacturing enterprise integrating engineering machinery, agricultural machinery and financial services.
CERTIFICATES
