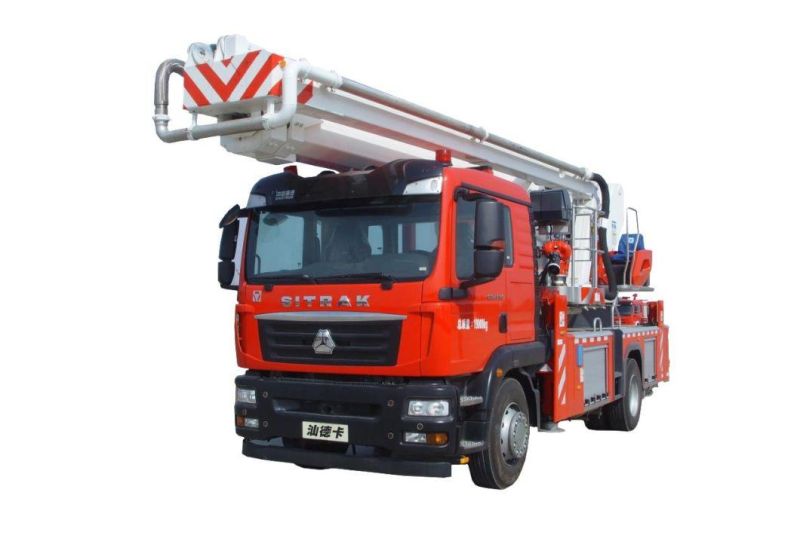

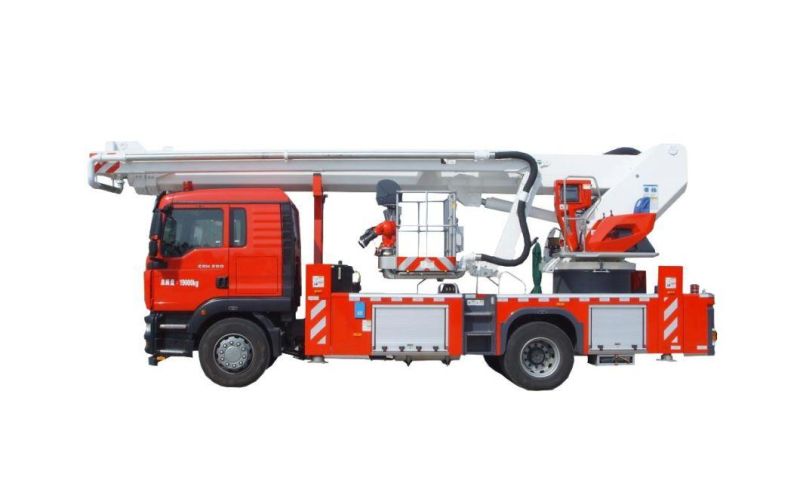

• Model NO.：DG32C1
• Fuel：Gasoline
• Drive Wheel：6×4
• Horsepower：＞450hp
• Condition：New
• Dimension：11380mm*3900mm*2500mm
• Total Vehicle Weight：23950kg
• Max.Travel Speed：85km,H
• Rated Working Height：32m
• Transport Package：Comply with Export Packaging Requirements
• Specification：ISO
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87059091
• Production Capacity：10000,Year

CategoryItemUnitParameterDimensionOverall lengthmm11880Overall heightmm3930Overall widthmm2500WeightTotal vehicle weightKg25500Total vehicle curb weightKg25350TravelMax.travel speedKm/h≥95Max.net powerkw274Power density--10.8Main performanceRated working heightm32Rated load on platformKg400Max.working radiusm19Outrigger span(longitudinal*lateral)mm6000*5800Working speedBoom deploying timeS≤150Outrigger extending timeS≤30Fire-fighting performanceWater monitor rated flowL/S≥50Water monitor rated pressureMpa≤0.9Water monitor rated reachm≥65Foam monitor rated flowL/S--Foam monitor rated pressureMpa--Foam monitor rated reachm--Below /above horizontal°-45~+75Leftwards/rightwards°180Fire pump rated flowL/S--Fire pump rated pressureMpa--




Company profile
XCMG is a construction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2019, we rank No.1 in China and No. 5 in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-moving  machinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.  Our other businesses include finance, leasing, and remanufacturing.
