• Model NO.：ZLF5420JXFDG54
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：150-250hp
• Condition：New
• Engine Power(Kw)：350
• Max. Torque(Nm)：2300
• Cab Seats：2
• Max Speed(Km/H)：90
• Chassis：Benz Actros4148 E5
• Specification：12900*2500*3950
• Trademark：ZOOMLION
• Origin：Hunan
• HS Code：870530

Basic Info.

Model NO. ZLF5420JXFDG54 Fuel Diesel Drive Wheel 4×2 Horsepower 150-250hp Condition New Engine Power(Kw) 350 Max. Torque(Nm) 2300 Cab Seats 2 Max Speed(Km/H) 90 Chassis Benz Actros4148 E5 Specification 12900*2500*3950 Trademark ZOOMLION Origin Hunan HS Code 870530

Product Description

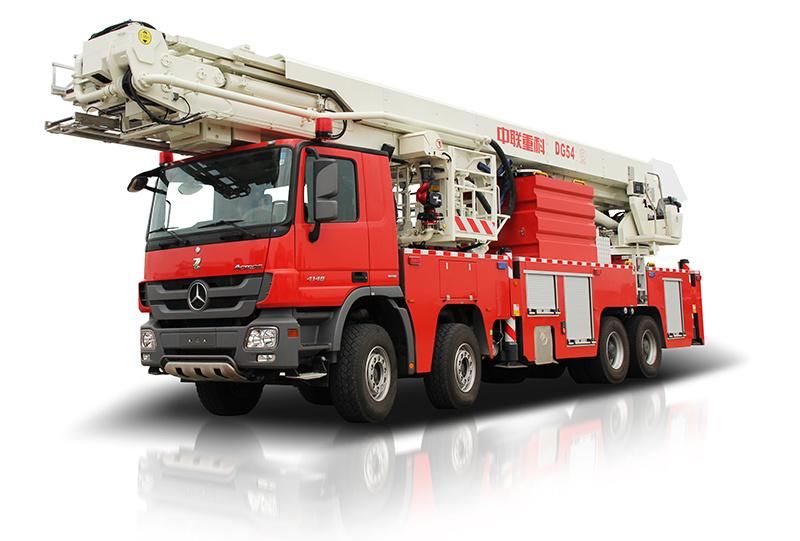

Special Fire Fighting Vehicle ZOOMLION Platform Fire Fighting Vehicle


PRODUCT DESCRIPTION

Platform fire fighting vehicle has the advantages of compact structure, small size, and easy operation. It can be used in rescue, firefighting and lighting for high-low altitude operation. Also it is quite suitable for industrial and domestic high buildings fire-extinction and rescue; it also can be used for municipal high-altitude operation and garden spraying operation.

SPECIFICATIONS


Chassis	Benz Actros4148 E5
Engine power(kW)	350
Max. torque(Nm)	2300
Cab Seats	2
Max speed(km/h)	90
Fuel tank volume(L)	300
Wheel base(mm)	1700+4300+1350
Emission standard	National-V
Fuel	Diesel
Max working height(m)	54
Max. working outreach(m)	20.5
Engine power/GVW(Kw/t)	8.3
Cage rated capability(kg)	400
Fire monitor model	AKRON3482+5177
Max. flowing of fire monitor(L/min)	4800
Max. spraying reach of fire monitor(m)	70
GVW(kg)	42000
Water tank volume(L)	3700
Foam tank volume(L)	2000
Water pump model	RSD100
Max. flowing of fire Water(L/min@MPa)	6000@1.03
Overall dimensions(mm)	12900×2500×3950
Boom sections	7
Boom operating time(s)	≤ 150

ADVANTAGE

1.Excellent rescue capabilityAll main booms could extend and retract simultaneously which means high rescue efficiency. And the articulated boom is designed on the side of main booms for decrease the height of the vehicle. All booms are designed in polygonal section with higher flexural strength and tensional strength, which means lower deflection and oscillation in working.
2.Powerful fire-extinction capacityThe vehicle 's water system assembled with water pump, water tank, water-monitor, water pipe, so it can extinguishing through its water system or other vehicle's water system, and all water-pipes are designed in stiffness structure including the pipes at hinge point.
3.beautiful appearance designThe overall measurement of the vehicle is rather smaller than others FF trucks of compactor in the same height of rescue capability, better motility. It can be used in various complex conditions.
The vehicles could operate in condition of outriggers can't fully expending; it is quit suitable for the narrow area rescue. The system could calculate the best safety working range in condition of outriggers is random expended and supported.
4.Ultra safety technologyThe 8 t4.mes safety factor of booms' telescopic structure is more than the national standards.
The water pressure protection system can release the pressure rapidly that could protect the water-system very well.
High precision load-detection sensors
5.Fast rescue technologyLadder automatic expanding technology. Input the coordinate parameters of appointed position, system will calculate the optimized way to control the ladder to get the target automatically within a minimum seconds.
Cruising rescue technology. System could record the working parameters of any point wherever ladder arrived, and then control the ladder to rescue from the point to ground repeatedly and automatically.

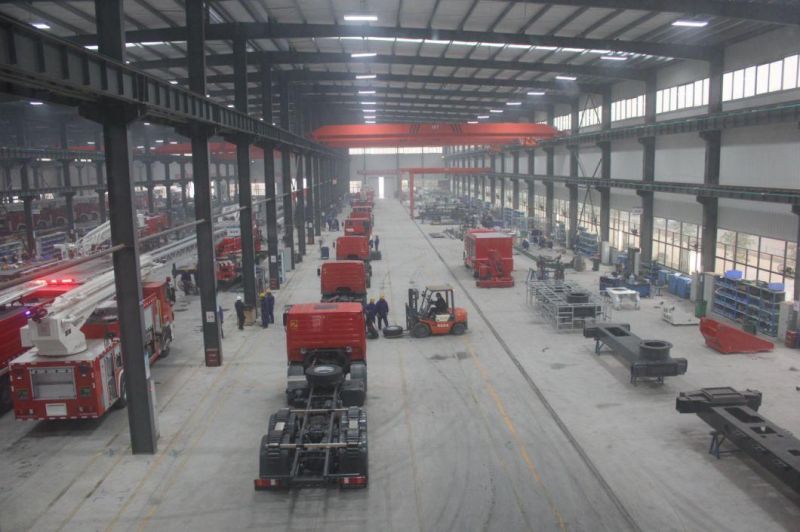

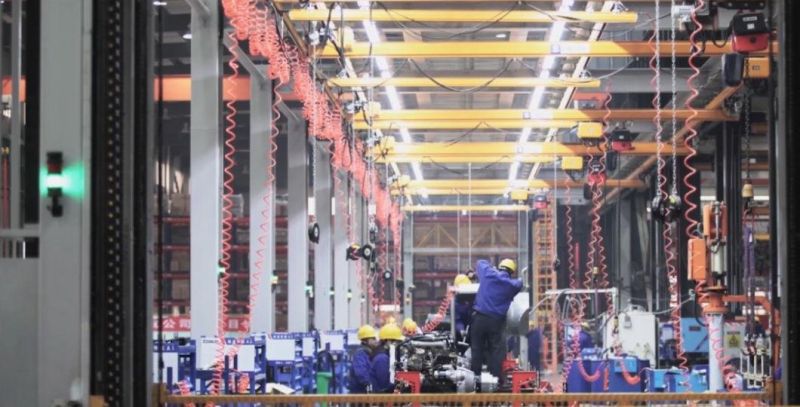

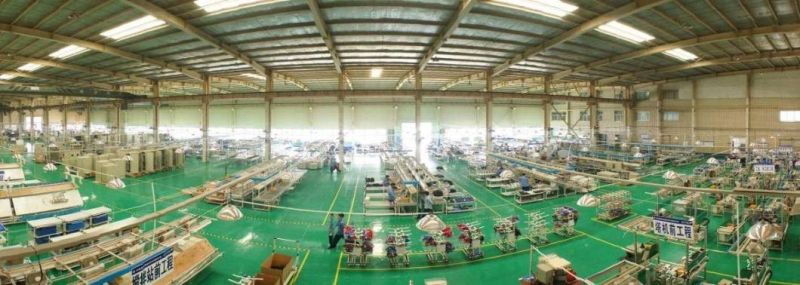

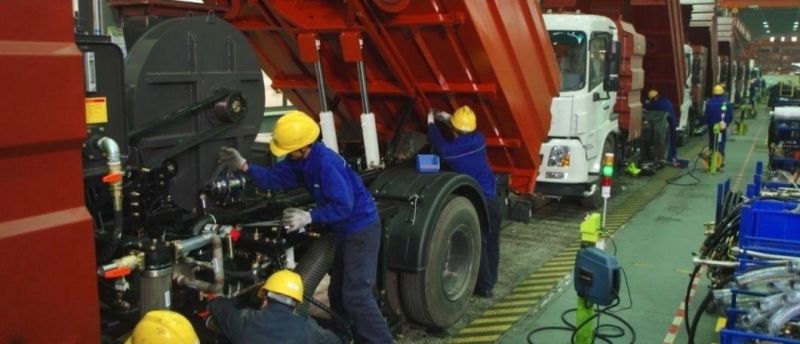

WORKSHOP

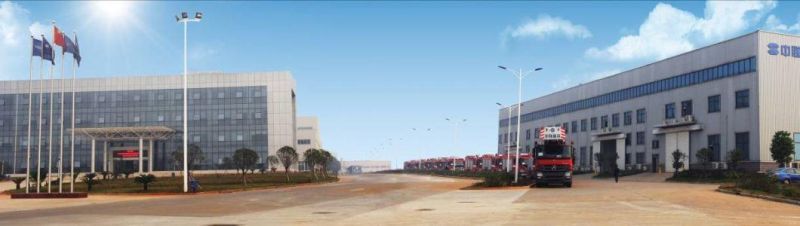

CAMPANY  PROFILE



Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in developing and manufacturing major high-tech equipment in the areas of engineering industry and agricultural industry. With more than 20 years of innovation and development, the company is now a global enterprise possessing 10 major categories and 56 product lines, as well as nearly 600 leading products. Zoomlion is the first Chinese construction machinery company to be listed on both Shenzhen and Hong Kong stock exchanges. At present, the company is actively promoting strategic transformation, aiming to build a high-end equipment manufacturing enterprise integrating engineering machinery, agricultural machinery and financial services.

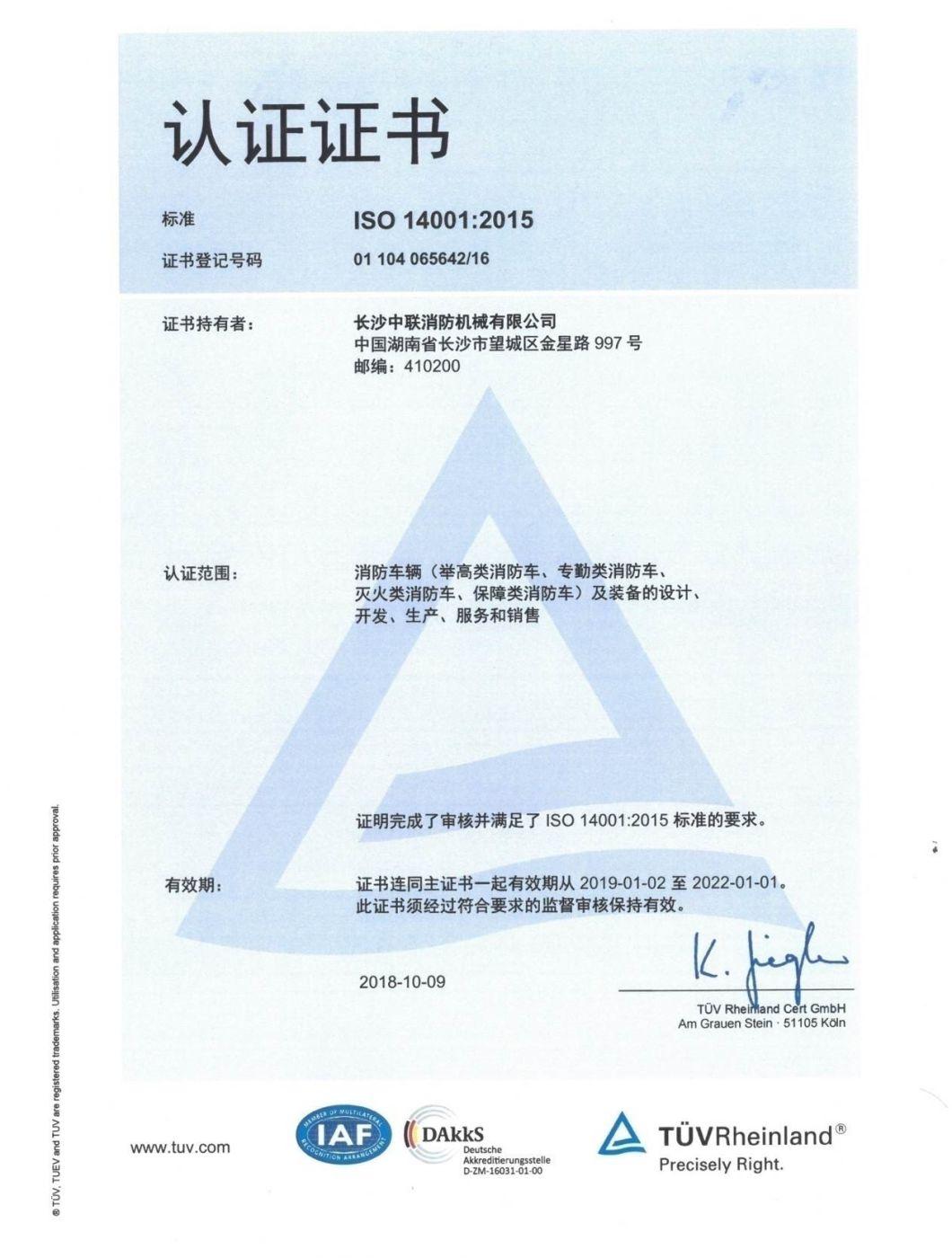

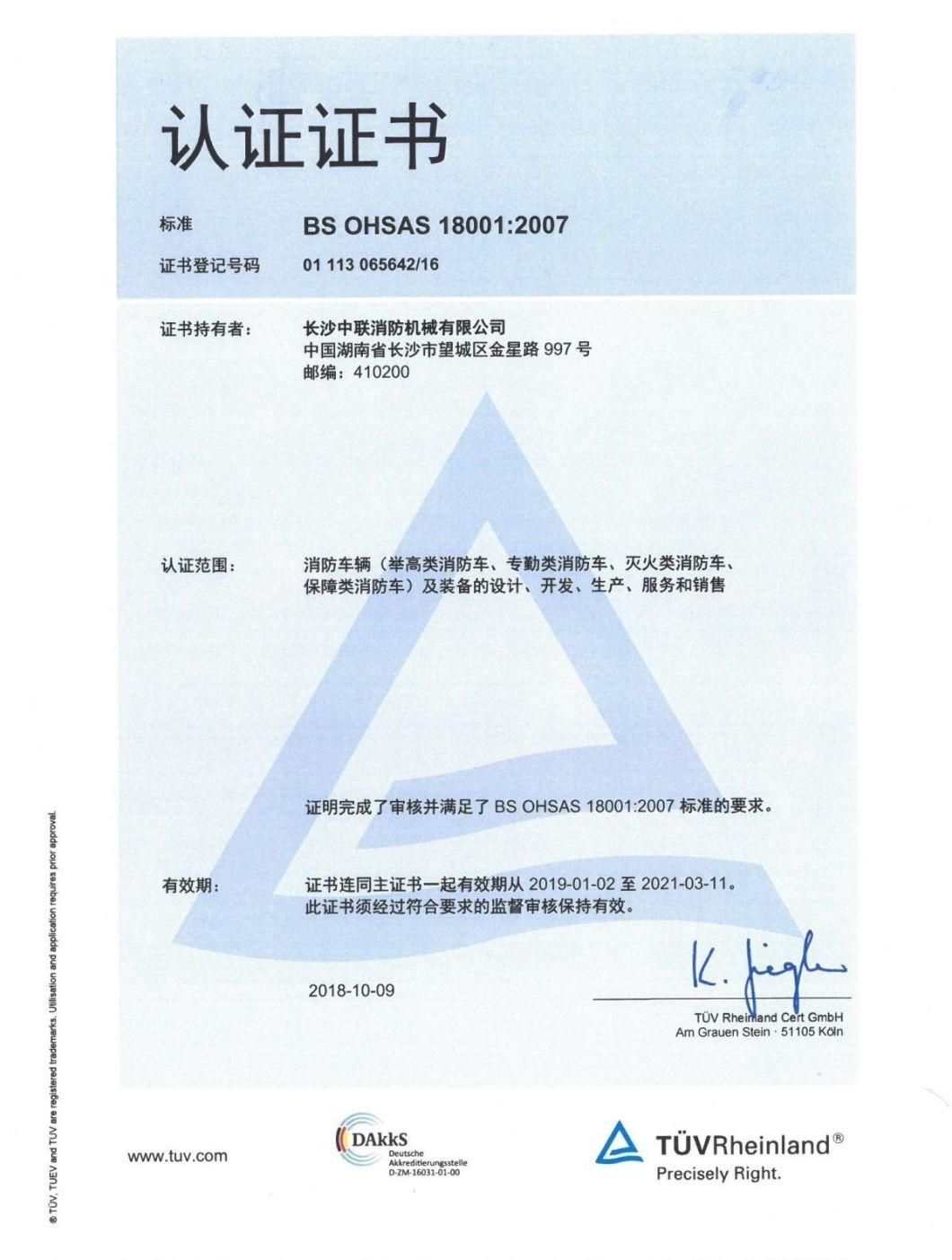

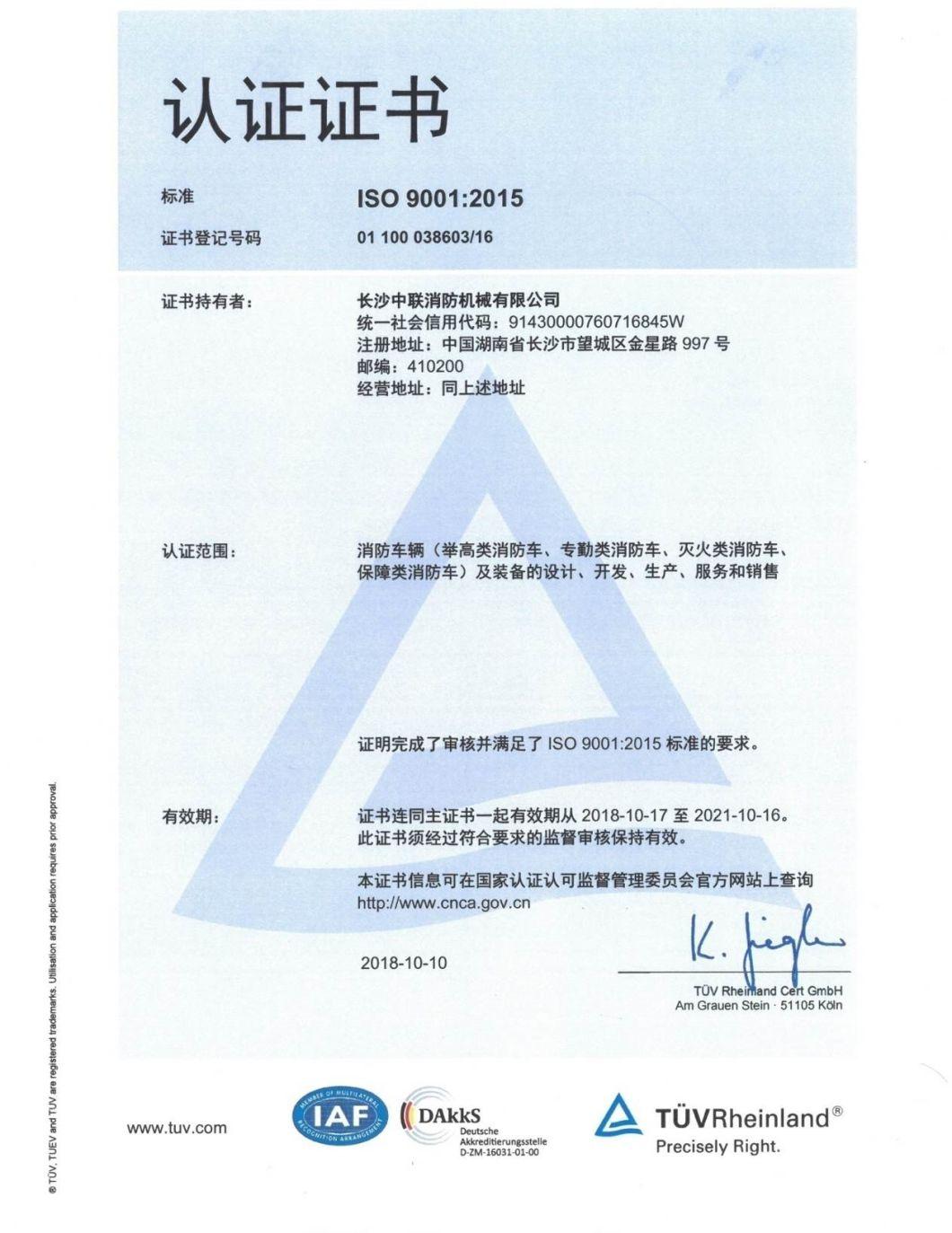

CERTIFICATES
