• Model NO.：ZLF5310JXFDG32
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：150-250hp
• Condition：New
• Engine Power(Kw)：320
• Max. Torque(Nm)：2100
• Cab Seats：2
• Max Speed(Km/H)：90
• Chassis：Benz Actros3344 E5
• Specification：8600X2500X3460
• Trademark：ZOOMLION
• Origin：Hunan
• HS Code：870530

Basic Info.

Model NO. ZLF5310JXFDG32 Fuel Diesel Drive Wheel 4×2 Horsepower 150-250hp Condition New Engine Power(Kw) 320 Max. Torque(Nm) 2100 Cab Seats 2 Max Speed(Km/H) 90 Chassis Benz Actros3344 E5 Specification 8600X2500X3460 Trademark ZOOMLION Origin Hunan HS Code 870530

Product Description

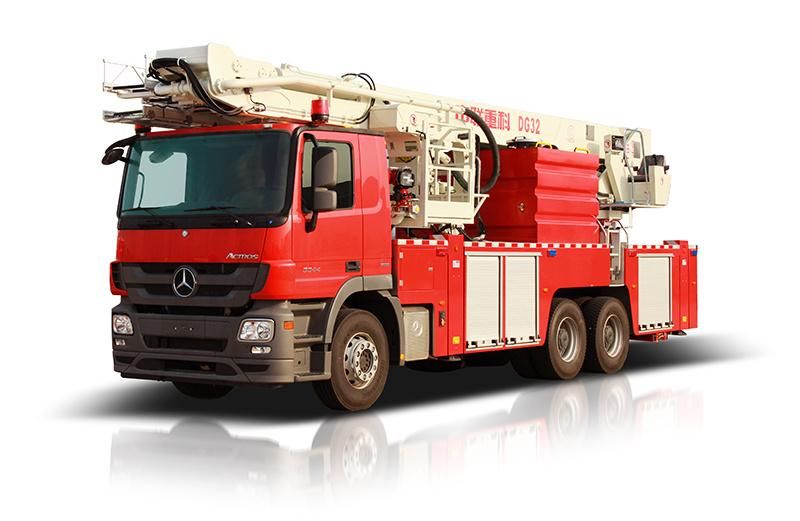

Platform Fire Fighting Vehicle with National-V Emission Standards


PRODUCT DESCRIPTION

Platform fire fighting vehicle has the advantages of compact structure, small size, and easy operation. It can be used in rescue, firefighting and lighting for high-low altitude operation. Also it is quite suitable for industrial and domestic high buildings fire-extinction and rescue; it also can be used for municipal high-altitude operation and garden spraying operation.

SPECIFICATIONS


Chassis	Benz Actros3344 E5
Engine power(kW)	320
Max. torque(Nm)	2100
Cab Seats	2
Max speed(km/h)	90
Fuel tank volume(L)	300
Wheel base(mm)	4500+1350
Fuel	Diesel
Emission standard	National-V
Max working height(m)	32
Max. working outreach(m)	20.5
Engine power/GVW(Kw/t)	10.6
Cage rated capability(kg)	400
Fire monitor model	AKRON3482+5177
Max. flowing of fire monitor(L/min)	4800
Max. spraying reach of fire monitor(m)	≥80
GVW(kg)	31400
Water tank volume(L)	5500
Water pump model	RSD100
Max. flowing of water pump(L/min@MPa)	6000@1.03
Overall dimensions(mm)	10500×2500×3750
Boom sections	5
Boom operating time(s)	≤120

ADVANTAGE
01.Excellent rescue capabilityAll main booms could extend and retract simultaneously which means high rescue efficiency. And the articulated boom is designed on the side of main booms for decrease the height of the vehicle. All booms are designed in polygonal section with higher flexural strength and tensional strength, which means lower deflection and oscillation in working.

02.Powerful fire-extinction capacity
The vehicle 's water system assembled with water pump, water tank, water-monitor, water pipe, so it can extinguishing through its water system or other vehicle's water system, and all water-pipes are designed in stiffness structure including the pipes at hinge point.

03.beautiful appearance design
The overall measurement of the vehicle is rather smaller than others FF trucks of compactor in the same height of rescue capability, better motility. It can be used in various complex conditions.
The vehicles could operate in condition of outriggers can't fully expending; it is quit suitable for the narrow area rescue. The system could calculate the best safety working range in condition of outriggers is random expended and supported.
04.Ultra safety technologyThe 8 times safety factor of booms' telescopic structure is more than the national standards.
The water pressure protection system can release the pressure rapidly that could protect the water-system very well.
High precision load-detection sensors.

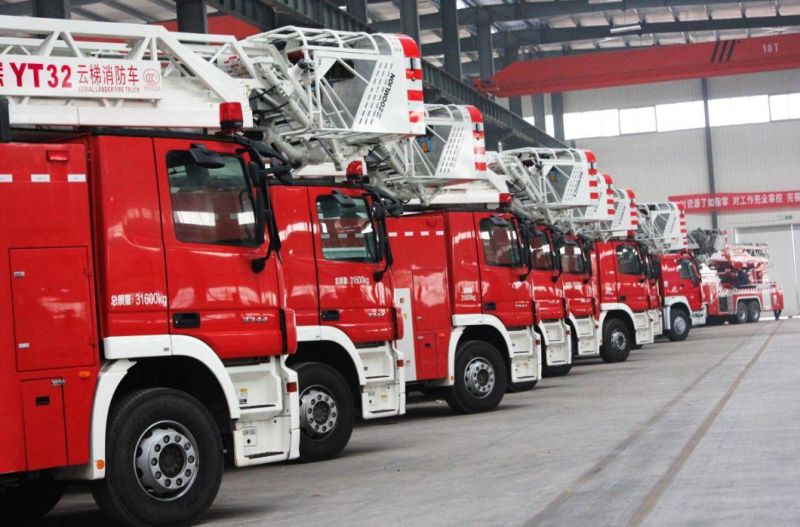

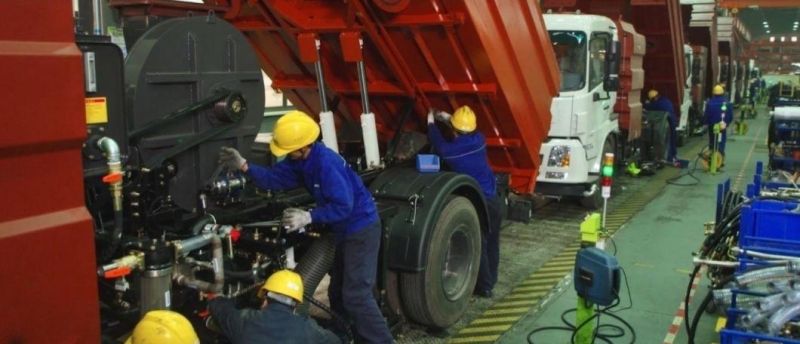

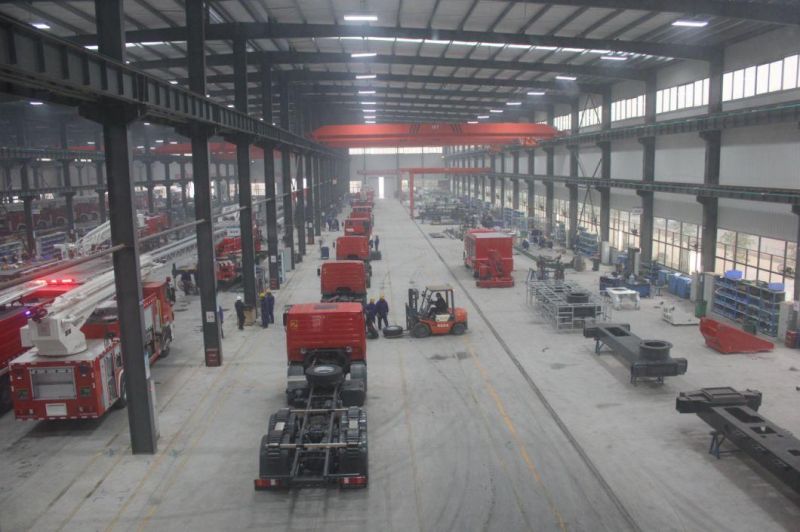

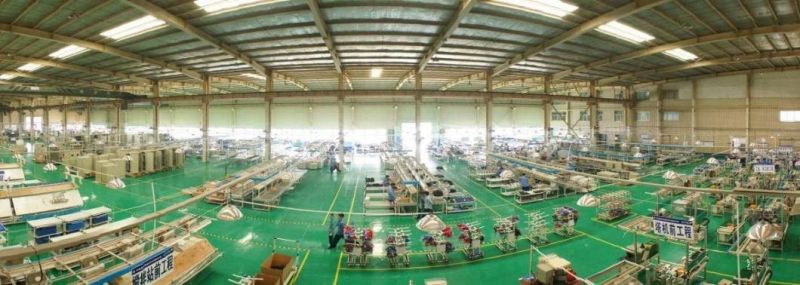

WORKSHOP

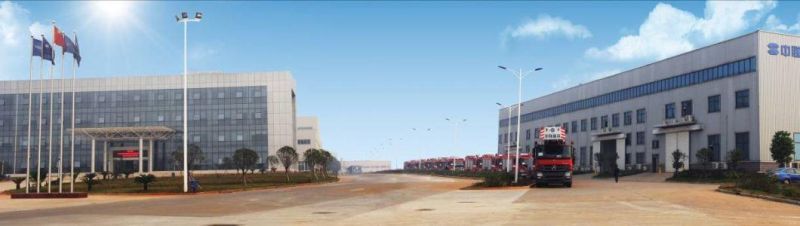

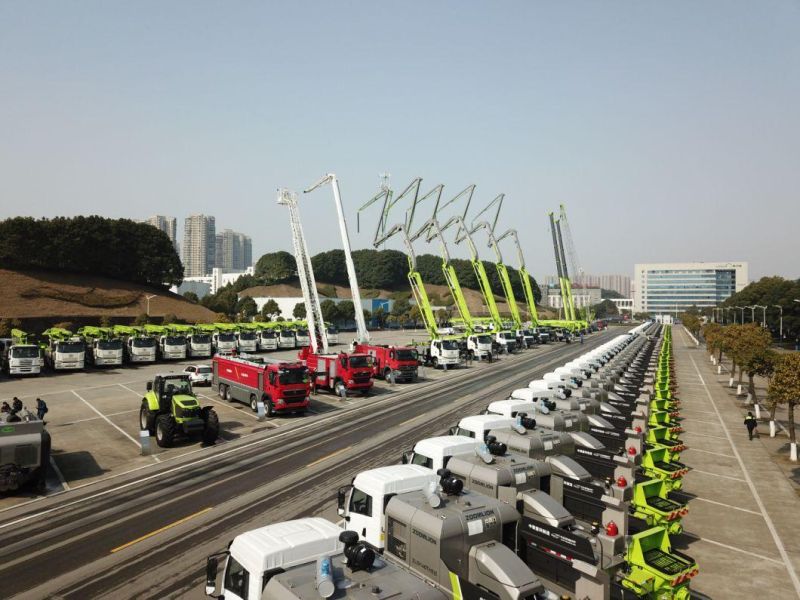

CAMPANY  PROFILE



Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in developing and manufacturing major high-tech equipment in the areas of engineering industry and agricultural industry. With more than 20 years of innovation and development, the company is now a global enterprise possessing 10 major categories and 56 product lines, as well as nearly 600 leading products. Zoomlion is the first Chinese construction machinery company to be listed on both Shenzhen and Hong Kong stock exchanges. At present, the company is actively promoting strategic transformation, aiming to build a high-end equipment manufacturing enterprise integrating engineering machinery, agricultural machinery and financial services.

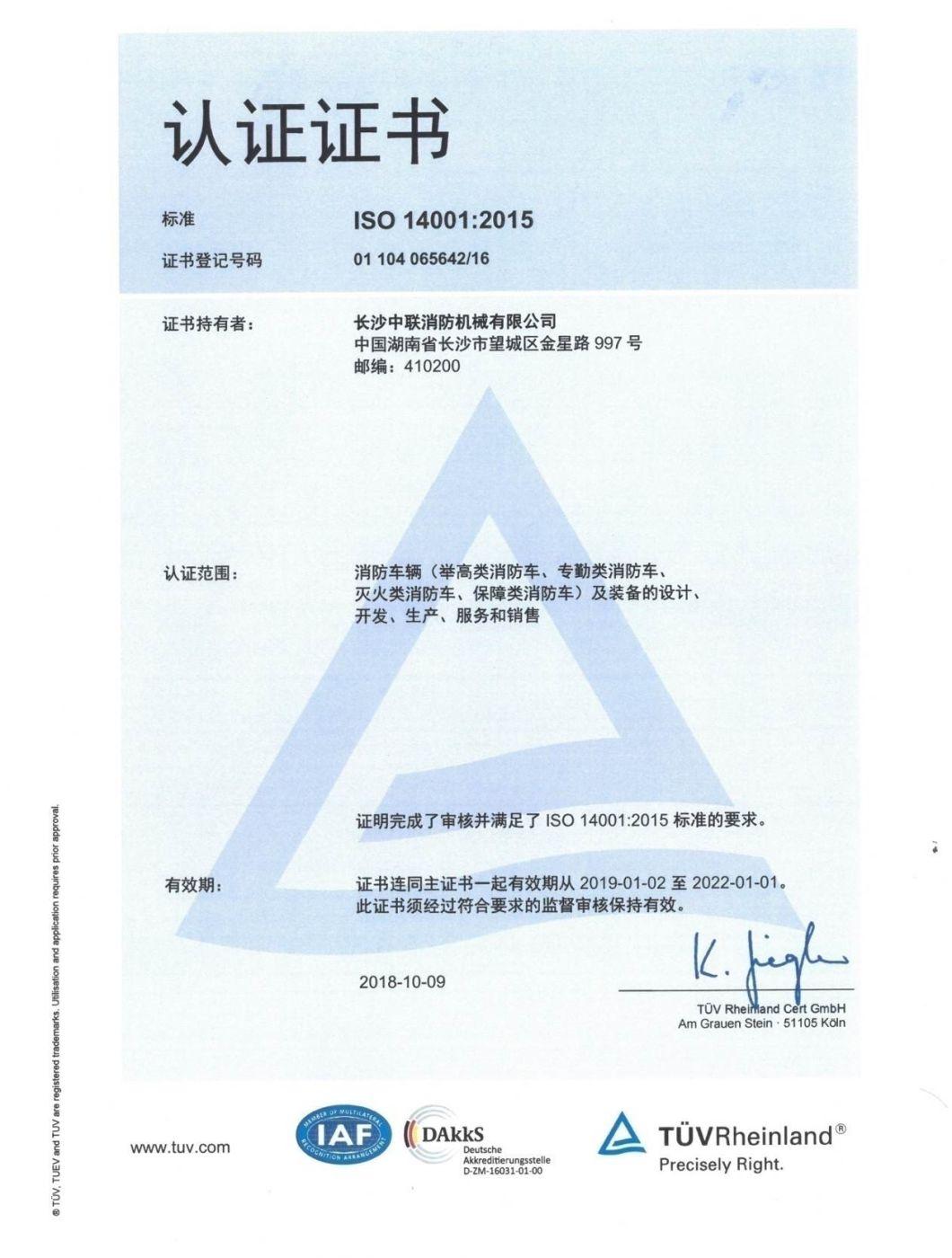

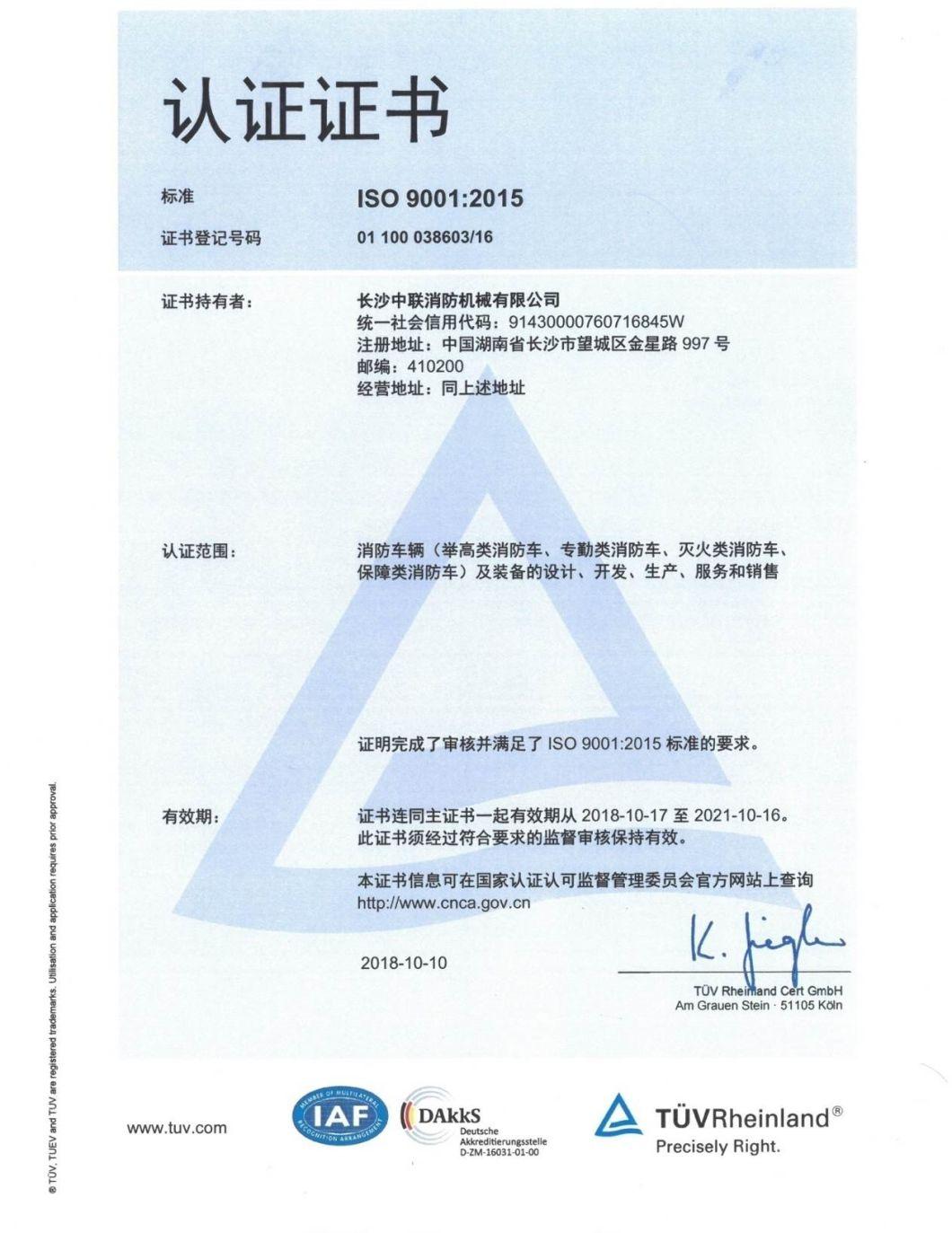

CERTIFICATES
