• Model NO.：ZLF5141TXFJY98
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：150-250hp
• Condition：New
• Engine Power(Kw)：213
• Max. Torque(Nm)：1150
• Cab Seats：7
• Max Speed(Km/H)：100
• Chassis：Man Tgm 18.290 4*4
• Specification：8620*2520*3640
• Trademark：ZOOMLION
• Origin：Hunan
• HS Code：870530

Basic Info.

Model NO. ZLF5141TXFJY98 Fuel Diesel Drive Wheel 4×2 Horsepower 150-250hp Condition New Engine Power(Kw) 213 Max. Torque(Nm) 1150 Cab Seats 7 Max Speed(Km/H) 100 Chassis Man Tgm 18.290 4*4 Specification 8620*2520*3640 Trademark ZOOMLION Origin Hunan HS Code 870530

Product Description

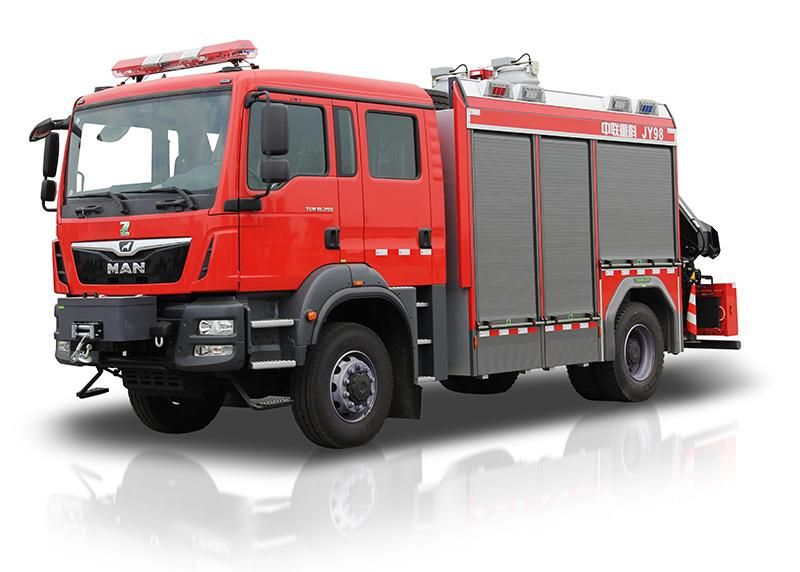

Emergency Rescue Fire Vehicle with ISO9000/CCC Certification


PRODUCT DESCRIPTION

Rescue fire fighting vehicle is suitable for airport, dock, petrochemical enterprise, expressway and city for emergency rescue. It is the necessary truck for fire brigade.

SPECIFICATIONS


Chassis	MAN TGM 18.290 4×4
Engine power(kW)	213
Max. torque(Nm)	1150
Cab Seats	7
Max speed(km/h)	100
Fuel tank volume(L)	150
Wheel base(mm)	4500
Fuel	Diesel
Emission standard	National-V
Engine power/GVW(Kw/t)	15.7
Overall dimensions(mm)	8620×2520×3640
GVM(kg)	13800
Vehicle tool quantity	98
Winch max traction(kgf)	7560
Crane max lifting weight(kg)	5000
Light lifting height(m)	≥8.1
Generator rated power(KVA)	12
Main light power(W)	4000

ADVANTAGE
 01.Rational tool apartment arrangement

Using a new type of special device, such as a rotating frame, a pull plate, aluminum alloy box, plastic boxes, can integrate and clarify of the storage; pick up and storage conveniently, maximize the use of space. According to user needs, can store large number of dismantling, detection, protection, smoke, plugging, life-saving rescue equipment.

02. Electricity generation and lighting system
Great power of the generator ; high elevating pole; big pitching angle, without dead point; remote control, wired remote control and other control modes can choose; it is convenient to operate.

03. Winch
Characteristic of winch is high power, long distance, easy operation and maintenance.

04. Crane
Hoisting ability of cranes is strong; convenient for repair; Personalized customization can be offer according to client's requirements.

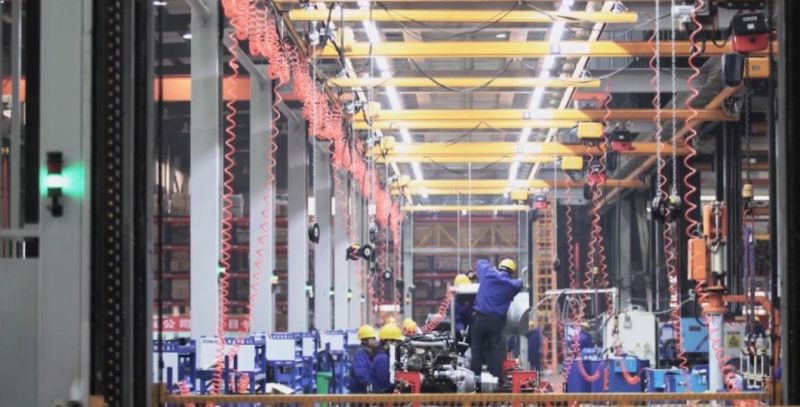

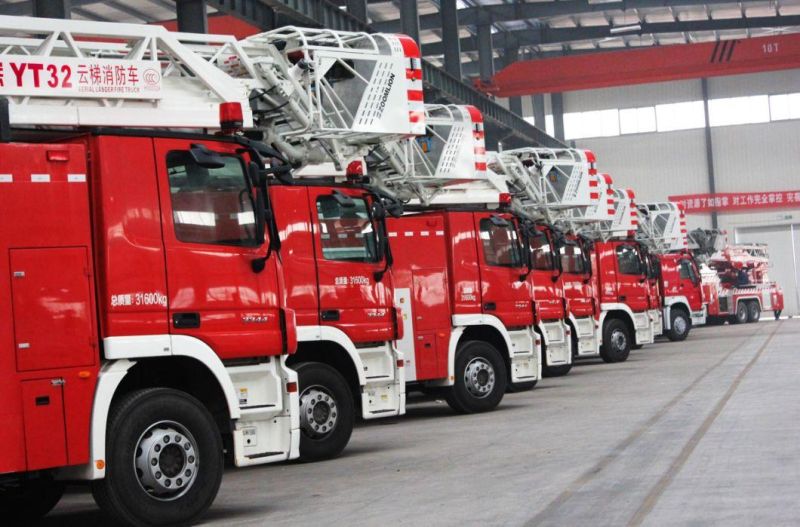

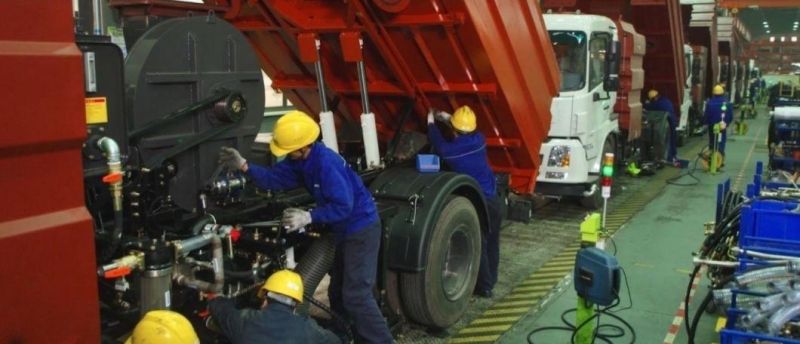

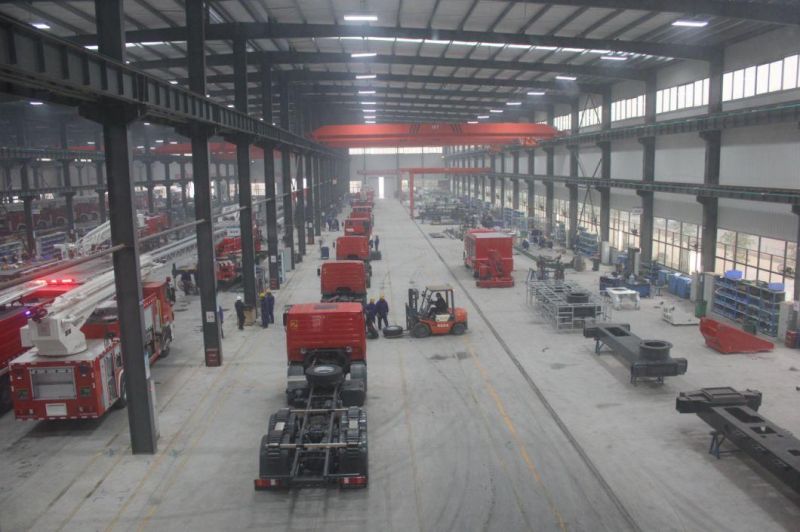

WORKSHOP

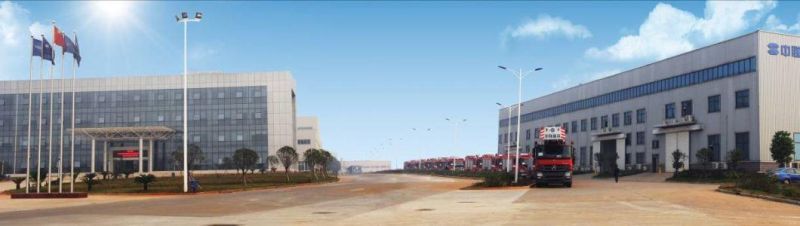

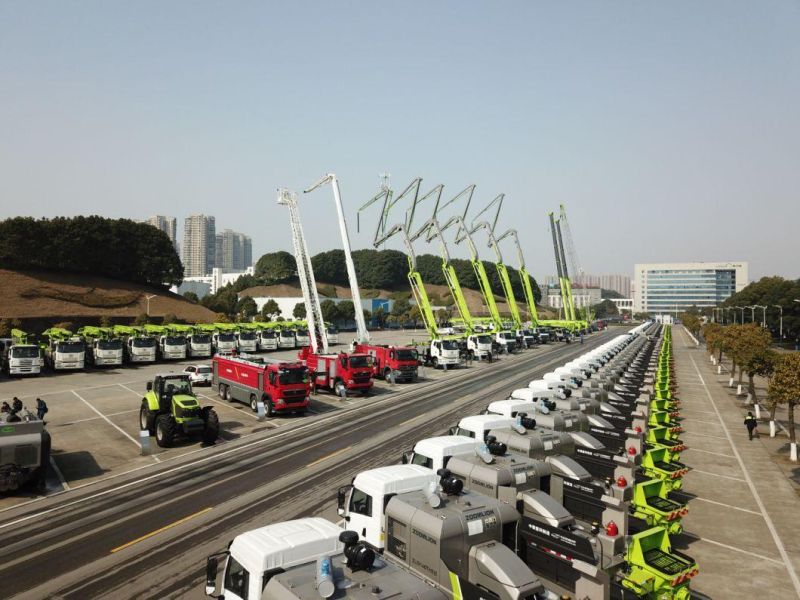

CAMPANY  PROFILE



Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in developing and manufacturing major high-tech equipment in the areas of engineering industry and agricultural industry. With more than 20 years of innovation and development, the company is now a global enterprise possessing 10 major categories and 56 product lines, as well as nearly 600 leading products. Zoomlion is the first Chinese construction machinery company to be listed on both Shenzhen and Hong Kong stock exchanges. At present, the company is actively promoting strategic transformation, aiming to build a high-end equipment manufacturing enterprise integrating engineering machinery, agricultural machinery and financial services.




CERTIFICATES
