• Model NO.：JBC-55
• Drive Mode：4*4
• Maximum Horsepower：<200hp
• Condition：New
• Mixing Capacity：5.5 M³
• Geometrical Capacity：7.8 M³
• Drum Rotating Speed：16.5 Upto 20 Rpm
• Engine Model：Fawde 6110
• Engine Type：6-Cylinder, Turbo-Supercharged
• Transport Package：40hq
• Specification：8450*3100*4580mm
• Trademark：SDJK
• Origin：Shandong
• HS Code：8430412100
• Production Capacity：100sets,Month

Basic Info.

Model NO. JBC-55 Drive Mode 4*4 Maximum Horsepower <200hp Condition New Mixing Capacity 5.5 M³ Geometrical Capacity 7.8 M³ Drum Rotating Speed 16.5 Upto 20 Rpm Engine Model Fawde 6110 Engine Type 6-Cylinder, Turbo-Supercharged Transport Package 40hq Specification 8450*3100*4580mm Trademark SDJK Origin Shandong HS Code 8430412100 Production Capacity 100sets/Month

Product Description

JBC-55:
The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.

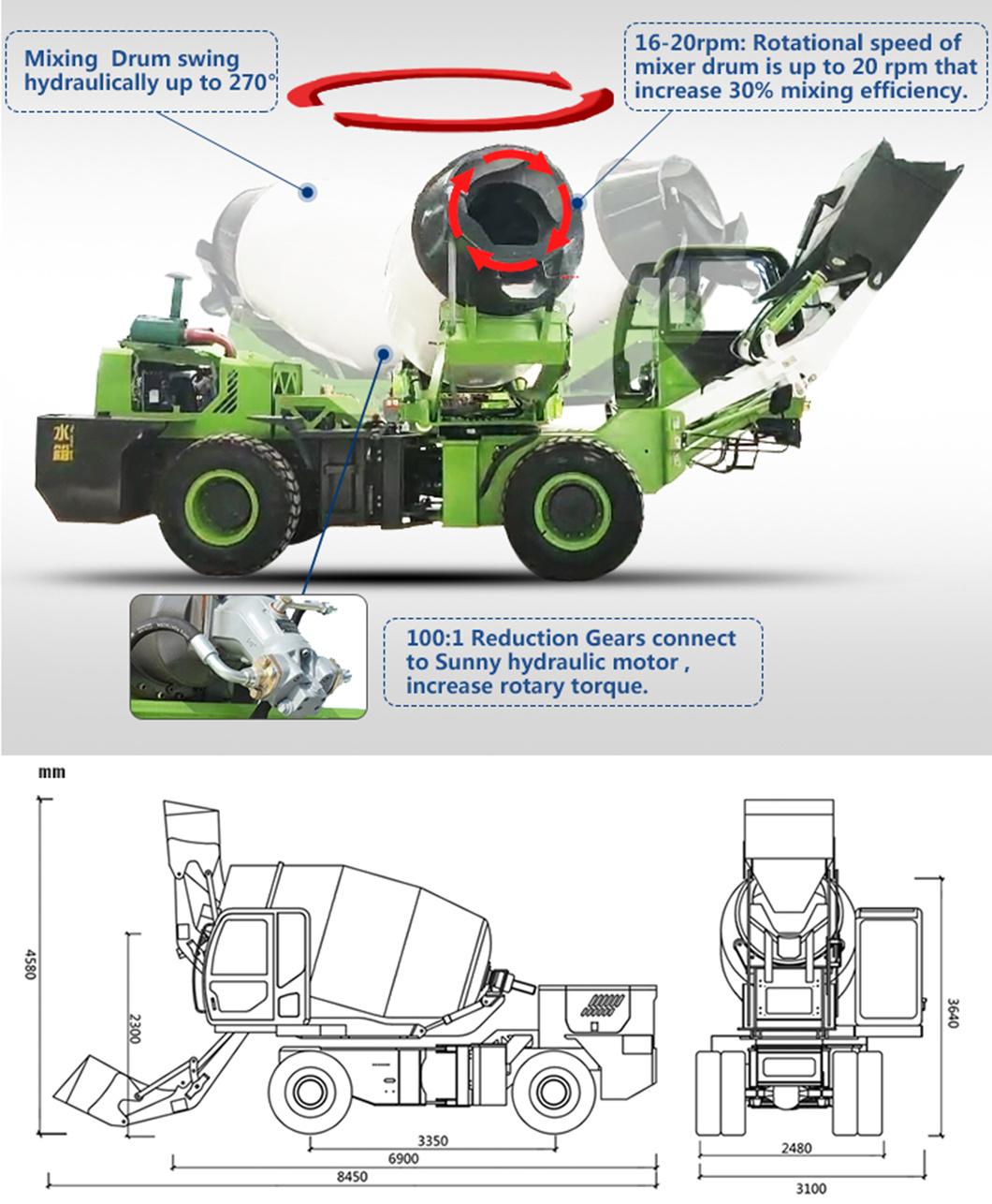

 1.JBC-55 Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture..  2. Cab and mixer drum can be integrated , rotate 270° together, which makes forward-reverse universal. Rolling drum can also be lifted up 20° to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%.
3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.

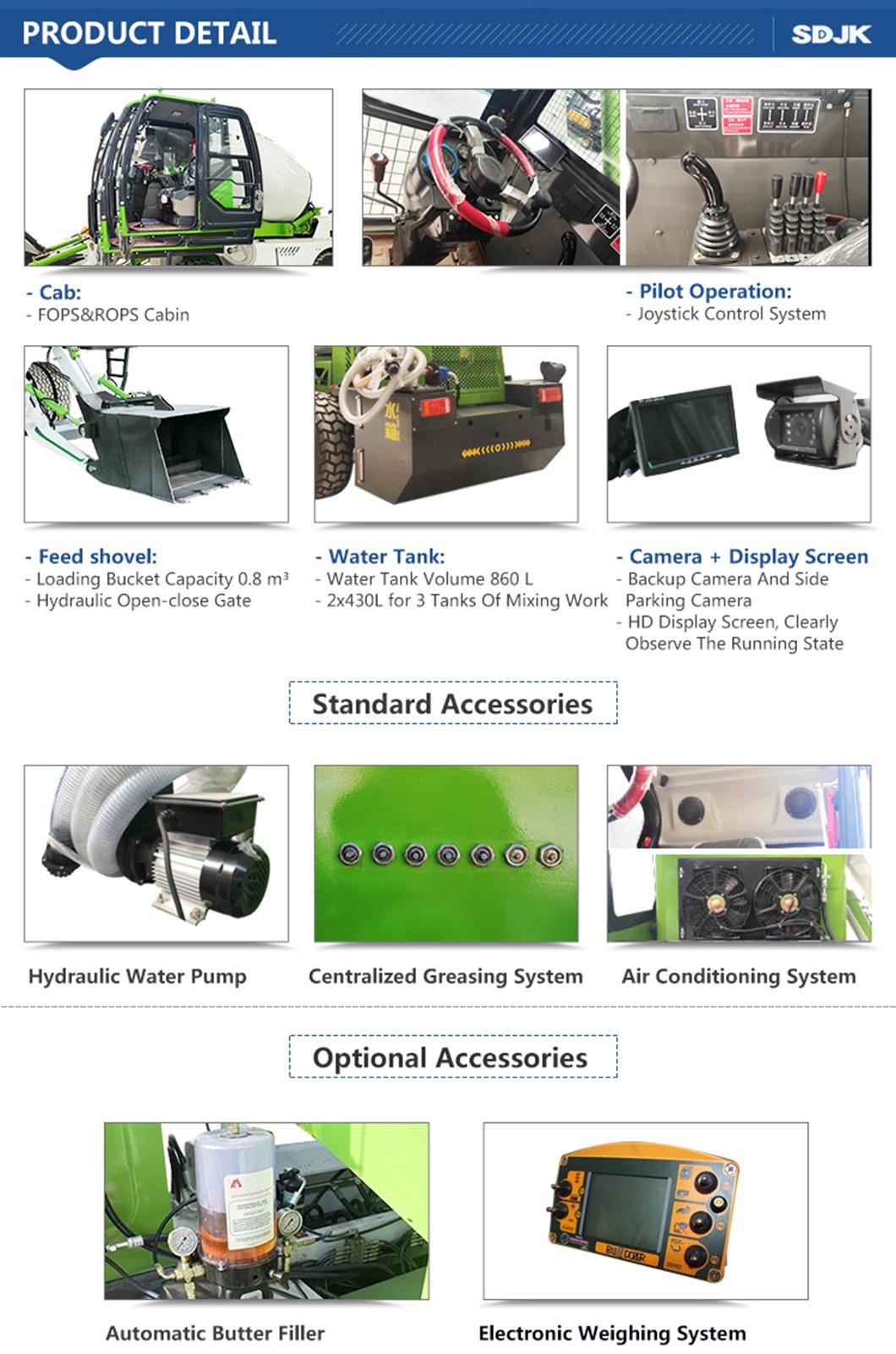

4. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively.
5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.

Model	JBC-55	Max. Water suction Volume	550 L/min. (Self-priming Hydraulic Water Pump)
Mixing Capacity	5.5 m³	Water tank Volume	2x430 L
Geometrical Capacity	7.8 m³	Max. Travel Speed	42 km/h
Concrete Output	5.5 m³/batch, 22 m³/h	Grade ability	45°
Drum Rotating Speed	16.5 Upto 20 rpm	Min. Turning Radius	6.2 m
Drum Rotating Angle	270°	Operating Weight	11,200 Kg
Model	FAWDE 6110	Max. Load	13,200 Kg
Loading Bucket Capacity	0.8 m³	Max. Gross Weight	24,400 Kg
Loading Times to Full Drum	7 Times	Overall Dimension (L×W×H)	8450×3100×3640 mm ( Full Height to 4580 mm )
Discharge chute	2 Sets	Fuel Tank Volume	75 L
Total Hydraulic System Capacity	75 L	Oil Tank Volume	16 L
