• Model NO.：JBC-40
• Drive Mode：4*4
• Maximum Horsepower：<200hp
• Condition：New
• Mixing Capacity：4.0 M³
• Geometrical Capacity：6.1 M³
• Drum Rotating Speed：16.5 Upto 20 Rpm
• Engine Model：Yuchai Ycd4j22g
• Engine Type：4-Cylinder, Turbo-Supercharged
• Transport Package：40hq
• Specification：7640*2870*4750  mm
• Trademark：SDJK
• Origin：Shandong
• HS Code：8430412100
• Production Capacity：100sets,Month

Basic Info.

Model NO. JBC-40 Drive Mode 4*4 Maximum Horsepower <200hp Condition New Mixing Capacity 4.0 M³ Geometrical Capacity 6.1 M³ Drum Rotating Speed 16.5 Upto 20 Rpm Engine Model Yuchai Ycd4j22g Engine Type 4-Cylinder, Turbo-Supercharged Transport Package 40hq Specification 7640*2870*4750  mm Trademark SDJK Origin Shandong HS Code 8430412100 Production Capacity 100sets/Month

Product Description

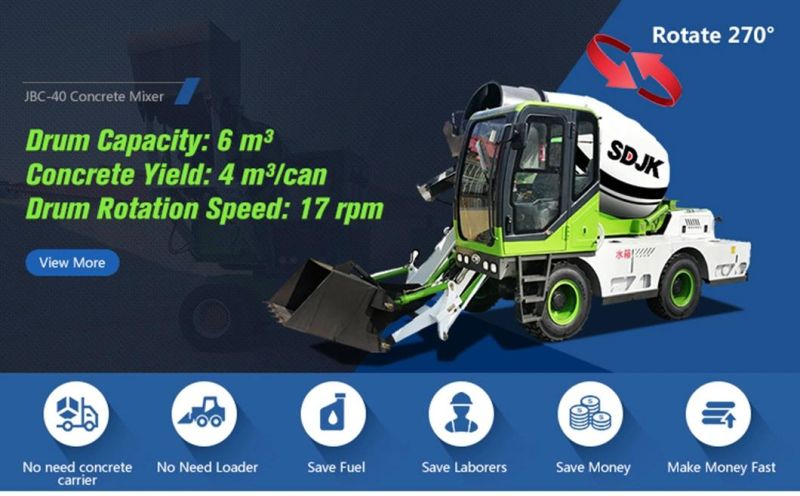

JBC-40:
The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.

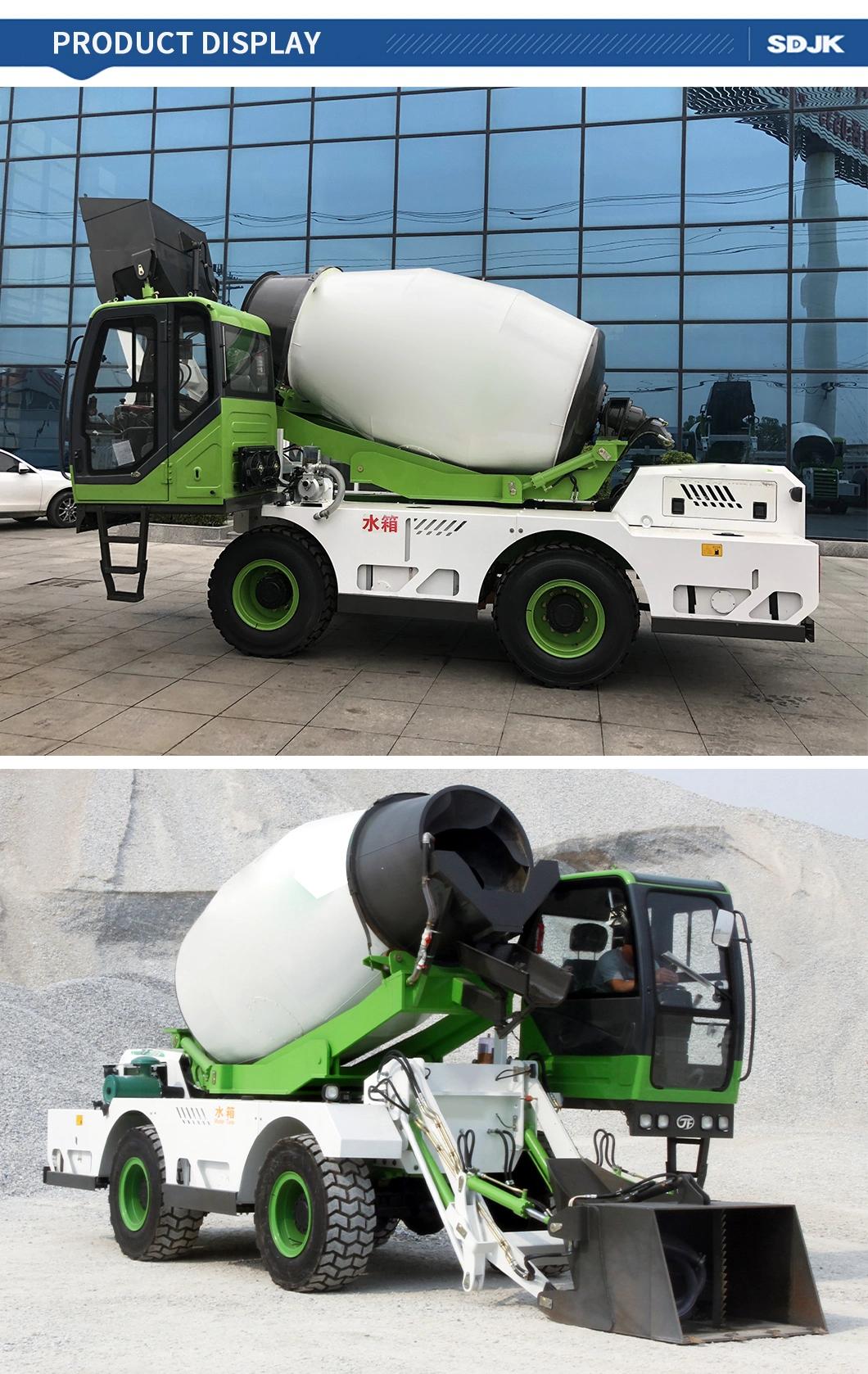

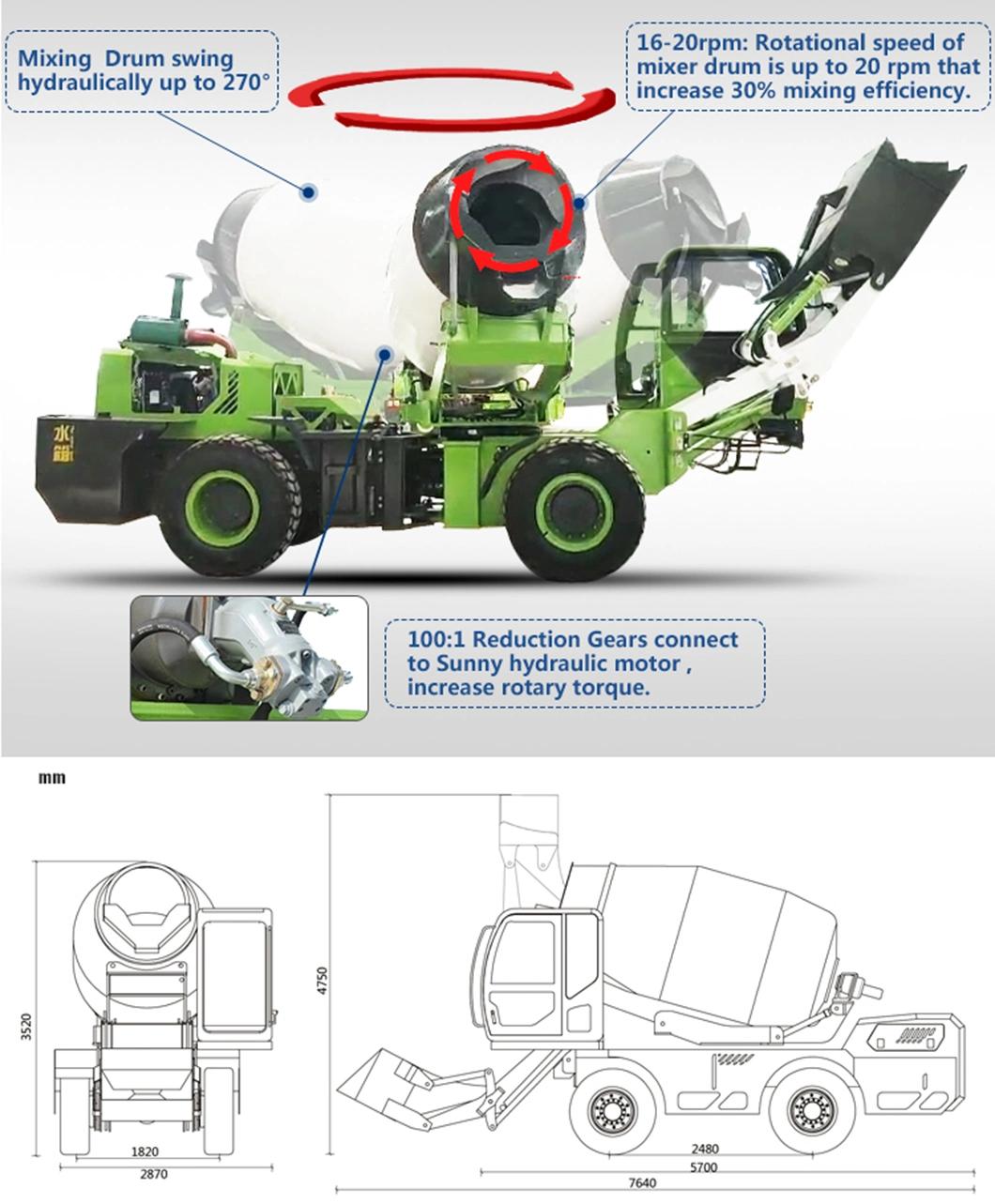

 1.JBC-40 Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture..  2. Cab and mixer drum can be integrated , rotate 270°together, which makes forward-reverse universal. Rolling drum can also be lifted up 20°to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%.
3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.

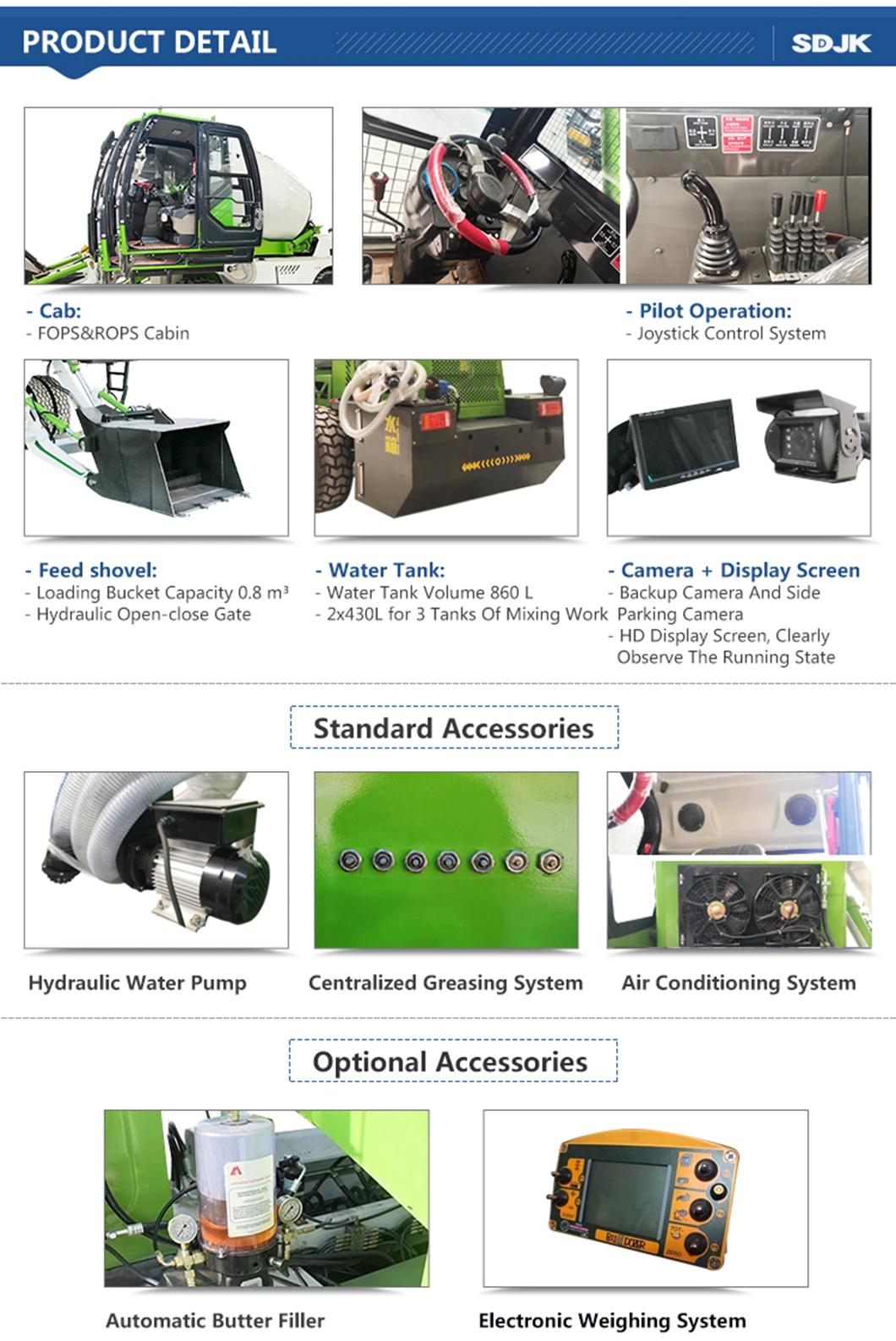

4. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively.
5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.

Model	JBC-40	Max. Water suction Volume	550 L/min, Self-priming Hydraulic Water Pump
Mixing Capacity	4.0 m³	Water tank Volume	2x330 L
Geometrical Capacity	6.1 m³	Max. Travel Speed	35 km/h
Concrete Output	4 m³/batch, 16 m³/h	Gradeability	40°
Drum Rotating Speed	16.5 Upto 20 rpm	Min. Turning Radius	4800 mm
Drum Rotating Angle	270°	Operating Weight	9,200 kg
Model	YUCHAI YCD4J22G	Max. Load	9,600 kg
Type	4-Cylinder, Turbo-supercharged	Max. Gross Weight	18,800 kg
Rated Power	85 KW (116HP) @ 2400 rpm	Overall Dimension (L×W×H)	7640*2870*4750 mm
Emission Standard	Euro II	Fuel Tank Volume	230 L
Loading Bucket Capacity	0.6 m³	Total Hydraulic System Capacity	170 L
Loading Times to Full Drum	7 Times	Oil Tank Volume	16 L
Discharge chute	2 Sets
