• Model NO.：BJ5089
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：FOTON
• Models：Small
• Usage：Compression Type
• Condition：New
• Chassis Brand：Foton-Aumark
• Cabin：Aumark Single Row, with A,C
• Engine：115kw , 156HP Euro5
• Euro 5 Engine Brand：Foton Cummins Brand
• Gear Box：6 Forward Gears& 1 Reverse
• Front / Rear Axle：3t , 6t
• Brake System：Air Braking
• Tire：8.25r16
• Compartment Volume：5cubic
• Equipment：Hydraulic System and Operating System
• Transport Package：RO-RO, Bulk Freighter
• Specification：ISO&CCC
• Trademark：SUNY
• Origin：China
• Production Capacity：500 Unit , Year

Overview

Product Description

Euro 5 cummins engine 156hp

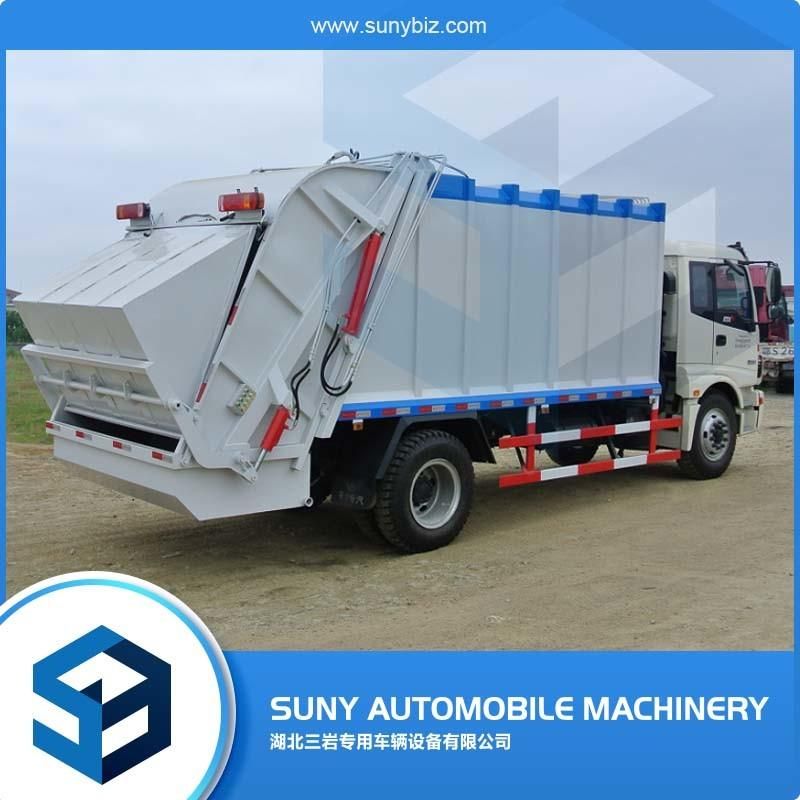

FOTON AUMARK 4x2 Compactor Garbage Truck
Compartment volume:3 cubic 4cubic 5cubic
foton cummins 4-cylinder diesel engine kw / 120hp
Brake system:Air braking
Aumark single row cabin with A/C

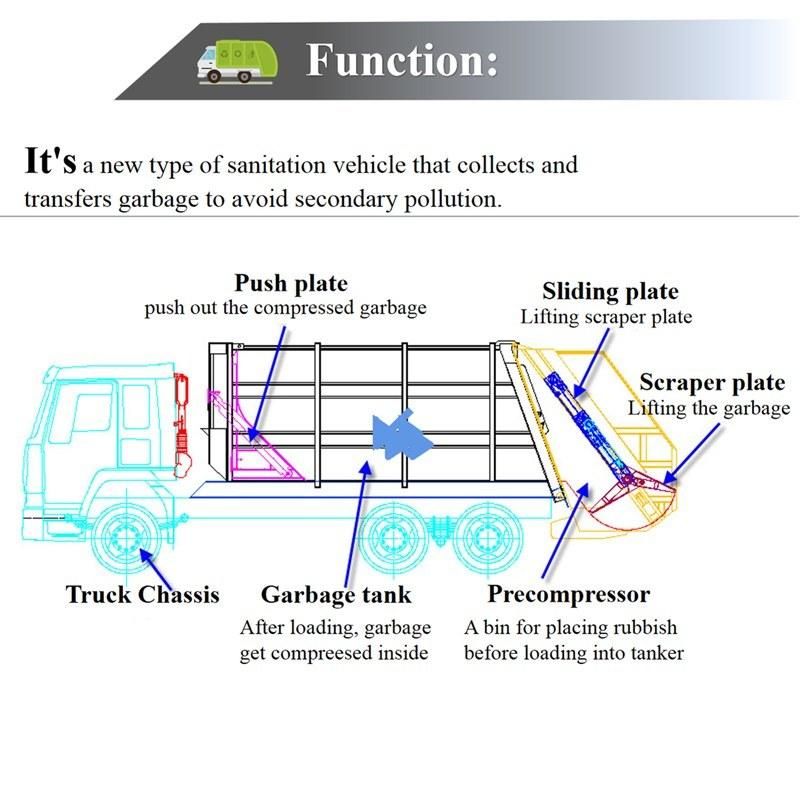

Equipped with hermetic dustbin, hydraulic system and operating system.
Automatic compress and uninstall, sewage can be collected by the dump tank..
Pressure is large, leakproofness is good, operation is convenient and security is dependable.

Product Parameters

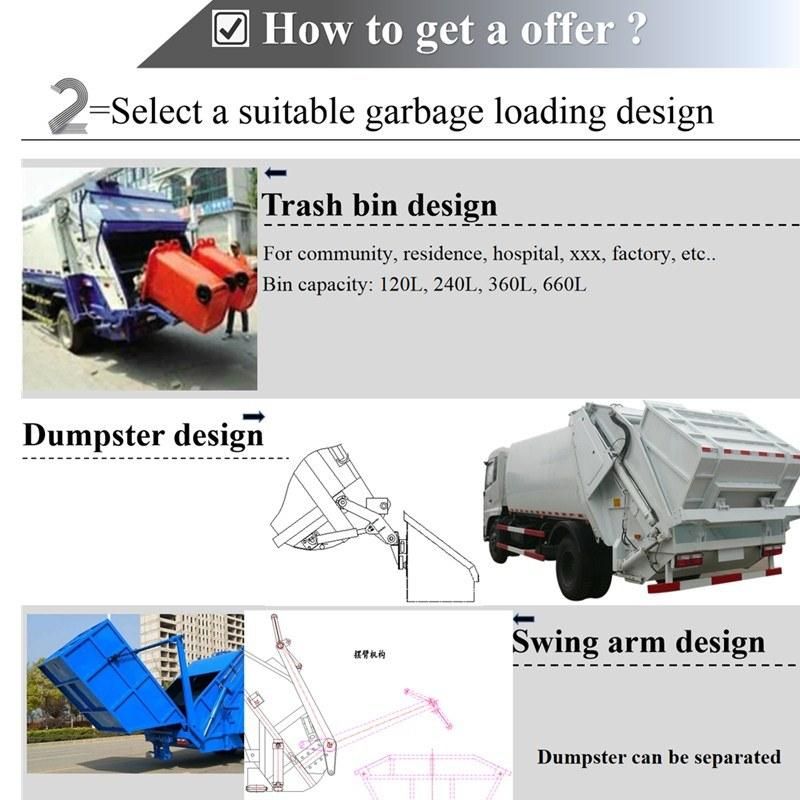

Different types of garbage truck:

1.dump garbage truck
2.hanging dustbin garbage truck
3.roll arm garbage container truck
4.swing arm garbage container truck
5.compactor garbage truck
6.movable refuse compactor with truck

Products Technical SpecificationChassis BrandFOTON-AUMARKChassis ModelBJ5089Fuel typeDieselEmission StandardEuro 5CabinAumark Single row,with A/CWhole Vehicle
main dimensions (mm)Overall dimensions (L×W×H)6875*2150*2550Wheel base3800Front overhang1095Rear overhang1945Weight data (kg)G.V.W8280Curb weight (chassis)5610Max payload3000-5500Whole vehicle
main performanceMax. speed (km/h)90EngineModelISF3.8s5154Maximum power115kw / 156hpNumber of cylinders4Displacement (L)3.760Engine ManufacturerBeijin foton Cummins engineGear boxModel6Number of gears6 forward gears& 1 reverseAxleFront / Rear Load capacity (ton)3 / 6SuspensionFront / Rear3+1/6+7- Leaf spring / 9/11+7- leaf springBrake systemService brakeAir brakingElectric deviceRated voltage24VTyres & Quantity8.25R16 & 6+1Up-parts DescriptionStandard ConfigurationEquipped with hermetic dustbin, hydraulic system and operating system.
Automatic compress and uninstall, sewage can be collected by the dump tank..
Pressure is large, leak proofness is good, operation is convenient and security is dependable.Compartment volume (M3)5+1Cycle time (S)≤28Excretion of garbage time (S)≤30Maximum crushing
compression force (T)24


Company Profile

Hubei Suny Automobile and Machinery Co., Ltd is the professional company which is abide by the business integrity and
quality win for the purpose of customers' intentions.

We aimed to be the access for you in getting the most suitable Chinese heavy-duty and special purposed trucks, which
are widely used in environmental protection, city construction, transportation and many other fields.

Over the 10 years experience in manufacturing, we have established long-term and stable relationship with the customers
all over the world and Chinese main manufactures.

With the years of experiences in exporting, we have got the trust from lots of clients who come from different districts, such
as the whole Africa, South America, Southeast Asia, Mid-east, etc. We will keep striving to improving our profession and
efficiency, meanwhile continuously promoting our service for all the customers all over the world!
Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,T-KING,UD,HINO,ISUZU,etc.

A.Product Series
1.  Fuel tank truck/trailer/semi-trailer/container.
2.  Water tank truck/trailer/semi-trailer/container.
3.  Chemical tank truck/trailer/semi-trailer/container.
4.  Bitumen tank truck/trailer/semi-trailer/container.
5.  Bulk powder tank truck/trailer/semi-trailer/container.
6.  Gas tank truck/trailer/semi-trailer/container.
7.  Dump truck/trailer/semi-trailer
8.  Truck mounted crane
9.  Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

B,Packaging & Shipping:
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!

C:Customer service:
We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 12 months warranty.
We supply quick-wear parts and  spare parts in time for customer.
