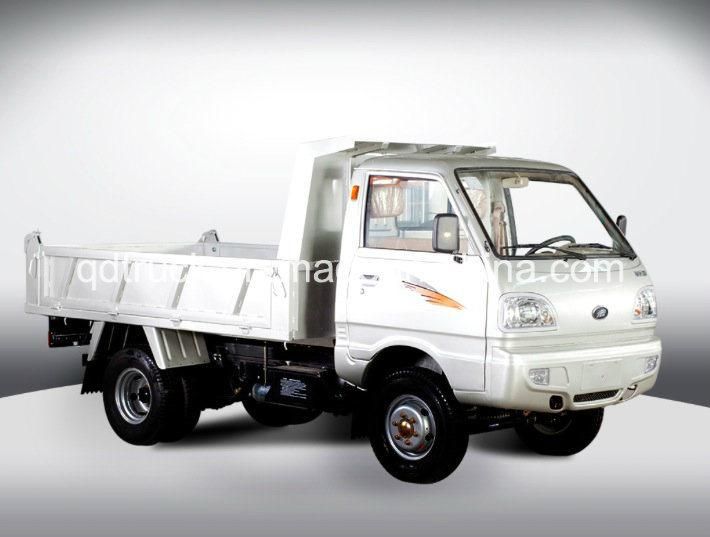

- Model NO.:3036
- Capacity:3000kg
- Driving Type:4X2
- Steering:LHD, Rhd
- Brand:Sinohtc
- Transport Package:Container
- Specification:ISO
- Trademark:SINOHTC
- Origin:Shandong
- HS Code:87012000
- Production Capacity:100 PCS, Month
Dismensions |
Overall length(mm) | 4530 |
Overall width(mm) | 1750 |
Overall height(mm) | 2050 |
Cargo box length (mm) | 2540 |
Cargo box width (mm) | 1580 |
Cargo box height(mm) | 440 |
Front/rear overhang(mm) | 920/1110 |
Wheel base(mm) | 2500 |
Engine |
Model | LL485BZL |
Type | 4-cyl. In line water cooled |
Power(kw) | 48/3200 |
Torque(Nm/rpm) | 170/2200 |
Compression ratio | 18:1 |
Cylinder bore/Piston(mm) | 85/95 |
Displacement(L) | 2.256 |
Standardment | Euro I |
Suspension |
Front suspension | Rigid housing axle leaf spring type | 3 pieces |
Rear suspension | Rigid housing axle leaf spring type | 8+4 pieces |
Transmission |
Model | 5+1 synchromesh transmission |
Type | Manual Mechanical |
Speed ratio | I: | 4.696 |
II: | 2.536 |
III: | 1.576 |
IV: | 1 |
V: | 0.856 |
R: | 4.174 |
Steering |
Type | Roller type |
Clutch |
Type | Single plate, dry type |
Front brake System | Two section hydraulic drum |
Rear brake System | Two section hydraulic drum |
Tires |
Type | 56.00-14/6 |
Safe |
Safe belt | Three-point belt |
Other specifications |
Chassis curb weight(kg) | 1560 |
Load capacity(kg) | 3000 |
Max GW(kg) | 4720 |
Mini turning diameter(m) | 10 |
Mini ground clearance(mm) | 180 |
Max climbing ability | 30 |
Max speed | 85 |
Max Braking distance | 22 |
Seat | 2 |
Mini rate of Fuel consumption(L/100km ) | 8.5 |
