• Model NO.：shacman-956
• Fuel：Diesel
• Tank Volume：20cbm
• Drive Wheel：8X4
• Hoesrpower：150-250hp
• Condition：New
• Name：Vacuum Sewage Suction Truck
• Transport Package：Bulk, RO-RO, Frame, Container
• Specification：10100*2500*3850mm
• Trademark：Shacman
• Origin：China
• HS Code：8503009090
• Production Capacity：500PCS,Week

Product Technical SpecificationsItemDescriptionsSpesifications and TypesVehicleBrandCHENGLIWEIOverall Dimensions L*W*H10100*2500*3850mmWeightsGVW.31000kgsKurb Weight11870kgsRated Payload18000kgsChassisChassis BrandShacmanDrive Type8×4SteeringLHD or RHDEngineBrandWeichai  enginePower247Kw /336HPEmmission LevelEURO 2 or Euro 3 or EURO 4PerformanceMax. Speed90km/hWheel base1800+4600+1350,1800+4575+1400    mmTyre Specifications11.00-20,12.00R20No. of Tyre10 pcs (1 spare tyre included)CabCab Capacity2 persons allowedBody/SuperstructureTankCapacity16-18 m³Material5mm or  6mm high quality carbon steelVacuum pumpChina famous vacuum pumpVacuum rate99% thoricallySuction head6mRotation speed500 rpm,low noise,high efficiencyBasic

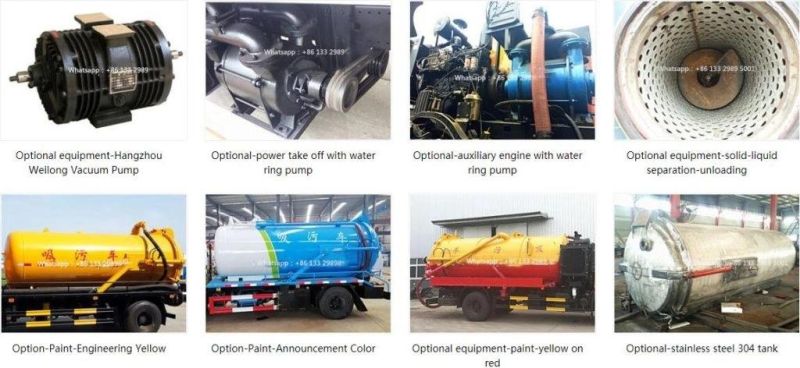

EquipmentsInstall vacuum pumps and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hosePaintTank color is according to client's requirements.Optional EquipmentsItaly or Spain vacuum pumpsStainless steelAnti-rust coating inside tank

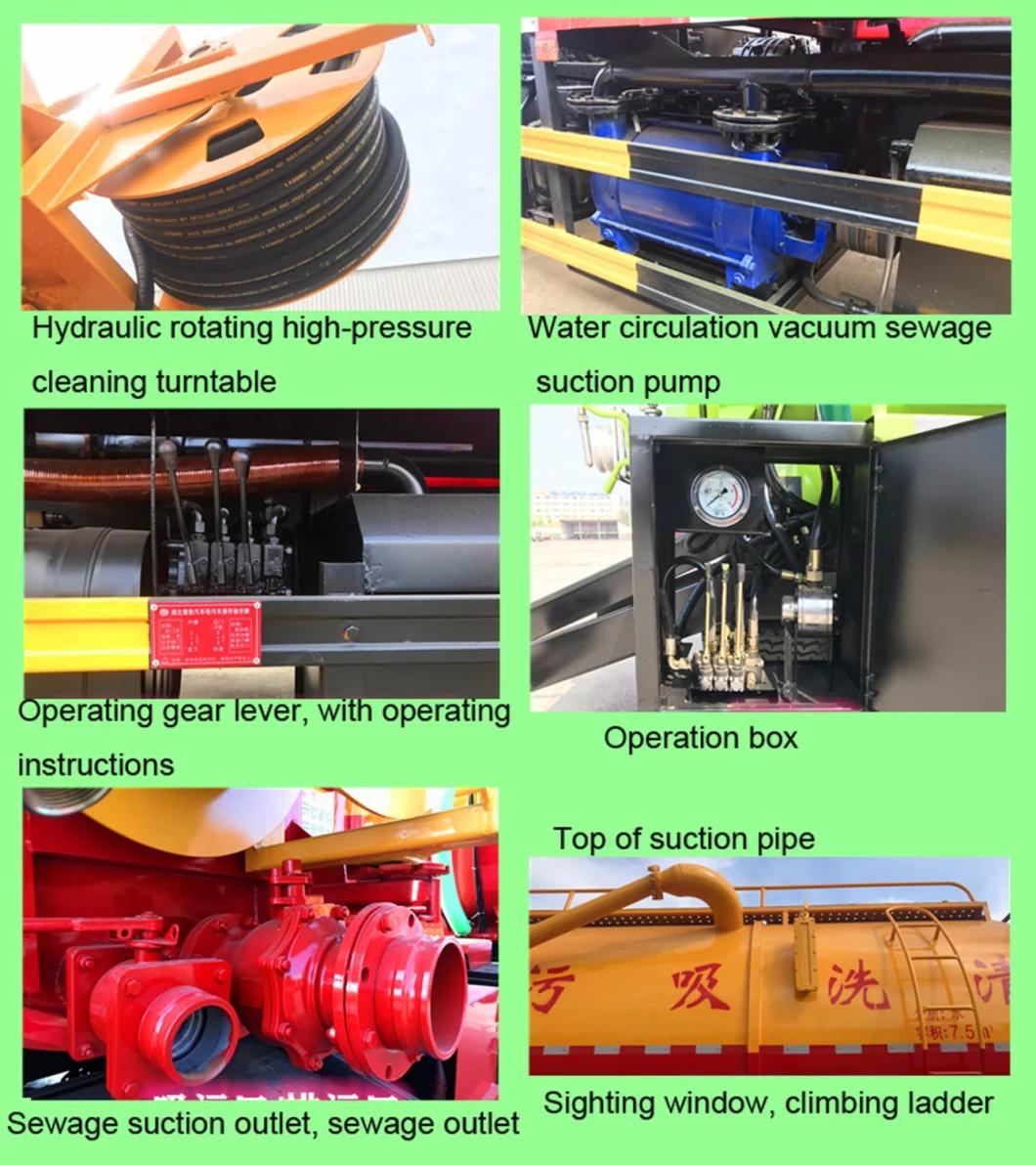

8X4 Shacman 20000liters vacuum sewage suction truck Working parameterSuction speedFill up in 10 minutesTank materialCarbon steel Q345, stainless steel 304Blowdown speedFinished in a single 8 minutesMedium and small tank thickness5 mm tank, 6 mm head, 4 mm partitionSuction horizontal distanceUp to 80 metersThickness of large tankTank body 6-8 mm, head 8 mm, partition 5 mmVertical depth of suctionUp to 9 metersSewage suction pumpSmall Veyron single pump, large Veyron double pumpOperation methodManual + pneumatic + hydraulicLeak-proof treatmentRubber strip + hydraulic lock + manual lockOperating positionCab + car sideTailgate formThe tailgate is fully open, the tail is fully openBlowdown methodHydraulic lift dumping + air blowdown  Other standardSight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter.Optional configurationLiquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler









FAQ 3: How about the after sale service?
        A: First we choose the popular brand in local market with after sale service. Second, we can delivery spare parts
            and engineers to your place. Make maintenance plan and provide commissioning service.
FAQ 4: How about gurantee and warranty?
        A: We provide 16 years spare parts service for exporting vehicles, warranty one year from B/L date.
            Warranty of special model vehicle will be negotiated.
