• Model NO.：DFAC-365
• Transmission Type：Manual
• Payload：18t
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：JAC
• Models：Small
• Usage：Hang Barrel Type
• Condition：New
• Name：Hook Arm Garbage Truck
• Transport Package：Bulk, RO-RO, Frame, Container
• Specification：9500*2550*3400 mm
• Trademark：JAC
• Origin：China
• HS Code：8503009090
• Production Capacity：500PCS,Week

Specifications for HOWO Hook Lift Garbage TruckCabinDriving Model: 6×4 Left Hand Drive or Right Hand DriveHW76 cabin with one sleeper, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.Condition: brand newEngineModel: SINOTRUK WD615.87

Type: Diesel 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling.

Emission Standard: Euro IIDisplacement: 9.726LTransmissionHW15710 manual gearbox, 10F & 2RRatio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)SteeringZF power steering, model ZF8118, hydraulic steering with power assitanceFront AxleHF9, 1×9000 KGS
Steering with doubleT-cross section beam

Rear Axle

HC16, 2×16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Ratio: 4.8BrakeService brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse lightTires315/80R22.5 or 12R22.5, tubeless tires with one spare tire.
Optional: 12.00R20, radial tiresFuel Tank400 LitersOverall Dimension9500*2550*3400 mm

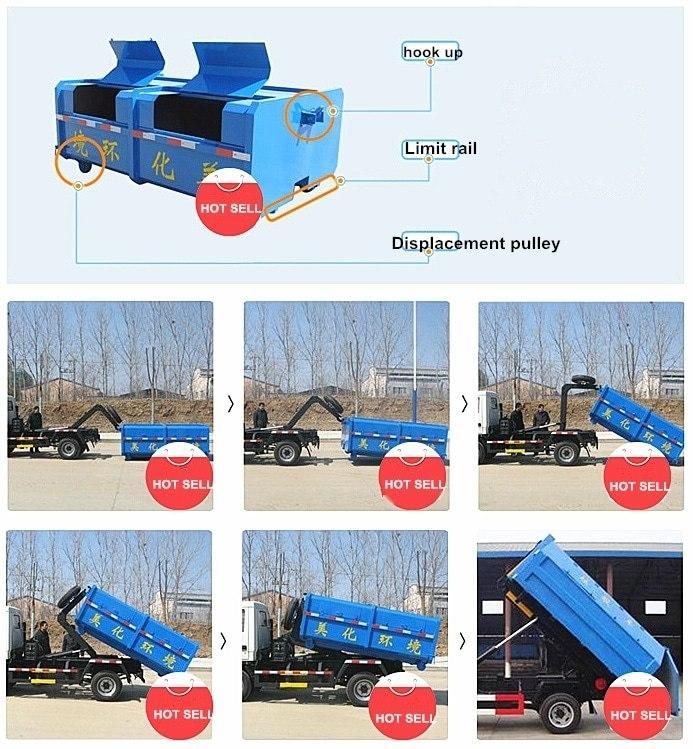

6×4 Dongfeng 18 ton to 20 ton hook arm garbage truck Working parameter:

 Box timeLess than 15 secondsRoller materialCast iron or forged steelUnboxing timeLess than 15 secondsControl methodElectronic control + manualDump timeLess than 10 secondsOperating positionCab + car side
