• Model NO.：ZZ1257N35
• Transmission Type：Manual
• Payload：30T
• Fuel：Diesel
• Drive Wheel：6×4
• Horsepower：251-350hp
• Condition：New
• Chassis Brand：Sinotruk Str
• Cabin：Str Double Cab, with A,C
• Rhd or LHD：Optional
• Drive Type：6X4 Optional 4X2 4X4 6X6 8X4
• Engine：247kw , 336HP Optional 371HP
• Gearbox：10-Speed
• Dirve Axle：St16
• Water Tank Capacity：10000L to 15000L
• Water and Foam Tank：Water10000-12000L Foam 1000L-3000L
• Equipment：Pressure Fire Pump
• Transport Package：After Waxing by Container, RO-RO, Bulk Freighter
• Specification：ISO&CCC
• Trademark：SUNY
• Origin：Hubei Suizhou
• Production Capacity：500 Unit , Month

Product Description

10000L ~ 15000L SINOTRUK Steyr  6X4 Fire Fighting Truck

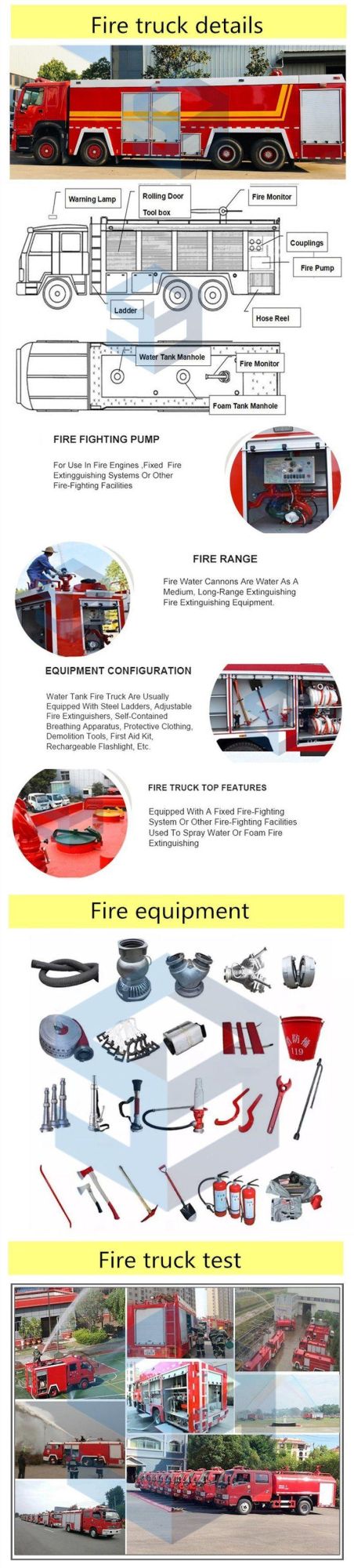

1. fire truck Main equipped:
1.fire truck chassis constitute cab, engine, gear box, steering wheel,beam,tyre,axles,etc.
2.Fire truck upper body with water/foam tank, fire pump,fire monitor,pipe,etc.
3.Water fire fighting tank and foam fire fighting tank .or water fire fighting tank.
4.fire pump is normal pressure or middle-low pressure, made in China or imported.
5.fire monitor is controlled by Manual or Electric.

 Product Parameters

2. Fire truck main technical specifications:


 fire vehicle   Main Parameter Driving type6*4  cabfour doors Left hand drive(seat 6 persons) air conditionwith  Overall Dimension(mm) 9720*2500*3585  Gross Weight(kg)26550  Max Speed(km/h)102  Chassis parameter  Chassis ModelZZ1253 Engine ModelWD615.95, WD615.95E, WD615.95C,WD615.96C, WD615.96E                    Power(kw)247, 247, 249, 279, 276 Displacement(ml)9726, 9726, 9726, 9726, 9726 manufacturerChina National heavy duty truck group Corp ., Ltd Fuel Type             Diesel  Tire Size11.00-20, 11.00R20,12.00-20,12.00R20 Number of Tires10  Wheelbase(mm) 4325+1350, 4300+1400 Number of Axles3 special function
   Tank Material: high quality carbon stell plate, anti-rust treatment.
Structure: welding, there is clapboard inner.  Water TankCapacity:12,000L  or water and foam tank Water tank:10,000L  foam tank:2.000LSpecial ParameterFire Pumpchoose normal pressure fire pump or middle-low pressure fire pump  CB10/60CB20.10/30.60 Fire MonitorPS50 or PS60 or PS70 or PS80                                      PP64 or PP80 or PP100                                                  choose  Manual or  Electric                                            PTOuse sandwich PTO, splashing-type lubricate, can put out fire when driving. carriageCarriage is made of high quality stell and Aluminum embossed sheetPump room  or on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. Equipment boxEquipment box: at the back of carriage, there are two-layers clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box.
Structure: whole frame is welded to ensure intension and rigidity.
Material: frame is high quality steel, inner plague is aluminum embossed sheet, surface is anodic processed. Rolling shutter doorLight and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock.colorThe whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck.Technical requirement1.the fire fighting vehicle is accord with GB7965 Performance requirements and test methods for fire fighting vehicle.
2.tank of foam and water is accord with GB39.5 General Specification for fire fighting vehicle.
3.the outside is very beauty, the surface roughness is accord with GB39.5 General Specification for fire fighting vehicle.
4.All operating switch and meter is accord with standard nameplate.



Company Profile

Hubei Suny Automobile and Machinery Co., Ltd is the professional company which is abide by the business integrity and quality win for the purpose of customers' intentions.

We aimed to be the access for you in getting the most suitable Chinese heavy-duty and special purposed trucks, which are widely used in environmental protection, city construction, transportation and many other fields.

Over the 10 years experience in manufacturing, we have established long-term and stable relationship with the customers all over the world and Chinese main manufactures.

With the years of experiences in exporting, we have got the trust from lots of clients who come from different districts, such as the whole Africa, South America, Southeast Asia, Mid-east, etc. We will keep striving to improving our profession and efficiency, meanwhile continuously promoting our service for all the customers all over the world!
 We also have howo water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc

Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,T-KING,UD,HINO,etc.


IF YOU HAVE ANY OTHER QUESTIONS PLEASE LET Adam Li KNOW...
