• Model NO.：ZLF5300JXFYT32
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：150-250hp
• Condition：New
• Engine Power(Kw)：320
• Max. Torque(Nm)：2100
• Cab Seats：2
• Max Speed(Km/H)：100
• Specification：11292*2485*3807
• Trademark：ZOOMLION
• Origin：Hunan
• HS Code：870530

Basic Info.

Model NO. ZLF5300JXFYT32 Fuel Diesel Drive Wheel 4×2 Horsepower 150-250hp Condition New Engine Power(Kw) 320 Max. Torque(Nm) 2100 Cab Seats 2 Max Speed(Km/H) 100 Specification 11292*2485*3807 Trademark ZOOMLION Origin Hunan HS Code 870530

Product Description

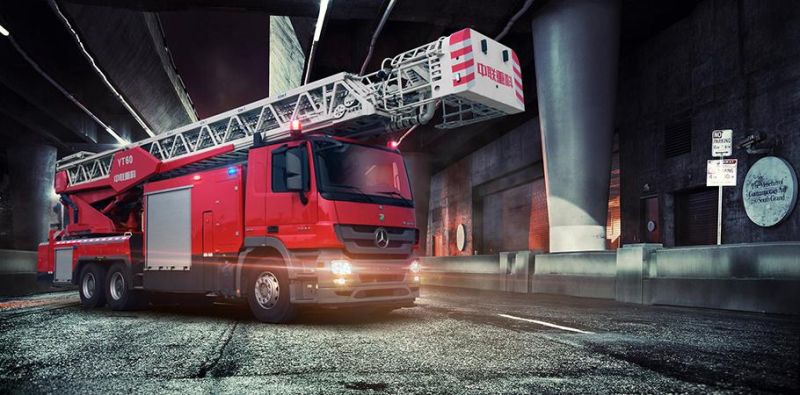

Aerial Ladder Fire Fighting Truck For Municipal High-Altitude Operation


PRODUCT DESCRIPTION

ZOOMLION Aerial ladder is quite suitable for industrial and domestic medium and high buildings fire-extinction and rescue; it also can be used for municipal high-altitude operation and garden spraying operation.

SPECIFICATIONS


Chassis	Benz Actros3344 E5
Engine power(kW)	320
Max. torque(Nm)	2100
Emission standard	National-V
Cab Seats	2
Max speed(km/h)	100
Overall dimensions(mm)	11292×2485×3807
GVW(kg)	30000
Water tank volume(L)	3000
Foam tank volume(L)	2000
Water pump model	RSD100
Max. flowing of water pump(L/min@MPa)	6000/1.03
Fire monitor model	AKRON3482+5177
Max. flowing of fire monitor(L/min)	4800
Max. spraying reach of fire monitor(m)	≥70
Max working height(m)	32
Max. working outreach(m)	19
Cage rated capability(kg)	450
Ladder operating time(s)	≤80
Ladder sections	4

ADVANTAGE

01. More safety and efficiency
Aerial ladder could be used in the high and low altitude rescue.
The max load bearing capacity of the platform can reach to 450Kg.
The consoles at turntable, platform and rear of the truck could easily achieve the water pump start-stop, adjust rotation rate of the engine, and monitor the liquid level of water tank and pressure of waterways.

02. Powerful fire-extinction capacity
The pitch, rotation and spraying mode (fog-spout) of water nozzle are controlled by electronic, and the max distance of water spraying can reach to 80m at the standard pressure.
Water curtain device under the platform can protect the platform against to the heat and smoke from the fire.
Hard pipe connections between the pump and water monitor are stiffness structure, which means the minimum water transmission loss.

03.Excellent handling and safety
Platform anti-Collision protection system.When the left, right or front side of the platform gets close to the barriers, the system will alert automatically and stop the following approaching actions immediately.
Interlock system. The ladder can not be operated unless outriggers are expended and supported. Conversely the outriggers couldn't be operated when ladder is in operation status, to enhance safety.
Rotatable platform. Platform can rotate to the upside of ladder when driving, which wouldn't block the driver's sight.
Better driving vision and handling. Aerial ladder could easily assemble on various special chassis both of which has large space cab and great handling.

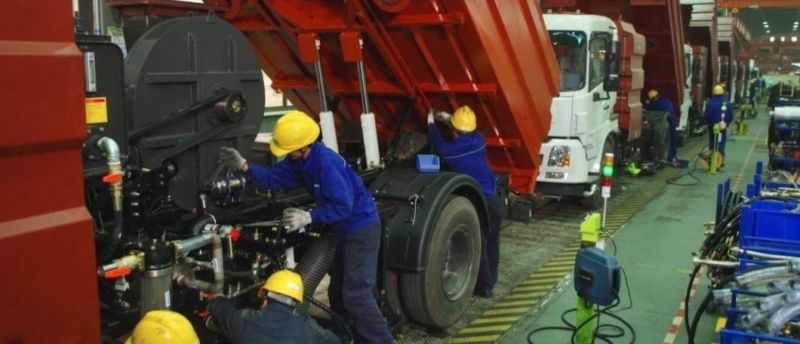

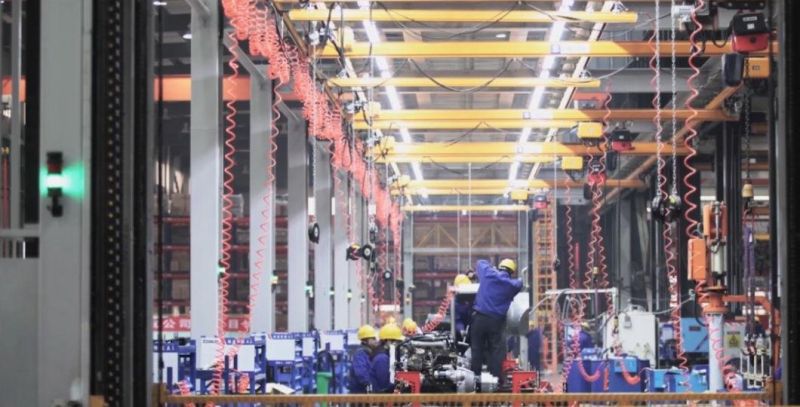

WORKSHOP




CAMPANY  PROFILE



Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in developing and manufacturing major high-tech equipment in the areas of engineering industry and agricultural industry. With more than 20 years of innovation and development, the company is now a global enterprise possessing 10 major categories and 56 product lines, as well as nearly 600 leading products. Zoomlion is the first Chinese construction machinery company to be listed on both Shenzhen and Hong Kong stock exchanges. At present, the company is actively promoting strategic transformation, aiming to build a high-end equipment manufacturing enterprise integrating engineering machinery, agricultural machinery and financial services.




CERTIFICATES
