• Model NO.：ZLF5300JXFYT60
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：150-250hp
• Condition：New
• Engine Power(Kw)：320
• Max. Torque(Nm)：2100
• Cab Seats：2
• Max Speed(Km/H)：90
• Specification：13970*2500*3995
• Trademark：ZOOMLION
• Origin：Hunan
• HS Code：870530

Basic Info.

Model NO. ZLF5300JXFYT60 Fuel Diesel Drive Wheel 4×2 Horsepower 150-250hp Condition New Engine Power(Kw) 320 Max. Torque(Nm) 2100 Cab Seats 2 Max Speed(Km/H) 90 Specification 13970*2500*3995 Trademark ZOOMLION Origin Hunan HS Code 870530

Product Description

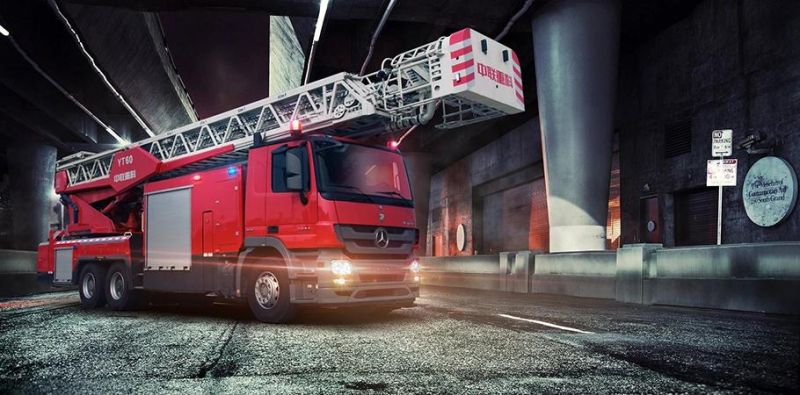

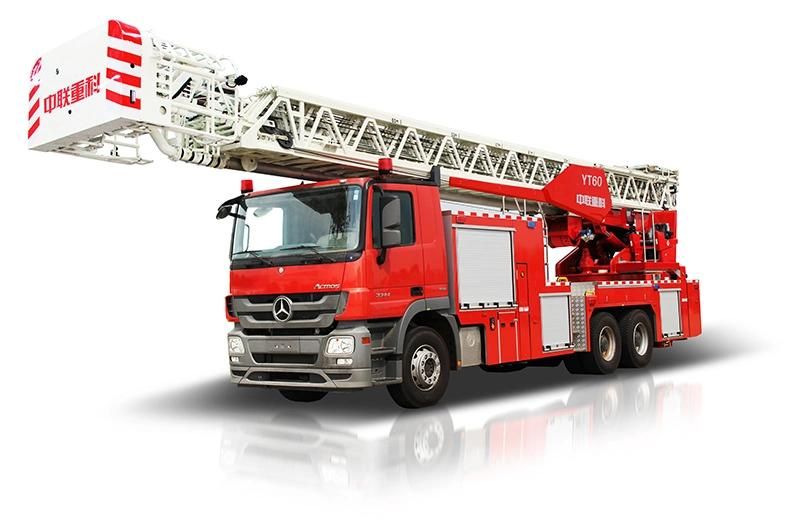

Heavy Truck Aerial Ladder Fire Fighting Vehicle


PRODUCT DESCRIPTION

ZOOMLION Aerial ladder is quite suitable for industrial and domestic medium and high buildings fire-extinction and rescue; it also can be used for municipal high-altitude operation and garden spraying operation.

SPECIFICATIONS


Chassis	Benz Actros3344 E5
Engine power(kW)	320
Max. torque(Nm)	2100
Emission standard	National-V
Cab Seats	2
Max speed(km/h)	90
Overall dimensions(mm)	13970×2500×3995
GVW(kg)	30000
Engine power/GVW(Kw/t)	10.7
Wheel base(mm)	5100+1350
Fuel tank volume(L)	300
Fire monitor model	AKRON3482+5177
Max. flowing of fire monitor(L/min)	4800
Max. spraying reach of fire monitor(m)	≥70
Max working height(m)	60
Max. working outreach(m)	18
Cage rated capability(kg)	300
Ladder operating time(s)	≤150
Ladder sections	6
Lifting cage rated capacity(kg)	180
Lifting cage speed(m/s)	1

ADVANTAGE

01. More safety and efficiency
Aerial ladder could be used in the high and low altitude rescue.
The max load bearing capacity of the platform can reach to 450Kg.
The consoles at turntable, platform and rear of the truck could easily achieve the water pump start-stop, adjust rotation rate of the engine, and monitor the liquid level of water tank and pressure of waterways.

02. Powerful fire-extinction capacity
The pitch, rotation and spraying mode (fog-spout) of water nozzle are controlled by electronic, and the max distance of water spraying can reach to 80m at the standard pressure.
Water curtain device under the platform can protect the platform against to the heat and smoke from the fire.
Hard pipe connections between the pump and water monitor are stiffness structure, which means the minimum water transmission loss.

03.Excellent handling and safety
Platform anti-Collision protection system.When the left, right or front side of the platform gets close to the barriers, the system will alert automatically and stop the following approaching actions immediately.
Interlock system. The ladder can not be operated unless outriggers are expended and supported. Conversely the outriggers couldn't be operated when ladder is in operation status, to enhance safety.
Rotatable platform. Platform can rotate to the upside of ladder when driving, which wouldn't block the driver's sight.
Better driving vision and handling. Aerial ladder could easily assemble on various special chassis both of which has large space cab and great handling.

04.Ladder steady startup and stop control technology
Ladder stabilized control technology. This technology could greatly damp the oscillations caused by accidental impact in ladder's movement and make the rescue more accuracy, safety.

05. Fast lifting rescue technology
This technology has rebuilt a fast rescue channel between the grounds to target and it could make the lifting platform slide from the bottom to top in just 55s. The lifting platform is manufactured by aluminum alloy and it could be folded on the ladder.

06.Arc ladder structure
The ladder is designed and manufactured in special arc structure. Arc structure could enhance the endurance capability and decrease the deflection of ladder, which means more safety and less oscillation in rescue.

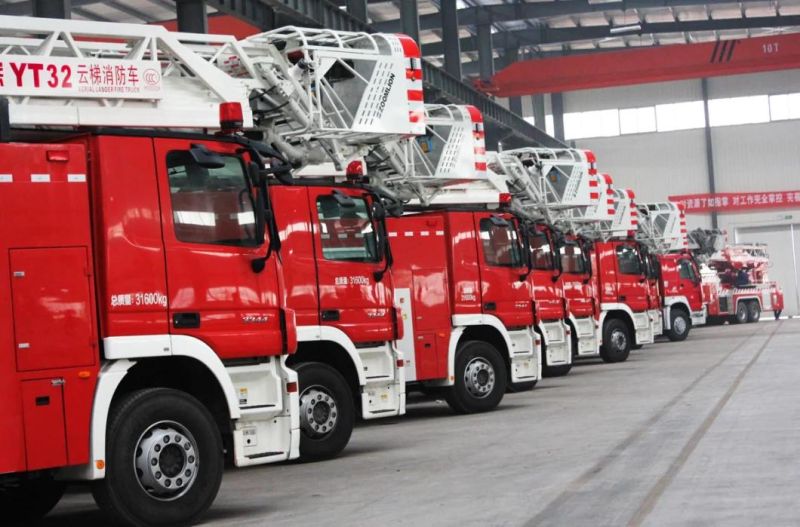

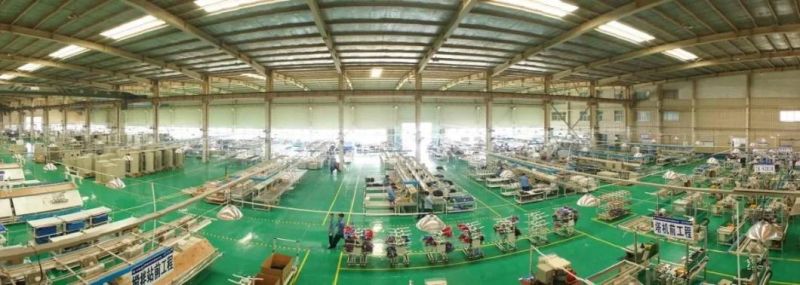

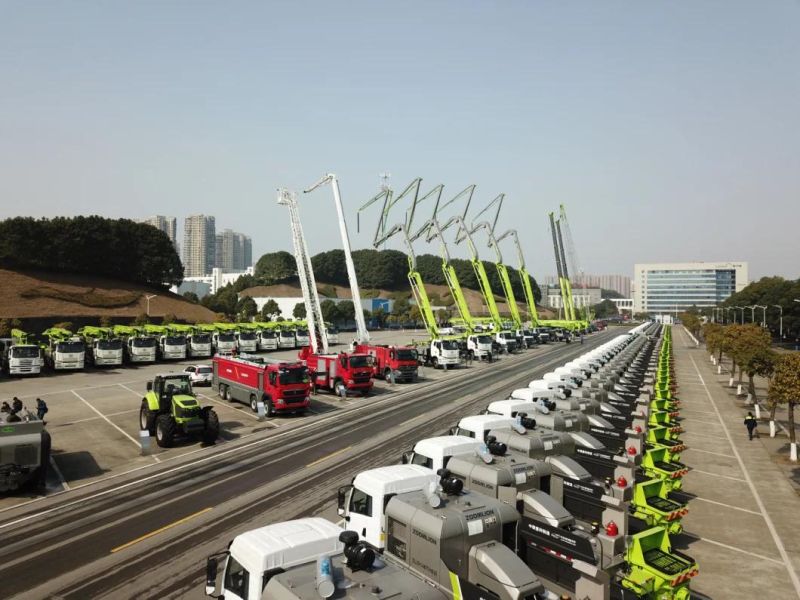

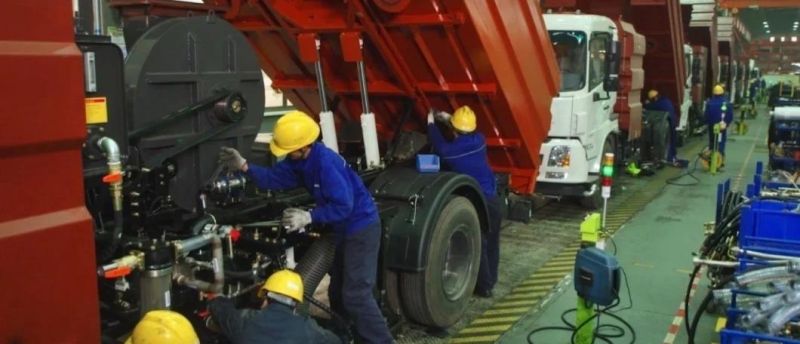

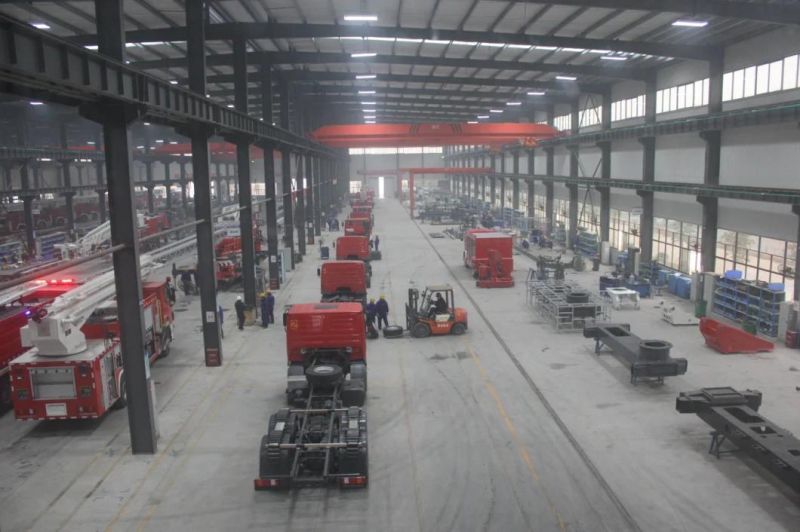

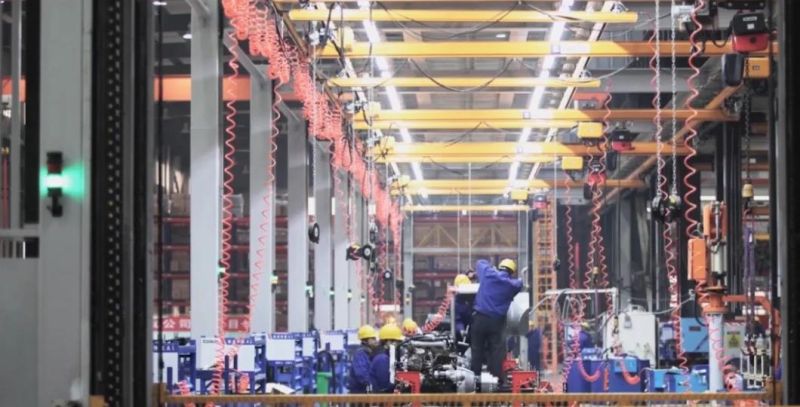

WORKSHOP

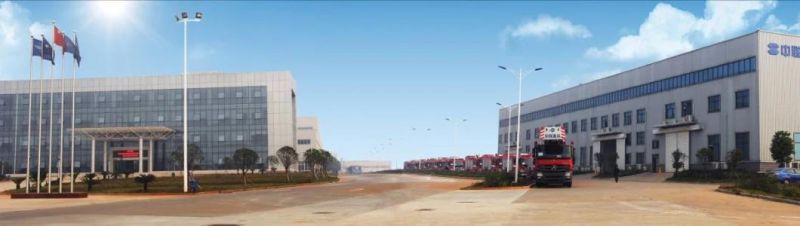

CAMPANY  PROFILE



Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in developing and manufacturing major high-tech equipment in the areas of engineering industry and agricultural industry. With more than 20 years of innovation and development, the company is now a global enterprise possessing 10 major categories and 56 product lines, as well as nearly 600 leading products. Zoomlion is the first Chinese construction machinery company to be listed on both Shenzhen and Hong Kong stock exchanges. At present, the company is actively promoting strategic transformation, aiming to build a high-end equipment manufacturing enterprise integrating engineering machinery, agricultural machinery and financial services.

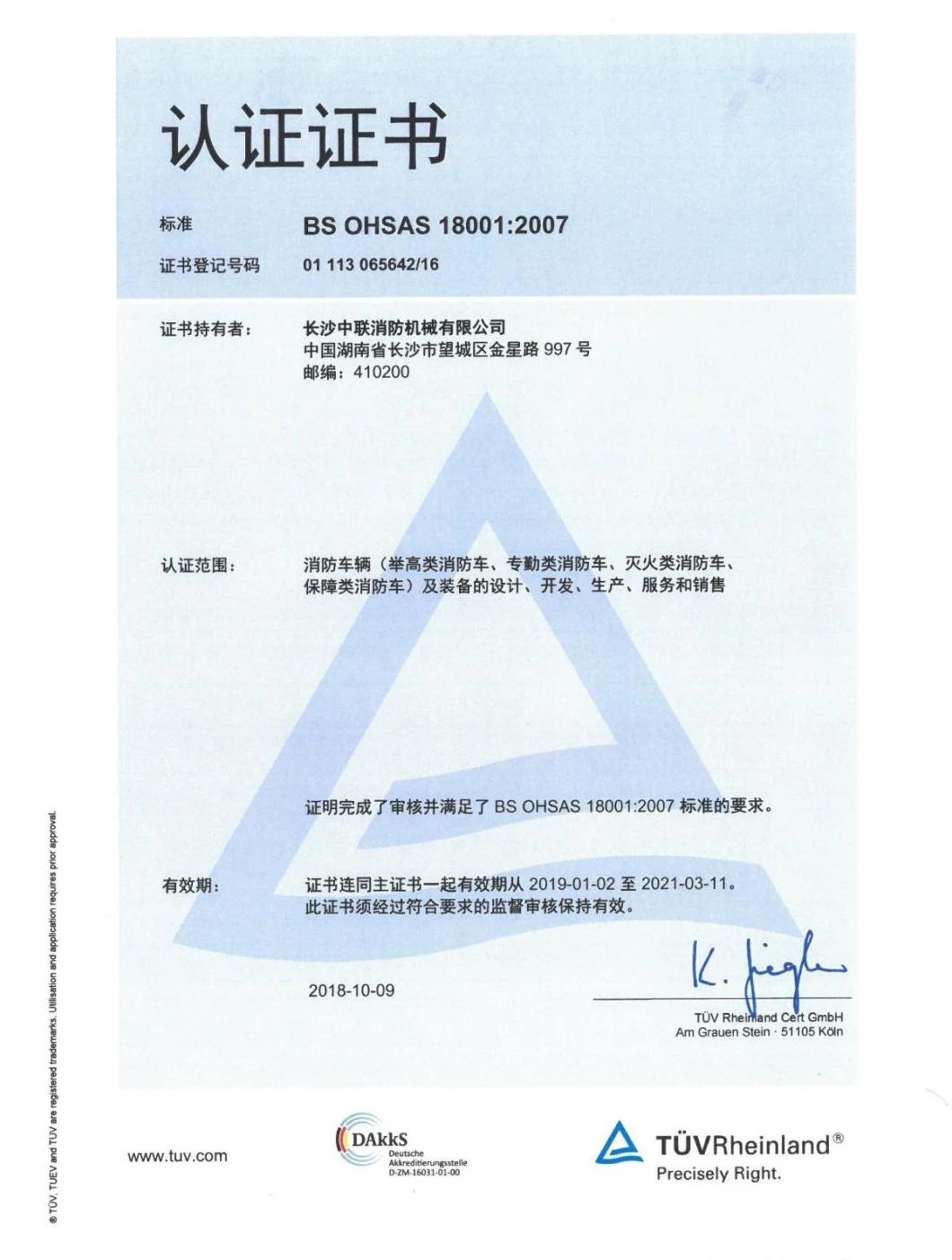

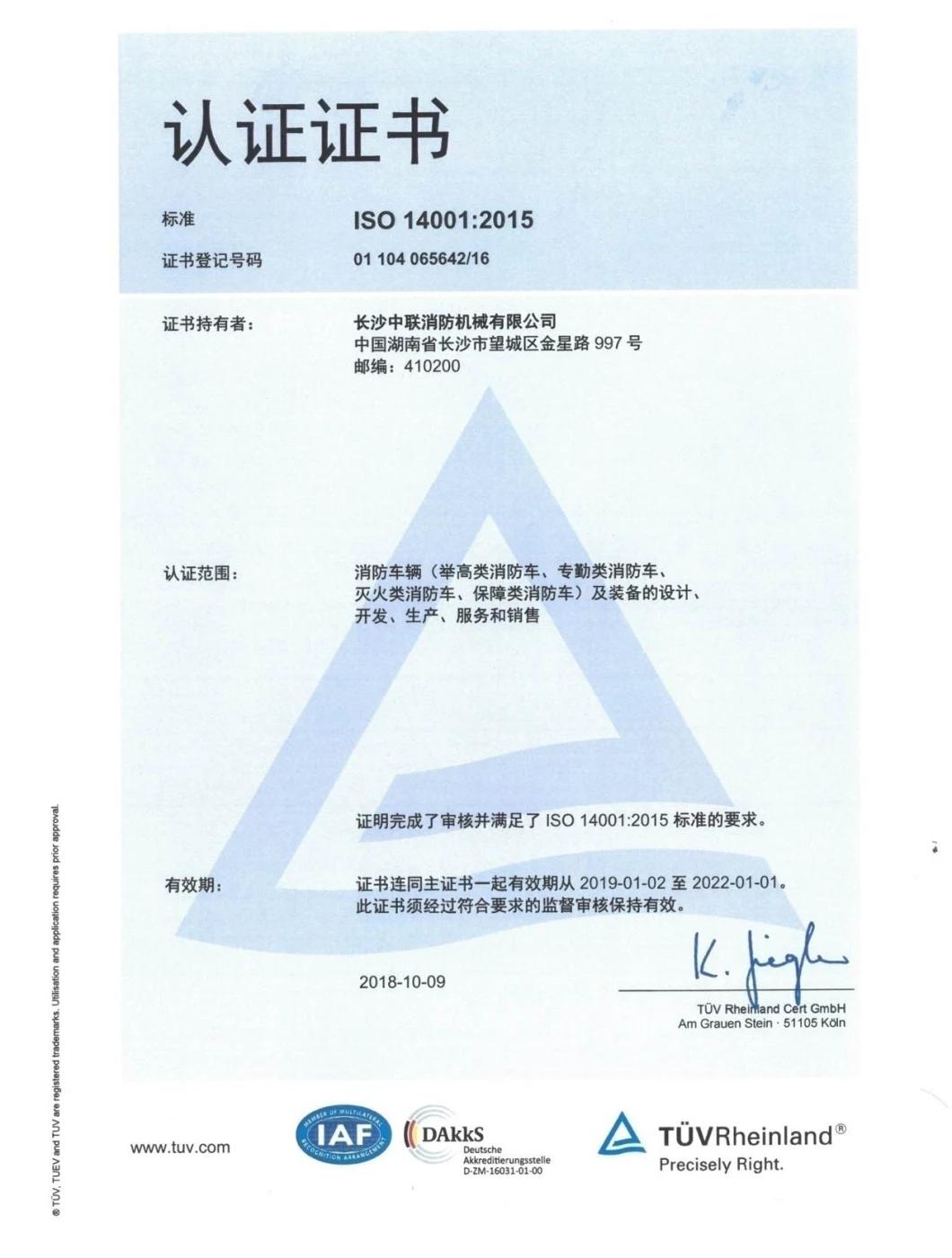

CERTIFICATES
