• Model NO.：ZLF5310JXFJP32
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：150-250hp
• Condition：New
• Engine Power(Kw)：320
• Max. Torque(Nm)：2100
• Cab Seats：2
• Max Speed(Km/H)：90
• Specification：8600X2500X3460
• Trademark：ZOOMLION
• Origin：Hunan
• HS Code：870530

Basic Info.

Model NO. ZLF5310JXFJP32 Fuel Diesel Drive Wheel 4×2 Horsepower 150-250hp Condition New Engine Power(Kw) 320 Max. Torque(Nm) 2100 Cab Seats 2 Max Speed(Km/H) 90 Specification 8600X2500X3460 Trademark ZOOMLION Origin Hunan HS Code 870530

Product Description

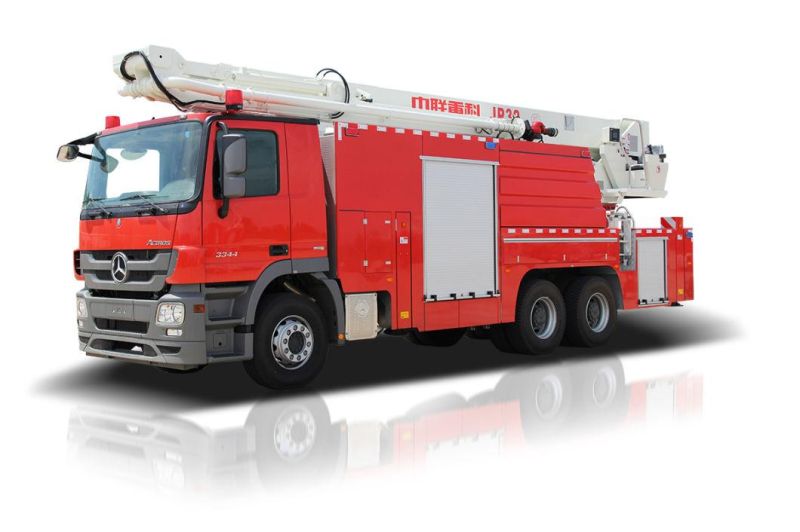

ZLF5310JXFJP32 Water Tower Fighting Vehicle for Large Fire  Disaster


PRODUCT DESCRIPTION

Water tower fire fighting vehicle is suitable for large fire disaster fighting including oil drilling, high rise construction, oil chemistry plant, large warehouse and public place.

SPECIFICATIONS


Chassis	Benz Actros3344 E5
Engine power(kW)	320
Max. torque(Nm)	2100
Cab Seats	2
Max speed(km/h)	90
Fuel tank volume(L)	300
Wheel base(mm)	4500+1350
Fuel	Diesel
Max working height(m)	32
Max. working outreach(m)	21.5
Engine power/GVW(Kw/t)	10.4
Fire monitor model	AKRON3482+5177
Max. flowing of fire monitor(L/min)	4800
Max. spraying reach of fire monitor(m)	≥80
GVW(kg)	31200
Water tank volume(L)	5000
Foam tank volume(L)	2000
Water pump model	RSD100
Max. flowing of water pump(L/min@MPa)	6000@1.03
Overall dimensions(mm)	10180×2500×3690
Boom sections	4
Boom operating time(s)	≤110

ADVANTAGE
01.Multi function and variable capability
 Centralized handling. All operating handles, switches and buttons are integrated on one console; One person can complete all the operation on one console.
Remote control. 40m wired remote control systems is used to control the action of truck. It is quite suitable for oil drilling, oil chemistry plant and other dangerous places fire-extinction.
Automatic control system. The vehicle uses the excellent hydraulic and electronic components. And it's assembled with contracted lines layout that is more convenient for maintenance, more safety and reliably for operation.

02.Powerful fire-extinction capacity

The vehicle equipped the most advanced water/foam pump and fire monitor. The range is over 80 meters at pressure rated.
03.With rational boom design, strong capability
 Smart simulate boom design. Booms are designed with telescopic and articulations structure to guarantee the smart action move. The combination action could be finished within only 60 seconds.
The boom can act moving while spraying, to save fire-extinction time.
Hard pipe connections. Lower pressure loss, safety and reliably.
04.Rational overall arrangement, high safety
 With 4 quick-connect water outlets on each side, it's quite convenient.
Pressure relief protection. The valve on the water tank could release the water when pressure inside the tank over the specified value.
05.One-side extending support technology
 All ZOOMLION aerials fire trucks could work in condition of unilateral leg expended that means less support space, and it is quit suitable for the narrow area rescue.
06.Slip-ring driving system
 According to slip-ring driving system, ladder could rotate continuous with 360-degree, Also nozzle assembled on the top of ladder could spray when ladder is in motion.

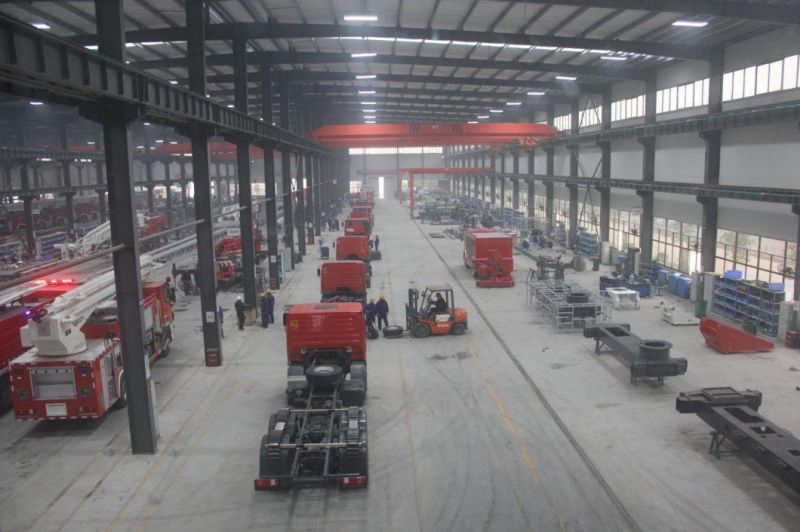

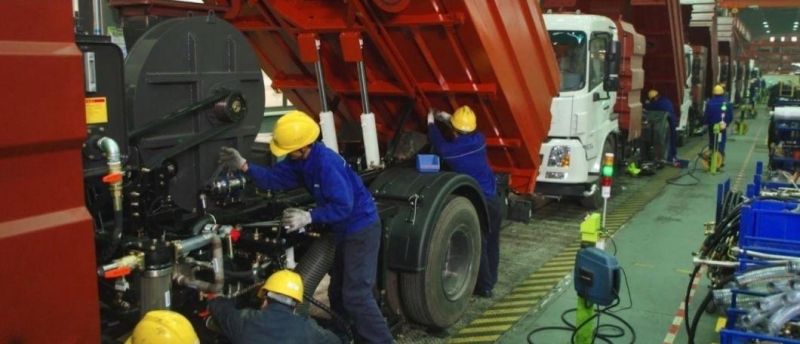

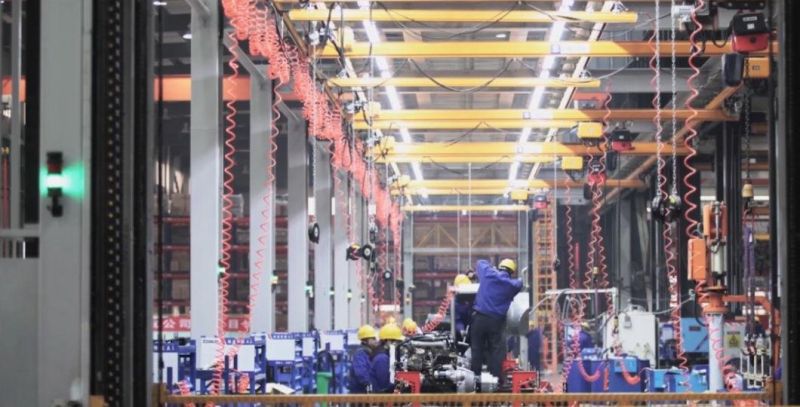

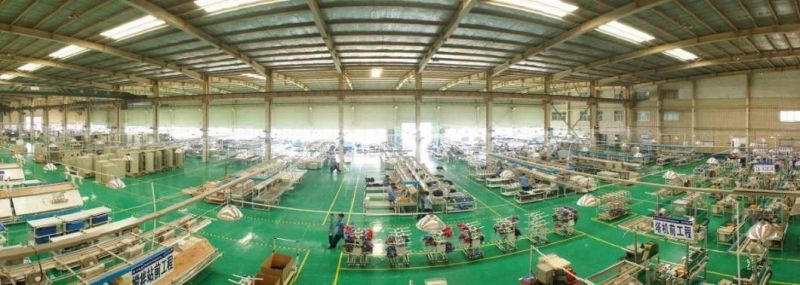

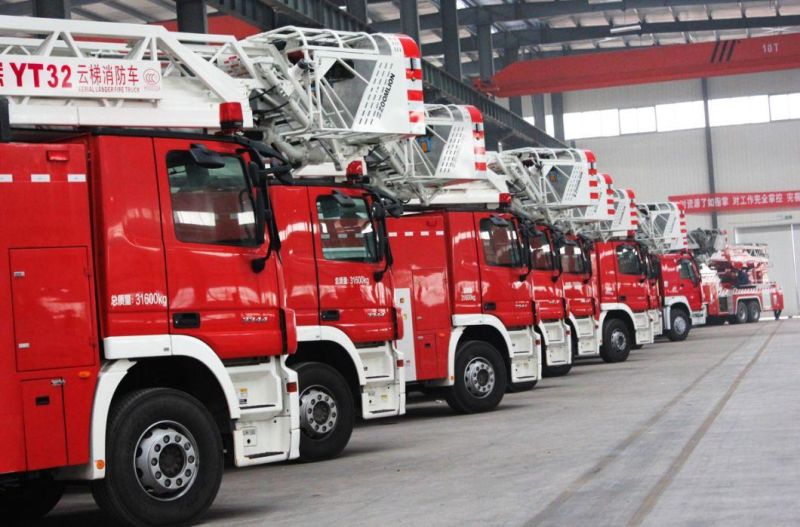

WORKSHOP

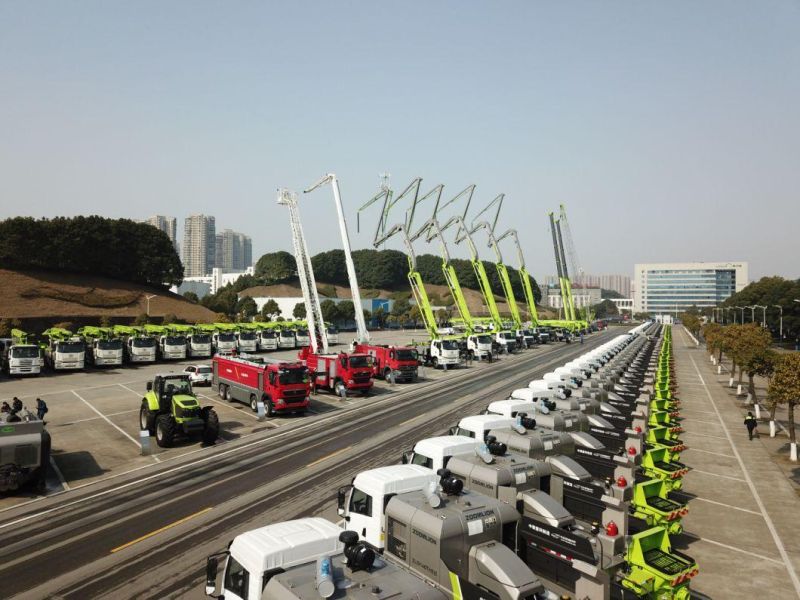

CAMPANY  PROFILE



Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in developing and manufacturing major high-tech equipment in the areas of engineering industry and agricultural industry. With more than 20 years of innovation and development, the company is now a global enterprise possessing 10 major categories and 56 product lines, as well as nearly 600 leading products. Zoomlion is the first Chinese construction machinery company to be listed on both Shenzhen and Hong Kong stock exchanges. At present, the company is actively promoting strategic transformation, aiming to build a high-end equipment manufacturing enterprise integrating engineering machinery, agricultural machinery and financial services.




CERTIFICATES
