• Model NO.：ZZ
• Drive Wheel：6x4
• Condition：New
• Colour：Optional
• Transport Package：Nude
• Specification：ISO
• Trademark：HOWO
• Origin：China
• HS Code：8704230090
• Production Capacity：2000

ChassisBrandHOWOChassis modelDFL1120BDrive model4×2, LHD/RHDTire9.00-20BrakeAir brakeEngineModelB170-33Horse Power(hp)170Displacement(cc)/Power(kw)5900/125EmissionEuro 3

Main ParameterOverall dimension (L*W*H/mm)9400*2498*3790Wheelbase(mm)5000Axles No.2Weight(kg)GVW10950Curb weight10755Leaf spring No.7/9+6Approaching/Departure Angle(°)24/12Front/Rear trace(mm)1880/1800Front/Rear suspension(mm)
1430/2496Max speed(km/h)95Gear box6 forward, 1 reverseFront/Rear Axle Load4320/6630Max. Working height20mRotation angle360°Max. operation radius(outreach)6.3mBucket rated load/passengers200kg /2Lifting hook tonnage1000kgMax lifting height6.5mHydraulic outriggers/legs4pcsPaintHigh quality ,color as customer's requestCabDouble row, 4 doors, with A/C

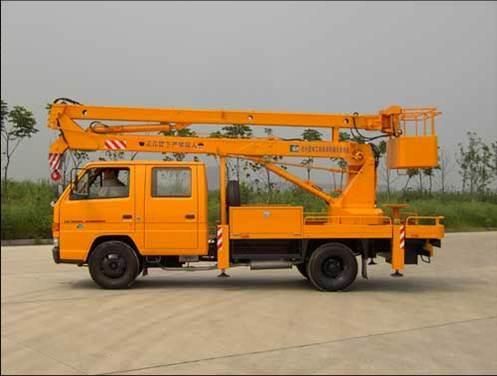

Photos of Products



Payment & Delivery
1. MOQ: 1 unit
2. Optional payment terms: T/T or L/C
    T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
    L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement, such as WABCO, JOST, BPW, FUWA.
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T

Warranty
1. Six months quality guarantee for three key parts axles, engine, transmission or within 50000km, which comes first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.

Our Advantage
1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers

About us
SINOTRUK is the leader in Chinese truck industry, founded in 1956, successively cooperated with Many Europe top manufacturers like Styre,Volvo and MAN. In 2007,we listed in the red-chip Hong Kong ,Germany MAN is our sencond largest share holder. Through centuries development, we have owned 20 subsidiaries in China, our products exported all around the world.

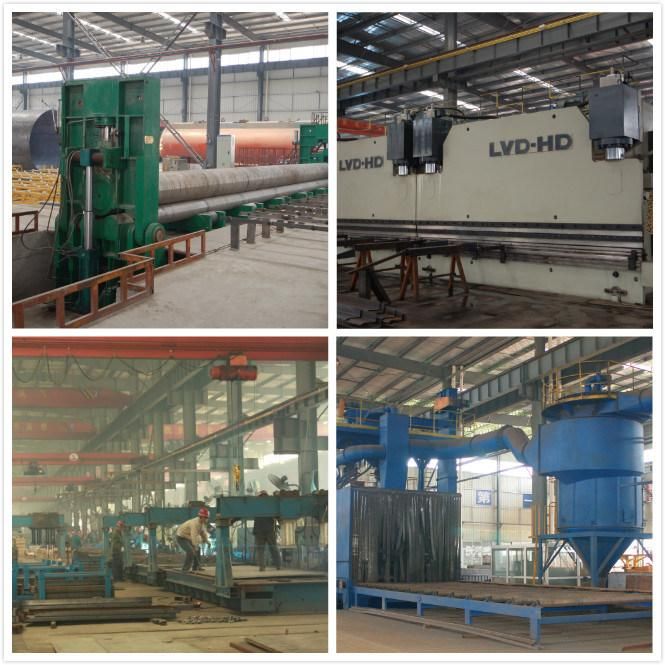

Welcome to visit our factory!

Rita Du

SINOTRUK Hubei Huawin Special Vehicle Co.,Ltd
