12m3 Sany Concrete Mixer Truck (G12ZZL)
Luoyang Silon Industrial Co., Ltd.- Certification:CE
- Transmission Type:Automatic
- Emission Standard:Euro 4
- Displacement:2.8
- Payload:30T
- Fuel:Diesel
Base Info
- Model NO.:G12ZZL
- Drive Mode:6x4
- Maximum Horsepower:300-400hp
- Condition:New
- Truck Chassis Model:Sinotruck Zz1257n4047c1l
- Type of Drive:6X4
- Engine Model:Wt615.95
- Rated Power:250kw,R,Min
- Mixing Volume:12m3
- Gross Weight:25000kg
- Geometric Volume:19.5 M3
- Maximum Diameter of Drum Body:2250mm
- Charge Speed:3 M3,Min
- Discharge Speed:2 M3,Min
- Transport Package:Nude
- Specification:CE, ROHS, SGS, CCC, ISO,
- Trademark:SILON
- Origin:Jiangsu, China
- HS Code:8705400000
- Production Capacity:500 Units,Month
Description
Performance of mixing drumGeometric volume m³ 19.5 Mixing volume m³ 12 Maximum diameter of drum body mm 2380 Length of mixing drum mm 5967 Angle of inclination ° 12 Rotating speed r/min 0~14 Charge speed m³/min ≥3 Discharge speed m³/min ≥2 Residue ratio of discharge % <0.7 Range of slump cm 5~21 Hydraulic system Oil pump international brand Motor international brand Reduction gears international brand Hydraulic circuit Closed type Water supply water tank capacity L 450 Way of water supply Pneumatic Complete machine Brand of chassis Sinotruck Chassis model ZZ1257N4047C1L Type of driving Left-hand drive Curb weight kg 14600 maximum gross weight kg 25000 Type of drive 6×4 Wheel base mm 4025+1350 Tyre 12.00R20 Means of power takeoff Power takeoff by flywheel Notice model XZJ5253GJB1 External dimensions (length×width×height)mm 9850×2496×3980 Engine Model WT615.95 Rated power Kw/r/min 250 Displacement L 9.726 Emission standard GB III

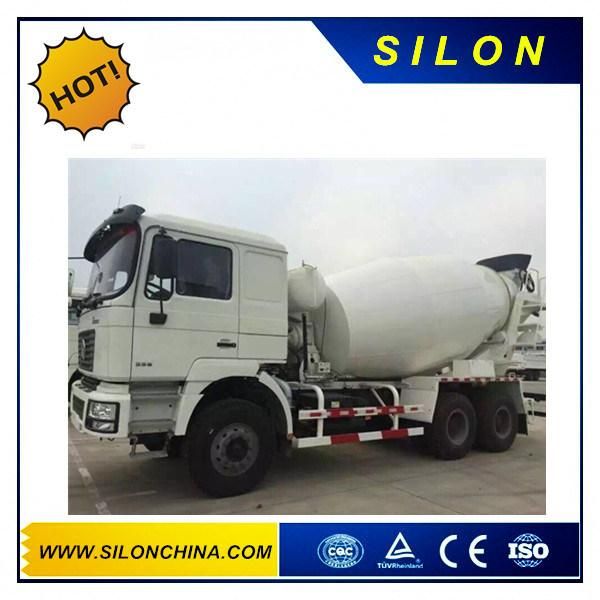

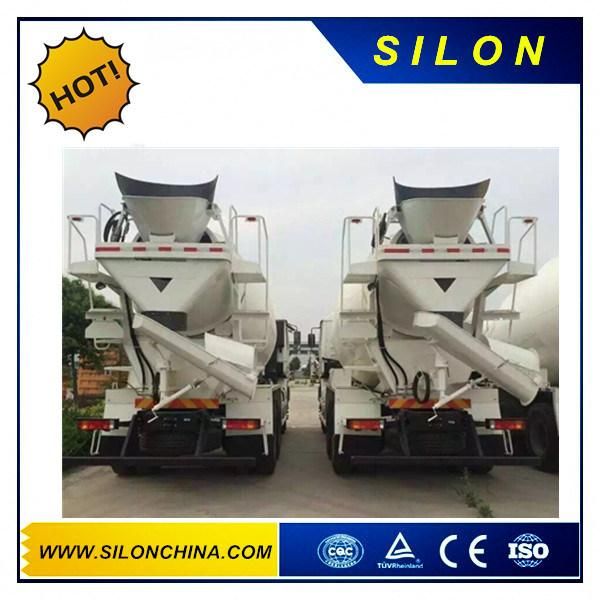

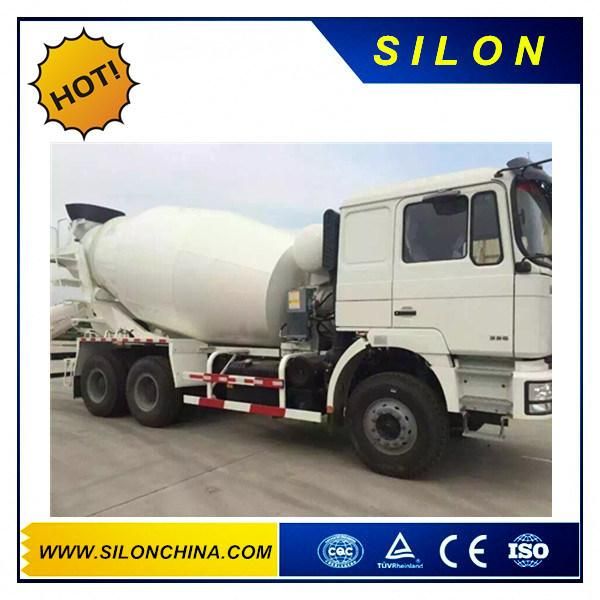

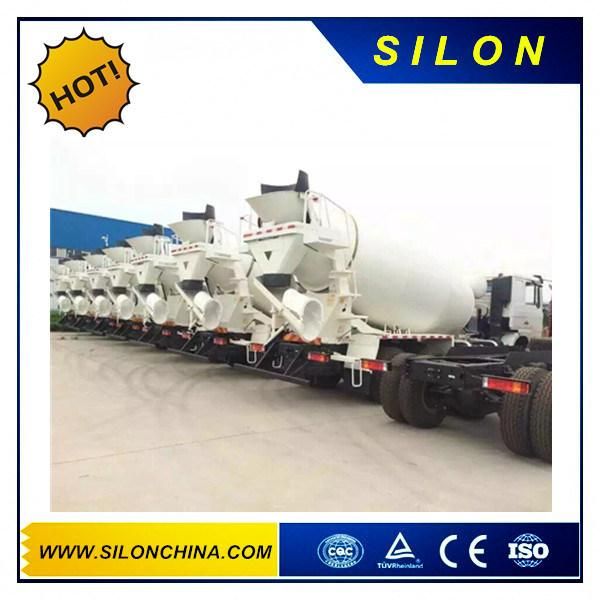

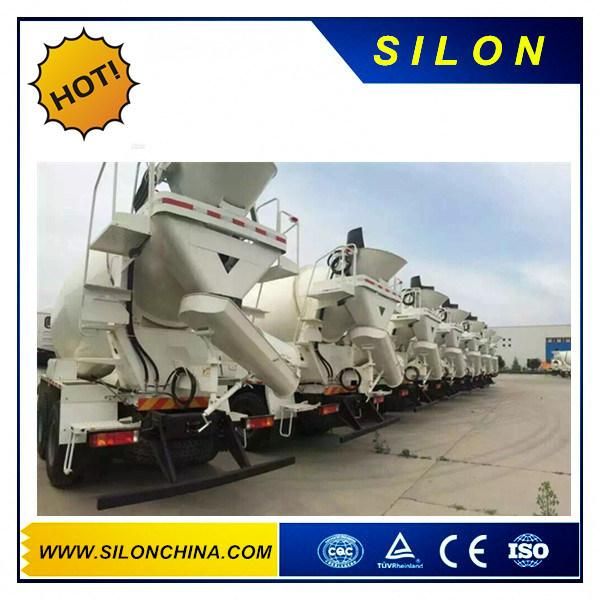

Detailes Photo of the Concrete Mixer Truck ( G06ZZ)
