• Model NO.：Truck Mounted LED Billboard
• Application：Outdoor Activity
• Displacement：3.5L
• Intergrant：Power Supply System
• Passenger Number：3
• Fuel Type：Diesel Oil
• LED Tube Core Type：IV
• Self-powered：Without Self-powered
• LED Screen Type：PH10
• Power Supply Mode：Own Generator-powered
• Screen Dimension：5900*2025*2995
• Display Function：Video
• Steering：LHD ,Rhd
• Transport Package：Container
• Specification：3840*1760mm ( 6.8m2)
• Trademark：DRAU
• Origin：Cn
• HS Code：8705
• Production Capacity：3000
• Package size per unit product：800.00cm * 250.00cm * 340.00cm
• Gross weight per unit product：6800.000kg

Overview ItemsDescriptionsSpecifications and TypesGeneralTruck NameLED Advertising TruckDrive Type4*2Gross Vehicle Weight(kg)7130Curb Weight (kg)3010Overall Dimensions L*W*H(mm)7450×2380×3350EngineEngine Brand4KH1-TCG40/ISU.ZU brandFuel TypeDieselPower88kw/120HPEmission StandardEuro  5-6Displacement(ml)2999Engine Type4 cylinders in line,water cooling, super charged ,inter-cooling,diesel engineChassisChassis BrandISU.ZUTruck CabFlat roof, single cab with hot/cold A/C,with ABSTire No.6Tire Specification7.00-16 nylon tireWheelbase (mm) ;3815Steering WheelLeft hand driveGear BoxMSB ISU.ZU brand 5 speed forward with 1 reverse, manualBrakeOil brakeRadiatorSuitable for tropical climateScreenLeft SideP8 full color screen ,4800x2080mmRight SideP8 full color screen ,4800x2080mmRear SideP8 full color screen ,1600x1600mmRemarks

1.Details of the LED cabinets : PIC inIndicate as below
Equipped with OUMA 25kw super silent generator

ACER computer console
Malata 2x60W waterproof column loudspeaker
high power amplifier
With A/C in LED cabinet
Interior ligh
Front cabinet with cooling fan and shutters
 Pattern aluminum plate roof and high quality wood floor
2 ventilation outlet on roof
220V external power outlet, plug, power cord
Retractable step on rear door

2.One side of led screen can be lifted by hydraulic. Lifting height : 1.5m

Many chassis can be choose: Foton,ISU.ZU, HOWO, FAW, DFAC, JMC, JAC ect.Product.

Product price should be configured with different vehicles and different coat materials, we recommend that you contact us.



 LED Billboard Truck Box Boby Customizing


 led screen left and right size

3840*1760mm ( 6.8m²)

rear door led screen size

1280*1440mm (1.84 m²)

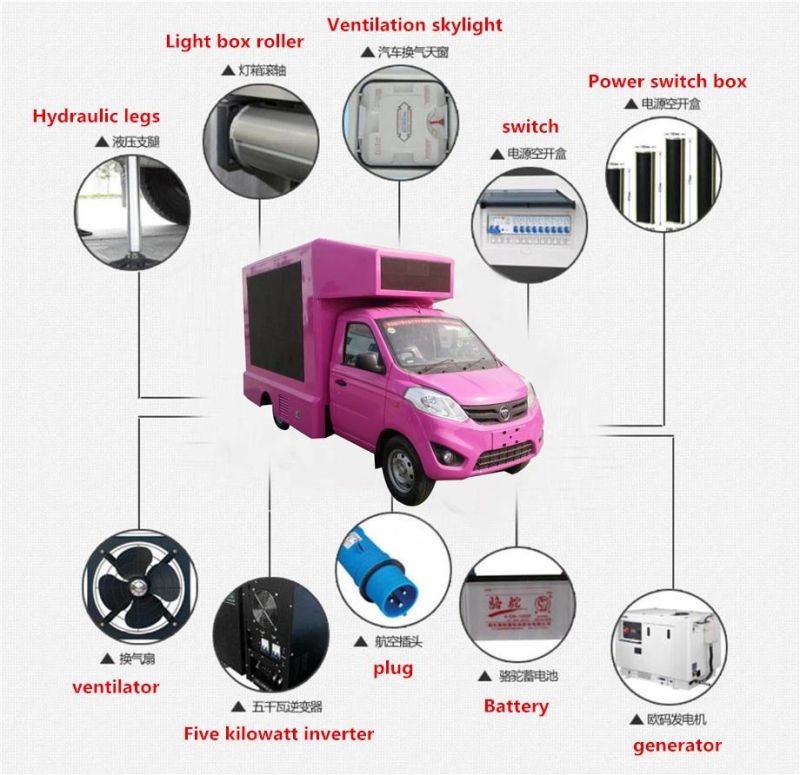

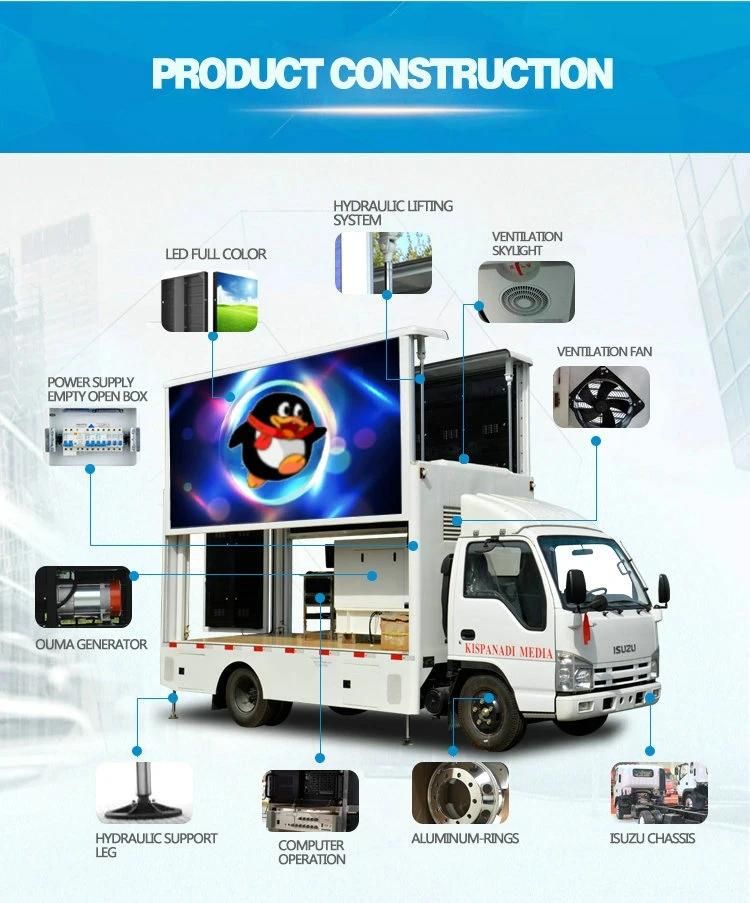

 Equipment configuration

1> All 3-sides(right, left, rear side) waterproof P5/P6 full color led screen

2> 5cm composite steel box, wooden floor;

3> Inside and outside the electric distribution box;

4> Loop ventilation cooling system;

5> Ouma silent diesel generator;

6>1 industrial computer with control system, 4 waterproof speakers, 1 amplifier .

Color & painting

According to customer's requirements

Price

P5 full color screen x all 3 sides,  $22000-$27000FOB



P6 full color screen x all 3 sides,  $20000-$25000FOB

Options

(1) Lifting system 1.5m height for side led screen,  add$900/one side
(2).4 hydraulic legs,add $500
(3) 9.6m2 hydraulic stage, add $700
(4) External stitching stage, add $50/m2

other

P8:2304*1536=3.54

P6:2496*1536=3.83

Rear Screen 960*1280=1.64

5000*1960*2590

2900

4650*1700*2400

2765

P8:2304*1408=3.14

P6:2304*1345=3.1

1. Mobile LED advertising trucks is also named as mobile LED screen trucks, LED advertising vehicles, LED mobile advertising vehicles, LED media cars, LED propaganda vehicles, LED stage trucks, digital led screen display trucks, etc.



2. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.



3. One side waterproof P6/P8/P10 full color led screen. The other side advertising light box with subtitle. The rear side monochrome screen to display text.



4. Optional1-side, 2-sides or 3 sides full-color led screens. Brightness can be adjusted automatically according to different surroundings.




Certifications

Packaging & Shipping

FAQ

 1.Are you trading company or manufacturer ?

         We are Group Corporation manufacturer ,have Group Factories Contractor.

  2 .Can I have samples of this type of product to test the quality?
      Yes, you can buy any sample to test the quality,our MOQ is 1 unit.

  3. What's the delivery time and can you lower the price?
    It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
 4.Can you supply some quick-wear parts? Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.
 6.Do you have any used products for sale? We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need.
7.What's the payment terms? TT 30% as deposit, balance before shipment by TT or at sight.

8. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
9.How can you ensure the quality of the products?

Don't worry,dear.We have joined the trade assurance,if the products have quality problems when you received them,the payments can be refund to you.
