• Model NO.：CLW
• Fuel Type：Diesel Oil
• LED Tube Core Type：IV
• Self-powered：Self-powered
• LED Screen Type：PH10
• Power Supply Mode：Own Generator-powered
• Truck：LED Advertising Truck
• Air Conditioner：A,C or Without A,C
• LED Screen：P6, P8, P10, P12
• Electric System：24V
• Driving Type：4X2, 4X4, 6X2, 6X4, 8X4
• Axles Number：2
• Chassis Brand：Dongfeng, Foton, HOWO, FAW, JAC etc
• Steering Wheel：LHD or Rhd
• Operation System：Electrically Hydraulic Control
• Transport Package：Naked, RO-RO, Bulk. Container
• Specification：CCC and ISO9001
• Trademark：CLW
• Origin：Hubei Suizhou
• Production Capacity：1500units,Month

Main specification

Total weight(Kg)

4495

Drive type

4 x 2

Curb weight(Kg)

4300

Overall dimension (mm)

5995×2150×3050

Wheelbase(mm)

3360

Cab seats (man)

3

Approach / departure angle(°)

20/13

Front/rear hang(mm)

1160/1475

Axle load

1790/2705

Max speed(Km/h)

90

Chassis specification

Brand name

HOWO

Number of axes

2

Tire specification

7.00-16

Tires No.

6

Leaf spring

3/5+3,8/9+6,11/9+7,11/11+7

Front track(mm)

1605

Type of fuel

Diesel

Rear track(mm)

1520

Emission standard

Euro V

Transmission

5 Forward Gear

Driving cab

Luxury dashboard and seat with air conditioning.

Engine model

Engine Manufacturer

Displacement(ml)

Power(KW)

YN27CRE1

Kunming Yunnei Engine Co.,Ltd

2672

70

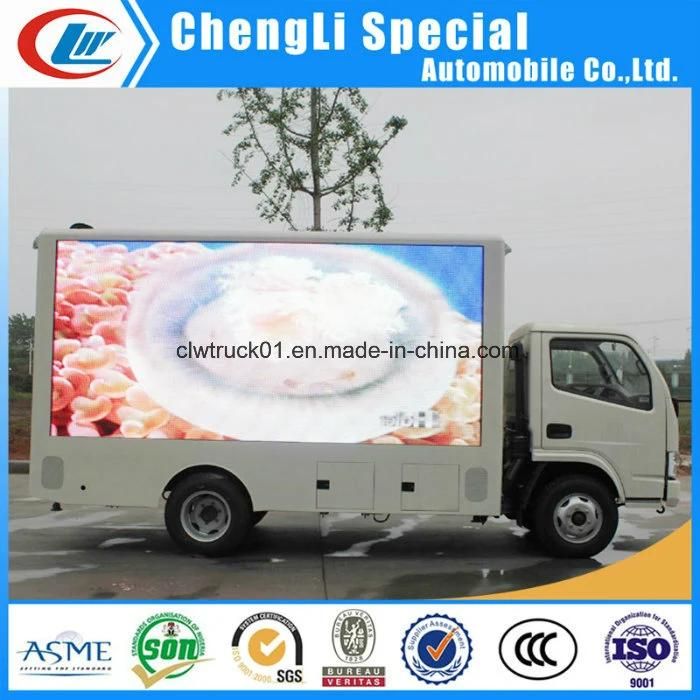

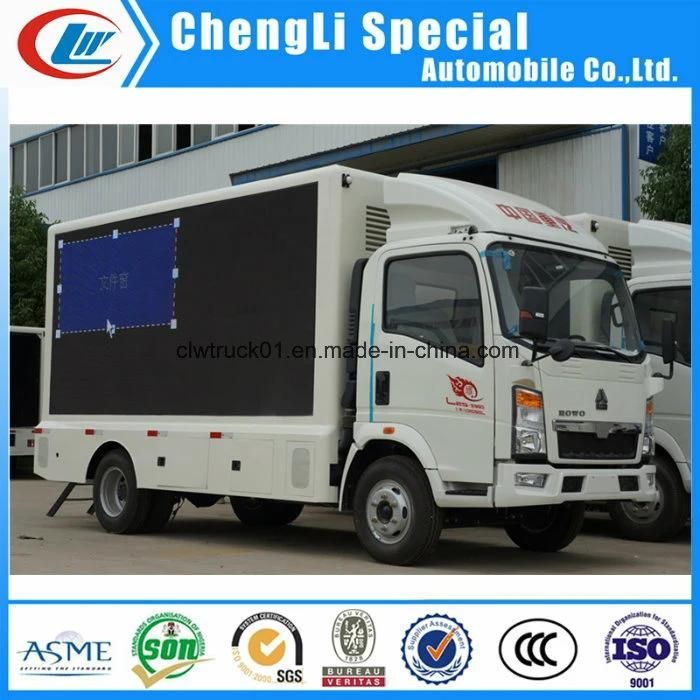

Mobile LED truck specification

LED screen size

(length x high)(mm)

3840 x 1728

Led side screen area

6.65

Screen Lift Height(m)

1.5

LED screen's pixel pitch(mm)

6

Roller Screen Size(mm)

3840 x 1728

Rear monochrome screen size (length x high)(mm)

1280×1440

1. Our factory is a professional truck & tanker manufacturer with more than 12 years experience in China.

2. There are totally 8000 workers, include 100 senior welder and 15 senior engineers.

3. More than 300 type of products supply.

4. Our sales volume of 2015 reach US$300 million.

1. One year quality warranty for key parts such as axles, engine, transmission;

2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.

Packing and Shipping


Other Products

Our main products:

1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Customised Truck & Trailer Solutions to Meet Your Requirements
