3-5 tons Rescue truck/ Car Towing Truck/ Flatbed Wrecker Truck
QINGDAO HETANCH TRUCK CO., LTD.- Warranty：One Year
- Certification：ISO9000, CCC
Base Info
- Model NO.：CA1073P40KEA80
- Emission Standard：Euro 3
- Transmission Type：Manual
- Towing Tonnage：8T
- Fuel：Diesel
- Bearing Capacity：Light
- Brand：FAW
- Condition：New
- Type：Wrecker Truck
- Payload：5t rescue truck
- Chassis Brand：FAW wrecker
- Driving：4X2, 4X4 car wrecker
- Engine：120HP, 140HP rollback truck
- Steering：Rhd, LHD wrecker
- Transport Package：in Nude
- Specification：ISO
- Trademark：FAW
- Origin：China
- HS Code：8705909990
- Production Capacity：10PCS,Month
- Package size per unit product：658.00cm * 230.00cm * 260.00cm
- Gross weight per unit product：3680.000kg
Description
TypeWrecker Truck Model CA5066TQZP02 Expansion distance of platform(mm) 3000 Length(mm) 7705 Min. angle from ground( ° ) 8 Width(mm) 2300 Rated pulling force of winch(KN) 40 Height(mm) 2260/2480 Drag arm Length(mm) 1650 Rated lifting weight(kg) 1500 Expansion distance of drag arm 1200 Carry Loading mass(kg) 3000 Approach/departure angle (°) 20/10 Curb weight(kg) 4660 Front overhang(mm) 1115
Engine
Model CA498E3-12/ ISM3.8 3141 CUMMINS Rear overhang(mm) 2470 Power(hp) 120/ 140 Wheelbase(mm) 3560/3860 Cylinder number 4 Trace(F/R) (mm) Rated speed(rpm) 2800 Axle number 2 Displacement(ml) 3856 Max. Speed(km/h) 95 Torque(N.m) 300 Tire Model 7.50R16/7.50-16 Tire number 6+1 Warning system Each side and rear with reflecting mark
Other Product show:

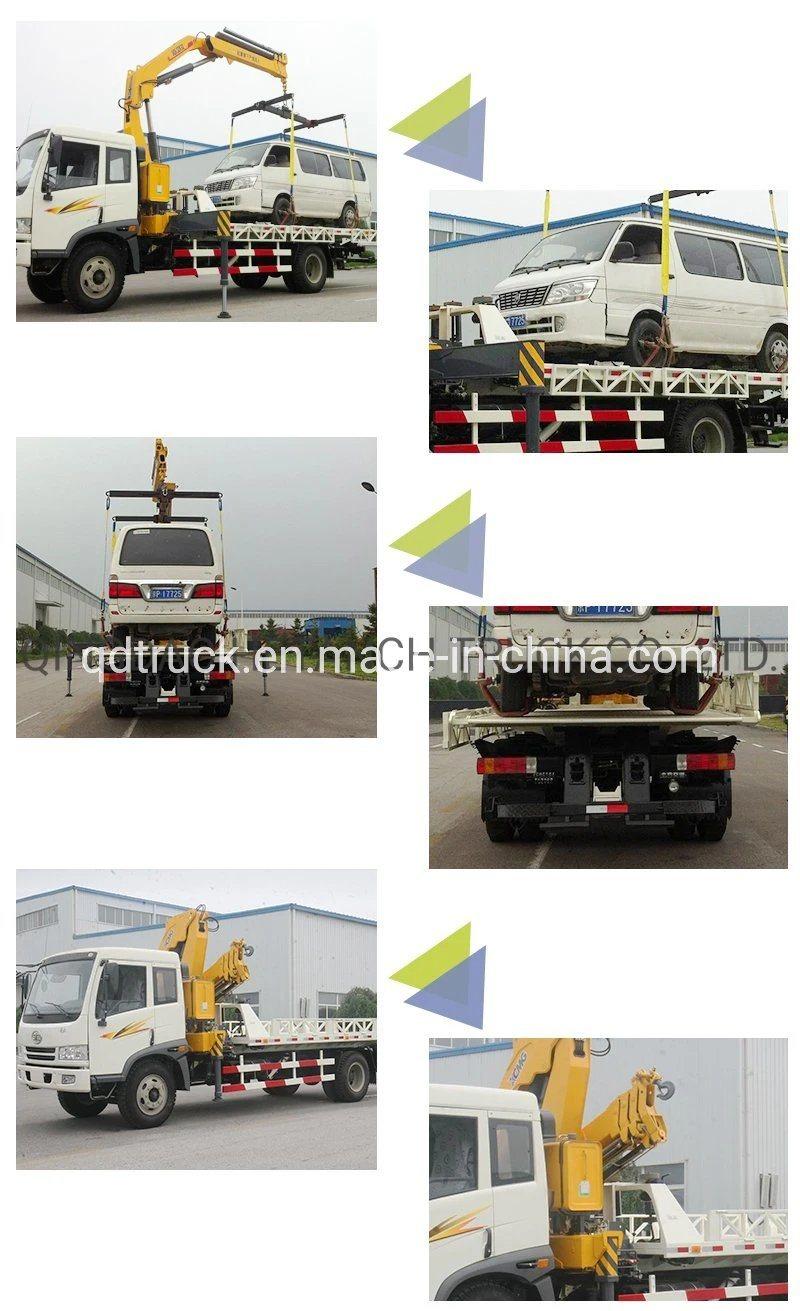

The followed pictures are crane rescue truck. One wrecker could rescue two vehicles at same time. One car could be carried on the flatbed, another vehicle could be towed by the rear fork boom.

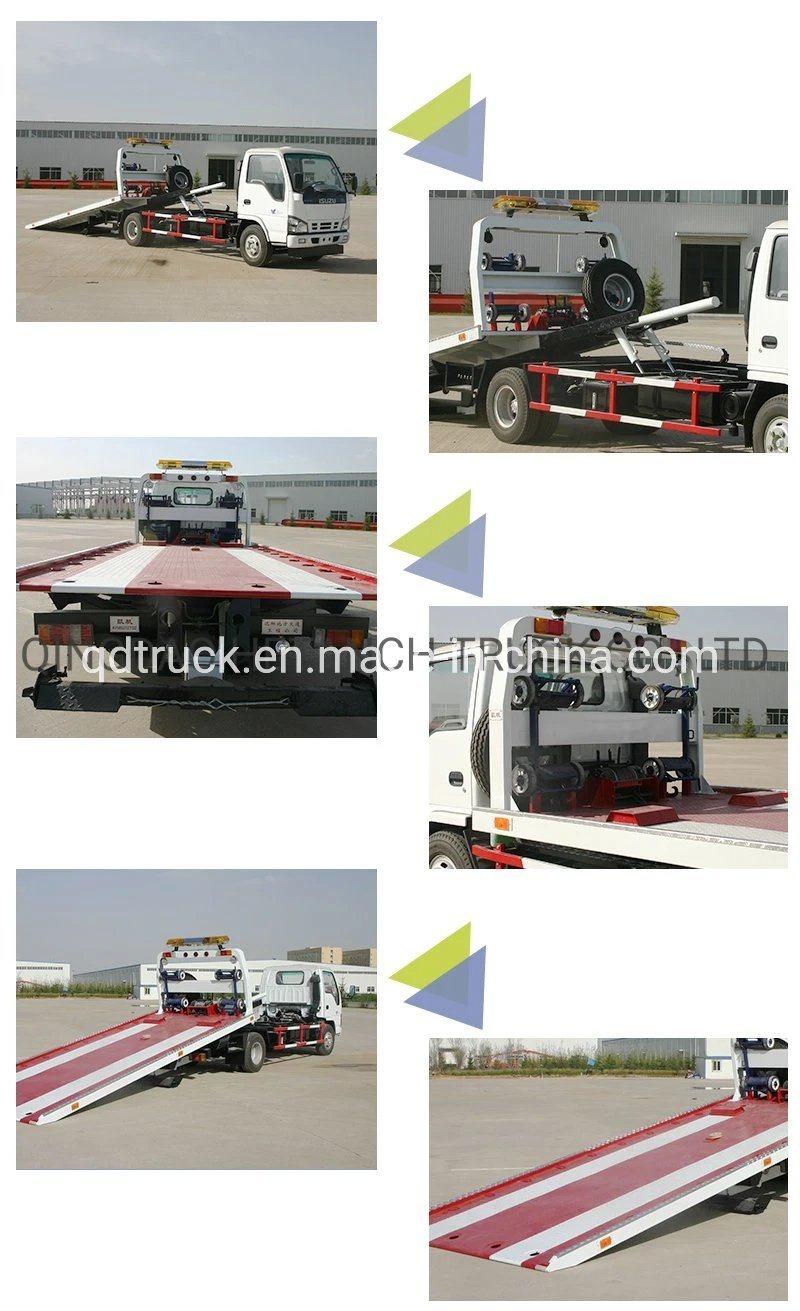

The followed pictures are flatbed slide style rescue truck. Also could rescue two cars, SUV, van at same time.
We also could produce heavy duty wrecker with 6x4 and 8x4 chassis.

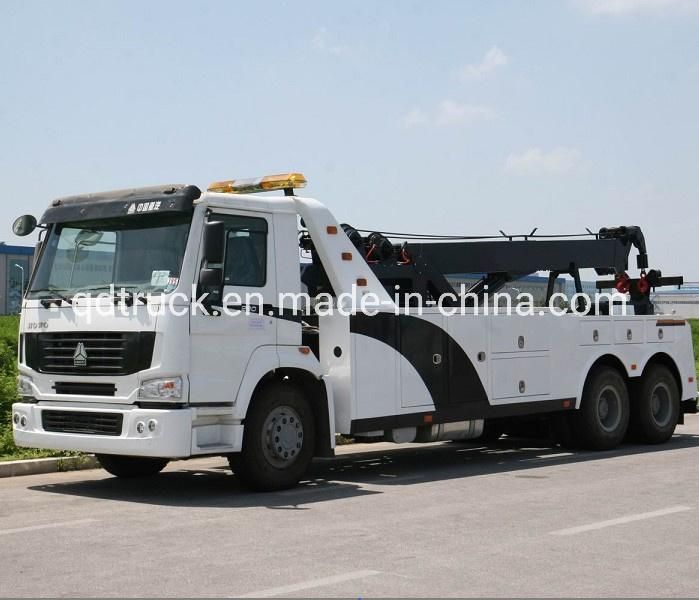

The followed one is 6x4 HOWO truck chassis 20 tons rescue truck. It could used for rescuing trucks and buses.

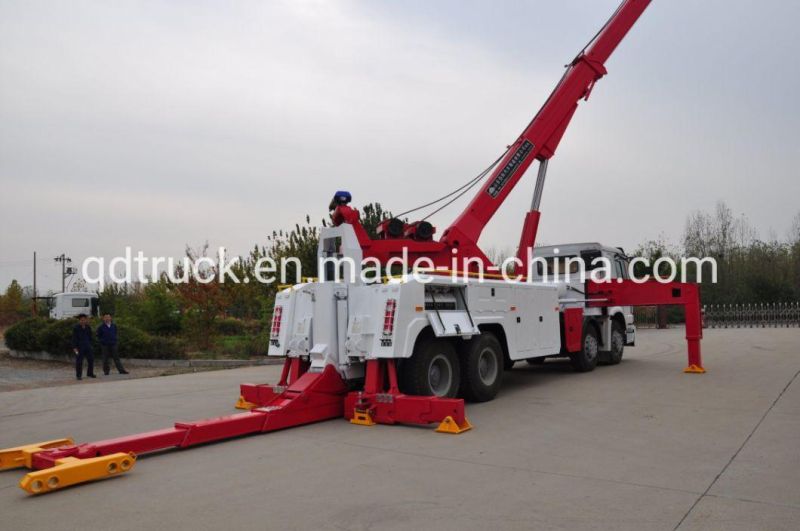

The followed one is 8x4 HOWO truck chassis 50 tons wrecker. It's used for rescuing heavy duty trucks and bused. 50 tons winch, 20~30 tons crane, strengthened and lengthened fork boom, special for rescuing urban buses.
Customer visit
