• Model NO.：CLW
• Drive Wheel：4x2
• Hoesrpower：95HP-380HP
• Condition：New
• Truck：Sew Cleaning Truck
• Drive Type：4X2,6X4,8X4
• Steering Wheel：LHD or Rhd
• Axles Number：2
• Capacity：2cbm-18cbm
• Tyre Quantity：6
• Tank Material：Q235 Carton Steel
• Vacuum Pump：Italian Jurop Pump, Battioni Pagani Pump (Bp)
• Warranty：1 Year
• Cabin：1 Sleeper or Without Sleeper
• Transport Package：Roll-Roll, Bulk Cargo with Waxing
• Specification：Carton steel
• Trademark：CLW
• Origin：Hubei, China
• Production Capacity：800sets,Month

CHASSIS
Cabin
LHD,2 passengers with air-conditioner
Overall Dimension5995×1990×2650
Gross Vehicle Weight4495kg
Curb Weight
2865kg
Loading Weight
1500Kg
Wheel Base
3300mm
Approach/Departure Angle
20/10 degree
EngineCY4BK551
Engine horsepower
102HP
Displacement
3,707 L(Diesel)
Max Driving Speed
99km/h
Fuel Tank
120L
Tire7.00-16 8PR,7.00R16 8PR
TANK BODY
Water Tank
Capacity
1.5CBM
Material
Q235 high tension steel
Thickness
4mm
Vacuum Tank
Capacity
1.8CBM
Material
Q235 high tension steel
Thickness
6mm
PUMP
Vacuum Suction Pump
Model
SK-6
Vertical Suction Range
9~10M
Flow Rate
1.5m³/min
Rubber tube
7M
Adequate Vacuum, Strong suction, Stable Working, Easy Operation and Maintenance
Plunger High Pressure Pump
Model
HTT(Italian brand)
Flow Rate
125L/min
Pressure
16Mbar
Laminated steel tube
60M
Cleaning Applicator
10nos with different pushing forces for pipelines cleaning and dredging

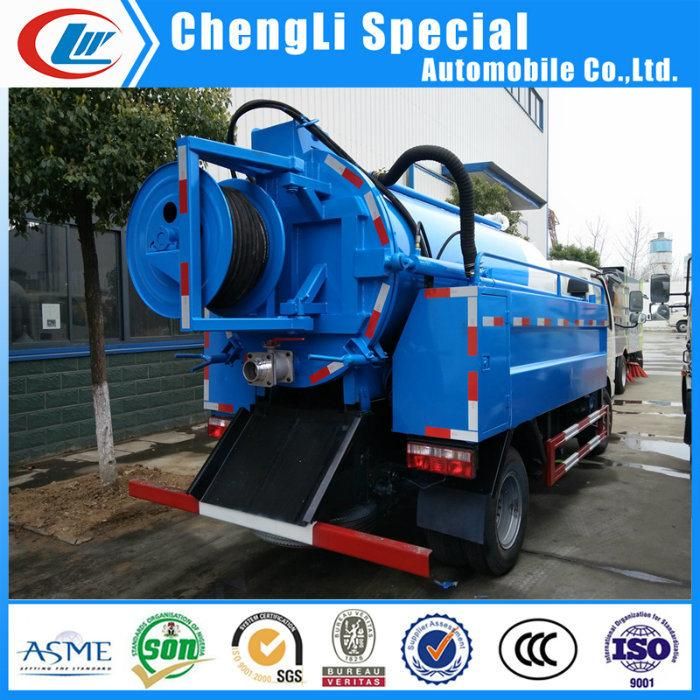

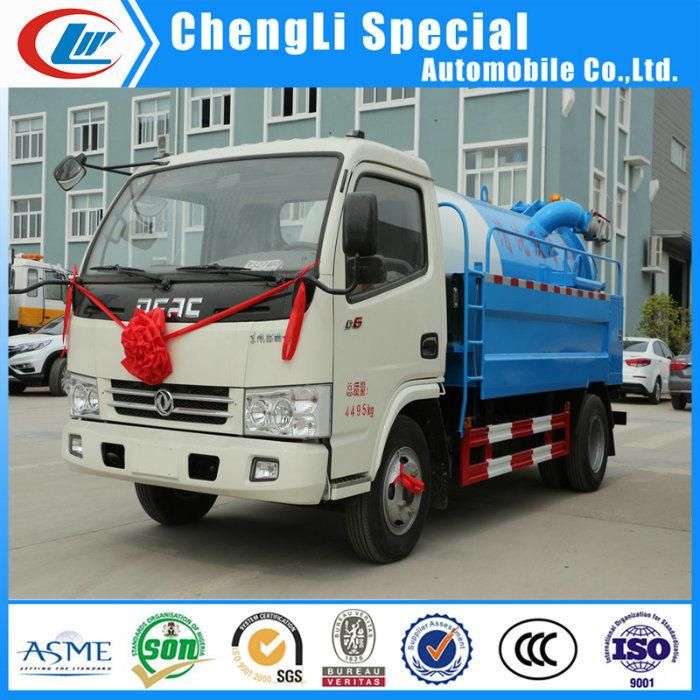

Product photo for reference:

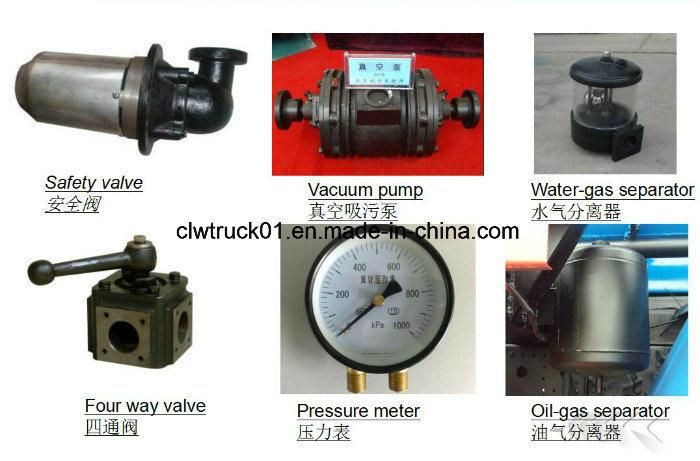

Spare parts



Equipment
Equipped with vacuum pump
rating rotate speed 1400r/m,
min rotate speed>800r/m,
max suction lift>6m, vacuum>500mmHg,
Equipped with power take off, transmission shaft,
fecal tank, pipe network, fecal pipe for observing & cleanout equipment
Time for full suction<5min

Company Information

ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province, China.

1. Our factory is a professional truck & tanker manufacturer with more than 12 years experience in China.

2. There are totally 8000 workers, include 100 senior welder and 15 senior engineers.

3. More than 300 type of products supply.

4. Our sales volume of 2015 reach US$300 million.

Our Services

1. One year quality warranty for key parts such as axles, engine, transmission;

2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
