• Model NO.：SD1500M
• Transmission Type：Manual
• Emission Standard：Euro 2
• Displacement：1.8
• Payload：6200kg
• Fuel：Diesel
• Drive Mode：4X4 Self-Loading Mobile Concrete Mixer
• Maximum Horsepower：99HP
• Condition：New
• Applicable Industries：Construction Works , Energy & Mining
• Core Components：Engine, Gearbox, Motor, Gear, Pump
• Showroom Location：Nigeira ;Peru ;South Africa
• After Warranty Service：Video Technical Support, Free Spare Parts, Enginee
• Transmission：4 Wheel Drive
• Product Name：Self Loading Mobile Concrete Mixer Truck
• Video Outgoing-Inspection：Provided
• Unique Selling Point：High Operating Efficiency
• Machinery Test Report：Provided
• Marketing Type：New 2020
• Transport Package：No Nude
• Specification：5100*2350*2850
• Trademark：TOPMAC
• Origin：Zhenjiang Jiangsu China
• HS Code：84743100
• Production Capacity：50 Unit,Month
• Package size per unit product：510.00cm * 235.00cm * 285.00cm
• Gross weight per unit product：6200.000kg

Basic Info.

Model NO. SD1500M Transmission Type Manual Emission Standard Euro 2 Displacement 1.8 Payload 6200kg Fuel Diesel Drive Mode 4X4 Self-Loading Mobile Concrete Mixer Maximum Horsepower 99HP Condition New Applicable Industries Construction Works , Energy & Mining Core Components Engine, Gearbox, Motor, Gear, Pump Showroom Location Nigeira ;Peru ;South Africa After Warranty Service Video Technical Support, Free Spare Parts, Enginee Transmission 4 Wheel Drive Product Name Self Loading Mobile Concrete Mixer Truck Video Outgoing-Inspection Provided Unique Selling Point High Operating Efficiency Machinery Test Report Provided Marketing Type New 2020 Transport Package No Nude Specification 5100*2350*2850 Trademark TOPMAC Origin Zhenjiang Jiangsu China HS Code 84743100 Production Capacity 50 Unit/Month

Packaging & Delivery

Package size per unit product 510.00cm * 235.00cm * 285.00cm Gross weight per unit product 6200.000kg

Product Description

Product Application  for  SD1500M  self loading concrete mixer

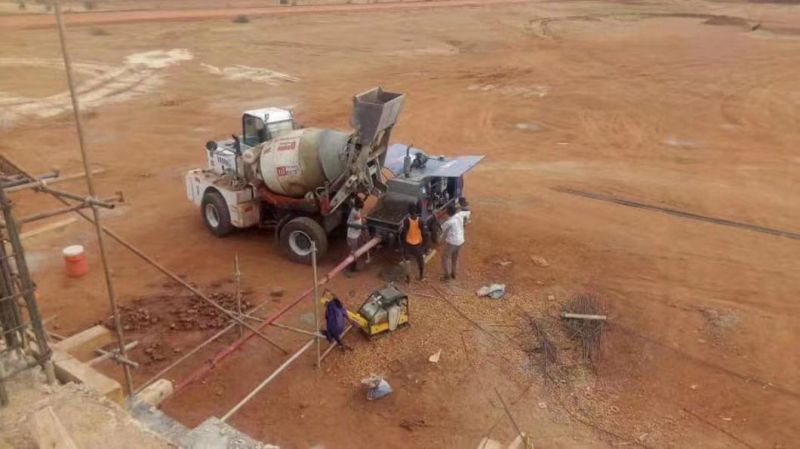

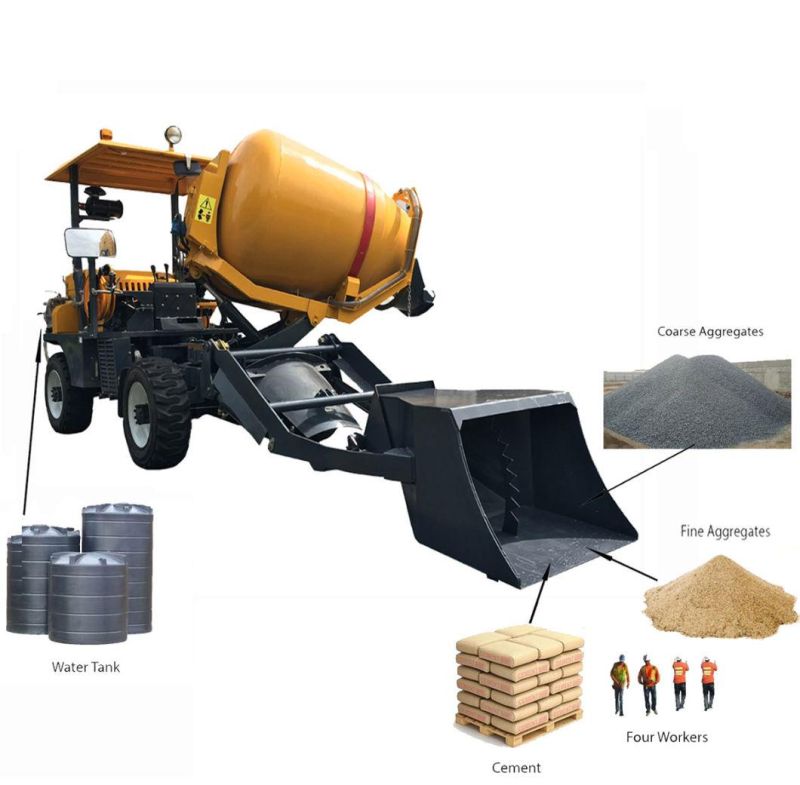

SD1500M Self Loading Concrete Mixer is  a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful 99hp Yuchai 4100 diesel engine Diesel engine and 4 wheel  drive ,  the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The mixing drum and cabin  could slew together through 180° for high discharge over

      The the Geometric Volume of Mixing Drum is 2.4m³. The concrete output is 1.5m3  per Batch, 8-11m3 per Hour.  The  specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance and reliability. Thanks to these characteristics, it is the ideal solution for rental purposes and for maintenance operations.
Technical Parsmeters

Model	SD1000M	SD1500M	SD2000M
Effective capacity per batch	1m3	1.5m3	2m5
Output Per hour	5~7m3	8-11m3	10-14m3
Drive type	Articular frame,4X4 driving	Articular frame,4X4 driving	Articular frame,4X4 driving
Max speed	25 km/h	25~30 km/h	25~30 km/h
Grade ability	36%	30%	30%
Mini turning radius	≤5.5 m	≤7 m	≤7 m
Mini ground clearance	≥248mm	≥248mm	≥248mm
Tire front wheel/ Rear wheel	10-16.5/10-16.5	20.5-16/ 20.5-16	16/70-R22.5/ 16/70-R22.5
Clutch system	Constant-contact, single-disc ,dry clutch	All Hydraulic System	All Hydraulic System
Gearbox	Four forward +four rear	2 High and 2 Low +2 Rear	2 High and 2 Low +2 Rear
Tipping system	Hydraulic tipping and 180 angle discharge	Hydraulic tipping and 180 angle discharge	Hydraulic tipping and 180 angle discharge
Steering	Hydraulic steering	Hydraulic steering	Hydraulic steering
Diesel engine	40hp Xinchai NC485 diesel engine	99hp Yuchai 4100 diesel engine	106hp Yuchai 4102 diesel engine
Weight	2450kg	6200kg	7500kg
Bucket Capacity	0.25m3	0.4m3	0.5m3
Overall size	3620×1800×2500mm	5100×2350×2850mm	5300×2350×2950mm

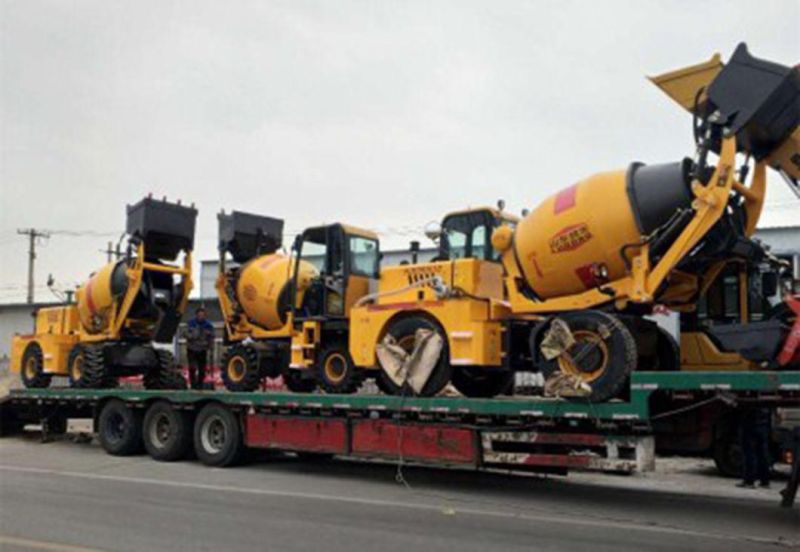

Load Container Plan	1×20GP/1 Unit or 1×40HQ /3 Unit	1×40HQ /2Unit	1×40HQ /1 Unit

           Product Application  for  SD1000M  self loading concrete mixer
SD1000M Self Loading Concrete Mixer is  a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful Xinchai ,30 kW Diesel engine and 4 wheel  drive ,  the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The mixing drum and cabin  could slew together through 180° for high discharge over

      The the Geometric Volume of Mixing Drum is 1m³. The concrete output is 0.75m3  per Batch, 7-8m3 per Hour.  The  specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance and reliability. Thanks to these characteristics, it is the ideal solution for rental purposes and for maintenance operations.

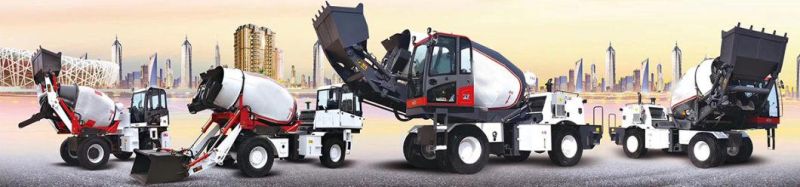

Mobile Self-Loading Dumper Mixer Model SD1000M/SD1500M/SD2000M
Characters:
1. It is designed for hilly and narrow site, where big vehicle not accessible,
2. It save cost of labors, and also can give a good mixing concrete as batch plant,
3. The simple structure is easy to operate and maintenance, also cost less too.
Technical Parsmeters

Model	SD1000M	SD1500M	SD2000M
Effective capacity per batch	1m3	1.5m3	2m5
Output Per hour	5~7m3	8-11m3	10-14m3
Drive type	Articular frame,4X4 driving	Articular frame,4X4 driving	Articular frame,4X4 driving
Max speed	25 km/h	25~30 km/h	25~30 km/h
Grade ability	36%	30%	30%
Mini turning radius	≤5.5 m	≤7 m	≤7 m
Mini ground clearance	≥248mm	≥248mm	≥248mm
Tire front wheel/ Rear wheel	10-16.5/10-16.5	20.5-16/ 20.5-16	16/70-R22.5/ 16/70-R22.5
Clutch system	Constant-contact, single-disc ,dry clutch	All Hydraulic System	All Hydraulic System
Gearbox	Four forward +four rear	2 High and 2 Low +2 Rear	2 High and 2 Low +2 Rear
Tipping system	Hydraulic tipping and 180 angle discharge	Hydraulic tipping and 180 angle discharge	Hydraulic tipping and 180 angle discharge
Steering	Hydraulic steering	Hydraulic steering	Hydraulic steering
Diesel engine	40hp Xinchai NC485 diesel engine	99hp Yuchai 4100 diesel engine	106hp Yuchai 4102 diesel engine
Weight	2450kg	6200kg	7500kg
Bucket Capacity	0.25m3	0.4m3	0.5m3
Overall size	3620×1800×2500mm	5100×2350×2850mm	5300×2350×2950mm
Load Container Plan	1×20GP/1 Unit or 1×40HQ /3 Unit	1×40HQ /2Unit	1×40HQ /1 Unit
