• Model NO.：CSC10
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Sinotruk Homan
• Models：Medium
• Usage：Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type, Eat Hutch Type
• Condition：New
• Drive Type：4X2, 6 Wheels, 6 Wheeler
• Drive Model：Right Hand Drive, or Left Hand Drive. Rhd, or LHD
• Engine Brand：Yc6j220-33, Yuchai Brand
• Engine HP：220HP
• Gear Box：DC6j65tc, 6 Forwards &1 Reverse
• Garbage Box：10cbm, 10m3, 12cbm, 12m3, 15cbm, 15m3.
• Loading Capacity：10 Tons, 10ton, 12 Tons, 12ton, 15 Tons, 15tons
• Hydraulic System：Two Hydraulic Cylinders with Lifting Arm and Landi

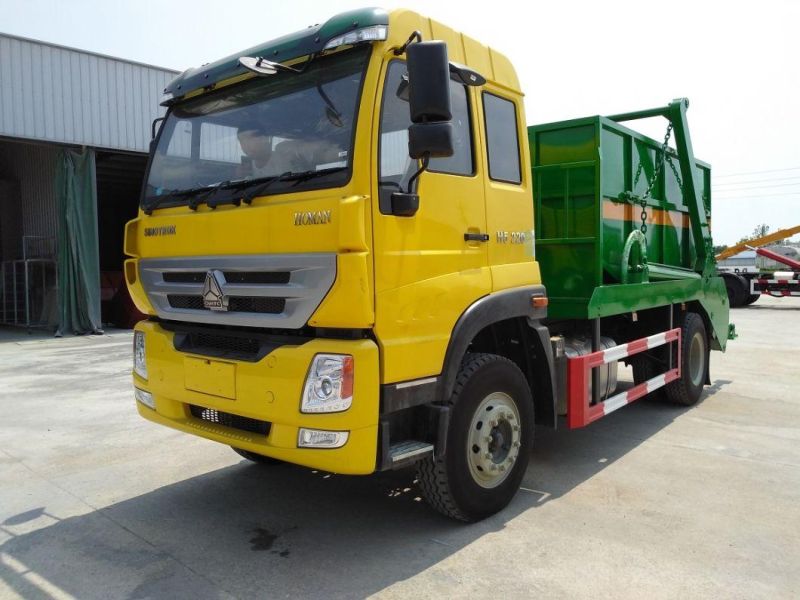

• Product Name：Sinotruk Homan 4X2 Refuse Collector Garbage Truck
• Application：Waste Collection, Refuse Collection
• Transport Package：Naked or Waxed Before Shipment.
• Specification：10cbm, 10M3, 10000Liters
• Trademark：CHUSHENG
• Origin：Suizhou Hubei
• HS Code：8701909000
• Production Capacity：10000 Units Per Year

CabinDriving type 4x2H5 Cabin with two seats, with A/C. Right Hand Driven. 70°hydraulically tillable to the front as attached photo for ref.Vehicle Main DimensionsOverall dimensions (L x W x H)mm8000x2500x3500Wheel base (mm)4200Wheel track (front/rear) (mm)1980/1860Approach/Departure angle(°)24/15Weight in KGSTare Weight8000Loading Capacity10000Front axles loading capacity1×6000Rear axles loading capacity1x12000Max. driving speed(km/h)90EngineBrandYUCHAIModelYC6J220-33Type4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)220 HPEmission standardEuro -3GearboxDC6J65TC, 6 forwards &1 reverseClutchReinforced diaphragm clutch, diameter 430mmSteering GearZF steering, hydraulic steering with power assistanceFuel tank (L)300 LTire10.00R20 tires with one spare, totally 7 pcs.Swing arm system with cargo box

• Garbage cargo box :10CBM , Carbon steel material , underground type or aboveground type can be optional.
• PTO motivated hydraulic system, two hydraulic cylinders with lifting arm and two hydraulic cylinders with landing leg
• Swing arm maximum pivot angle 145 ; hoisting time 30s ; Unloading time 50s.

 More pictures of HOMAN Swept Body Refuse Collection Swing Arm Garbage Truck , Skip Loader Garbage Truck:





1. The whole truck tank is sealed and the waste water come from the compression process will flow into the slop tank. At this point, our compactor trucks can solve the problem of secondary pollution when doing garbage transportation.

2. Our garbage compactor truck is made up of sealed garbage tank, hydraulic system and control system.

3. We adopt imported component to build important parts in our truck which have some advantages, such as high pressure, well-sealed, easy operation and safe.

4. You can choose the suitable dumping gear when you are buying the truck.

5. High automization: computer control system includes half and whole automation type, all load and unload work can be finished by the driver alone, thus can reduce working intensity and improve working condition.

6. High reduction ratio and heavy load make our truck can carry twice garbage as heavy as other same-weight-level trucks which have no compress function.

7. Energy saving: good energy saving when the equipment are working, throttle valve is controlled by computer.

8. Dumping gear: you can choose garbage can or refuse hopper to be fixed into dumping gear.

9. Double insurance system: our truck have automatic and manual work mode which can safeguard and raise the usage of trucks.
