China Products/Suppliers. P6 LED Video Wall HOWO Mobile Digital LED Billboard Truck
Hubei Chusheng Vehicle Imp. & Exp. Co., Ltd.- Type:LED Advertising Truck
- Application:Outdoor Activity
- Displacement:3.5L
- Intergrant:Operating System
- Passenger Number:2
- Fuel Type:Diesel Oil
Base Info
- Model NO.:Chusheng
- LED Tube Core Type:IV
- Self-powered:Self-powered
- LED Screen Type:P6
- Power Supply Mode:Own Generator-powered
- Item Name:HOWO Mobile LED Truck
- Chassis Brand:HOWO, Beiben, Dongfeng, Foton, FAW etc
- Cab:Left Hand Drive, Right Hand Drive
- Driving Type 2:4X2, 6X4, 8X4, 4X4, 6X2
- Axle:2 Axles, 3 Axles, 4 Axles
- Tire:6.00r16 , 6.50r16 , 7.00r16 etc
- Engine:Chaochai, Weichai, Yuchai, Yunnei
- LED Screen Material:P5, P6, P8
- LED Screen Size:as Customer Demand
- LED Screen Color:Full Color, Monochrome Screen
- Transport Package:Waxed Before Shipping
- Specification:5995*2020*2330
- Trademark:Chu Sheng
- Origin:China
- HS Code:8601102000
- Production Capacity:5000 Piece , Month
Description

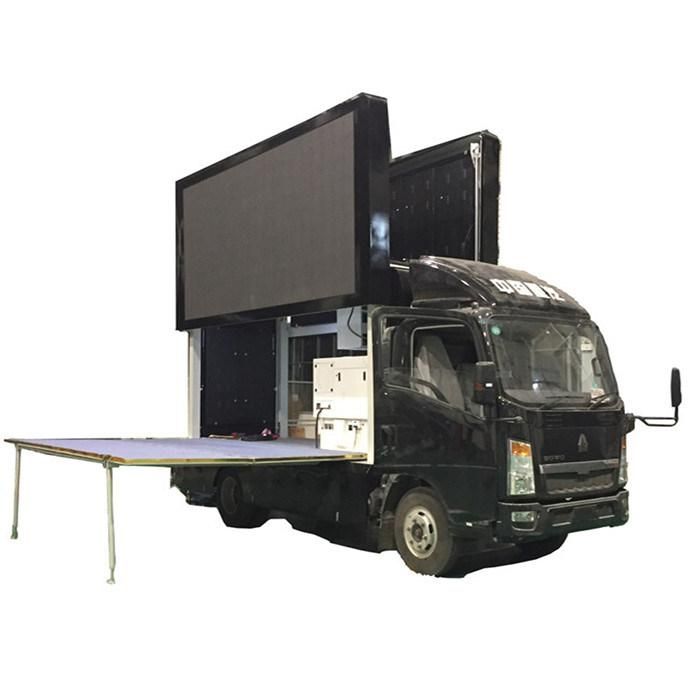

SINOTRUK HOWO RHD 4x2 116hp P6 LED advertising truck with stage
Cabin
Driving type 4x2, right hand drive
HOWO 2080 cab, 2 seats. Air conditioner it's for optional
Vehicle Main Dimensions
Overall dimensions (L x W x H) mm: 6995*2180*2450 mm
Left and right Led screen size(L x W): 3840*1728 mm
Rear led screen size(L x W): 1152*1344 mm
Wheel base: 3800 (mm)
Overhang (front/rear): 1160/2035 (mm)
Approach angle: 20°
Departure angle: 14°
Weight in KGS
Tare Weight:4698 kg
Max. driving speed(km/h)
90
Engine
Brand
Yunnei
Model
YN38PE-1, Euro III
Type
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP)
116HP
Emission
3760 ml
Gearbox
WLY6T46 ,manual type, 6 Forwards gear & 1 reverse gear
Tire
7.50R16 , 6 pieces + one spare
Leaf spring
11/9+7CH
Voltage
24V
Led screen
Size: Left and right Led screen size(L x W): 3840*1728 mm
rear led screen size: 1152*1344 mm
Material: P6
Color: full color
Function: left and right led screen could be lift
Automatic Stage
Size: 5000*3000mm when open fully.
could be open and fold automatically
Other standard configuration
2pcs extra spare left/right led screen, 1pc extra spare rear led screen
Generator set : 1 units, OUMA brand, 18KW
1 unit Computer
1 Laptop
1 video processor
1 set sound amplifier system,Power amplifier,
4pcsWaterproof column loudspeaker,distribution electricity box, hydraulic landing gear

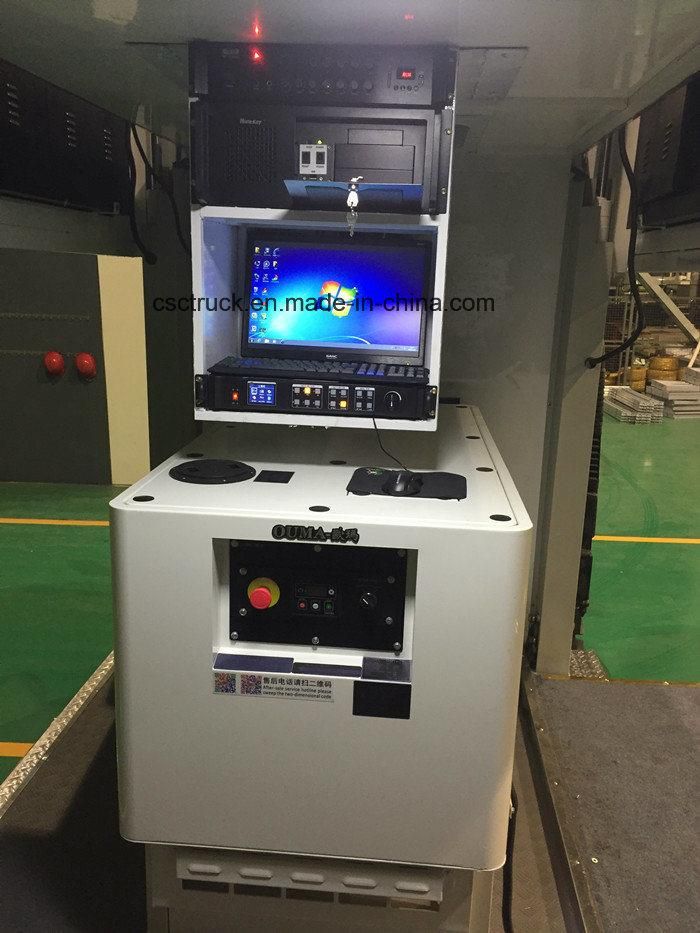

Detailed pictures of led truck:
Packing and shipping:
FAQ about outdoor advertising truck:
1. Can we make any size of led display?YES, but we suggest you take large size because it is better for outdoor advertising
2, How to install led display?
We will provide detailed drawing of installation frame or do Teamviewer to help you install.
3 ,How to ship?
Normally, the display will be shipped by sea because it is much cheaper than by air.
4, Can I buy truck from you?
Yes, but we still suggest you buy at local . Firstly it can save you much more freight cost .
Secondly, the truck from China might be hard to meet your country's emission stardard.
5, Can I play different content on three sided display.
Yes, we will prepare you NOVA software by which you can set up three display windows and then upload different videos on them.
6, why do I need a video processor?
A video processor is a special component that scales and formats the video signal from a media player, satellite receiver, DVD player, computer,or video game console and converts it into a format that can be displayed on an LED screen.
Better quality video processors include hardware and software that enhances image quality and also include multiple inputs so you can switch between several different video sources.
7, Can I do live-streaming or live broadcast ?
Yes , we will prepare a video processor that can realize your thoughts and do the liver show for football gage or concert.
8, What do I need except a truck and LED display screens?
(1). One set of video processor , light sensor.
(2). One set of diesel generator.
(3). One set of computer
(4). Four sets of speakers.
(5). One set of amplifier.
Company information :
Xiagong Chusheng has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Our service:
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
