Outdoor Usage P5/P6/P8 LED Advertising Truck Full Color LED Display Truck 2 Axles Display Screen Truck for Sale

Hubei Chusheng Vehicle Imp. & Exp. Co., Ltd.
  • Type:LED Advertising Truck
  • Application:Outdoor Activity
  • Displacement:3.5L
  • Intergrant:Operating System
  • Passenger Number:2
  • Fuel Type:Diesel Oil

Base Info

  • Model NO.:Chusheng
  • LED Tube Core Type:IV
  • Self-powered:Self-powered
  • LED Screen Type:P6
  • Power Supply Mode:Own Generator-powered
  • Item Name:HOWO LED Advertising Truck
  • Chassis Brand:HOWO, Beiben, Dongfeng, Foton, FAW etc
  • Cab:Left Hand Drive, Right Hand Drive
  • Driving Type 2:4X2, 6X4, 8X4, 4X4, 6X2 LED Advertising Truck
  • Axle:2 Axles, 3 Axles, 4 Axles
  • Tire:6.00r16 , 6.50r16 , 7.00r16 etc
  • Engine:Chaochai, Weichai, Yuchai, Yunnei
  • LED Screen Material:P3, P4, P5, P6, P8
  • LED Screen Size:as Customer Demand
  • LED Screen Color:Full Color, Monochrome Screen
  • Stage:Can Be Folded
  • LED Screen:Can Be Lift or Unlift LED Truck
  • Generator Seet:12kw, 15kw, 18kw etc
  • Ventilating System:Yes, Have The Ventilating System
  • Color and Logo:Can Be Customized
  • Transport Package:Waxed Before Shipping
  • Specification:5995*2020*2330
  • Trademark:Chu Sheng
  • Origin:China
  • HS Code:8701909000
  • Production Capacity:5000 Piece , Month

Description

SINOTRUK HOWO RHD 4x2 116hp P6 LED advertising truck with stage

 Cabin

Driving type 4x2, right hand drive

HOWO 2080 cab, 2 seats. Air conditioner it's for optional





Vehicle Main Dimensions

Overall dimensions (L x W x H) mm: 6995*2180*2450 mm

Left and right Led screen size(L x W): 3840*1728 mm

Rear led screen size(L x W): 1152*1344 mm

Wheel base: 3800 (mm)

Overhang (front/rear): 1160/2035 (mm)

Approach angle: 20°

Departure angle: 14°

Weight in KGS

Tare Weight:4698 kg

Max. driving speed(km/h)

90





Engine

Brand

Yunnei

Model

YN38PE-1, Euro III

Type

4-stroke direct injection ,  4-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

116HP

Emission

3760 ml

Gearbox

WLY6T46 ,manual type, 6 Forwards gear & 1 reverse gear

Tire

7.50R16 , 6 pieces + one spare

Leaf spring

11/9+7CH

Voltage

24V

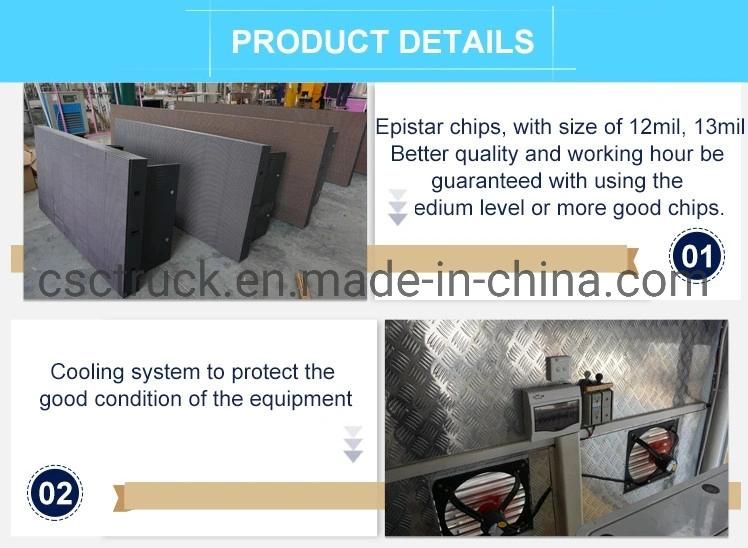

Led screen

Size: Left and right Led screen size(L x W): 3840*1728 mm

 rear led screen size: 1152*1344 mm

Material: P6

Color: full color

Function: left and right led screen could be lift

Automatic Stage

Size: 5000*3000mm when open fully.

could be open and fold automatically

Other standard configuration

2pcs extra spare left/right led screen, 1pc extra spare rear led screen

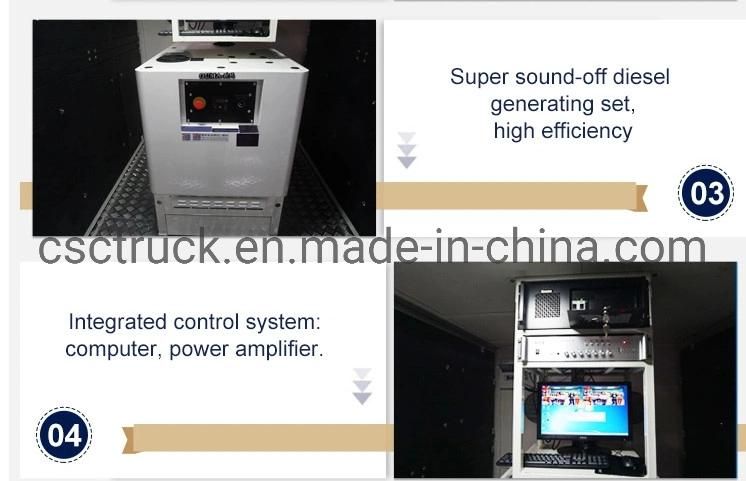

Generator set : 1 units, OUMA brand, 18KW

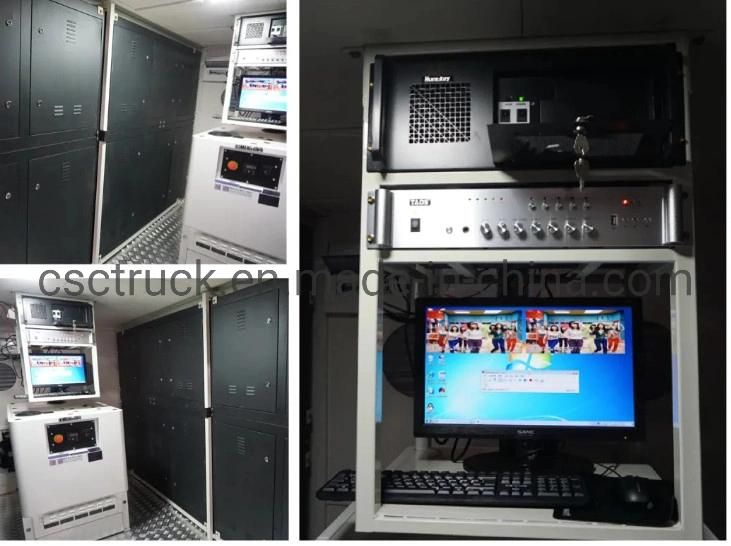

1 unit Computer

Laptop

1 video processor

1 set sound amplifier system,Power amplifier,

4pcsWaterproof column loudspeaker,distribution electricity box, hydraulic landing gear

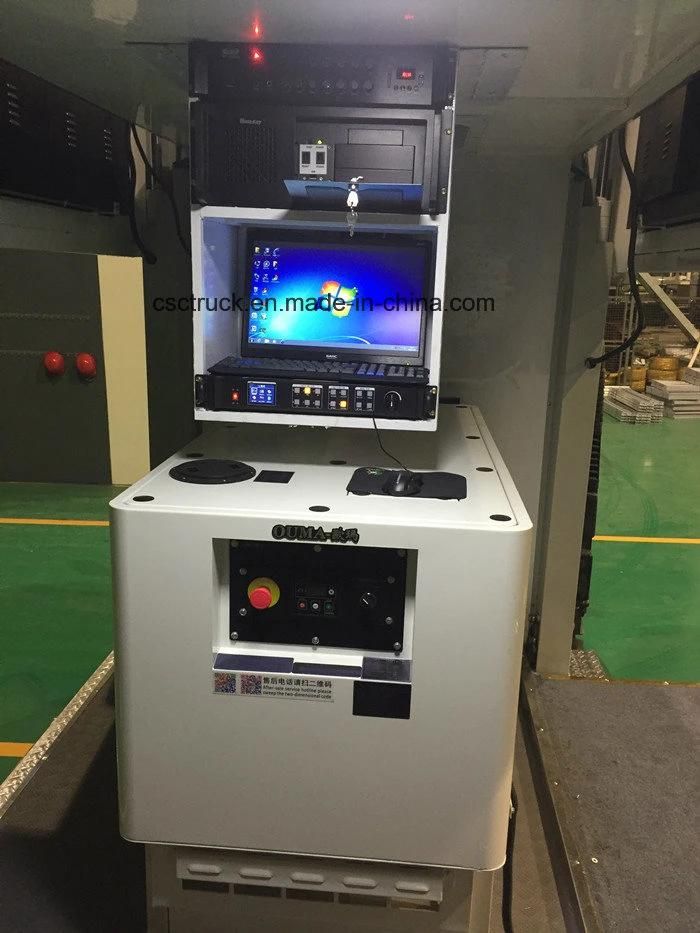

Detailed pictures of led truck:

Outdoor Usage P5/P6/P8 LED Advertising Truck Full Color LED Display Truck 2 Axles Display Screen Truck for Sale
Outdoor Usage P5/P6/P8 LED Advertising Truck Full Color LED Display Truck 2 Axles Display Screen Truck for Sale
Outdoor Usage P5/P6/P8 LED Advertising Truck Full Color LED Display Truck 2 Axles Display Screen Truck for Sale
Outdoor Usage P5/P6/P8 LED Advertising Truck Full Color LED Display Truck 2 Axles Display Screen Truck for Sale

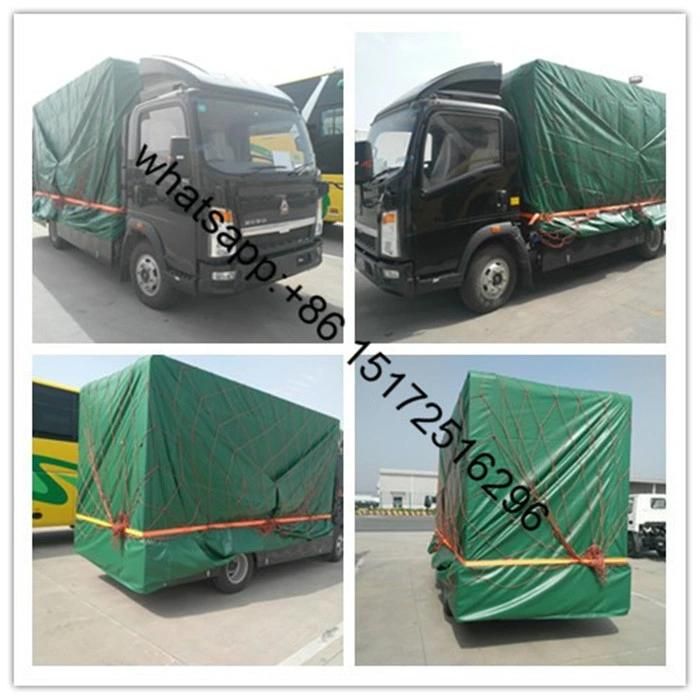

Packing and shipping:
Outdoor Usage P5/P6/P8 LED Advertising Truck Full Color LED Display Truck 2 Axles Display Screen Truck for Sale

Company information :


Xiagong Chusheng has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Outdoor Usage P5/P6/P8 LED Advertising Truck Full Color LED Display Truck 2 Axles Display Screen Truck for Sale

Our service:

Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
