18000L Vacuum Sewage Tanker Truck with High Pressure VAC Pump Battioni Pagani Mec 13500 Vacuum Pumps Suction Cesspool Sludge Sewer Waste Vacuum Suction Rhd. LHD
Hubei Dong Runze Special Vehicle Equipment Co., Ltd.- After-sales Service：24
- Warranty：24
- Certification：ISO9000, CCC
- Emission Standard：Euro 3 -5-6
- Payload：20T
- Transmission Type：Manual
Base Info
- Model NO.：Vacuum Sewage Tanker Truck
- Fuel：Diesel
- Tank Volume：16000~20000L
- Drive Wheel：8X4
- Hoesrpower：251-350hp
- Condition：New
- Tire：11.00r20 & 10+1
- Packaging Details：Bulk, RO-RO, Container
- Wheelbase (mm)：5350+1350
- Dongfeng Cummins Engine：Isd270 50
- Tank Material：Q235 Carbon Steel
- Transport Package：Nil
- Specification：Customizing
- Trademark：DRZE
- Origin：China
- HS Code：8705909990
- Production Capacity：10000
Description
Overview
Products Technical Specification
Type
6 * 4 Sewage Suction Truck
Brand
Dongfeng
Cab
One and half row
Vehicle Description
Overall dimensions (mm)
9240 * 2500 * 3460
G.V.W (kg)
25000
Curb weight(vehicle) (kg)
13480
Loading capacity (kg)
15000-20000
Max speed (Km/h)
90
Engine Description
Engine model
ISD270 50
Maximum power
198kw / 270hp
Displacement (L)
6.7
Chassis Description
Chassis Model
DFL1250A13
Wheel base (mm)
5350 + 1350
F / R track base (mm)
2040 / 1860
F / R overhang (mm)
1480 / 2060
Approach/Departure angle (°)
20 / 10
Spring plate
8 / 10
Front axle / rear axle load capacity (kg)
7000 / 18000
Type of fuel
Diesel
Gear box
6-speed with over drive
Brake system
Air braking
Operation control system
Power steering wheel
Electric system
24V
Tires&Tire quantity
11.00R20 & 10+1
Sewage Suction Tank Description
Tank volume (m3)
20 m3
Tank material
Q235 Carbon Steel
Thickness (mm)
Tank body:5mm End plate:6mm
The max.inclined angle
≥ 45°
Tank lifting time
≤ 45s
Rear cover open angle
≥ 75°
Rear cover open time
≤ 25s
Vacuum pump model
68 / 400
Vacuum pump manufacture
Yifeng Suizhou
Absolute vacuum pressure
≤ 0.007Mpa
Effective absorption distance
≥ 5M
The suction pipe diameter
100 mm
Power takeoff form
Sandwich power takeoff,full-power output

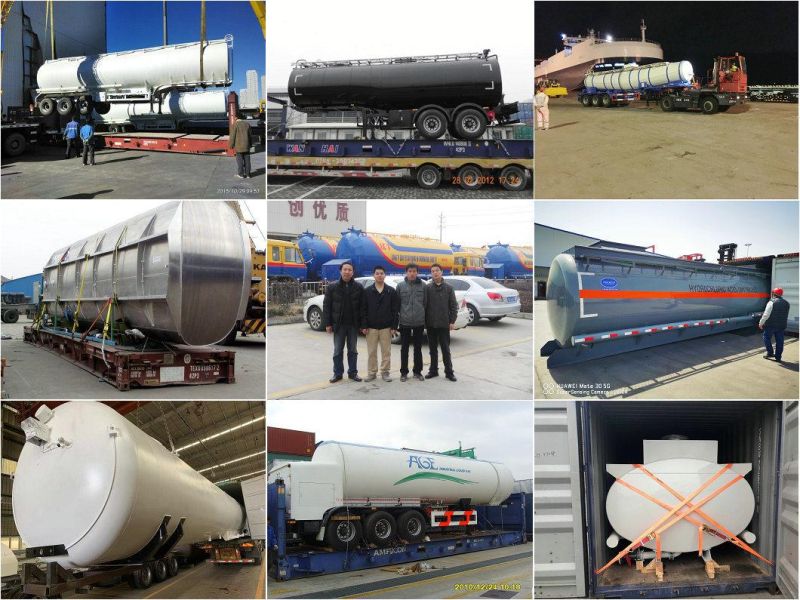

2. Packing and Shipping:
Truck is nude packing, shipping in container, in bulk , in ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!
3. Company Information:
Hubei Dong Runze Special Vehicle Equipment Co., Ltd. & TIC TRUCKS INDUSTRY CO.,LIMITED is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Our advantage:
(1) We have own factory located in Suizhou---the special truck town of China.We can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitve price.
(2) We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
(3) There is a stronge professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.
If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.
4. Our Service:
Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
We highly recommend this sewage suction tank truck. It's in an excellent condition and also with good quality and competitive price. Further information, pls feel free to cantact with me or visit our website, we will offer our best service.
If you have any requirements about special trucks, kindly let me know, I will do my best fo provide the most suitable type and competetive price for you.
Looking forward to receiving your inquiry!
2 .Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.
3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
4.Can you supply some quick-wear parts? Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.
6.Do you have any used products for sale? We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need.
7.What's the payment terms? TT 30% as deposit, balance before shipment by TT or at sight.
8. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
9.How can you ensure the quality of the products?
Cell: 0086 152 7135 7675
Vacuum Sewage Suction Truck vacuum tanker Jetting truck SINO SHACMAN,HOWO,DFL,HINO /UD,BENZ,MAN,IS.UZU 9-20m3 vacuum tanker beiben Vacuum Sewage Suction Truck
SINO SHACMAN ,DONGFENG DFL,FAW,BEIBEN NORTH BENZ , HOWO ,FOTON ,JAC IS.UZU Chassis,DF NISSAN-UD Chassis,HINO Chassis, JMC Chassis,JAC Chassis, Hongyan IVE CO, Hualing-CAMC Chassis,MAN chassis or tractor tank trailer and so on all are optioanl
1.Factory direct sale
2.Specialized in Trucks 10 years
3.a competitive price.
4.with CCC,ISO9001,SGS,ASME
5.chassis is optional SINO SHACMAN ,HOWO, DFL, HINO /UD, BENZ, MAN ,SUZU 4x2 ,4x4,6X4 ,6x6,8x4,8x8 .
6.Engine min horse power is 95HP - 115 hp - 120HP~ 240HP~380HP
7.the tank volume is 3000L~12000-18000L~20000L
8.the tank produce as you requiry
9. pump is vacuum pump .
10. The Rear cover can be opened.
Sewage Tank,Sewer JettingTruck,Vacuum Suction tanker , vacuum suction truck ,vacuum truck,Sewer Jet Truck ,vacuum sewage suction truck ,Septic Tank Truck ,Cesspit Emptier
Products Technical Specification
Type
6 * 4 Sewage Suction Truck
Brand
Dongfeng
Cab
One and half row
Vehicle Description
Overall dimensions (mm)
9240 * 2500 * 3460
G.V.W (kg)
25000
Curb weight(vehicle) (kg)
13480
Loading capacity (kg)
15000-20000
Max speed (Km/h)
90
Engine Description
Engine model
ISD270 50
Maximum power
198kw / 270hp
Displacement (L)
6.7
Chassis Description
Chassis Model
DFL1250A13
Wheel base (mm)
5350 + 1350
F / R track base (mm)
2040 / 1860
F / R overhang (mm)
1480 / 2060
Approach/Departure angle (°)
20 / 10
Spring plate
8 / 10
Front axle / rear axle load capacity (kg)
7000 / 18000
Type of fuel
Diesel
Gear box
6-speed with over drive
Brake system
Air braking
Operation control system
Power steering wheel
Electric system
24V
Tires&Tire quantity
11.00R20 & 10+1
Sewage Suction Tank Description
Tank volume (m3)
20 m3
Tank material
Q235 Carbon Steel
Thickness (mm)
Tank body:5mm End plate:6mm
The max.inclined angle
≥ 45°
Tank lifting time
≤ 45s
Rear cover open angle
≥ 75°
Rear cover open time
≤ 25s
Vacuum pump model
68 / 400
Vacuum pump manufacture
Yifeng Suizhou
Absolute vacuum pressure
≤ 0.007Mpa
Effective absorption distance
≥ 5M
The suction pipe diameter
100 mm
Power takeoff form
Sandwich power takeoff,full-power output
2. Packing and Shipping:
Truck is nude packing, shipping in container, in bulk , in ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!
3. Company Information:
Hubei Dong Runze Special Vehicle Equipment Co., Ltd. & TIC TRUCKS INDUSTRY CO.,LIMITED is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Our advantage:
(1) We have own factory located in Suizhou---the special truck town of China.We can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitve price.
(2) We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
(3) There is a stronge professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.
If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.
4. Our Service:
Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
We highly recommend this sewage suction tank truck. It's in an excellent condition and also with good quality and competitive price. Further information, pls feel free to cantact with me or visit our website, we will offer our best service.
If you have any requirements about special trucks, kindly let me know, I will do my best fo provide the most suitable type and competetive price for you.
Looking forward to receiving your inquiry!
1.Are you trading company or manufacturer ?
We are Group Corporation manufacturer ,have Group Factories Contractor.2 .Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.
3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
4.Can you supply some quick-wear parts? Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.
6.Do you have any used products for sale? We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need.
7.What's the payment terms? TT 30% as deposit, balance before shipment by TT or at sight.
8. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
9.How can you ensure the quality of the products?
Don't worry,dear.We have joined the trade assurance,if the products have quality problems when you received them,the payments can be refund to you.
Cell: 0086 152 7135 7675
Vacuum Sewage Suction Truck vacuum tanker Jetting truck SINO SHACMAN,HOWO,DFL,HINO /UD,BENZ,MAN,IS.UZU 9-20m3 vacuum tanker beiben Vacuum Sewage Suction Truck
SINO SHACMAN ,DONGFENG DFL,FAW,BEIBEN NORTH BENZ , HOWO ,FOTON ,JAC IS.UZU Chassis,DF NISSAN-UD Chassis,HINO Chassis, JMC Chassis,JAC Chassis, Hongyan IVE CO, Hualing-CAMC Chassis,MAN chassis or tractor tank trailer and so on all are optioanl
1.Factory direct sale
2.Specialized in Trucks 10 years
3.a competitive price.
4.with CCC,ISO9001,SGS,ASME
5.chassis is optional SINO SHACMAN ,HOWO, DFL, HINO /UD, BENZ, MAN ,SUZU 4x2 ,4x4,6X4 ,6x6,8x4,8x8 .
6.Engine min horse power is 95HP - 115 hp - 120HP~ 240HP~380HP
7.the tank volume is 3000L~12000-18000L~20000L
8.the tank produce as you requiry
9. pump is vacuum pump .
10. The Rear cover can be opened.
Sewage Tank,Sewer JettingTruck,Vacuum Suction tanker , vacuum suction truck ,vacuum truck,Sewer Jet Truck ,vacuum sewage suction truck ,Septic Tank Truck ,Cesspit Emptier
